Remarks:
· The length of Ll increased by 65mm
· The forward distance decreased by 60mm and the width of stacking channel increased by 65mm
· The max. outside distance of the fork as 700mm

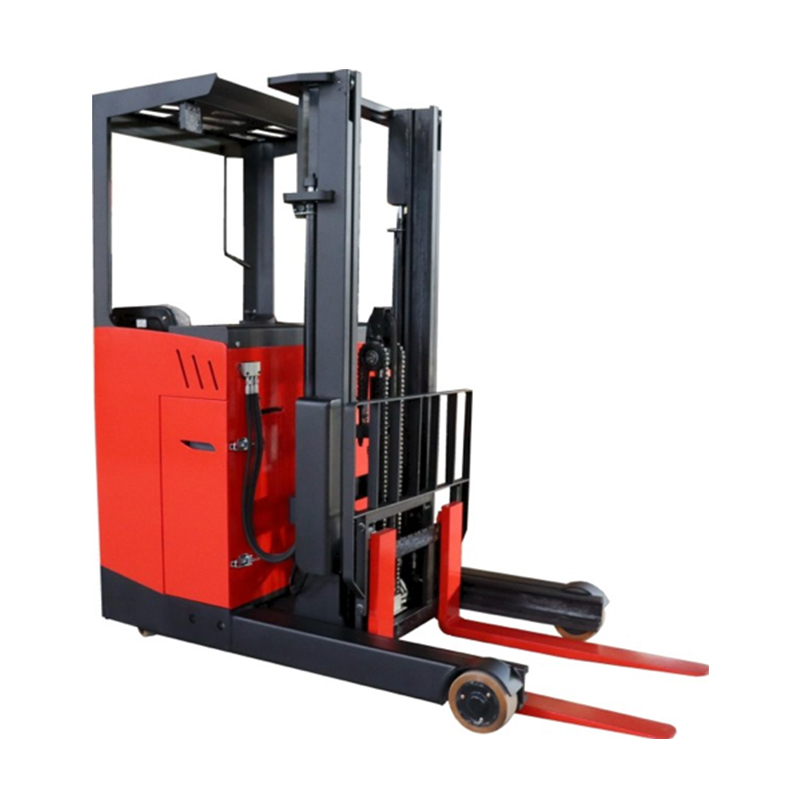

| Model | Unit | CQD15B | CQD20B | CQD20B |
| Type of power | Lead-acid battery | Lead-acid battery | Lead-acid battery | |
| Driving type | Seated-on type | Seated-on type | Seated-on type | |
| Rated load | Q(kg) | 1500 | 2000 | 2000 |
| Lifting height | 63mm | 6000 | 6000 | 3000 |
| Overall length | L1(mm) | 2343 | 2378 | 2378 |
| Overall width | b1/b2(mm) | 1090 | 1090 | 1090 |
| Fork dimensions | s/e/l(mm) | 35/100/1070 | 40/122/1070 | 40/122/1070 |
| Outside width of forks | b5(mm) | 240-700 | 266-700 | 266-700 |
| Inside width of support legs | b4(mm) | 802 | 802 | 802 |
| Mast closed height | h1(mm) | 2631 | 2631 | 2100 |
| Free Lifting height | h2(mm) | 2030 | 2030 | |
| The max.height of the mast during lifflng (including load backrest) | bA(mm | 7005 | 7005 | 4055 |
| The height of the overhead guard | b⁶(mm | 2190 | 2190 | 2190 |
| Height of station board | h7(mm) | 310 | 310 | 310 |
| Wdth of load backrest | b3(mm) | 950 | 950 | 950 |
| Forward distance | L4(mm) | 550 | 620 | 620 |
| Min.height of mast off the ground | mm | 107 | 107 | 107 |
| Height of vehlcle off the ground | m(mm) | 65 | 65 | 65 |
| Battery,voltage/rated capaclty | V/Ah | 24/280 | 24/280 | 24/280 |
| Weight of battery | kg | 245 | 245 | 245 |
| Vehicle weight (including battery) | kg | 2600 | 2750 | 2375 |
| Driving motor power(S2-60mln) | kw | 22 | ||
| Lifting motorpower | kw | 3 | 2 | 2 |
| Tire | Polyurethane | |||
| Tlre dimensions drlve wheel | mm | Φ210×85 | Φ210x85 | Φ210×85 |
| Tire dimensions load wheel | mm | Φ230×75 | Φ230x75 | Φ230×75 |
| Dimension of balance wheel | mm | Φ130×55 | Φ130×55 | Φ130×55 |
| Number of wheel front/rear (x=drive wheel) | 2/1x-2 | 2/1x-2 | 2/1x-2 | |
| Wheel track,drlve side | mm | 844 | 844 | 844 |
| Wheel track,bear slde | mm | 989 | 989 | 989 |
| The forkleanforward/backward | 2/4 | 2/4 | 2/4 | |
| Wheelbase | y(mm) | 1373 | 1493 | 1493 |
| Load center | CImm | 500 | 500 | 500 |
| Front overhang | x(mm) | 162 | 142 | 142 |
| Tun radius | Wa(mm | 1723 | 1830 | 1830 |
| Stacking channel width(pallet 1000x1200)1200 coss-fork directlon | Ast(mm) | 2775 | 2830 | 2820 |
| Stacking channel width(pallet 800x1200)1200 along the fork direction | Ast(mm) | 2820 | 2860 | 2840 |
| Full axie load,fork forward,drive side/beu slde | kg | 797/3303 | 727/3993 | 759/3616 |
| Full axie load,fork recovery,drive side/beat side | kg | 1775/2325 | 2105/2615 | 1851/2524 |
| No-load axie load,drive side/load-bear slde | kg | 1872/7728 | 1992/728 | 1854/521 |
| Driving speed,fuload/no load | km/h | 4.0/5.0 | 4.0/5.0 | 4.0/5.0 |
| Lifting speed,full load/no load | mm/s | 80/150 | 75/150 | 75/150 |
| Descent speed,full load/no load | mm/s | 160/105 | 200/105 | 200/105 |
| Max.climbing.full load/no load(S2-5mim) | % | 5.0/8.0 | 4.0/8.0 | 4.0/8.0 |
| Braking type | Electromagnetic brake | Electromagnetic brake | Electromagnetic brake | |
| Steering type | Electronlc steering | Electronlc steering | Electronlc steerlng | |
| Battery replacement method | Side pull type | Side pull type | Side pull type |
