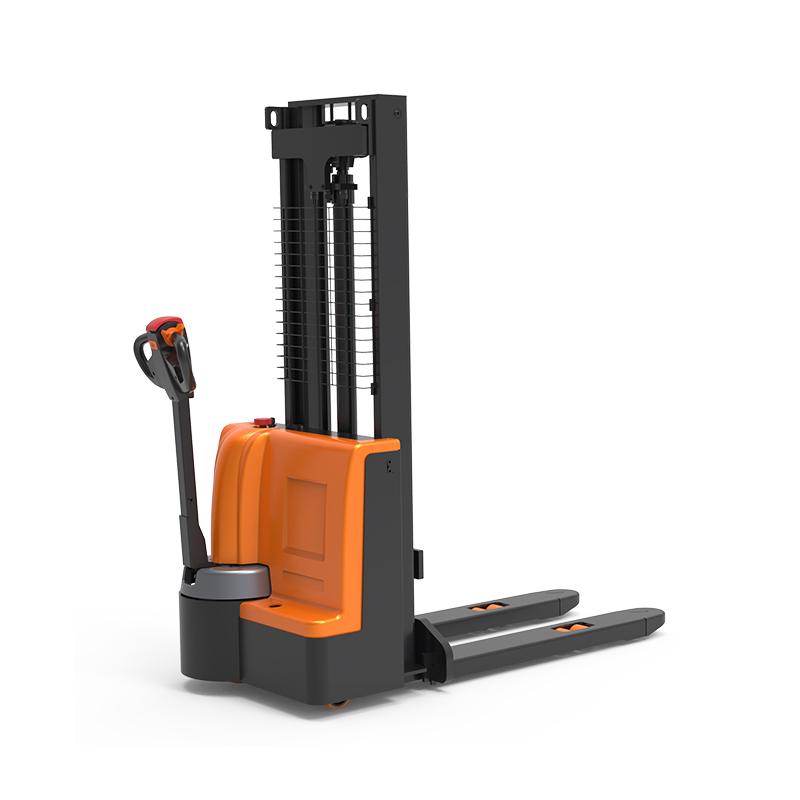

· High quality AC drive ensures good performanceand reduces maintenance cost
· Ergonomic handle design, easy to operatee
· Large capacity batteryenables longer operation
· Various mast designs meet different height demands
| Model | Unit | PSL15-1.6 | PSL15-2.0 | PSL15-2.5 | PSL15-3.0 | PSL15-3.5 | ||
| PSL20-1.6 | PSL20-2.0 | PSL20-2.5 | PSL20-3.0 | PSL20-3.5 | ||||
| Characters | Driving mode | Electrical | ||||||
| Operation type | Walking style | |||||||
| Load capacity | Q(kg) | 1500/2000 | ||||||
| Load center distance | C(mm) | 400 | ||||||
| Front overhang | X(mm) | 715 | ||||||
| Wheel base | Y(mm) | 1125 | ||||||
| Wheels& chassis | Material | PU | ||||||
| Balance wheel sizexquantity | mm | Φ110×50×1 | ||||||
| Load-bearing wheel size x quantity | mm | Φ80×70×4 | ||||||
| Drive wheel diameter | mm | Φ190 | ||||||
| Center distance between drving wheel and balance wheel | A1(mm) | 512 | ||||||
| Center distance of load-bearing wheels | A2(mm) | 1.5T | 515/390 | |||||
| 2T | 505/380 | |||||||
| Basic size | Minimum height of mast | H1(mm) | 2080 | 1496 | 1746 | 1996 | 2246 | |
| Free helght gain | 51 | |||||||
| Lifting helght | H(mm) | 1600 | 2000 | 2500 | 3000 | 3500 | ||
| Maximum helght of mast during operation | H2(mm) | 2413 | 2913 | 3413 | 3913 | |||
| Minimum height of fork | H3(mm) | ≤90 | ||||||
| Overallength | L1(mm) | 1722 | ||||||
| Body size | L2xL4(mm) | 406×780 | ||||||
| Fork size | s/e/L5 (mm) | 1.5T | 62×170x1150 | |||||
| 2T | 62×180×1150 | |||||||
| Fork outer width | L3(mm) | 685/560 | ||||||
| Ground clearance | H5(mm) | 14 | ||||||
| Aisle width for pallet 800×1200 | Ast(mm) | 2000 | ||||||
| Turning radius | mm | 1800 | ||||||
| Performance | Driving speed fully loaded and unloaded | km/h | 3/4 | |||||
| Increase speed with full load and no load | m/s | 0.043/0.056 | ||||||
| Max.gradeablity fully loaded and unloaded | % | 6/12 | ||||||
| Cycle working time | H | ≥4 | ||||||
| Service braking method | Electromagnetic brake | |||||||
| Power | Drive motor rating | kw | AC48V/1kw | |||||
| Oil pump motor power | kw | 1.5T | DC1.6 | |||||
| 2T | DC2.2 | |||||||
| Battery voltage and capacity | V/Ah | 12V×40Ahx4 | ||||||
| Battery weight | kg | 10.2×4 | ||||||
| Battery type | Lead-acld batteries | |||||||
| Others | Drive control type | Electric control | ||||||
| Weight | kg | 1.5T | 405 | 433 | 455 | 477 | 499 | |
| 2T | 412 | 451 | 482 | 513 | 545 | |||
| Noise level | dB(A) | ≤70 | ||||||
| Frame type | Stage | 1 | 2 | |||||
