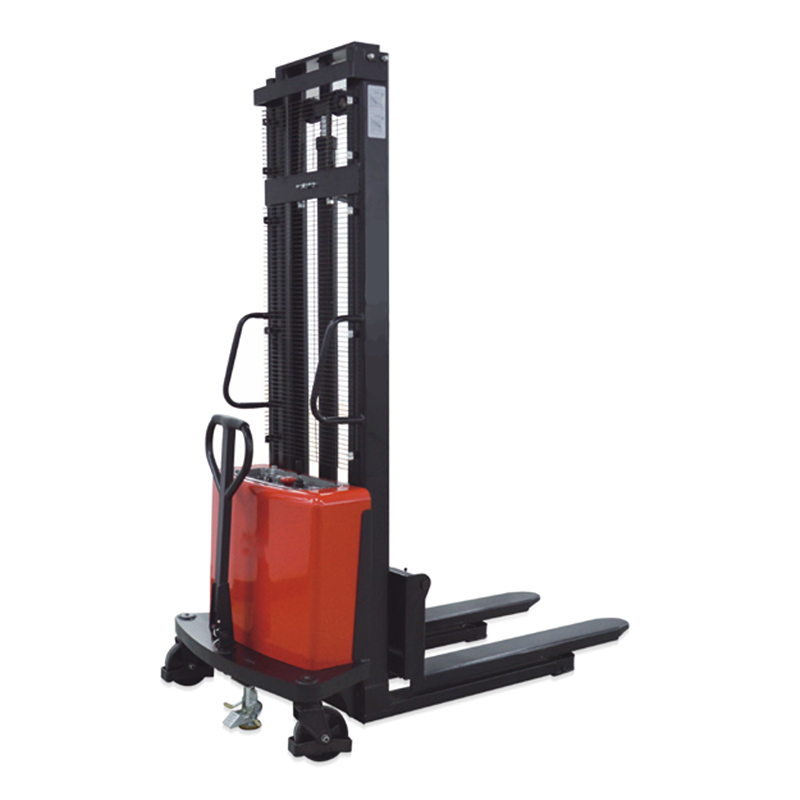

Model | Unit | CTD-A10/15/20 | |||
Performance | Load capacity | kg | 1000/1500/2000 | ||
Load center | mm | 500 | |||
Dimensions | Overall length | mm | 1877 | ||
Overall width | mm | 770 | |||
Wheelbase | mm | 1300 | |||
Fork size (length x width x thickness) | mm | 1150x160×55 | |||
Fork outside width | mm | 670 | |||
Fork lowered height | mm | 85 | |||
Ground clearance | mm | 28 | |||
Minimum turning radius | mm | 1625 | |||
Wheel | Front wheel | mm | 80×70 | ||
Caster wheel | mm | 180×50 | |||
Electrical Components | Rated output(DC motor) | kw | 1.6 | ||
Battery | Voltag | V | 12 | ||
Capacity | Ah | 120 | |||
Mast Type | Max.Lifting Height | Mast Overall Height | Helght Mast Extended | Service Weight | |
Simplex Mast | 1600mm | 2080mm | 2080mm | 350kg | |
2-Stage Mast | 2000mm | 1580mm | 2550mm | 415kg | |
2500mm | 1830mm | 3050mm | 435kg | ||
3000mm | 2080/1980mm | 3550/3450mm | 450kg | ||
3500mm | 2330mm | 4050mm | 490kg |
Model | Unit | CTD-A10/15/20 | |||
Performance | Load capacity | kg | 1000/1500/2000 | ||
Load center | mm | 500 | |||
Dimensions | Overall length | mm | 1877 | ||
Overall width | mm | 770 | |||
Wheelbase | mm | 1300 | |||
Fork size (length x width x thickness) | mm | 1150x160×55 | |||
Fork outside width | mm | 670 | |||
Fork lowered height | mm | 85 | |||
Ground clearance | mm | 28 | |||
Minimum turning radius | mm | 1625 | |||
Wheel | Front wheel | mm | 80×70 | ||
Caster wheel | mm | 180×50 | |||
Electrical Components | Rated output(DC motor) | kw | 1.6 | ||
Battery | Voltag | V | 12 | ||
Capacity | Ah | 120 | |||
Mast Type | Max.Lifting Height | Mast Overall Height | Helght Mast Extended | Service Weight | |
Simplex Mast | 1600mm | 2080mm | 2080mm | 350kg | |
2-Stage Mast | 2000mm | 1580mm | 2550mm | 415kg | |
2500mm | 1830mm | 3050mm | 435kg | ||
3000mm | 2080/1980mm | 3550/3450mm | 450kg | ||
3500mm | 2330mm | 4050mm | 490kg |
