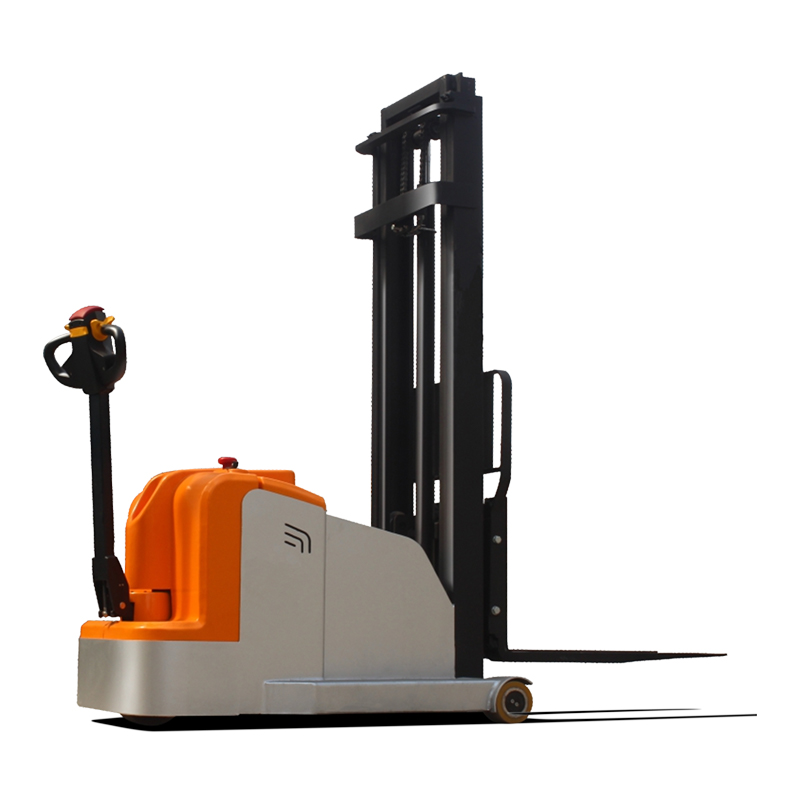

Model | Unit | CPDB 09W-30 | CPDB10W-30 | CPDB12W-30 | |
Characters | Power | Electric | |||
Operatlon mode | Walking type | ||||
Rated load capaclty | Q(kg) | 900 | 1000 | 1200 | |
Load center | C(mm) | 500 | 500 | 500 | |
Front overhang | X(mm) | 71 | 71 | 85 | |
Wheel base | Y(mm) | 1070 | 1340 | 1312 | |
Weight | Self-welght with battery | kg | 1290 | 1320 | 1480 |
Wheels& chassis | Wheel type(tront/rear) | PU | PU | PU | |
Front wheel | Φxw(mm) | Φ140x100 | Φ140×100 | Φ210x85 | |
Rear wheel | Φxw(mm) | Φ210×70 | Φ210×70 | Φ250×80 | |
Wheel track,front wheel | b2(mm) | 816 | 816 | 801 | |
Dimenslon | Helght when the mast Is retracted | H1(mm) | 2065 | 2065 | 2115 |
Free lifting helght | b²1mm) | 0 | 0 | 0 | |
Lifting helght | H(mm) | 3000 | 3000 | 3000 | |
Max.helght of mast when lffing | H2(mm) | 3913 | 3913 | 3913 | |
Fork height when mast retracts | H3(mm) | 35 | 35 | 35 | |
Vehicle length | L(mm) | (2395)2245 | (2395)2245 | (2558)2408 | |
Vehicle body width | b1(mm) | 916 | 916 | 886 | |
Fork size | s/e/L(mm) | (1070)920x100x35 | (1070)920x100x35 | (1070)920x100x35 | |
Fork adjustment | b5(mm) | 200-580 | 200-580 | 200-580 | |
Min.ground clearance(wheelbase center) | m2(mm) | 40 | 40 | 72 | |
Stacking channel width,pallet 1000x1200 (1200 placed across forks) | Ast(mm) | 2720 | 2956 | 2846 | |
Stacking channel width,pallet 1000x1200 (1000 placed across forks) | Ast(mm) | 2859 | 3094 | 3083 | |
Min.tuning radlus | Wa(mm) | 1257 | 1528 | 1480 | |
Performance | Drlving speed,no load/full load | km/h | 4.0/3.5 | 4.0/3.5 | 4.0/3.5 |
Lifting speed,no load/full load | m/s | 0.215/0.145 | 0.215/0.130 | 0.215/0.130 | |
Lowering speed,no load/tull load | m/s | 0.105/0.125 | 0.105/0.130 | 0.105/0.130 | |
Max.gradeabillty,no load/full load | % | 5.0/4.5 | 5.0/4.0 | 5.0/4.0 | |
Service brake | Electromagnetic | Electromagnetlc | Electromagnetic | ||
Motor | Driving motor power | kw | 0.75 | 0.75 | 1.5 |
Lifting motor power | kw | 2.2 | 2.2 | 2.2 | |
Battery | Lead-acld battery | Lead-acid battery | Lead-acld battery | ||
Battery voltage/capacitance | V/Ah | 24/100 | 24/100 | 24/150 | |
Charger | V/A | 24/10 | 24/10 | 24/25 | |
Others | Driving control mode | DC | DC | AC | |
The nolse level in the drivers ear is based on EN12053 | dB(A) | 70 |
Model | Unit | CPDB 09W-30 | CPDB10W-30 | CPDB12W-30 | |
Characters | Power | Electric | |||
Operatlon mode | Walking type | ||||
Rated load capaclty | Q(kg) | 900 | 1000 | 1200 | |
Load center | C(mm) | 500 | 500 | 500 | |
Front overhang | X(mm) | 71 | 71 | 85 | |
Wheel base | Y(mm) | 1070 | 1340 | 1312 | |
Weight | Self-welght with battery | kg | 1290 | 1320 | 1480 |
Wheels& chassis | Wheel type(tront/rear) | PU | PU | PU | |
Front wheel | Φxw(mm) | Φ140x100 | Φ140×100 | Φ210x85 | |
Rear wheel | Φxw(mm) | Φ210×70 | Φ210×70 | Φ250×80 | |
Wheel track,front wheel | b2(mm) | 816 | 816 | 801 | |
Dimenslon | Helght when the mast Is retracted | H1(mm) | 2065 | 2065 | 2115 |
Free lifting helght | b²1mm) | 0 | 0 | 0 | |
Lifting helght | H(mm) | 3000 | 3000 | 3000 | |
Max.helght of mast when lffing | H2(mm) | 3913 | 3913 | 3913 | |
Fork height when mast retracts | H3(mm) | 35 | 35 | 35 | |
Vehicle length | L(mm) | (2395)2245 | (2395)2245 | (2558)2408 | |
Vehicle body width | b1(mm) | 916 | 916 | 886 | |
Fork size | s/e/L(mm) | (1070)920x100x35 | (1070)920x100x35 | (1070)920x100x35 | |
Fork adjustment | b5(mm) | 200-580 | 200-580 | 200-580 | |
Min.ground clearance(wheelbase center) | m2(mm) | 40 | 40 | 72 | |
Stacking channel width,pallet 1000x1200 (1200 placed across forks) | Ast(mm) | 2720 | 2956 | 2846 | |
Stacking channel width,pallet 1000x1200 (1000 placed across forks) | Ast(mm) | 2859 | 3094 | 3083 | |
Min.tuning radlus | Wa(mm) | 1257 | 1528 | 1480 | |
Performance | Drlving speed,no load/full load | km/h | 4.0/3.5 | 4.0/3.5 | 4.0/3.5 |
Lifting speed,no load/full load | m/s | 0.215/0.145 | 0.215/0.130 | 0.215/0.130 | |
Lowering speed,no load/tull load | m/s | 0.105/0.125 | 0.105/0.130 | 0.105/0.130 | |
Max.gradeabillty,no load/full load | % | 5.0/4.5 | 5.0/4.0 | 5.0/4.0 | |
Service brake | Electromagnetic | Electromagnetlc | Electromagnetic | ||
Motor | Driving motor power | kw | 0.75 | 0.75 | 1.5 |
Lifting motor power | kw | 2.2 | 2.2 | 2.2 | |
Battery | Lead-acld battery | Lead-acid battery | Lead-acld battery | ||
Battery voltage/capacitance | V/Ah | 24/100 | 24/100 | 24/150 | |
Charger | V/A | 24/10 | 24/10 | 24/25 | |
Others | Driving control mode | DC | DC | AC | |
The nolse level in the drivers ear is based on EN12053 | dB(A) | 70 |
