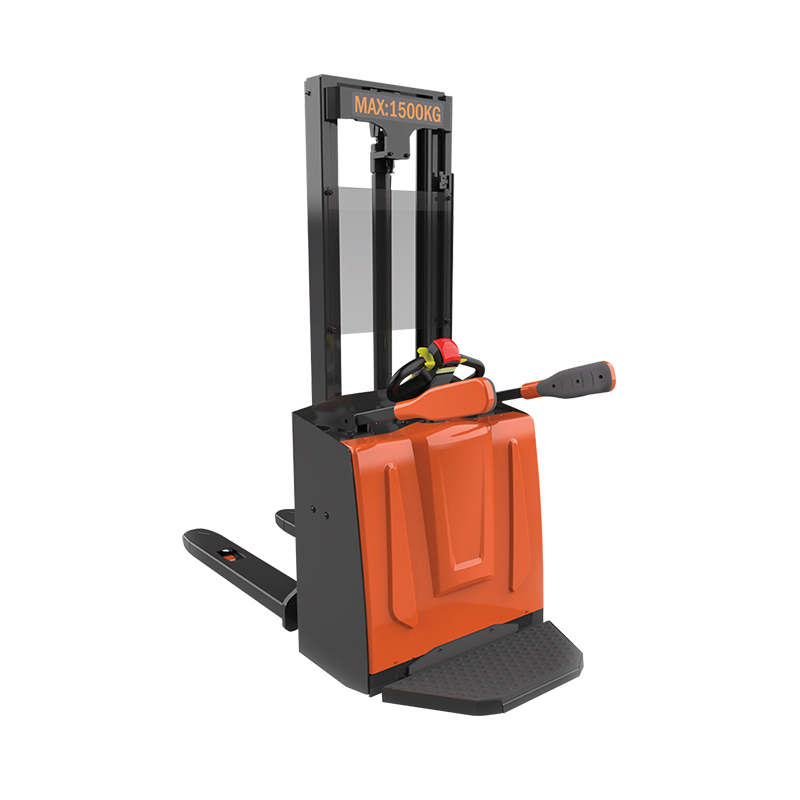

Standard configuration:
· Optional electronic steering system.
· High quality communication drive wheels ensure high performance and reduce maintenance costs.
· In 2016, won the most influential design award in China, the Chinese Design Red Star Award.
· The foldable pedal with rubber lining provides greater flexibility when operating in narrow spaces, and prolonged operation effectively reduces labor intensity.
Model | Unit | PSP15-1.6 | PSP15-2.0 | PSP15-2.5 | PSP15-3.0 | PSP15-3.5 | |
Characters | Drlving mode | Electrical | |||||
Operation type | Stand-up | ||||||
Load capacity | Q(kg) | 1500 | |||||
Load center distance | C(mm) | 400 | |||||
Front overhang | X(mm) | 715 | |||||
Wheel base | Y(mm) | 1125 | |||||
Wheels& chassis | Wheel material | PU | |||||
Balance wheel sizexquantity | mm | Φ110×50×2 | |||||
Load-bearing wheel sizexquantity | mm | Φ80×70×4 | |||||
Drlve wheel diameter | mm | Φ210 | |||||
Center dlstance between driving wheel and balance wheel | A1(mm) | 523 | |||||
Center distance of load-bearing wheels | A2(mm) | 505 | |||||
Basic size | Minimum height of mast | H1(mm) | 2080 | 1500 | 1750 | 1990 | 2246 |
Free height gain | 51 | ||||||
Lifting helght | H(mm) | 1600 | 2000 | 2500 | 3000 | 3500 | |
Maximum helght of mast durlng operatlon | H2(mm) | 2410 | 2910 | 3410 | 3913 | ||
Minimum helght of fork | H3(mm) | ≤90 | |||||
Overalength | L1(mm) | 1850 | |||||
Box length | L2xL4(mm) | 443×820 | |||||
Fork size | s/e/L5(mm) | 62×170×1150 | |||||
Fork outer wldth | L3(mm) | 685 | |||||
Ground clearance | H5(mm) | 14 | |||||
Aisle width for pallet 800x1200 | Ast(mm) | 2100 | |||||
Tuning radlus | mm | 1950 | |||||
Pertomance | Drlving speed fully loaded and unloaded | km/h | 5/6 | ||||
Increase speed with full load and no load | m/s | 0.043/0.056 | |||||
Max.gradeabillty fully loaded and unloaded | % | 6/12 | |||||
Service braking method | Electromagnetic brake | ||||||
Power | Drive motor rating | V/kw | AC48V/1.2kw | ||||
Oil pump motor power | kw | DC1.6 | |||||
Battery voltage and capaclty | V/Ah | 12V×60Ahx4 | |||||
Battery weight | kg | 17x4 | |||||
Battery type | Lead-acid batterles | ||||||
Others | Drlve control type | Electric control | |||||
Noise level | dB(A) | ≤70 | |||||
Frame type | Stage | 1 | 2 |
