| Rated Loading Capacity: | |
|---|---|
| Lifting Height: | |
| Quantity: | |

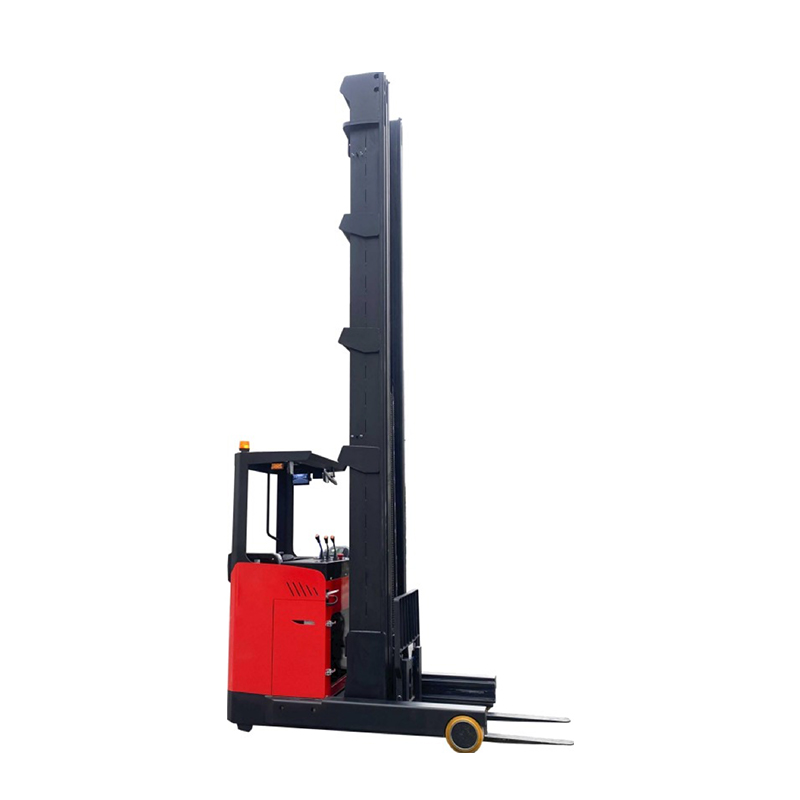

| Model | Unit | CQD20H | CQD25H |
| Type of power | Lead-acid battery | Lead-acid battery | |
| Driving type | Seated-on type | Seated-on type | |
| Rated load | Q(kg) | 2000 | 2500 |
| Lifting height | h3(mm) | 12000 | 12000 |
| Overall length | L1(mm) | 2555 | 2555 |
| Overall width | b1/b2(mm) | 1270/1400 | 1270/1400 |
| Fork dimensions | s/e/l(mm) | 40/122/1070 | 40/122/1070 |
| Outside width of forks | b5(mm) | 266-750 | 266-750 |
| Inside width of support legs | b4(mm) | 1020 | 1020 |
| The tark lean forward/backward | 。 | 2/4 | 2/4 |
| Mast closed height | h1(mm) | 5020 | 5020 |
| Free lifting height | h2(mm) | 4020 | 4020 |
| The max.height of the mast during lifting (including load backrest) | b4(mm | 13025 | 13025 |
| The height of the overhead guard | h6(mm) | 2190 | 2190 |
| Height of station board | h7(mm) | 316 | 316 |
| Width of load backrest | b3(mm) | 1060 | 1060 |
| Forward distance | L4(mm) | 545 | 640 |
| Min.height of mast off the ground | mm | 100 | 100 |
| Height of vehicle off the ground | m(mm) | 70 | 70 |
| Battery,voltage/rated capacity | V/Ah | 48/400 | 48/400 |
| Weight of battery | kg | 665 | 665 |
| Vehicle weight (including battery) | kg | 5050 | 5100 |
| Driving motor power(S2-60min) | kw | 6.5(AC) | 6.5(AC) |
| Lfting motor power | kw | 8.6 | 8.6 |
| Tire | Polyurethane | Polyurethane | |
| Tire dimensions drive wheel | mm | φ343×135 | φ343×135 |
Tire dimensions load wheel | mm | φ267x114 | φ267×135 |
| Dimension of balance wheel | mm | φ100×50 | φ100x50 |
| Number of wheel front/rear(x=drive wheel) | 2/1x-2 | 2/1x-2 | |
| Wheel track,drive side | mm | 960 | 960 |
| Wheel track,bear side | mm | 1280 | 1305 |
| Wheelbase | y(mm) | 1600 | 1695 |
| Load center | C(mm) | 500 | 500 |
| Front overhang | x(mm) | 190 | 190 |
| Tum radius | Wa(mm) | 1880 | 1975 |
| Stacking channel wldth(pallet 1000x1200)1200 coss-fork direction | Ast(mm) | 2960 | 2985 |
| Stacking channel width (pallet 800x1200)1200 along the fork direction | Ast(mm) | 3015 | 3025 |
| Full axie load,fork forward,drive side/beu side | kg | 2270/4780 | 1230/6370 |
| Full axle load,fork recovery,drive side/beat side | kg | 2850/4200 | 3090/4510 |
| No-load axie load,drive side/load-bear side | kg | 3020/2030 | 3150/1950 |
| Driving speed,full oad/no load | km/h | 7.8/8 | 7.8/8 |
| Lifting speed,full load/no load | mm/s | 140/300 | 120/260 |
| Descent speed,full load/no load | mm/s | 350/200 | 350/180 |
| Max.climbing.full load/no load(S2-5mim) | % | 10 | 8/10 |
| Braking type | Electromagnetic brake | Electromagnetic brake | |
| Steering type | Electronic | Electronic | |
| Battery replacement method | Side pull type | Side pull type |
