Remarks:
· The length of L1 increased by 65mme
· The forward distance decreased by 60mm and the width of stacking channel increased by 65mm
· The max, outside distance of the fork as 700mm

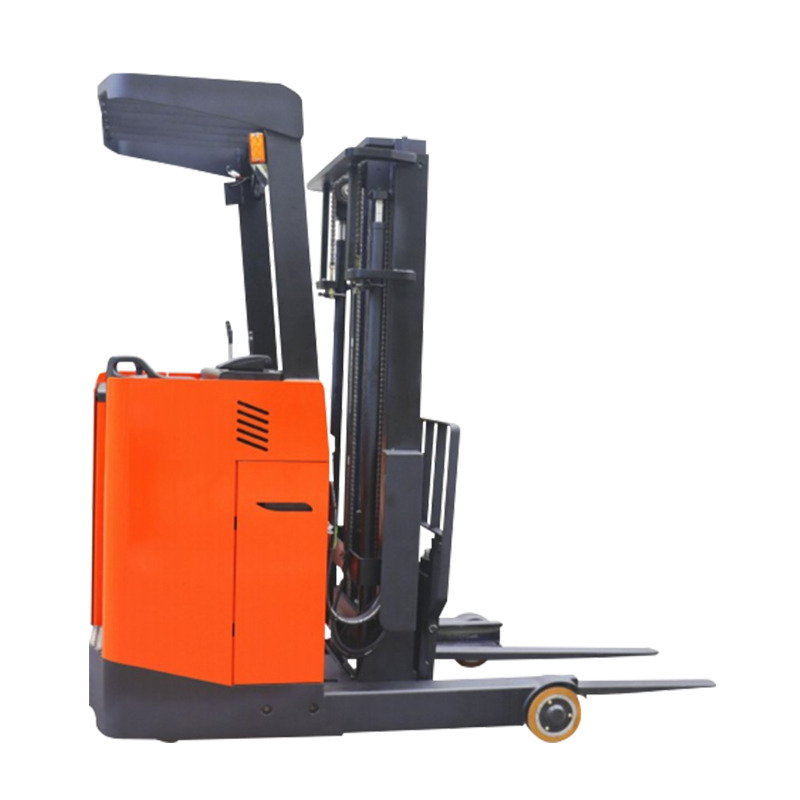

Model | Unit | CQD15C | CQD20C | CQD20C |
Type of power | Lead-acid battery | Lead-acld battery | Lead-acld battery | |
Driving type | Side stand-on type | Slde stand-on type | Side stand-on type | |
Rated load | Q(kg) | 1500 | 2000 | 2000 |
Lifting height | h3(mm) | 6000 | 6000 | 3000 |
Overall length | L1(mm) | 2355 | 2385 | 2385 |
Overall width | b1/b2(mm) | 1090 | 1090 | 1090 |
Fork dimensions | s/e/l(mm) | 35/100/1070 | 40/122/1070 | 40/122/1070 |
Outside width of forks | b5(mm) | 240-700 | 266-700 | 266-700 |
Inside width of support legs | b4(mm) | 802 | 802 | 802 |
The tark lean forward/backward | 2/4 | 2/4 | 2/4 | |
Mast closed height | h1(mm) | 2631 | 2631 | 2100 |
Free lifting height | h2(mm) | 2030 | 2030 | |
The max.height of the mast during lifting (Including load backrest) | h4(mm) | 7005 | 7005 | 4055 |
Width of load backrest | b3(mm) | 950 | 950 | 950 |
The height of the overhead guard | h6(mm) | 2265 | 2265 | 2265 |
Height of station board | h7(mm) | 350 | 350 | 350 |
rctd distance | L4(mm) | 550 | 620 | 620 |
Min.height of mast off the ground | mm | 107 | 107 | 107 |
Height of vehicle off the ground | m(mm) | 65 | 65 | 65 |
Battery,voltage/rated capacity | V/Ah | 24/280 | 24/280 | 24/280 |
Weight of battery | kg | 245 | 245 | 245 |
Vehicle weight (including battery) | kg | 2540 | 2700 | 2360 |
Driving motor power (S2-60min) | kw | 22 | 22 | 22 |
Lifting motor power | kw | 3 | 3 | 3 |
Tire | Polyurethane | Polyurethane | Polyurethane | |
Tire dimensions drive wheel | mm | Φ210×85 | Φ210×85 | Φ210×85 |
Tire dimensions load wheel | mm | Φ230×75 | Φ230×75 | Φ230×75 |
Dimension of balance wheel | mm | Φ150×50 | Φ150×50 | Φ150×50 |
Number of wheel front/rear(x=drlve wheel) | 2/1x-2 | 2/1x-2 | 2/1x-2 | |
Wheel track,drive side | mm | 693 | 693 | 693 |
Wheel track,bear side | mm | 989 | 989 | 989 |
Wheelbase | y(mm) | 1434 | 1554 | 1554 |
Load center | C(mm) | 500 | 500 | 500 |
Front overhang | x(mm) | 194 | 174 | 152 |
Tun radlus | Wa(mm) | 1682 | 1800 | 1800 |
Stacking channel width(pallet 1000x1200)1200 coss-fork direction | Ast(mm) | 2775 | 2830 | 2820 |
Stacking channel width(pallet800x1200)1200 along the fork dlrectlon | Ast(mm) | 2830 | 2865 | 2845 |
Full axie load,fork forward,drive side/beu slde | kg | 569/3471 | 583/4117 | 557/3813 |
Full axie load,fork recovery,drive side/beat side | kg | 1305/2735 | 1770/2930 | 1608/2762 |
No-load axie load,drive slde/load-bear side | kg | 1670/870 | 1842/858 | 1618/742 |
Drivng speed,full load/no load | m/h | 4.0/5.0 | 4.0/5.0 | 4.0/5.0 |
Lifting speed,full load/no load | mm/s | 80/150 | 75/150 | 75/150 |
Descent speed,full load/no load | mm/s | 160/105 | 200/105 | 200/105 |
Max.climbing,full load/no load(S2-5mim) | % | 5.0/8.0 | 4.0/8.0 | 4.0/8.0 |
Braking type | Electromagnetic brake | Electromagnetic brake | Electromagnetic brake | |
Steering type | Electronic steering | Electronic steering | Electronic steering | |
Battery replacement method | Side pull type | Side pull type | Side pull type |
