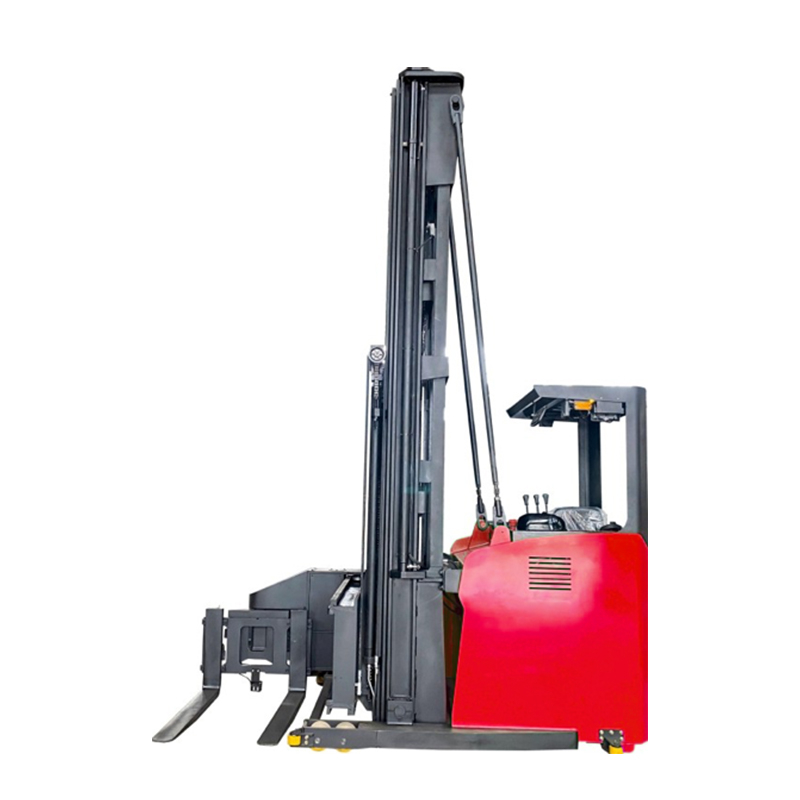

Model | Unit | CSD15 |
Type of power | Lead-acid battery | |
Driving type | Seated-on type | |
Rated load | Q(kg) | 1500 |
Lifting height | h3(mm) | 9000 |
Overall length | L1(mm) | 3030 |
Overall width | b1/b2(mm) | 1575 |
Fork dimensions | s/e/l(mm) | 45/125/1200 |
Outside width of forks | b5(mm) | 760 |
Mast closed height | h1(mm) | 4310 |
Free lifting height | h2(mm) | 3115 |
Max.height of mast during Iifting(lncluding load backrest) | h4(mm) | 10160 |
Height of overhead guard | h6(mm) | 2190 |
Height of station board | h7(mm) | 316 |
Min.height of mast off the ground | mm | 50 |
Height of vehicle off the ground | m(mm) | 40 |
Battery,voltage/rated capacity | V/Ah | 48/420 |
Weight of battery | kg | 665 |
Vehicle weight (lncluding battery) | kg | 7300 |
Driving motor power(S2-60min) | kw | 6.5(AC) |
LIfting motor power | kw | 8.6(DC) |
Tire | Polyurethane | |
Tire dimensions drive wheel | mm | Φ400×140 |
Tire dimensions load wheel | mm | Φ140×127 |
Dimension of balance wheel | mm | Φ100×50 |
Number of wheel front/rear(x=drlve wheel) | 4/1x-2 | |
Wheel track,drive side | mm | 960 |
Wheel track,bear side | mm | 1323 |
Wheelbase | y(mm) | 1700 |
Load center | C(mm) | 600 |
Front overhang | x(mm) | 675 |
Turn radius | Wa(mm) | 1990 |
Stacking channel width (1t pallet 1000x1000)(1.5t pallet1200x1200) | Ast(mm) | 1620 |
Min.main channel(1t pallet 1000x1000)(1.5t pallet1200x1200) | Ast(mm) | 3675 |
Full load axie load,drive side/bear slde | kg | 2700/6100 |
No-load axie load,drive side/bear side | kg | 3350/3950 |
Driving speed,full load/no load | km/h | 7.8/8 |
Lifting speed,full load/no load | mm/s | 140/300 |
Descent speed,full load/no load | mm/s | 300/160 |
Braking type | Electromagnetic brake | |
Steering type | Electronic steering | |
Battery replacement method | Side pulltype |
