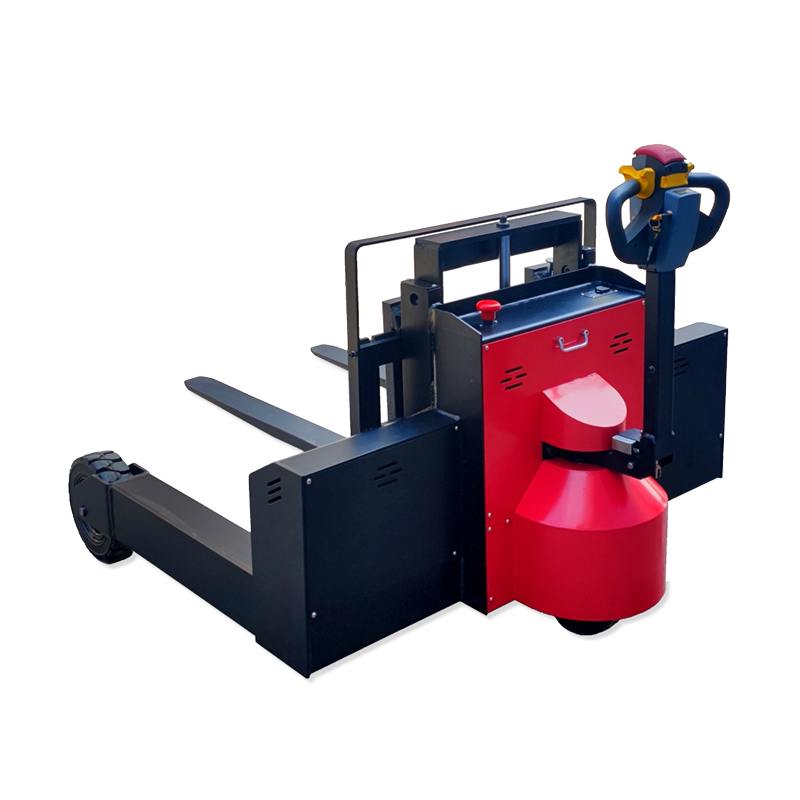

The YTP-15DX is a heavy-duty electric rough terrain truck engineered for outdoor material handling on uneven, sloped, or unpaved surfaces. Unlike standard pallet trucks designed for smooth warehouse floors, the YTP-15DX features oversized pneumatic or elastomer drive wheels, reinforced chassis construction, and elevated ground clearance to operate reliably in demanding environments such as construction sites, farms, lumber yards, and container depots.
| Scenario | Description |
|---|---|
| Construction Material Yards | Move palletized bricks, blocks, bags of cement, or lumber across uneven, debris-strewn job sites where standard pallet trucks cannot operate. |
| Agricultural & Farming Operations | Transport fertilizer bags, seed pallets, harvested produce bins, or feed sacks around barns, greenhouses, and farmyards with unpaved surfaces. |
| Lumber & Timber Yards | Handle stacked lumber, plywood sheets, or timber bundles on gravel or dirt lots – adjustable forks fit various wood pack sizes. |
| Container Depots & Freight Yards | Load and unload pallets from containers placed on uneven ground; high ground clearance prevents undercarriage damage on container ramps. |
| Landscaping Supply Centers | Move pallets of sod, soil bags, mulch bales, pavers, or decorative stone across mixed indoor/outdoor surfaces. |
| Outdoor Storage Facilities | Retrieve palletized goods from open-air racking or laydown areas where paved aisles are not available. |
| Recycling Centers & Scrap Yards | Transport baled recyclables, scrap metal containers, or waste bins across rough, debris-covered yards. |
| Dock Loading with Uneven Approaches | Load trucks at docks where pavement is cracked, sloped, or has elevation changes – the YTP-15DX maintains traction and stability. |
| Model | Unit | YTP-15DX |
| Load capacty | kg | 1500 |
| Height of fork | mm | 50-350 |
| Fork width | mm | 200-840 |
| Fork length | mm | 1070 |
| Wheelbase | mm | 1190 |
| Drive wheel size | mm | Φ300X100 |
| Front wheel size | mm | Φ318X102 |
| Wheelbase of two front wheels | mm | 1400 |
| Operating handle height(max.&min.) | mm | 1130/770 |
| Ground clearance | mm | 120 |
| Overall length | mm | 1745 |
| Overall width | mm | 1530 |
| Overall height | mm | 1220 |
| Turning radius | mm | 1400 |
| Hydraulic motor power | w | 1200 |
| Drive motor power | W | 1500 |
| Battery voltage/capacity | V/Ah | 24/100 |
| Baftery weight | kg | 66 |
| Charger | V/A | 24/15 |
| Drive motor controller | 1232E-2321 | |
| Vehicle noise | dB(A) | <70 |
| Self-weight(without baftery) | kg | 523 |
