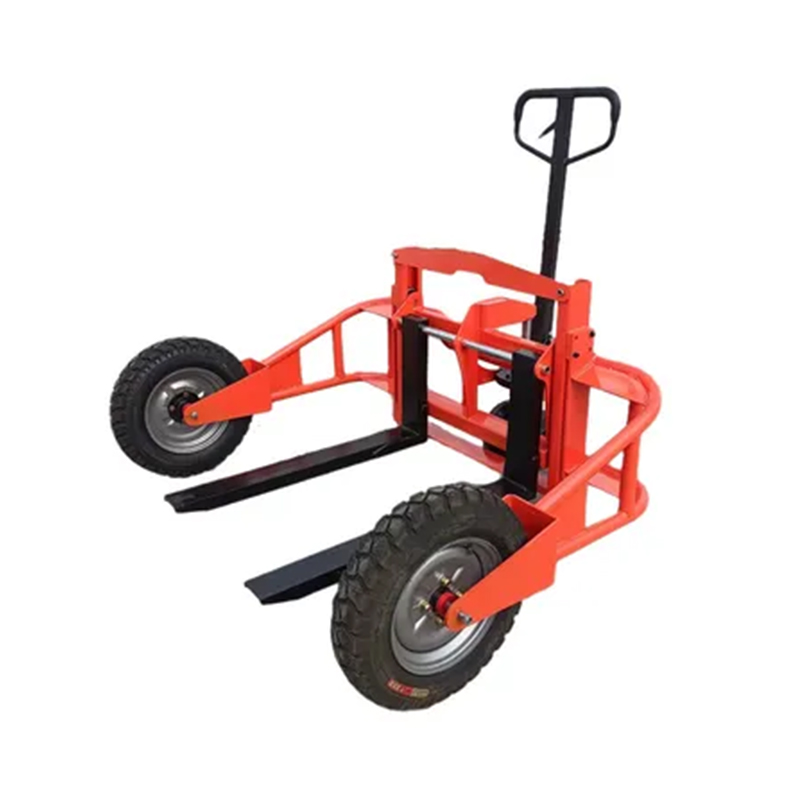

This rough terrain pallet truck is specially designed for outdoor uneven and unpaved ground. It
adopts large off-road pneumatic tires, high ground clearance and reinforced welded steel frame, with strong climbing ability and excellent anti-slip performance.
Equipped with reliable manual hydraulic lifting system, it is labor-saving to operate, solid and durable, able to carry heavy loads stably on gravel, mud, grassland and rugged roads, perfectly solving the handling pain points of ordinary pallet trucks that cannot work off-road.
| Model | Unit | RTT1000 | RTT1250 |
| Capacity | kg | 1000 | 1250 |
| Fork length | mm | 800/860 | 800/860 |
| Load center | mm | 400/430 | 400/430 |
| Single fork width | mm | 100 | 120 |
| Adjustable fork width | mm | 216-680 | 256-680 |
| Max.fork height | mm | 240 | |
| Min.fork helght | mm | 70 | |
| Max.pump stroke | mm | 170 | |
| Overall size(LxWxH) | mm | 1406×1670×1280 | |
| Fort wheel Dia.x width | mm | 568×145 | |
| Rear wheel Dia,x width | mm | 250 | |
| Turn radius | mm | 1500 | |
| Net weight | kg | 210 | 238 |
22.36 inch all-terrain pneumatic wheel, 568×145mm rubber tire
Heavy-duty Cast Hydraulic Pump Assembly, Stable Lifting & Long Service Life
Robust Welded Drum Clamp Structure, High Strength & Stable Operation
Rubber Grip Handle
