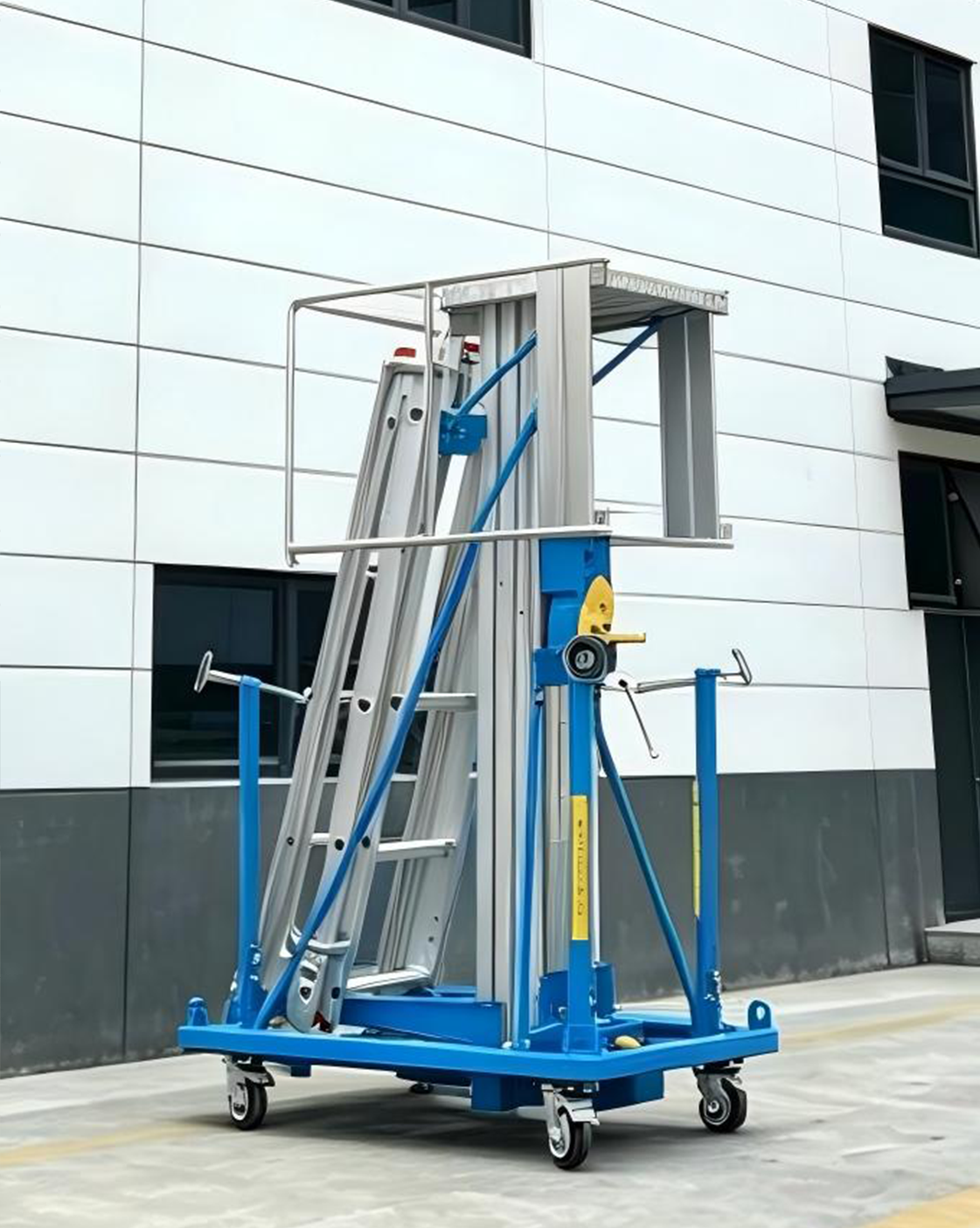

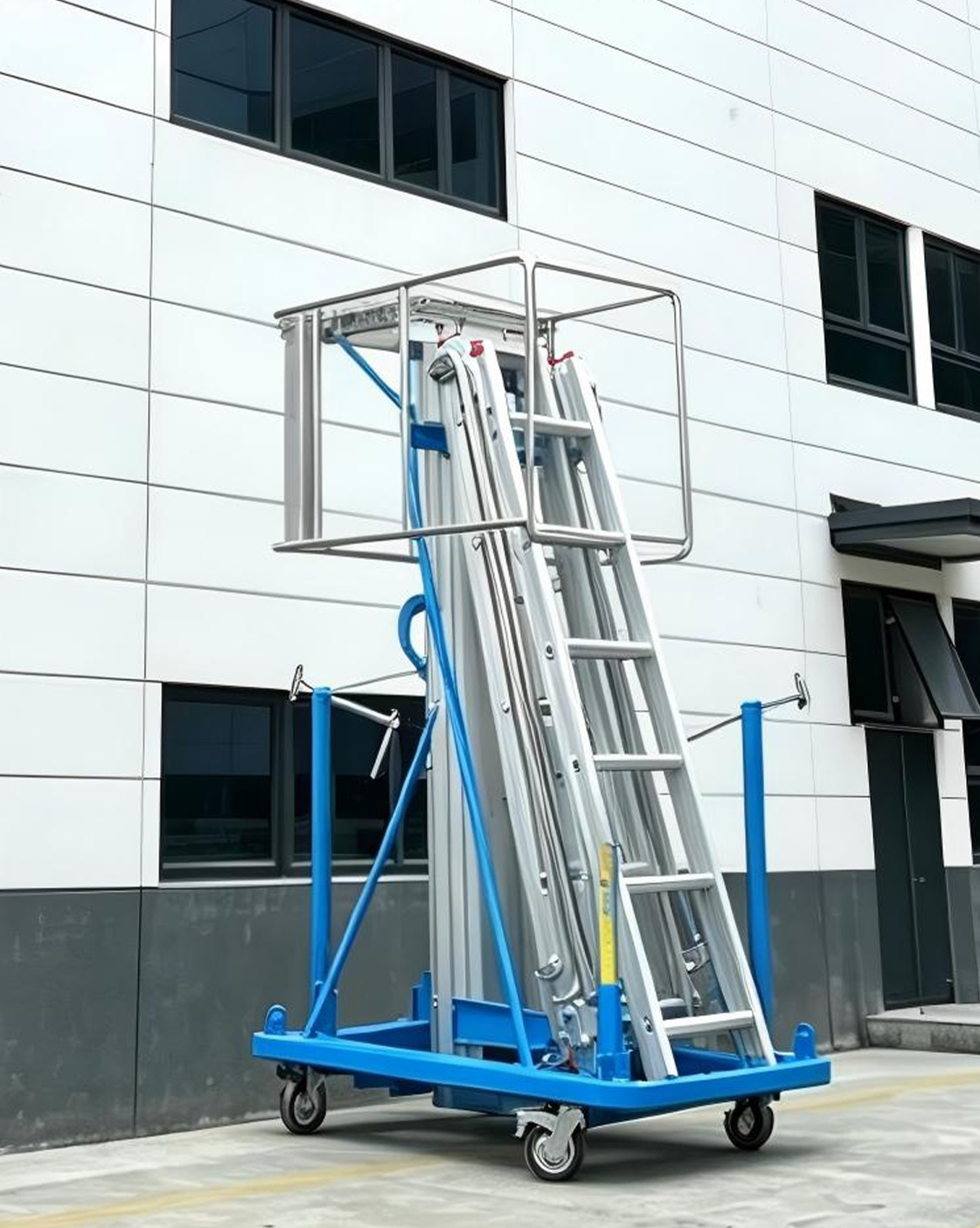

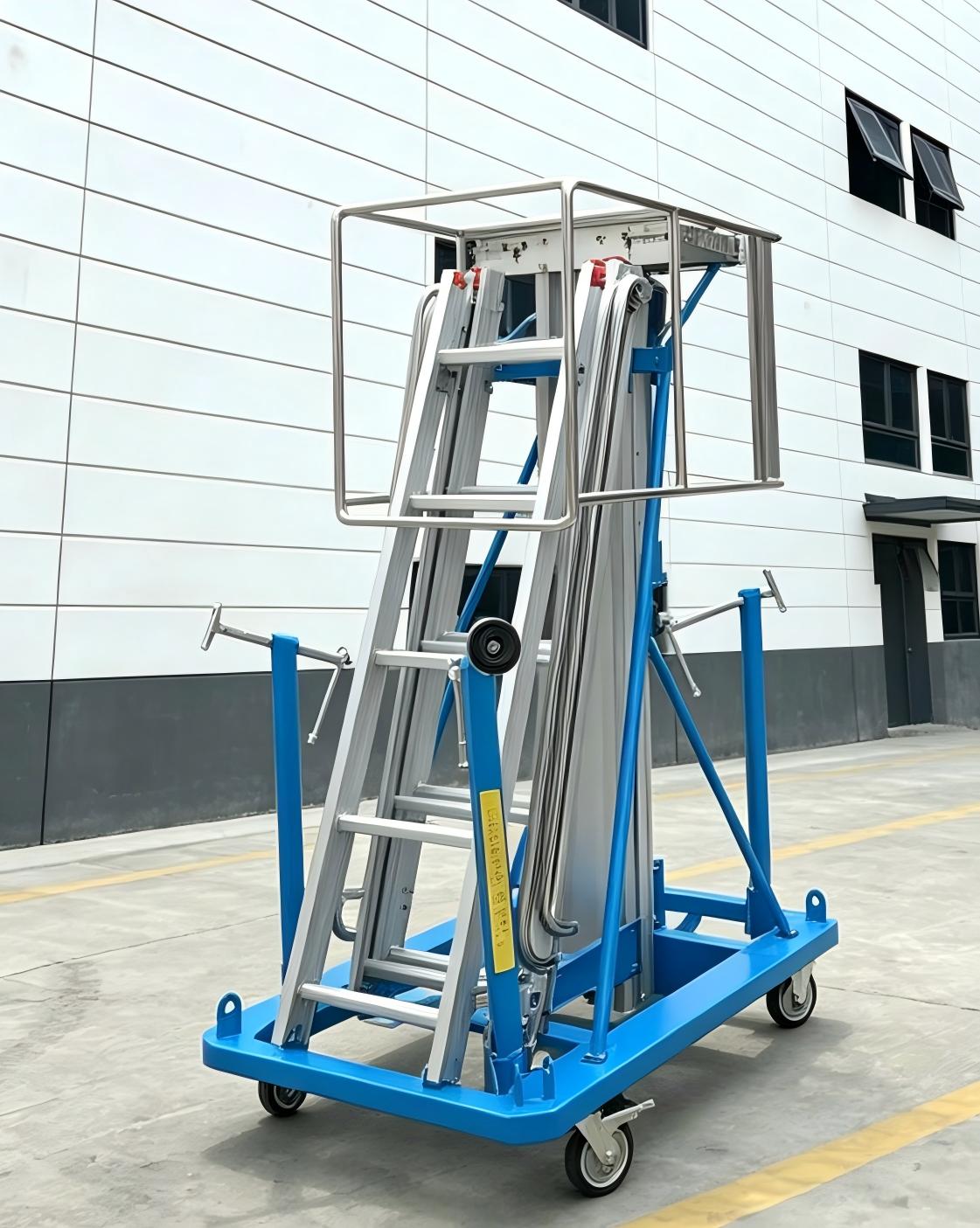

The SP Manual Winch Elevating Lift is a lightweight, portable aerial work platform powered entirely by manual winch—no electricity or hydraulic supply required. Built from high-strength aluminum alloy, the SP series reaches platform heights of up to 4,600mm with a rated load capacity of 125kg, making it a practical scissor lift alternative for single-person, low-altitude operations in confined spaces.
The SP Manual Winch Elevating Lift is a manually operated vertical lift designed for low-altitude work in environments where electric or hydraulic power is unavailable or impractical. Its compact, aluminum alloy frame fits through standard corridors and elevators, and its tool-ready platform includes safety guardrails, an anti-slip surface, and a manual locking device for stable, secure operation.
The SP series is available in two models:
SP32 – 3,200mm maximum platform height
SP46 – 4,600mm maximum platform height
No power supply required – Manual winch operation makes the SP lift suitable for off-grid or power-restricted environments
High-strength aluminum alloy frame – Lightweight yet durable; the SP32 weighs 145kg and the SP46 weighs 190kg
Compact stowed dimensions – The SP32 stows to 1,200 × 750 × 1,980mm, enabling access through narrow corridors and elevators
550 × 600mm work platform – Sufficient space for a single operator and tools
125kg rated load capacity – Designed for single-person low-altitude operations
Safety guardrails and toe boards – Protect the operator throughout the lift cycle
Anti-skid ladder and anti-skid platform – Reduce slip risk during access and operation
Safety outriggers and lockable wheels – Stabilize the unit on a variety of floor surfaces
Manual locking device – Secures the platform height without reliance on powered brakes
Every SP Manual Winch Elevating Lift includes:
Winch lift mechanism
Fluorescent tube caddy
Hinged tool tray
Hand rails with toe boards
Safety outriggers
Lockable wheels
Anti-skid ladder
Anti-skid platform
Specification | Unit | SP32 | SP46 |
|---|---|---|---|
Platform Height | mm | 3,200 | 4,600 |
Platform Size | mm | 550 × 600 | 550 × 600 |
Load Capacity | kg | 125 | 125 |
Stowed Length | mm | 1,200 | 1,300 |
Stowed Width | mm | 750 | 800 |
Stowed Height | mm | 1,980 | 2,070 |
Ground Clearance | mm | 70 | 70 |
Machine Weight | kg | 145 | 190 |
Operation Mode | — | Manual | Manual |
Move Mode | — | Push by manpower | Push by manpower |
The SP series is suitable for any environment where a compact, manually operated vertical lift is needed without access to power.
Offices, hotels, and shopping malls – Lamp replacement, ceiling maintenance, sign installation, and small-scale decoration work
Residential buildings – Window cleaning, air conditioner maintenance, and home renovation tasks
Small workshops – Equipment inspection, lighting repair, and overhead maintenance
Warehouses – High-shelf inventory counting and small cargo handling in narrow aisles where a full-size scissor lift or boom lift cannot maneuver
Municipal maintenance – Street lamp inspection and traffic sign adjustment
Temporary operations – Construction sites, exhibition booth setup, and elevated photography support
The SP manually operated vertical lift is better suited for facilities without reliable power access, indoor environments with strict electrical restrictions, or short-duration jobs where deploying a powered scissor lift or boom lift is impractical. Electric scissor lifts and self-propelled boom lifts are the preferred choice for sustained, high-frequency operations, greater working heights, or outdoor terrain where motorized propulsion provides a significant productivity advantage.
Q: Does the SP Manual Winch Elevating Lift require electricity or hydraulic power to operate?
No. The SP series is entirely manually operated via a hand-crank winch mechanism, eliminating the need for any external power supply. This makes the lift deployable in locations without electrical infrastructure.
Q: What is the maximum platform height of the SP Manual Winch Elevating Lift?
The SP46 model reaches a maximum platform height of 4,600mm, while the SP32 model reaches 3,200mm. Both models share a 550 × 600mm platform size and a 125kg rated load capacity.
Q: Can the SP lift fit through a standard elevator or corridor?
Yes. The compact stowed dimensions—1,200mm (L) × 750mm (W) for the SP32 and 1,300mm (L) × 800mm (W) for the SP46—are specifically designed to fit through standard building elevators and narrow corridors, making the SP lift well suited for multi-floor indoor operations.
Q: How is the SP Manual Winch Elevating Lift moved between locations?
The unit is relocated by pushing it manually on lockable wheels. No motorized drive system is included; the lift is intended for repositioning over short, flat distances on smooth indoor surfaces.
Q: Is the SP series safe for single-person use at height?
The SP series is equipped with a full safety package including guardrails with toe boards, an anti-skid platform, safety outriggers, lockable wheels, and a manual locking device. These features work together to stabilize the platform and protect the operator during elevated work.
