SAFETY CERTIFICATION:
Comply with European Union EN280 standard and obtain CE certification.
STEPLESS SPEED CHANGE:

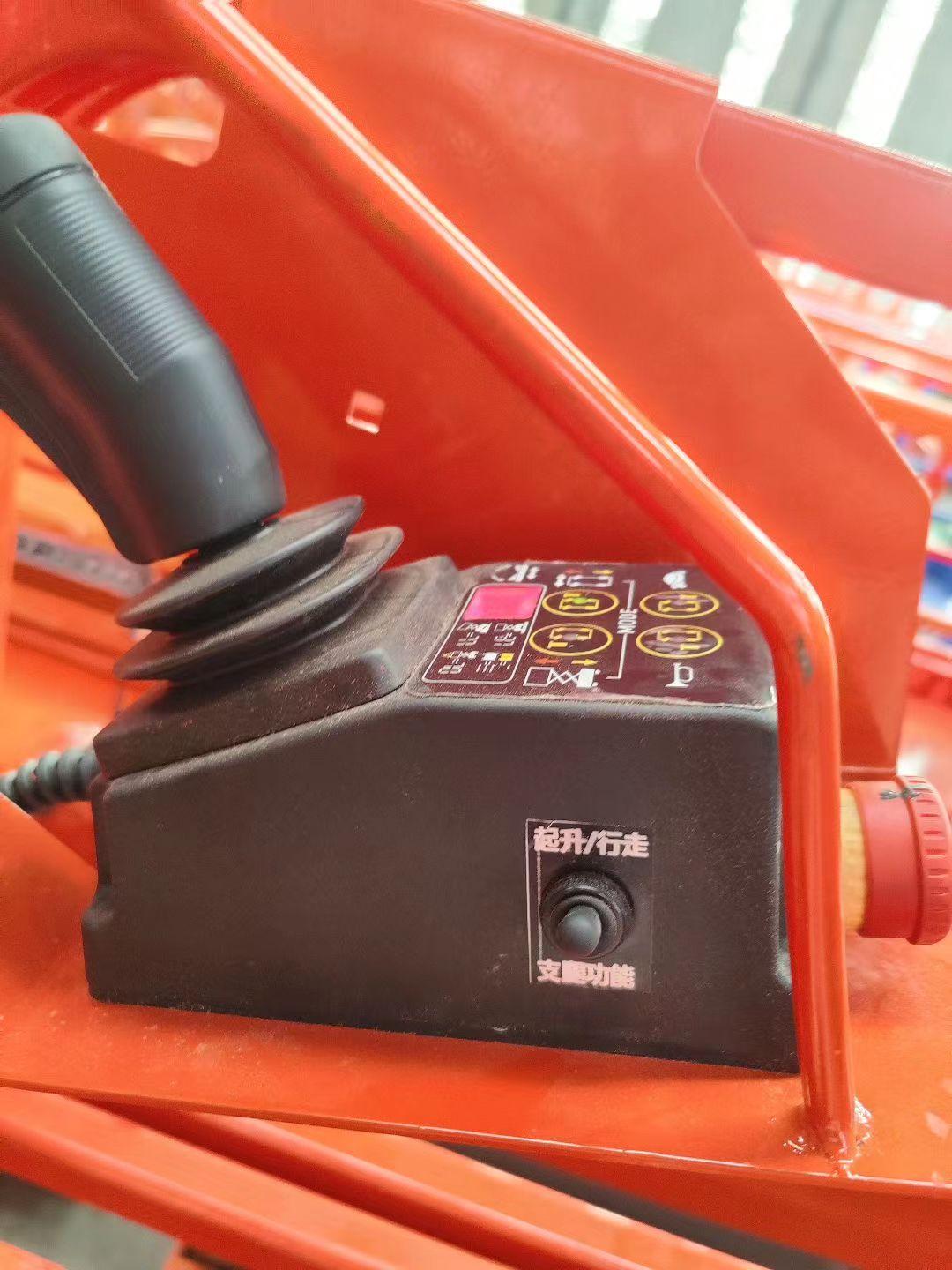

Only one person is required to operate, all movements are controlled by the operating handleon the worktable, and the motor is continuously variable. The service life of the battery and themotor is effectively extended, and the motor only consumes energy during operation.

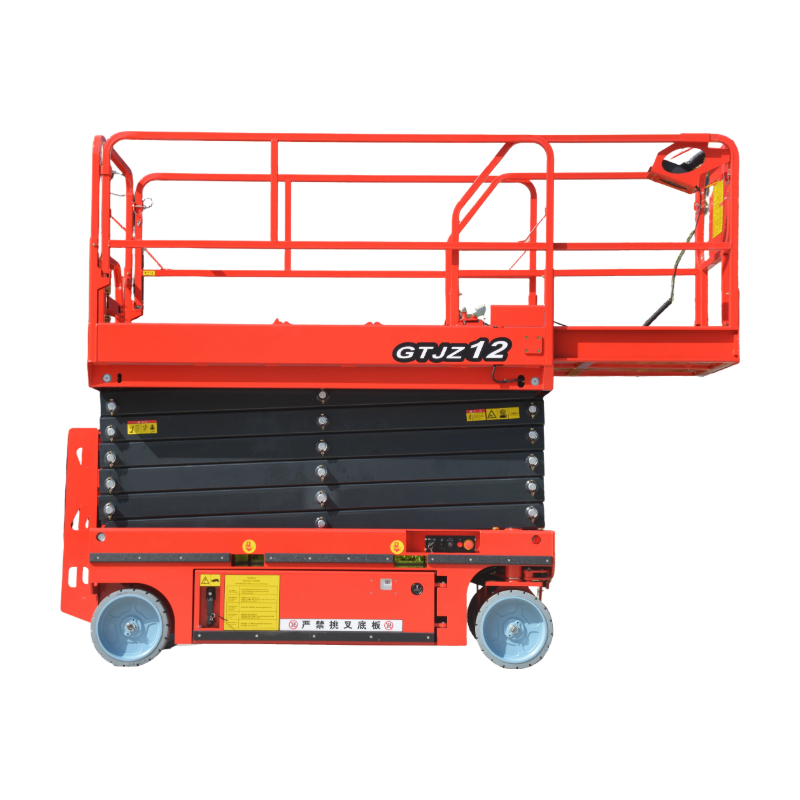

EXTENSION PLATFORM:Expanded the scope of work to meet the special needs of some users
GREEN AND ENVIRONMENTAL PROTECTION:Because the machine uses DC battery power, the machine can be safely and quietlysuitable forindoor or outdoor work.
The versatility of the GTJZ series makes it suitable for a wide spectrum of high-altitude tasks:
Scenarios: Inventory picking, high-bay racking system maintenance, conveyor line repairs, and overhead crane servicing.
Why GTJZ: Electric models offer quiet, emission-free operation. The compact chassis navigates narrow aisles with ease, while the roll-out platform extension allows workers to reach across racks safely .
Scenarios: Exterior cladding, drywall installation, HVAC system placement, roofing, and steel structure welding.
Why GTJZ: Diesel variants with 4-wheel drive and 50% gradeability traverse mud, gravel, and slopes effortlessly. Models like the GTJZ10RT feature automatic self-leveling outriggers to ensure stability on uneven ground .
Scenarios: Changing stadium lighting, cleaning high windows, repairing signage, and installing overhead piping (sprinklers/electrical).
Why GTJZ: The ability to drive at full height (on flat, hard surfaces) saves significant time when repositioning along long stretches of walls or ceilings .
Scenarios: Airport terminal maintenance, train station platform access, dockyard repairs, and市政照明 replacement.
Why GTJZ: High travel speeds allow quick transit between work zones. The large platform size (up to 3.9m L) accommodates multiple workers and long materials
| Model | Unit | GTJZ06 | GTJZ08 | GTJZ10 | GTJZ12 | GTJZ14 |
| Max.working height | m | 7.8 | 10.1 | 12.2 | 13.95 | 15.75 |
| Max.platform height | m | 5.8 | 8.1 | 10.2 | 11.95 | 13.75 |
| Overall length | m | 1.82 | 2.48 | 2.48 | 2.48 | 2.83 |
| Overall width | m | 0.76 | 1.15 | 1.15 | 1.15 | 1.25 |
| Overall height(rails up) | m | 2.22 | 2.32 | 2.45 | 2.57 | 2.61 |
| Overall height(rails down) | m | 1.87 | 1.83 | 1.95 | 2.06 | 2.1 |
| Platform size | m | 1.66×0.74 | 2.32×1.13 | 2.32×1.13 | 2.32×1.13 | 2.93×1.51 |
| Platform extension size | m | 0.9 | 0.9 | 0.9 | 0.9 | 0.9 |
| Ground clearance(stowed) | mm | 100 | 100 | 100 | 100 | 100 |
| Ground clearance(raised) | mm | 20 | 20 | 20 | 20 | 20 |
| Wheel base | m | 1360 | 1900 | 1900 | 1900 | 1900 |
| Load capacity | kg | 230 | 230 | 320 | 320 | 230 |
| Load capacity on extension | kg | 110 | 110 | 110 | 110 | 110 |
| Turning radius | m | 1.7 | 2.2 | 2.2 | 2.2 | 2.6 |
| Travel speed(stowed) | km/h | 3.2 | 3.2 | 3.2 | 3.2 | 3.2 |
| Travel speed(raised) | km/h | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 |
| Up/down speed | m/s | 0.18/0.25 | 0.18/0.25 | 0.18/0.25 | 0.18/0.25 | 0.18/0.25 |
| Grade ability | % | 25 | 25 | 25 | 25 | 20 |
| Max.working slope | 2/3 | 2/3 | 2/3 | 2/3 | 2/3 | |
| Tyre | mm | Φ305×114 | Φ381×127 | Φ381x127 | Φ381×127 | Φ381x127 |
| System pressure | Mpa | 24 | 24 | 24 | 24 | 24 |
| Lifting motor | V/kw | 24/3 | 24/4.5 | 24/4.5 | 24/4.5 | 24/4.5 |
| Batteries | V/Ah | 4x6/225 | 4x6/225 | 4×6/225 | 4×12/225 | 4×12/225 |
| Charger | V/A | 24/30 | 24/30 | 24/30 | 24/30 | 24/30 |
| Weight | kg | 1500 | 2650 | 2850 | 3050 | 3450 |

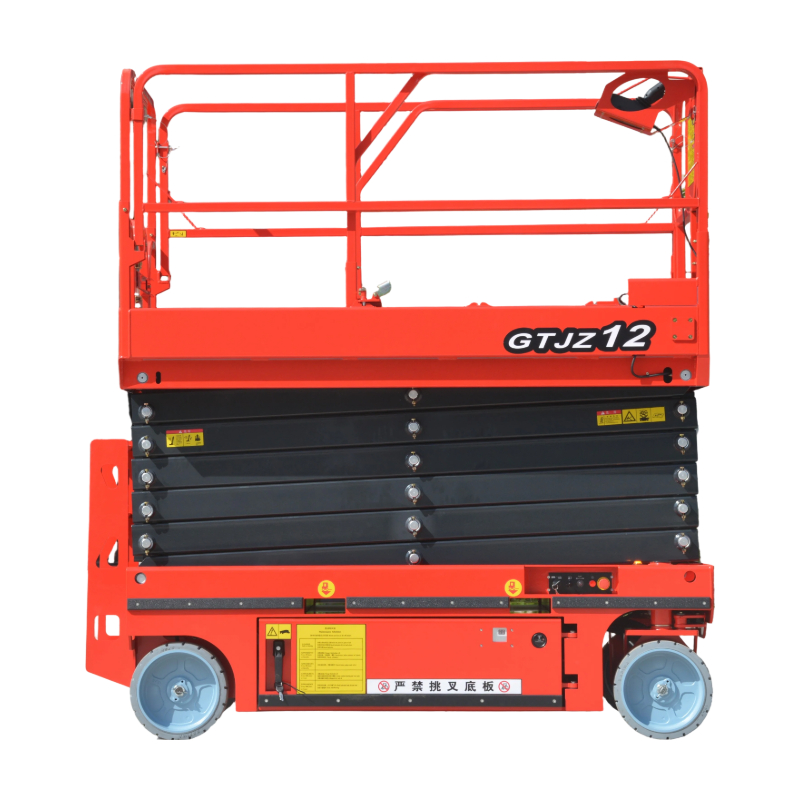

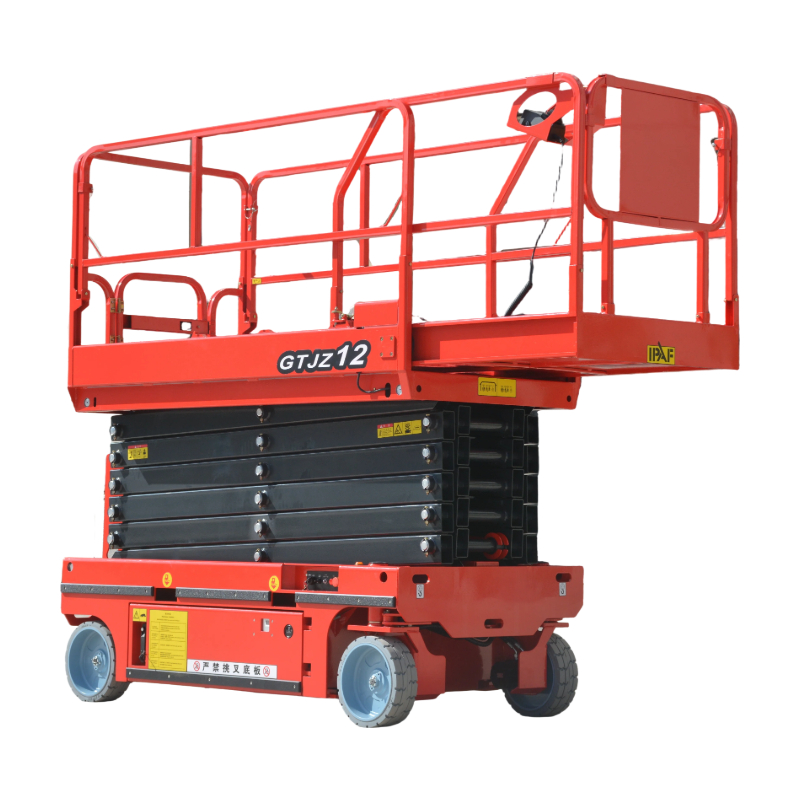

Product Images
Detail Shot

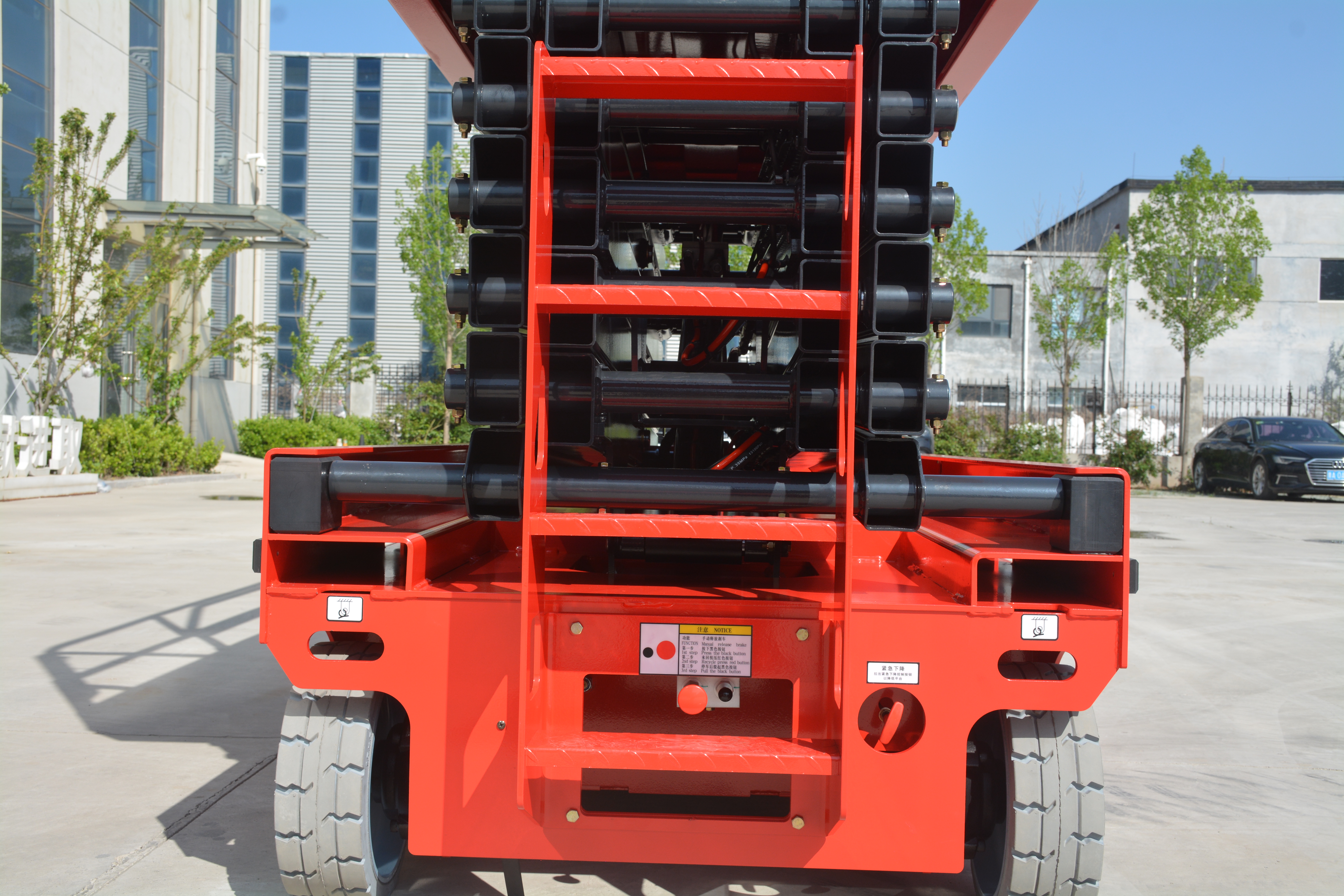

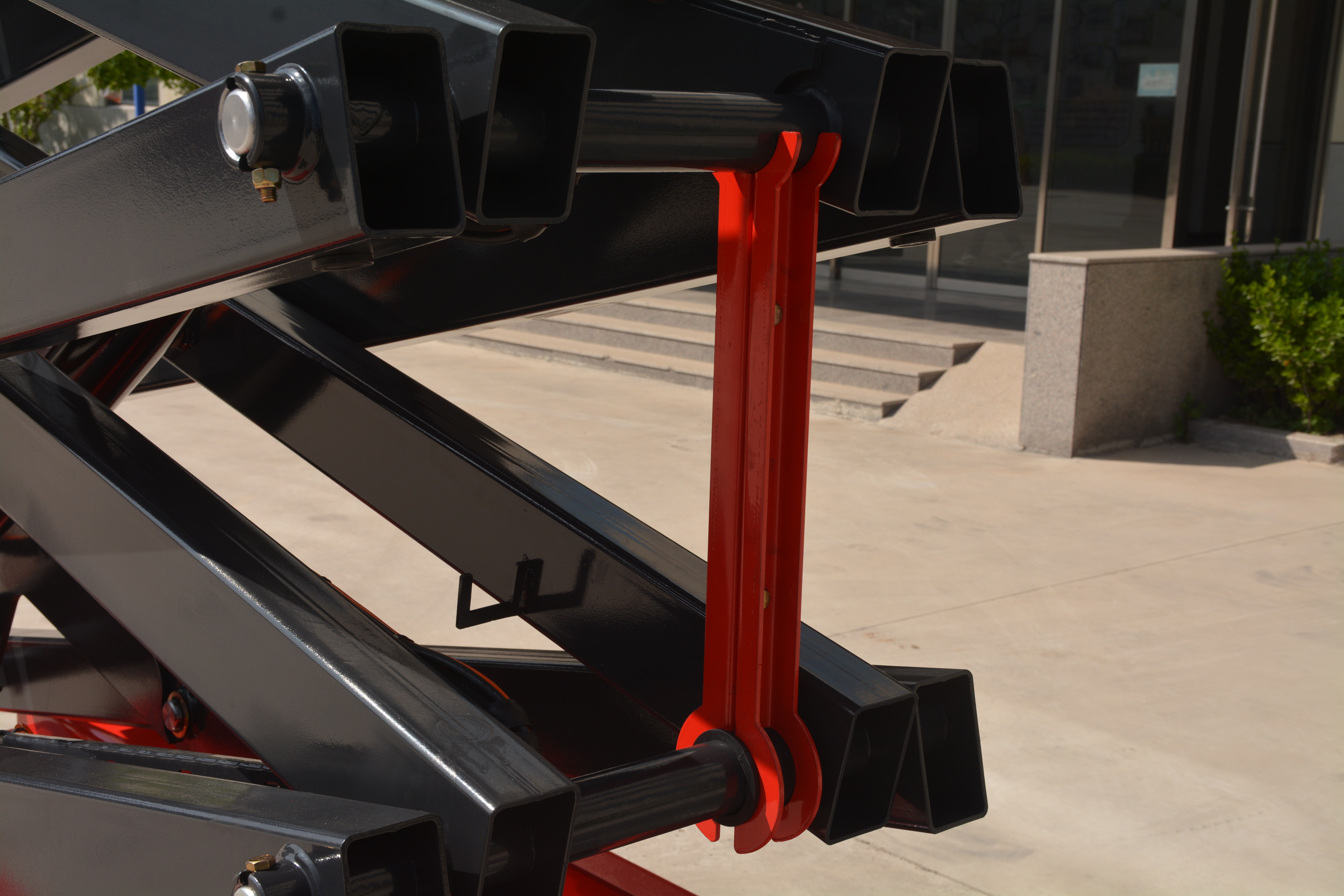

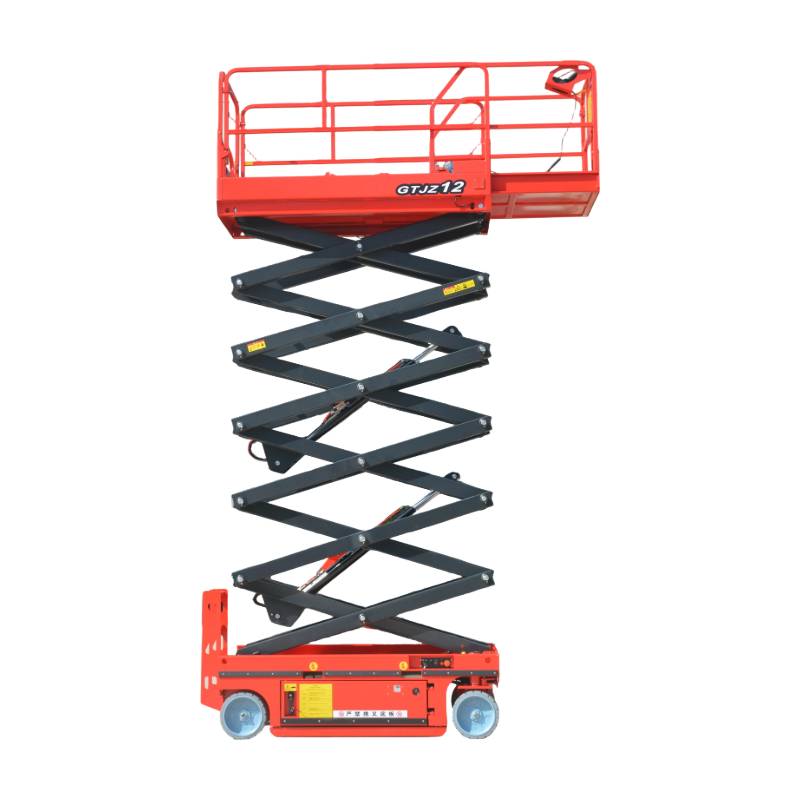

Heavy-Duty Scissor Lift System
Hydraulic Lifting Cylinder
Safety Limit Switch

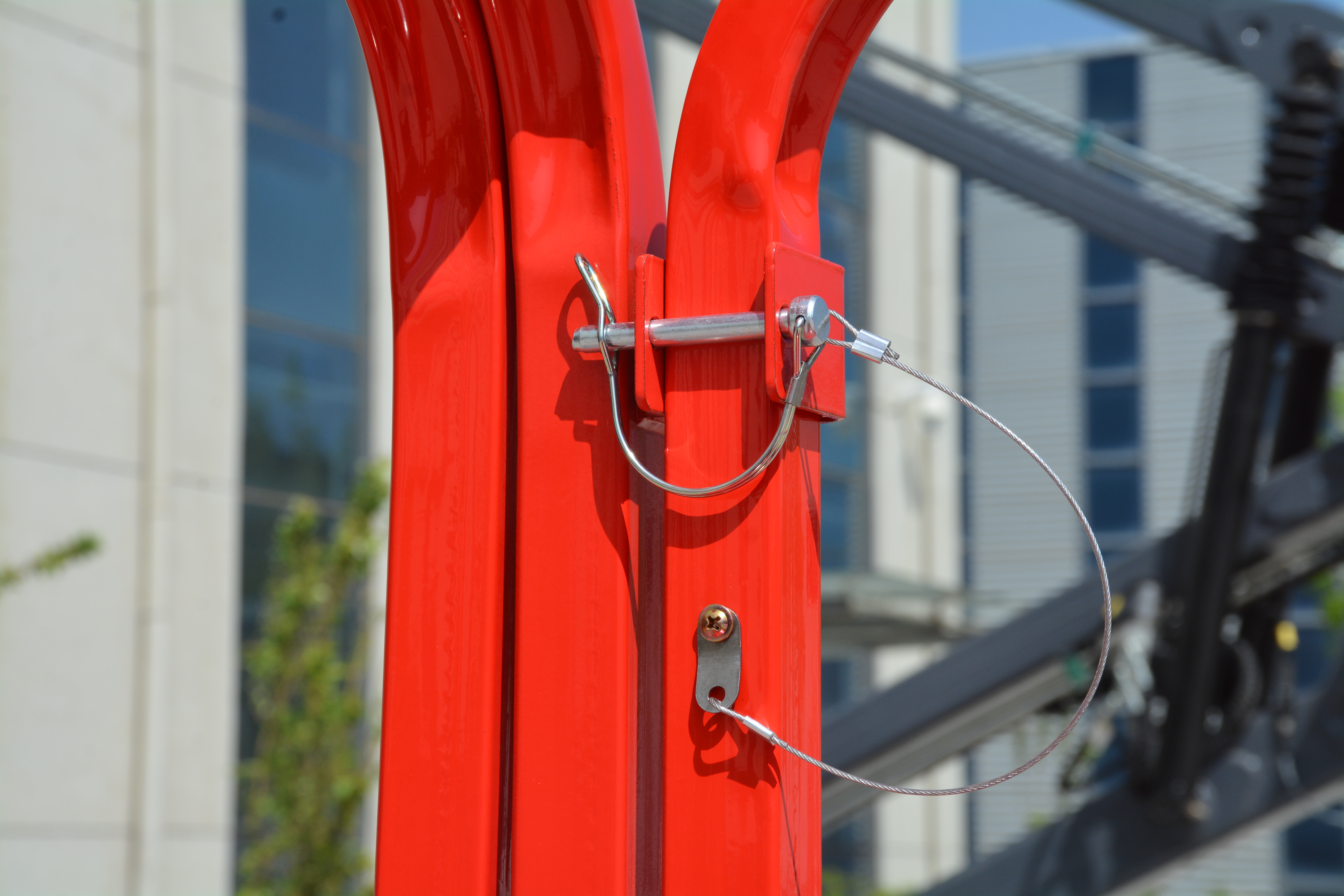

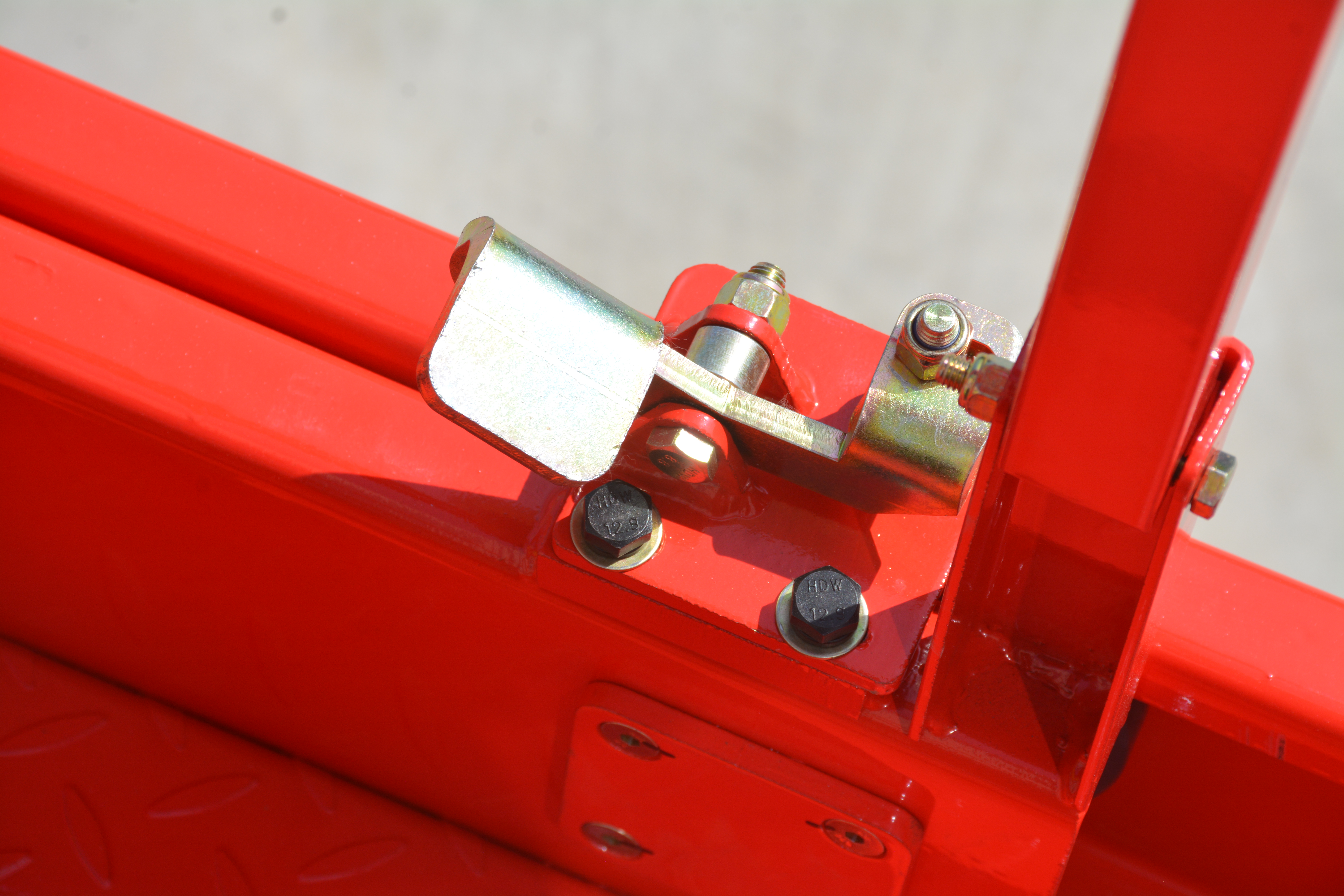

Mechanical Safety Lock Pin

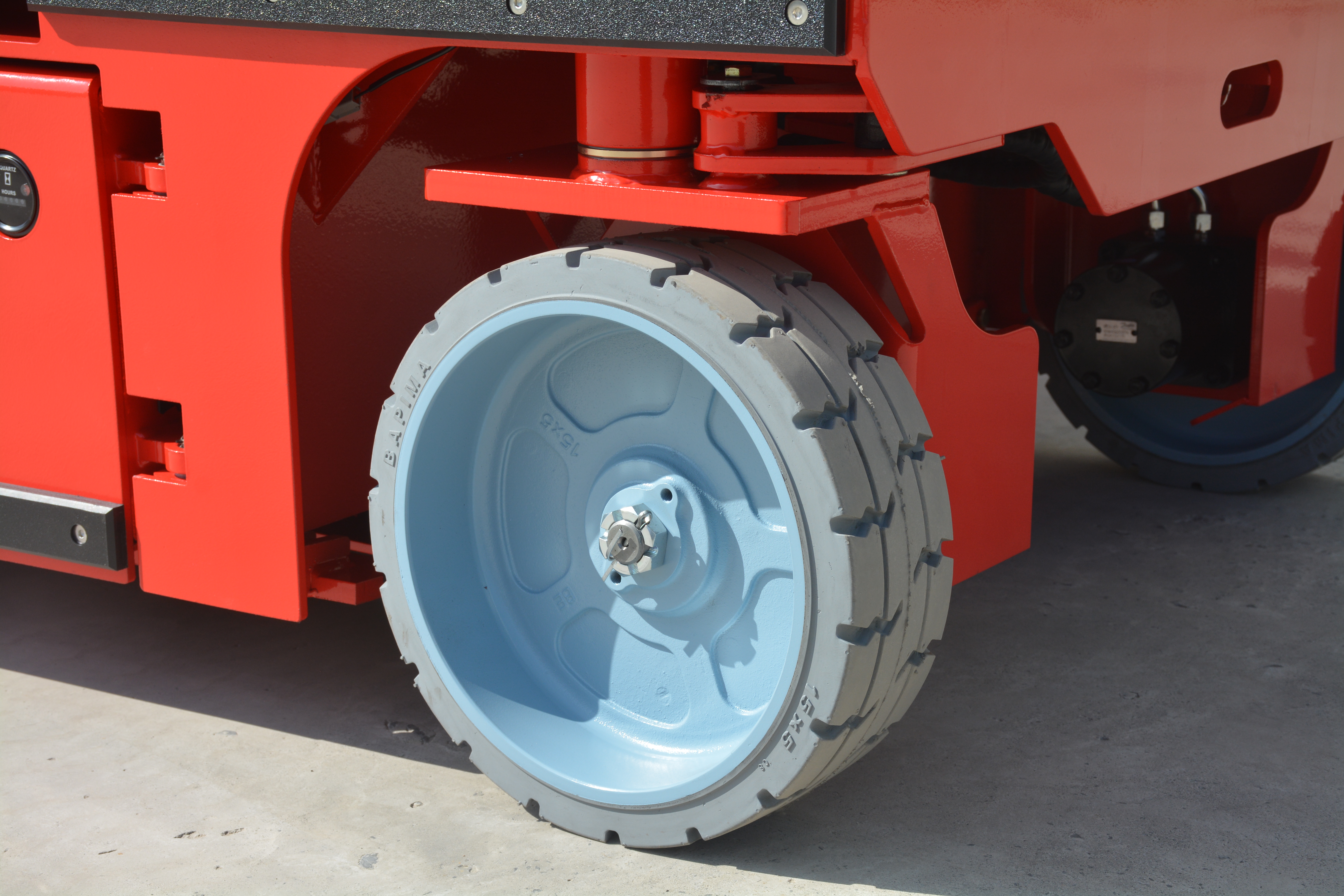

Heavy-Duty Drive Wheel

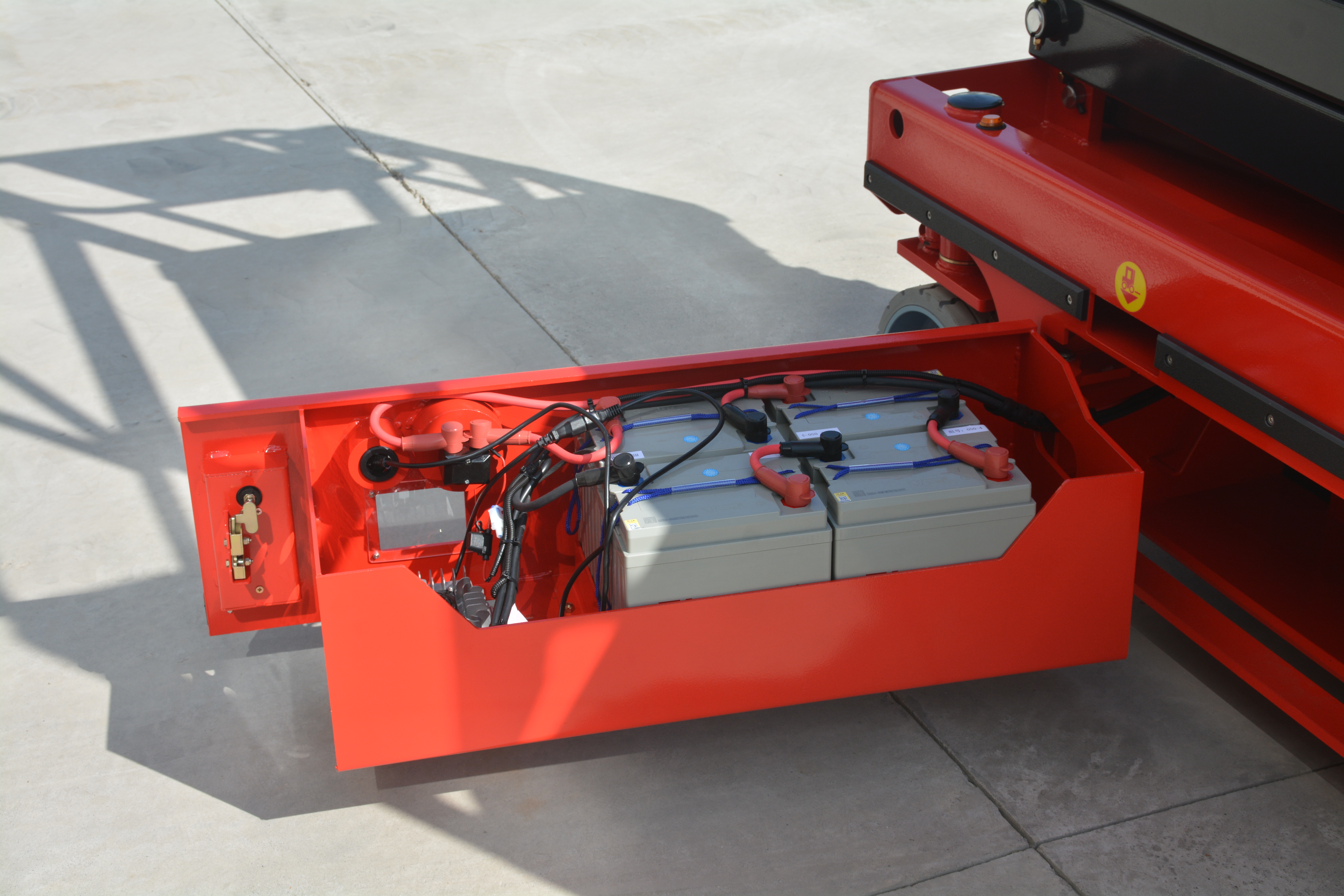

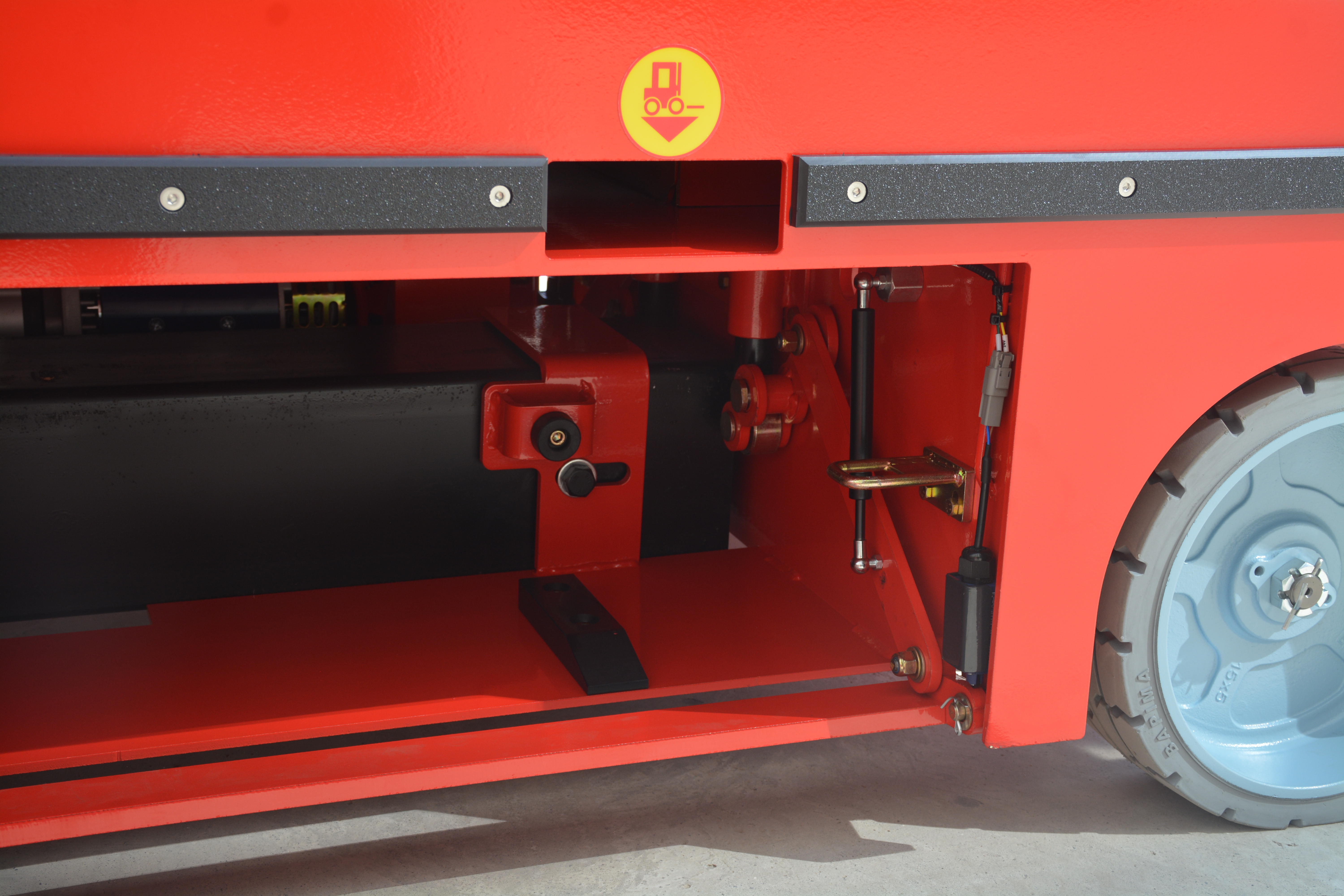

Pull-Out Battery Tray
Side Maintenance Access

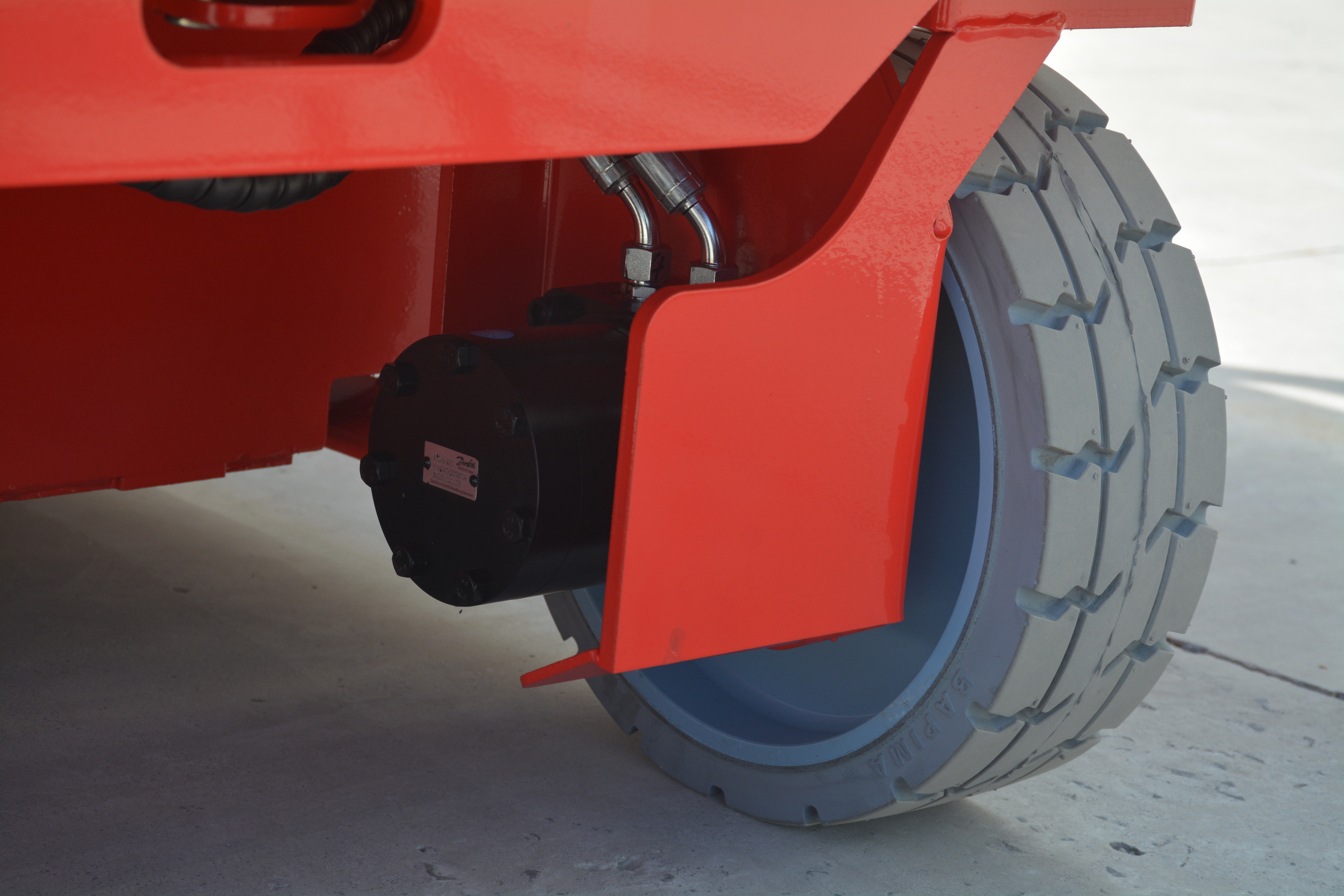

Wheel Drive Motor
