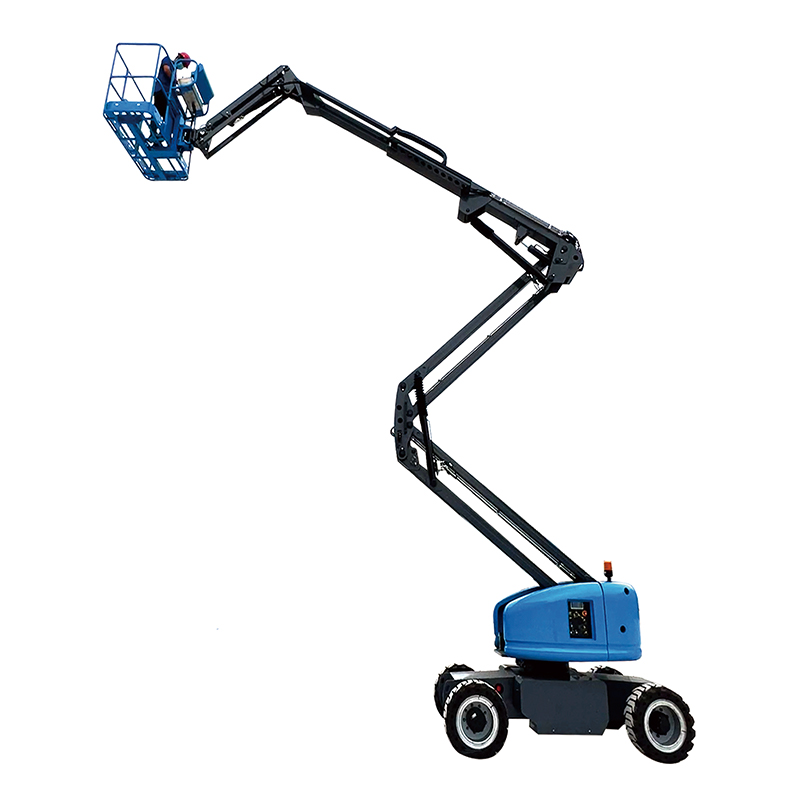

Model | Unit | QYQB-14D | QYQB-18C |
Max.working height | m | 15.75 | 20 |
Max.platform | m | 13.72 | 18 |
Max.horizontal extension | kg | 7.45 | 8.6 |
Standard working capacity | 230 | 230 | |
Climbing ability | m | 30% | 45° |
Outer turning radius | m | 3.5 | 4.8 |
Inner turning radius | km/h | 0.8 | 1.8 |
Travel speed(stowed state) | km/h | 5.1 | 6.8 |
Travel speed(raised state) | 0.8 | 1.1 | |
Turntable rotation angle | 355° | 355° | |
Platfform rotation angle | 160° | 160° | |
Max.working wind speed | m/s | 12.5 | 12.5 |
Max.allowable lateral force | N | 400 | 400 |
Max.allowable angle of inclination | 3° | 5° | |
Machine length(stowed state) | m | 6.56 | 7.7 |
Machine width(stowed state) | m | 1.75 | 2.28 |
Machine height (stowed state) | m | 2 | 2 |
Ground clearance | m | 0.43 | 0.43 |
Wheelbase | m | 2 | 2.02 |
Platform size | m | 1.53×0.76 | 1.53x0.73 |
Wheel table model | 250×15 | 250×15 | |
Engine | Battery 420Ah,6Vx8 | Perkins404D-T | |
Hydraulic oil tank volume | L | – | – |
Fuel tank volume | L | – | 110 |
Control voltage | 12V/24V | 12V/24V | |
Drive x steering | 2WDx2WS | 4WDx2WS | |
Vehicle weight | kg | 6500 | 7050 |
