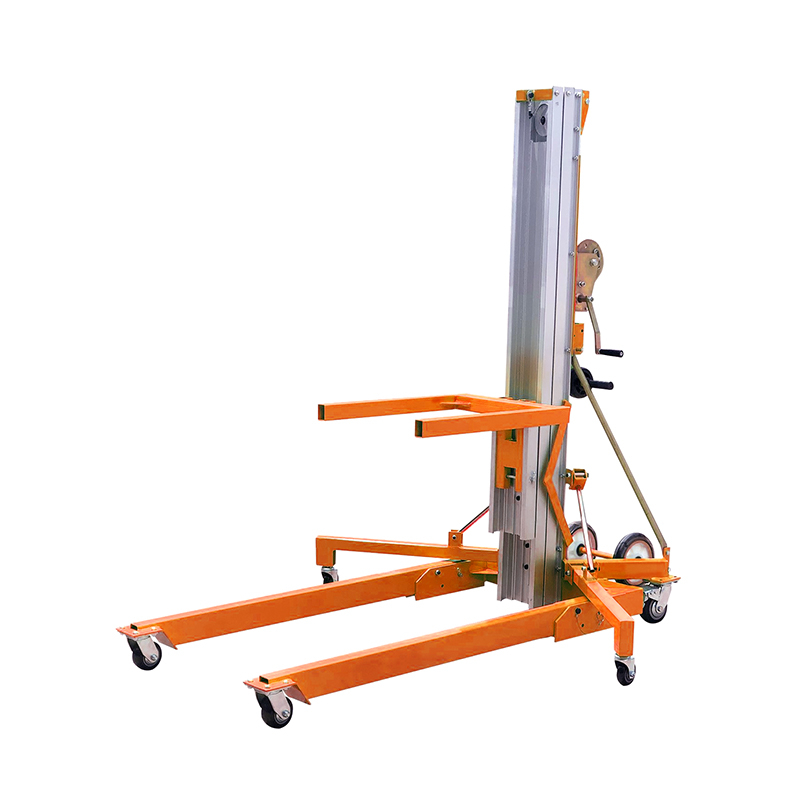

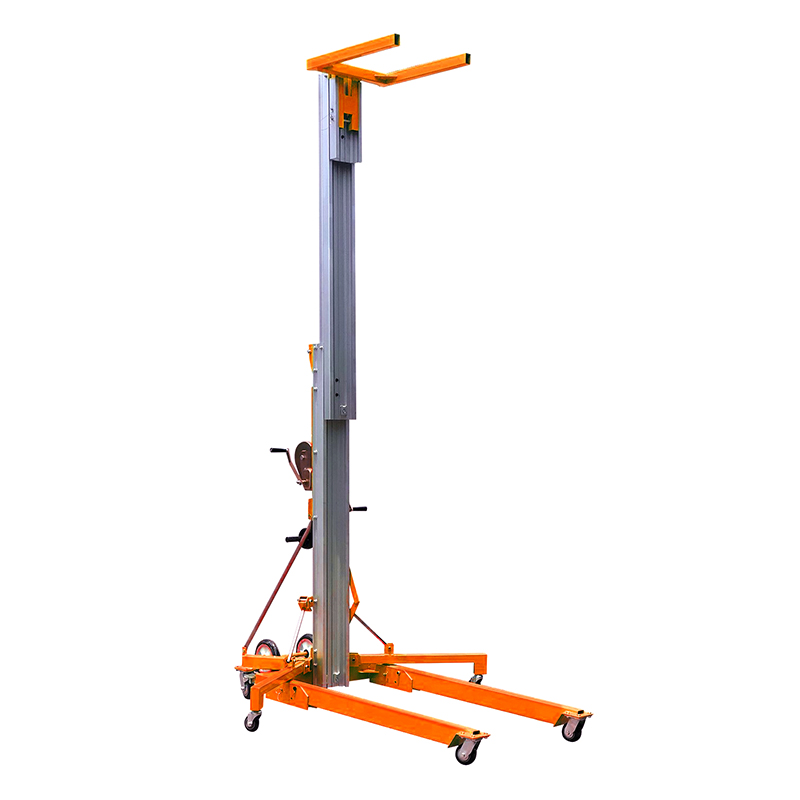

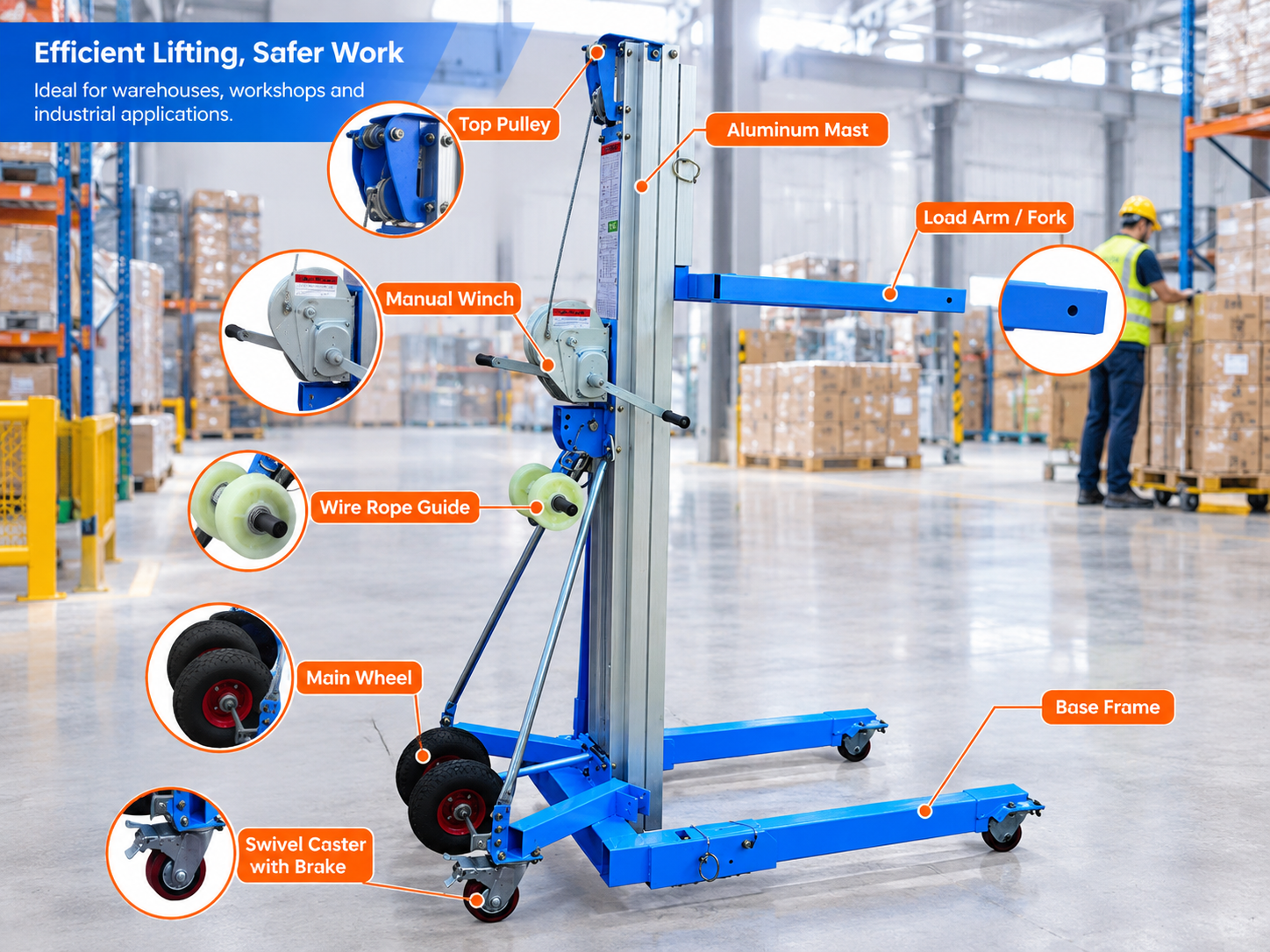

Standard Configurations:

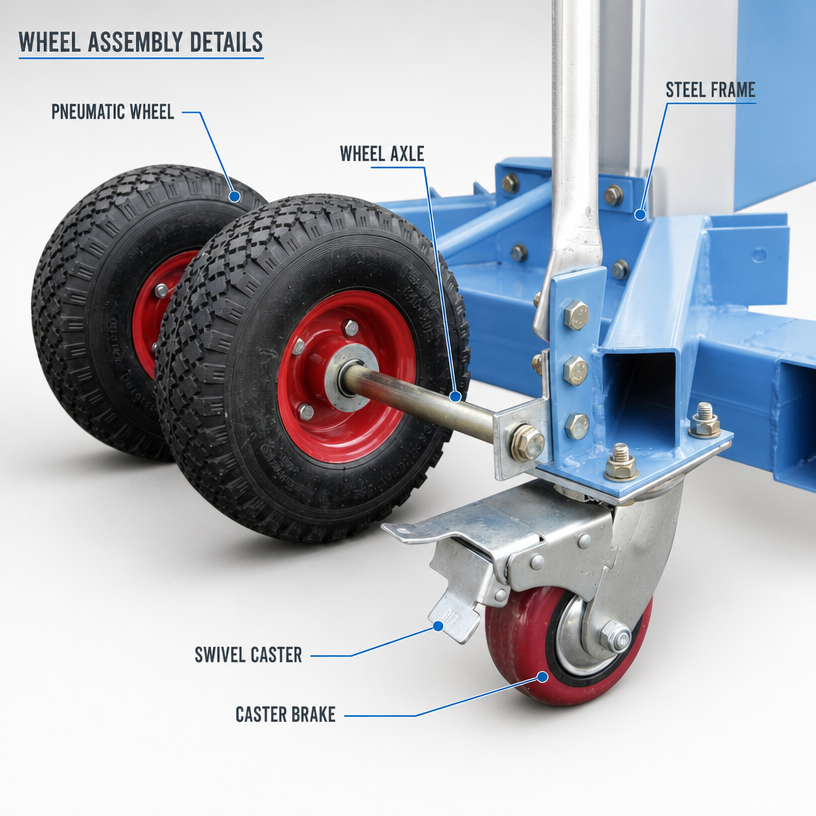

· Stabilizers with non-marking swivel casters

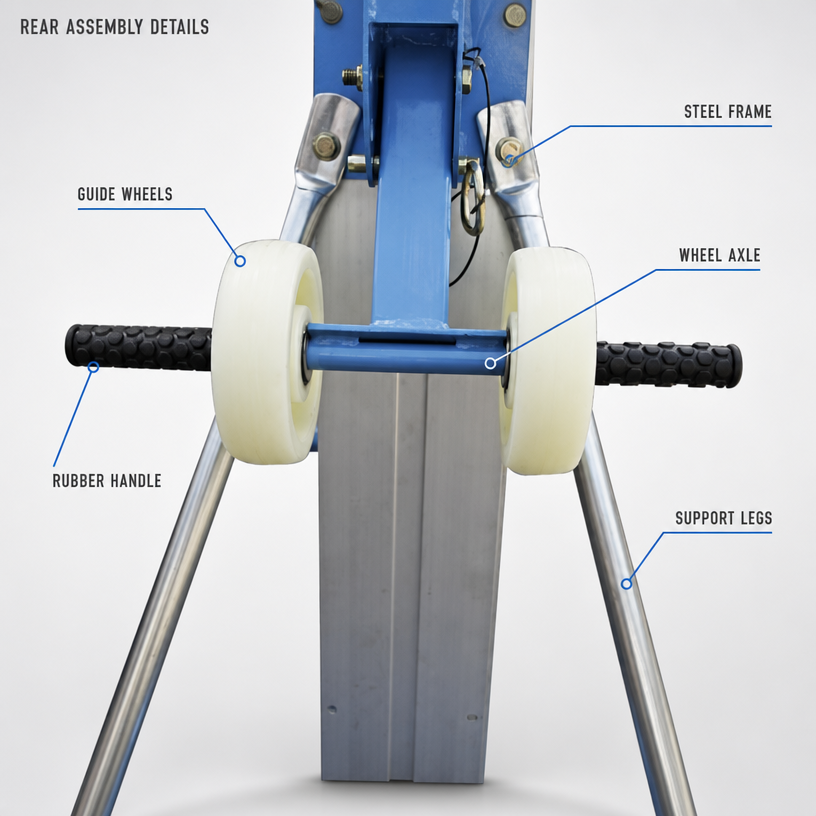

· Non-marking transport/loading wheelse

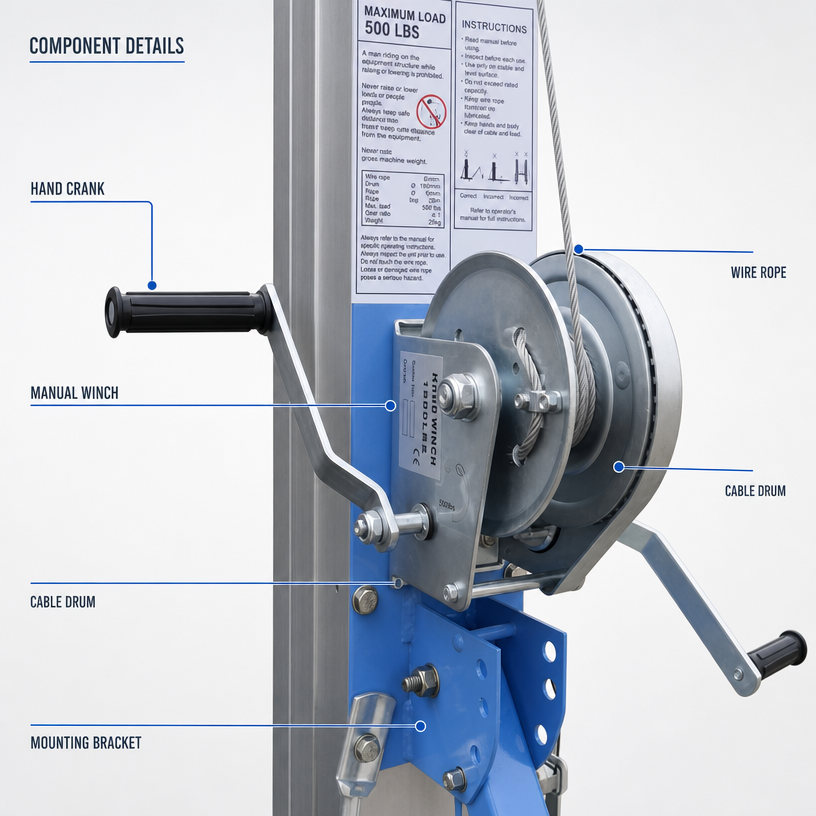

· Dual handle,two-speed shift-on-the-fly winch
· Heavy-gauge aluminum extrusions
· Crane attachment point
· Cable guard
· Smart latch system
· Mast brake
Optional Configurations:
· Adjustable forks
· Fork extensions
· Boom
· Pipe cradle
· Load platform
· Smart latch
Model | Unit | SLA-10 | SLA-15 | SLA-20 | SLA-25 |
Standard forks down | m | 2.97 | 4.46 | 5.94 | 7.42 |
Standard forks up | m | 3.49 | 4.98 | 6.46 | 7.49 |

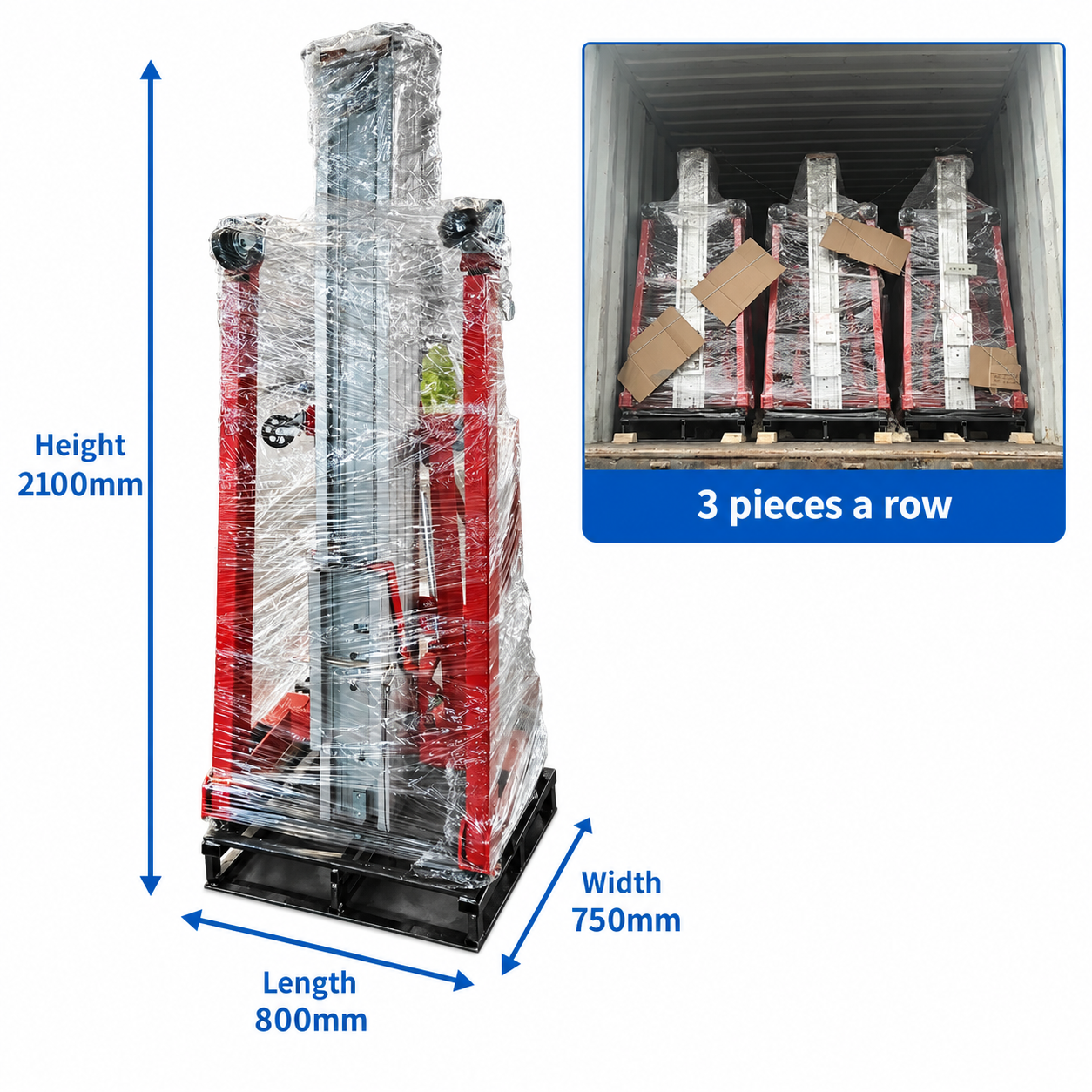

Stowed size(HxLxW) | m | 1.99×0.74×0.8 | 1.99×0.74×0.8 | 1.99×0.74×0.8 | 1.99×0.79×0.8 |
Working length | m | 1.52 | 1.88 | 2.08 | 2.08 |
Ground clearance-center | m | 0.05 | 0.05 | 0.05 | 0.05 |
Min.load height | m | 0.15 | 0.15 | 0.15 | 0.15 |
18 in(46cm)load center | kg | 454 | 363 | 363 | 295 |
24 in(61cm)load center | kg | 454 | 363 | 272 | 204 |
42 in(107cm)load center | kg | 181 | 227 | 159 | 113 |
Weight | kg | 118 | 151 | 184 | 204 |
Standard Configurations:
· Stabilizers with non-marking swivel casters
· Non-marking transport/loading wheelse
· Dual handle,two-speed shift-on-the-fly winch
· Heavy-gauge aluminum extrusions
· Crane attachment point
· Cable guard
· Smart latch system
· Mast brake
Optional Configurations:
· Adjustable forks
· Fork extensions
· Boom
· Pipe cradle
· Load platform
· Smart latch
Model | Unit | SLA-10 | SLA-15 | SLA-20 | SLA-25 |
Standard forks down | m | 2.97 | 4.46 | 5.94 | 7.42 |
Standard forks up | m | 3.49 | 4.98 | 6.46 | 7.49 |
Stowed size(HxLxW) | m | 1.99×0.74×0.8 | 1.99×0.74×0.8 | 1.99×0.74×0.8 | 1.99×0.79×0.8 |
Working length | m | 1.52 | 1.88 | 2.08 | 2.08 |
Ground clearance-center | m | 0.05 | 0.05 | 0.05 | 0.05 |
Min.load height | m | 0.15 | 0.15 | 0.15 | 0.15 |
18 in(46cm)load center | kg | 454 | 363 | 363 | 295 |
24 in(61cm)load center | kg | 454 | 363 | 272 | 204 |
42 in(107cm)load center | kg | 181 | 227 | 159 | 113 |
Weight | kg | 118 | 151 | 184 | 204 |
