A scissor lift table might seem like a simple piece of equipment—press a button, and the platform goes up or down. But behind that straightforward operation lies a clever system of mechanics and hydraulics working in perfect harmony. Understanding how these components function is key to appreciating their role in warehouses, manufacturing plants, and workshops around the world.

This guide will break down the mechanics behind a scissor lift table. We will explore the key components, from the powerful hydraulic system to the accordion-like legs that give the lift its name. By the end, you’ll have a clear understanding of the engineering that makes these tables an indispensable tool for lifting heavy loads safely and efficiently.

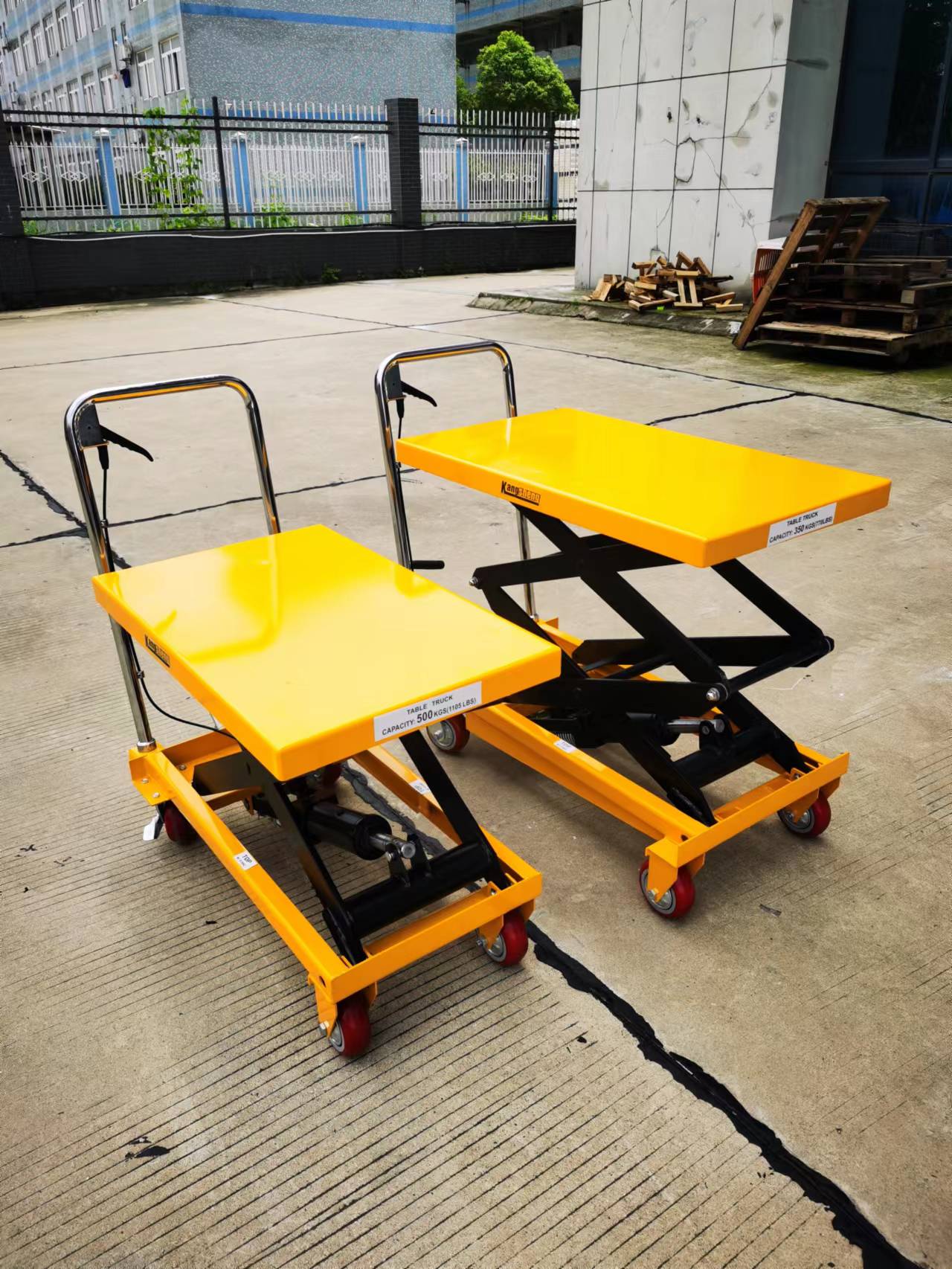

What is a Scissor Lift Table?

A scissor lift table is a stationary or mobile device designed to lift and lower materials and equipment. Its defining feature is the "scissor" mechanism—a series of linked, folding supports in a crisscross pattern that move apart or together to change the platform's height.

These tables are used in a wide range of industries to position work at an ergonomic height, load and unload vehicles, and move heavy items between different levels. Unlike larger aerial lifts, scissor lift tables are typically designed for lifting materials rather than people, and they provide a stable, flat surface for handling goods.

The Core Components of a Scissor Lift Table

To understand how a scissor lift table operates, it's helpful to look at its main parts. While designs can vary, most tables include the following five components.

1. The Platform

This is the flat, top surface where you place the load. Platforms come in various sizes and materials, such as steel or aluminum, and can be customized with features like rotating tops, conveyor rollers, or guardrails. The platform's size and load capacity are two of the most critical specifications when choosing a lift table.

2. The Base

The base is the foundation of the lift table that rests on the floor. It provides stability for the entire structure, especially when the platform is raised and carrying a heavy load. The base houses the scissor legs and the hydraulic system. For mobile units, the base is fitted with wheels or casters, allowing the table to be moved around a workspace.

3. The Scissor Legs

The scissor legs are the heart of the lifting mechanism. They are a set of interconnected steel limbs that pivot at the center and are attached to the platform and the base. As the legs extend, they push the platform upward. When they retract, the platform lowers. The number of scissor sets can vary; some heavy-duty models use multiple sets stacked on top of each other to achieve greater lifting heights.

4. The Hydraulic System

The hydraulic system is the powerhouse that drives the movement of the scissor legs. It uses fluid pressure to generate the force needed to lift heavy loads. This system consists of several key parts:

· Hydraulic Cylinders: These are the "muscles" of the lift. Typically, one or more cylinders are positioned between the scissor legs.

· Hydraulic Pump: This is an electric motor that pumps hydraulic fluid from a reservoir into the cylinders.

· Reservoir (Tank): This holds the hydraulic fluid when it is not in the cylinders.

· Valves: These control the flow of hydraulic fluid. A "check valve" prevents the fluid from flowing back out of the cylinder, and a "down valve" releases the fluid to lower the platform.

5. The Controls

This is the user interface for operating the lift table. Controls are usually simple, consisting of "up" and "down" buttons or a foot pedal. When the "up" button is pressed, it activates the hydraulic pump. Pressing the "down" button opens the down valve, allowing the platform to descend. Emergency stop buttons are also a standard safety feature.

The Step-by-Step Lifting Process

Now that we know the components, let's walk through the process of raising and lowering the platform.

Raising the Platform

1.Activation: The operator presses the "up" button on the control panel or foot pedal.

2.Pump Engagement: This sends an electrical signal to the hydraulic pump, turning it on.

3.Fluid Movement: The pump draws hydraulic fluid from the reservoir and pushes it under high pressure into the hydraulic cylinder(s).

4.Cylinder Extension: As the cylinder fills with fluid, the pressure forces a piston or rod to extend outward.

5.Leg Extension: The extending cylinder pushes against the scissor legs, causing them to separate and straighten out.

6.Platform Elevation: As the scissor legs extend, they lift the platform vertically. A check valve ensures the hydraulic fluid stays in the cylinder, holding the platform securely at the desired height even if the power is cut.

Lowering the Platform

1.Activation: The operator presses the "down" button.

2.Valve Opening: This signal activates a solenoid that opens the down valve (also known as a release valve).

3.Fluid Return: The weight of the platform and its load pushes down on the scissor legs. This pressure forces the hydraulic fluid out of the cylinder, through the open valve, and back into the reservoir.
4s. Cylinder Retraction: As fluid leaves the cylinder, the piston retracts.

4.Platform Descent: The scissor legs fold back together, causing the platform to lower smoothly. The speed of descent is controlled by the flow control valve, which regulates how quickly the fluid can return to the reservoir. This ensures a controlled and safe lowering process.

Safety Features in Scissor Lift Tables

Because they handle heavy loads, scissor lift tables are built with several safety mechanisms to protect operators and prevent accidents.

· Velocity Fuses: These are crucial safety devices inside the hydraulic cylinders. If a hydraulic line were to rupture, the velocity fuse would instantly slam shut, preventing the platform from crashing down.

· Safety Bars/Chocks: For maintenance purposes, mechanical bars or chocks can be placed within the scissor mechanism to physically prevent it from lowering. This allows technicians to work safely under the platform.

· Pressure Relief Valve: This valve prevents the system from being overloaded. If the load on the platform exceeds the table's capacity, the valve will open to release excess hydraulic pressure, preventing damage to the lift.

· Emergency Stop: A prominent, easily accessible button that immediately cuts power to the hydraulic pump, halting the lift's movement.

Elevate Your Workplace Efficiency

The design of a scissor lift table is a testament to the power of simple mechanics combined with robust hydraulic force. By using a crisscross leg structure and fluid pressure, these tables provide a reliable and powerful solution for lifting tasks in countless industrial settings.

Understanding how a scissor lift table works not only demystifies the equipment but also highlights the importance of proper operation and maintenance. When used correctly, these tables improve ergonomic conditions for workers, increase productivity, and create a safer work environment. Whether you're considering one for your facility or simply curious about the engineering, the scissor lift table stands as a prime example of practical and effective design.
