Views: 0 Author: Site Editor Publish Time: 2025-11-13 Origin: Site
If your facility relies on moving goods from trucks to your warehouse floor, you understand the importance of an efficient loading dock. A key component of this operation is the dock ramp. It bridges the gap between the truck and the dock, ensuring a smooth, safe, and quick transfer of inventory. But one of the first questions on any facility manager's mind is: what is the cost of a warehouse dock ramp?
The answer isn't a single number. The price of a warehouse dock ramp can vary significantly, ranging from a few thousand dollars for a basic, portable model to over $50,000 for a complex, custom-built permanent installation. This guide will break down the factors that influence the final cost, helping you understand the investment required to equip your facility properly. We'll explore different ramp types, material choices, and additional features so you can make an informed decision for your business.
The price tag on a warehouse dock ramp is determined by a combination of factors. Understanding these variables will help you budget effectively and choose a ramp that meets your operational needs without overspending.
The most significant cost differentiator is whether you choose a portable or stationary (permanent) ramp.

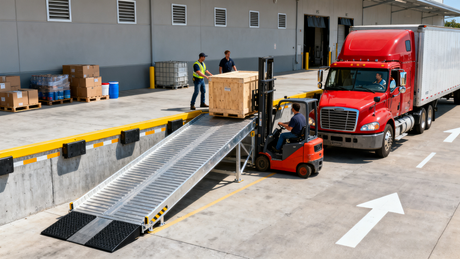

· Portable Dock Ramps: Often called yard ramps, these are designed for flexibility. They can be moved around your facility with a forklift to service different loading areas or trucks. They are ideal for businesses without a dedicated loading dock or those that need a temporary solution.
- Cost Range: Typically, portable ramps cost between $5,000 and $20,000. The price depends on their length, width, and weight capacity.
· Stationary Dock Ramps: These are permanent structures, often made of concrete or steel, that are built into your loading dock. They offer superior stability and durability for high-volume operations. Because they require construction and site preparation, their initial cost is higher.
- Cost Range: A stationary steel ramp can cost from $10,000 to $30,000+, not including installation. A full concrete ramp installation can exceed $50,000 when you factor in construction, labor, and materials.
The material of the ramp plays a crucial role in its durability, weight capacity, and price.
· Steel: This is the most common material for warehouse dock ramps due to its exceptional strength and durability. Steel ramps can handle heavy-duty use and high weight capacities, making them perfect for facilities that move large equipment or fully loaded pallets. However, steel is heavier and susceptible to rust if not properly maintained or coated.
- Impact on Cost: Steel is generally more expensive than aluminum for a comparable size due to its weight and manufacturing process.
· Aluminum: Aluminum ramps are lightweight, corrosion-resistant, and easier to move. They are an excellent choice for portable applications or environments exposed to moisture. The trade-off is that they typically have a lower weight capacity than steel ramps.
- Impact on Cost: While lighter, aluminum can sometimes be more expensive per pound than steel, but the overall cost for a ramp with a lower capacity might be less.
A ramp's capacity is the maximum weight it can safely support. This is a critical safety and cost factor. A ramp designed to handle a 10,000 lb forklift will be less expensive than one engineered to support a 30,000 lb loaded forklift.
· Light-Duty (up to 16,000 lbs): Suitable for hand trucks, dollies, and light pallet jacks. These are the most affordable options.
· Medium-Duty (16,000 - 25,000 lbs): Designed for standard forklifts and common warehouse loads. This is a popular range for many businesses.
· Heavy-Duty (25,000+ lbs): Built for heavy machinery, fully loaded forklifts, and demanding industrial environments. These ramps require more robust construction and materials, placing them at the higher end of the price spectrum.
Always calculate your maximum required load (forklift weight + max load weight) and add a safety margin before selecting a capacity.
The length and width of the ramp directly affect material costs and engineering complexity.
· Length: A longer ramp provides a gentler, safer slope for forklifts. The standard recommendation is to have a ramp length that does not create a grade steeper than 15%. Longer ramps require more material and are therefore more expensive.
· Width: Ramps must be wide enough to accommodate your largest equipment with room to spare on either side for safety. Standard widths are typically around 70 to 84 inches, but wider, custom options will increase the price.
Standard ramps come with basic features, but many businesses require add-ons for enhanced safety and functionality. These will add to the total cost.
· Safety Curbs or Rails: Essential for preventing forklifts from accidentally driving off the edge. While often standard, heavy-duty or taller rails can be a paid upgrade.
· Handrails: Necessary for ramps that will also be used by pedestrians.
· Adjustable Height Mechanisms: Hydraulic or manual systems that allow you to change the ramp's height to match different truck bed levels. Hydraulic options are more expensive but offer greater convenience.
· Deck Grating: Serrated steel grating provides superior traction in wet, icy, or oily conditions, significantly improving safety. This is a common and highly recommended feature that can influence the price.
· Mobility Packages: For portable ramps, this can include features like a tow bar for easy forklift positioning or higher-quality wheels.
Finally, don't forget to budget for the costs of getting the ramp to your facility and putting it in place.
· Shipping: Due to their size and weight, dock ramps are expensive to ship. Freight costs can add several hundred to a few thousand dollars to your final bill.
· Installation: Portable ramps require minimal installation—usually just uncrating. Stationary ramps, however, require professional installation, which can involve concrete work, welding, and anchoring. Installation labor can be a significant expense, especially for complex projects.
Choosing the right warehouse dock ramp is about more than just finding the lowest price. It’s about investing in a piece of equipment that will enhance safety, improve efficiency, and support your operations for years to come.
Start by thoroughly assessing your needs. Consider the types of trucks you service, the equipment you use, and the volume of goods you handle. Armed with this information, you can get accurate quotes from suppliers that reflect the specific type, capacity, and features your facility requires. A quality dock ramp is a foundational part of a productive warehouse, and understanding its cost components is the first step toward making a smart purchase.
