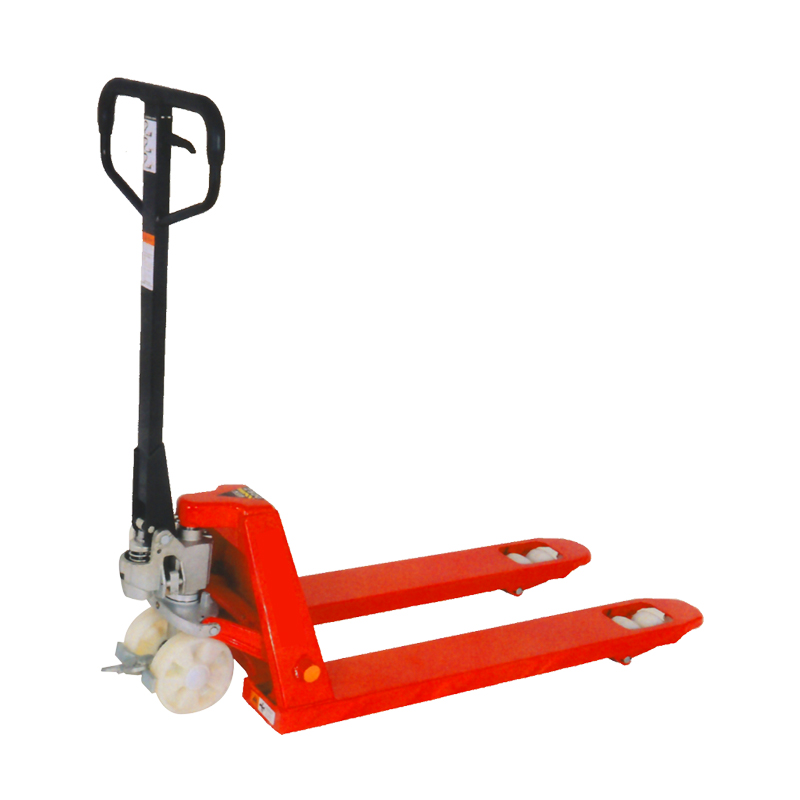

Overview
· Forks are processed with whole press forming technology and are coated with powderpainting,torsion &fading-resistant
· Excellent whole casting hydraulic pump and welded pump for your choice, robust anddurable, with fine control of lowering speed and overload valve. Single-piece hydraulicvalve cartridge is easyfor maintenance
· Option of different coating material for both steering wheel and fork rollersErgonomically designed handle with comfortable rubber grip allows the optimized safety.Designed handle with comfortable rubber grip allows the optimized safety
| Model | CBY.FBK |
| Capaclity | 3000kg |
| Pump | AC Integrated pump |
| Wheel | PU/RU/Nylon |
| Steering wheel size | 200/180×50 Nylon/PU/Rubber |
| Single loading wheel size | Nylon/PU wheel80×93-74×93 |
| Double loading wheel size | Nylon/PU wheel80×70-74×70 |
| Lift | 110-115mm |
| Max.lifting height | 195-200mm |
| Min.Iifting height | 75/85mm |
| Width of outer fork | 450/520/550/685 |
| Length of fork | 1150/1220mm |
| Steel thickness after painting | 3.75mm |
| Ribbing | No tendons |
| Handle | Rubberpackaged handle/riquetrous ron handle |
| Entry roller | Standard |
