| Rated Loading Capacity: | |
|---|---|
| Lifting Height: | |
| Quantity: | |

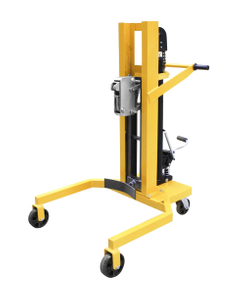

The COT Hand Drum Lift (also known as manual drum stacker/tilter) is a manual hydraulic drum handler designed for lifting, transporting, rotating, and dispensing from 210L (55-gallon) drums. It combines manual hydraulic lifting with mechanical tilting for complete drum control without electric power .
1. Chemical & Pharmaceutical Plants
Scenario: Lifting drums of raw chemicals to mixers or reactors, dispensing precise amounts
Value: 180° rotation ensures complete emptying – no product waste
Scenario: Pouring paint, ink, or resin from 210L drums into mixing kettles or filling hoppers
Value: Lockable tilt angle allows hands-free dispensing at any position
Scenario: Emptying edible oil, syrup, or concentrate drums into blending tanks
Value: No hydraulic oil near food zone – safe for sanitary environments
Scenario: Emptying used oil or waste chemical drums into collection containers
Value: Tilt-to-drain design minimizes spillage and manual handling risk
Scenario: Stacking drums up to 1460mm height for storage optimization
Value: Single-operator drum stacking without forklift
Scenario: Handling bulk oil, coolant, or lubricant drums in service centers
Value: Compact footprint fits narrow workshop aisles
| Model | COT0.35/1.4 | CDT0.35/1.6 | CDT0.35/2.5 |
| Load lifting capacity(kg) | 350 | 350 | 350 |
| Lowest height(mm) | 1400 | 1600 | 2500 |
| Overall dimensions(mm) | 1210×970×2050 | 1190×890×2000 | 1190×890×2000 |
| Self weight(kg) | 160 | 320 | 365 |
| Overall height(mm) | 2020 | 2120 | 1950 |
Net weight(kg) | 155 | 310 | 360 |
