Product Description

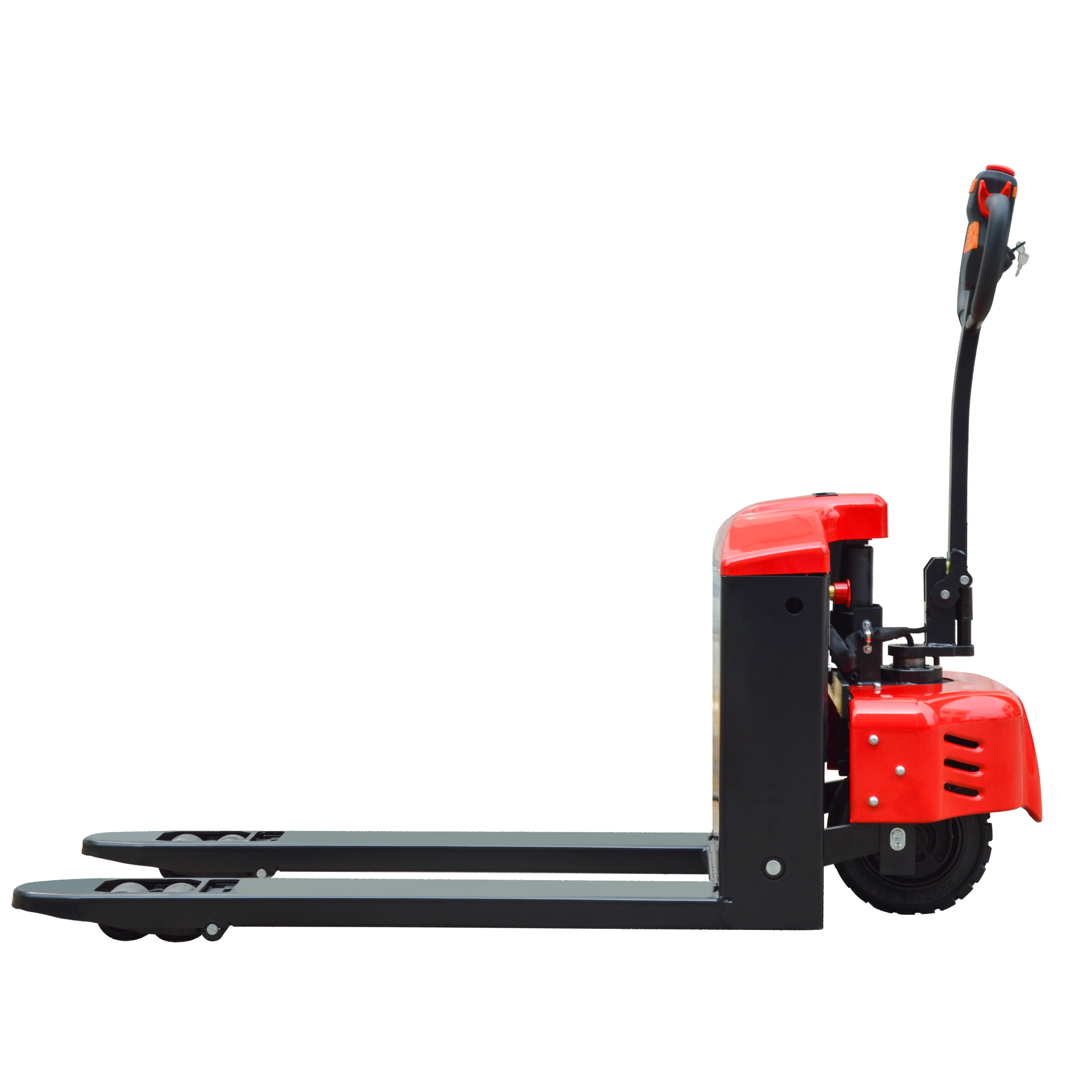

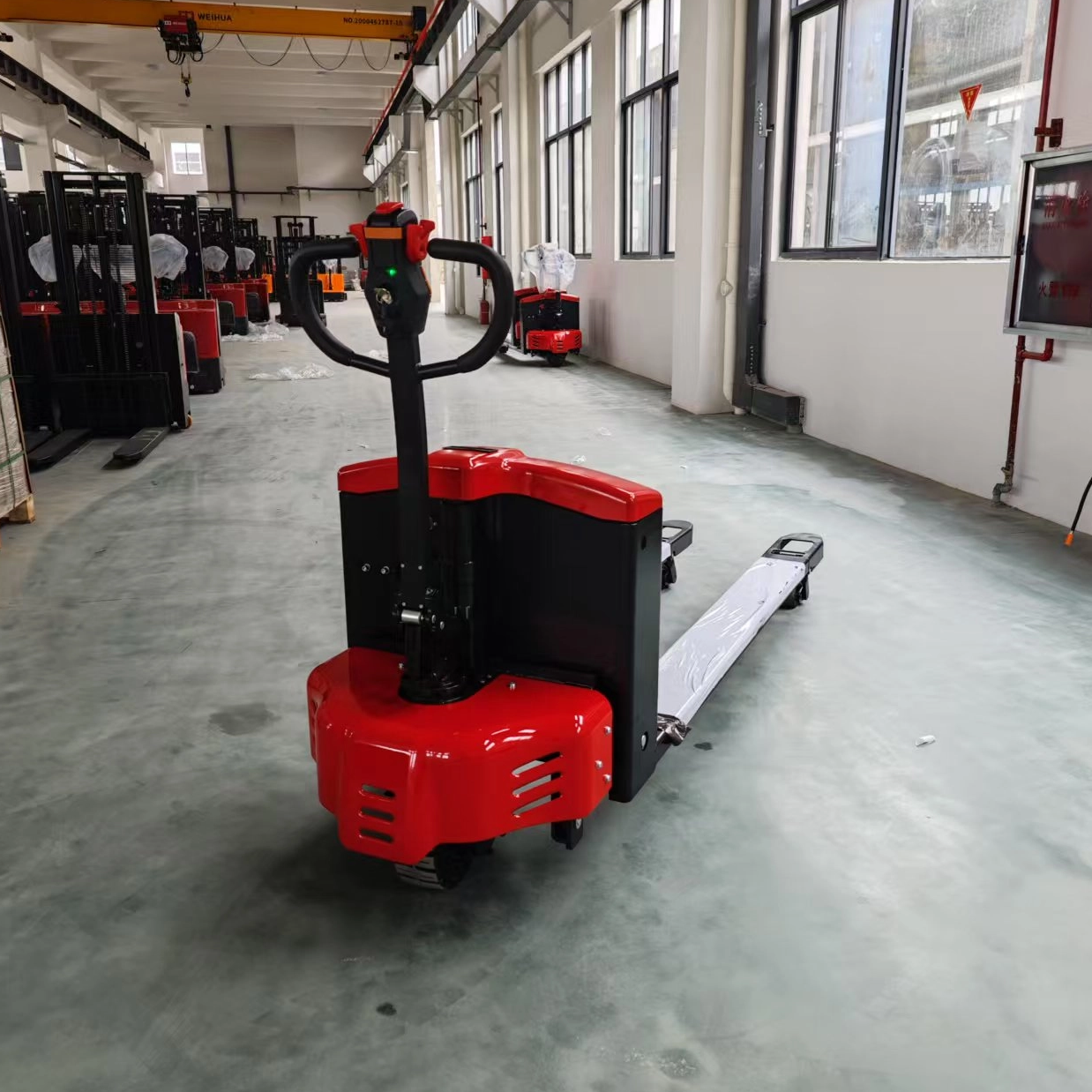

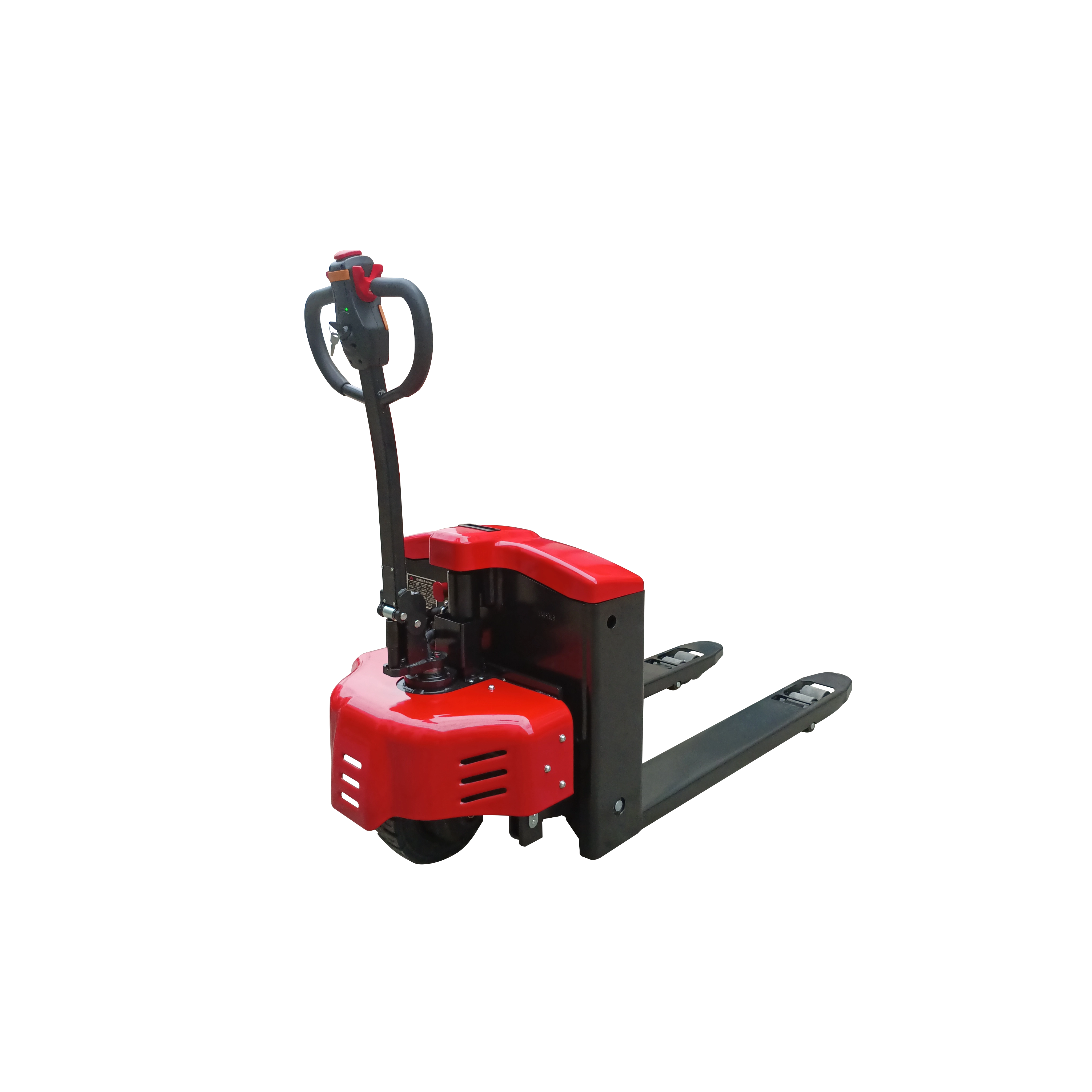

The CBD-Y Series is a rugged, high-clearance electric pallet truck designed for demanding indoor and outdoor material handling. Combining the agility of a standard pallet truck with the durability of a utility vehicle, the "SUV" configuration features reinforced chassis, larger drive wheels, and enhanced ground clearance to operate reliably on uneven surfaces, ramps, and wet or dusty environments.
Application Scenarios：
Outdoor storage yards – Moving pallets between external racking, container staging areas, or temporary laydown zones.
Cross‑dock facilities – Transporting goods across docks where pavement quality varies between inside and outside zones.
Building material suppliers – Handling bags, blocks, or bundled items on gravel or compacted dirt surfaces.
Heavy equipment dealers – Shifting palletized parts, tires, or attachments around machinery storage lots.
Cold storage/freezer warehouses with dock transitions – Traversing insulated dock plates and anti‑ice textured floors reliably.
|
Data Sheet
| Model |
Unit |
CBD-Y |
| Characteristlc |
Operation mode |
|
Walking |
| Rated load capacity |
Q(kg)
|
3000 |
| Lift height |
h3(mm) |
205 |
| Weight |
kg |
260 |
| Load center distance |
c(mm) |
600 |
| Front overhang |
x(mm) |
981 |
| Wheelbase |
y(mm) |
1334 |
| Controller |
|
KTZ48C |
| Wheels |
Tire type |
|
PU |
| Drive wheel size |
Φx w(mm) |
Φ300×95 Rubber |
| Carrying wheel size |
Φx w(mm) |
Φ84×90 Nylon |
| Balance wheel size |
Φx w(mm) |
|
Number of driving wheels,balance wheels/carrying wheels
(x=drlving wheels) |
|
1x,0/4 |
| Dimensions |
Minimum height of fork |
h 13(mm) |
85 |

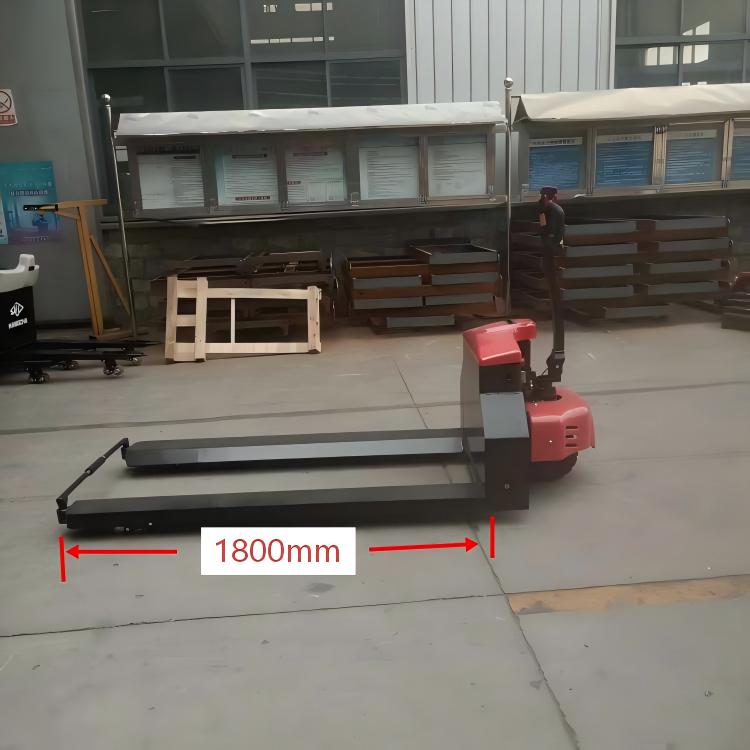

| Vehicle length |
L1(mm) |
1786 |
| Body length |
L2(mm) |
567.5 |
| Vehicle width |
b1/b2(mm) |
699 |

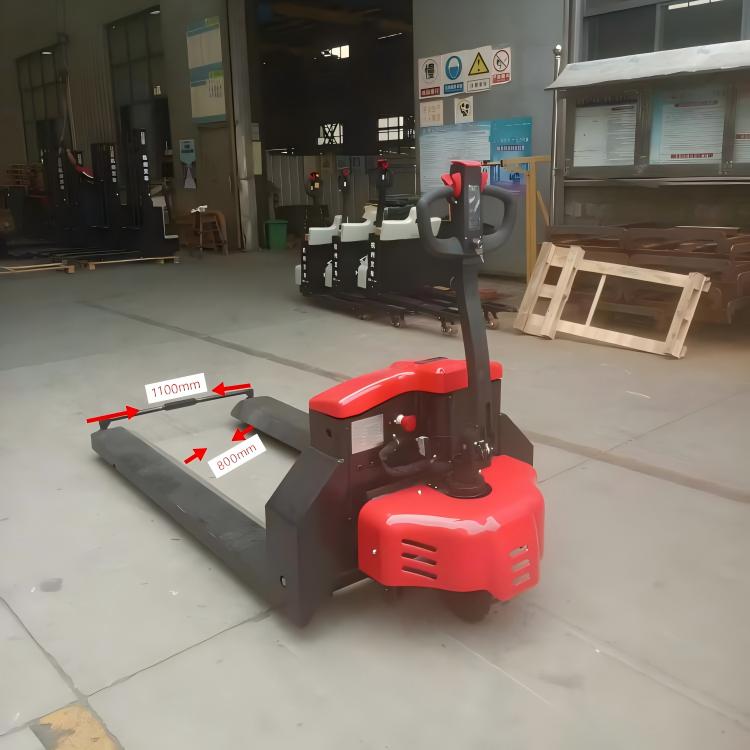

| Fork size |
s/e/I(mm) |
55/165/1220 |
| Fork outer width |
b5(mm) |
550/685 |
| Ground clearance at wheelbase center |
m2(mm） |
30 |
| Aisle width:1000x1200 pallets(1200 placed along the forks) |
Ast(mm) |
2294 |
| Alsle width:800x1200 pallets(1200 placed along the forks) |
Ast(mm) |
2204 |
| Turning radius |
Wa(mm) |
1548 |
| Performance |
Traveling speed,full/unloaded |
km/h |
4/4.5 |
| Lift speed,full load/no load |
mm/s |
20/30 |
| Descending speed,full/unloaded |
mm/s |
40/30 |
| Maximum gradeabillty,full/unladen |
% |
5/16 |
| Brake type |
|
Electromagnetic brake |
Drlve&
Battery |
Drive motor power |
kw |
1 |
| Lifying motor power |
kw |
0.8 |
| Battery voltage/capacity |
V/Ah |
48/20(Option48/30) |
| Battery weight |
kg |
11 |
| Others |
Noise level |
dB(A) |
69 |
| Steering type |
|
Mechanical steering |
|
Product Details
*All-steel body construction ensures impact resistance and rugged durability.
*Capable of climbing a 12% gradient at full load (3 tons)，and a 15% gradient with a 2-ton load.
*Equipped with anemergency reverse travel function to protect the
operator from potential injury.
*Features a detachable heavy-duty tail cover for easy access to facilitate maintenance or replacement
*The front panel of the chassis is removable for quick troubleshooting and fault diagnosis.
Solid Rubber Wheel
48V /20Ah Lithium
(48V/30Ah optional)
Control Handle
|
Comment & FAQ
1. What terrain can a 3-ton off-road electric transport cart operate on?
A: A 3-ton off-road electric material handling cart is engineered for harsh and uneven working environments where standard electric carts cannot operate effectively.
2.How long does the battery last per charge?
A: Battery endurance depends on load, terrain, and battery type.
Typical working time:
Light load / flat ground: 6–10 hours
Full 3-ton load / mixed terrain: 4–7 hours
Continuous heavy-duty operation: 3–5 hours
3.Which industries use 3-ton off-road electric transport carts?
A: This equipment is widely used in industries requiring heavy material transport without road infrastructure limitations:
Construction Industry
Agriculture
Fertilizer transport
Feed and crop movement
Farm logistics
Mining & Quarry
Forestry & Landscaping
Industrial Yards & Warehouses
