Standard configuration:

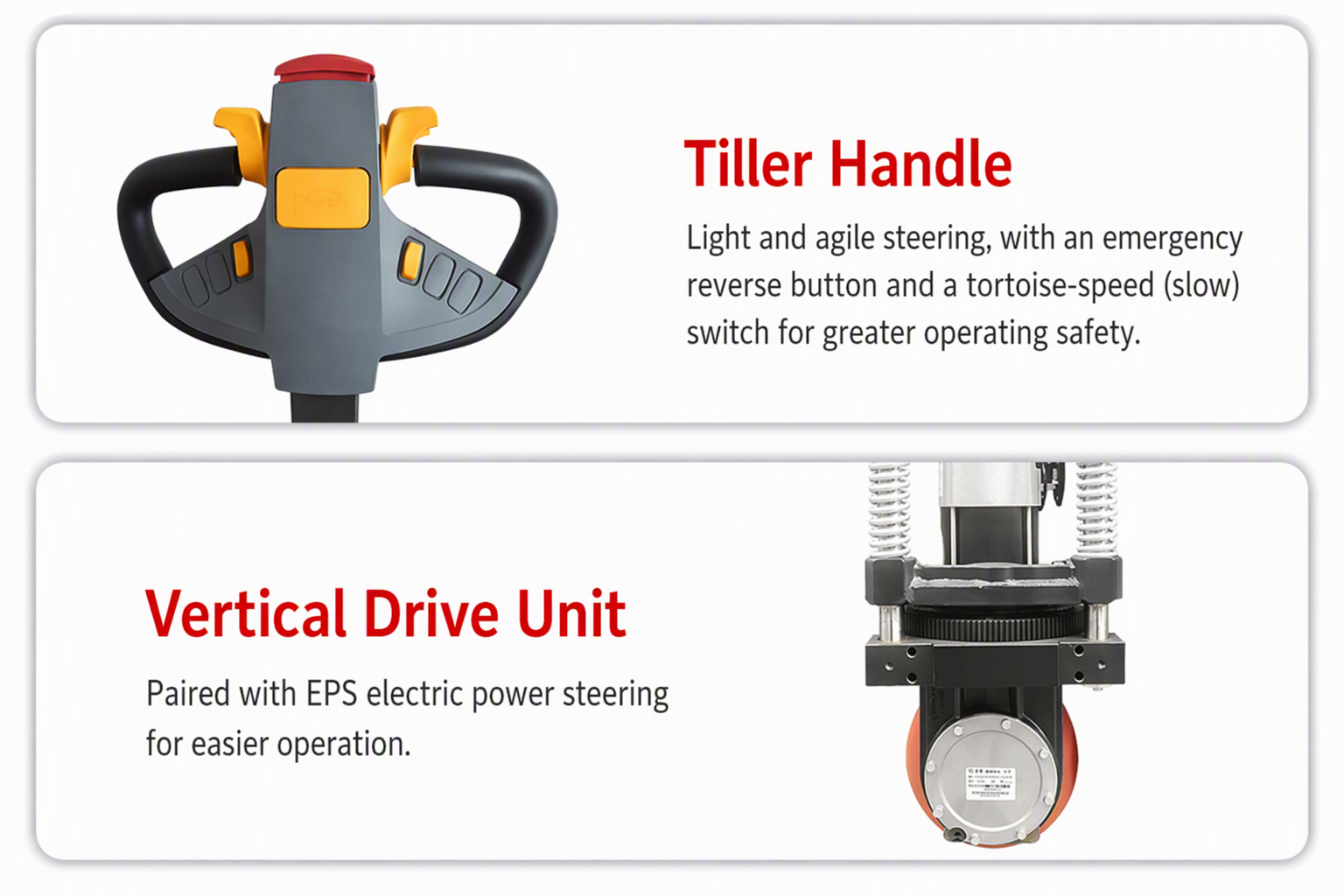

· EPS electric power steering

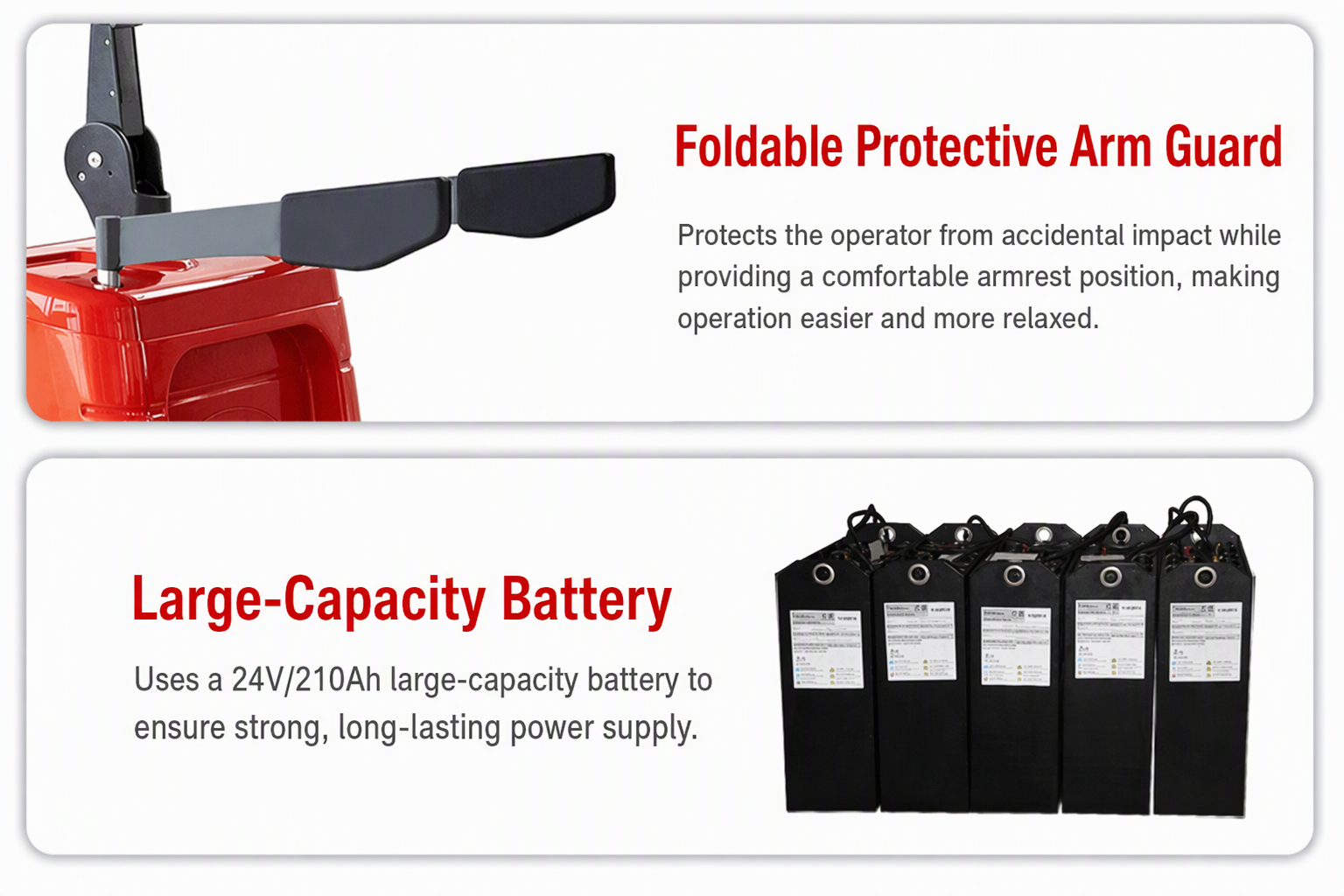

·24V/210Ah lead acid battery
· AC 1.5KW vertical drive motorOptional
· Controller brand CURTlS
· Fork length /Width customized
Model | Unit | CBD-A 20/25/30 | |
Performance | Maximum load capacity | kg | 2000/2500/3000 |
Load center | mm | 600 | |
Maximum lifting height | mm | 205 | |
Travel speed without load/with load | km/h | 5/4.5 | |
Lifing speed without load/with load | mm/s | 24 | |
Lowered speed without load/with load | mm/s | 30 | |
Maximum gradeability without load/load | % | 5/16 | |
Weight (with battery) | kg | 720 | |

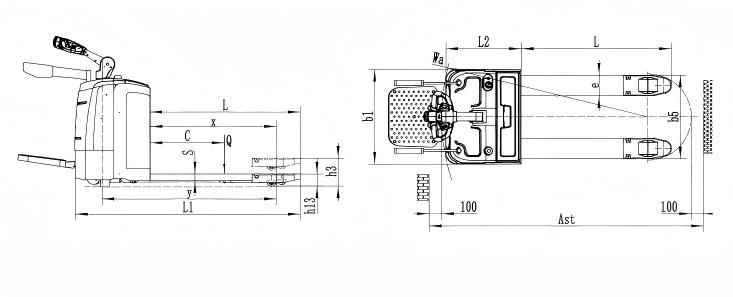

Dimensions | Overall length/width of frame(without platform) | mm | 1820×775/1942×850 |
Wheelbase | mm | 1350/1472 | |
Fork size(length x width x thickness) | mm | 1220×170×55 | |
Fork outside width | mm | 550/685 | |
Ground clearance | mm | 30 | |
Fork lowered height | mm | 85 | |
Minimum turning radius | mm | 2070/2164 | |
Minimum intersecting aisie | mm | 2815/2708 | |
Wheel | Front wheel | mm | 80×98 |
Drive wheel | mm | 230×75 | |
Caster wheel | mm | 115×55 | |
Electrical Components | Drive motor Rated out put/AC motor | kw | 1.5 |
Hoist motor Rated out put/DC motor | kw | 1.5 | |
Battery | Voltag/Capacity | V/Ah | 24/210 |
Weight | kg | 195 |
