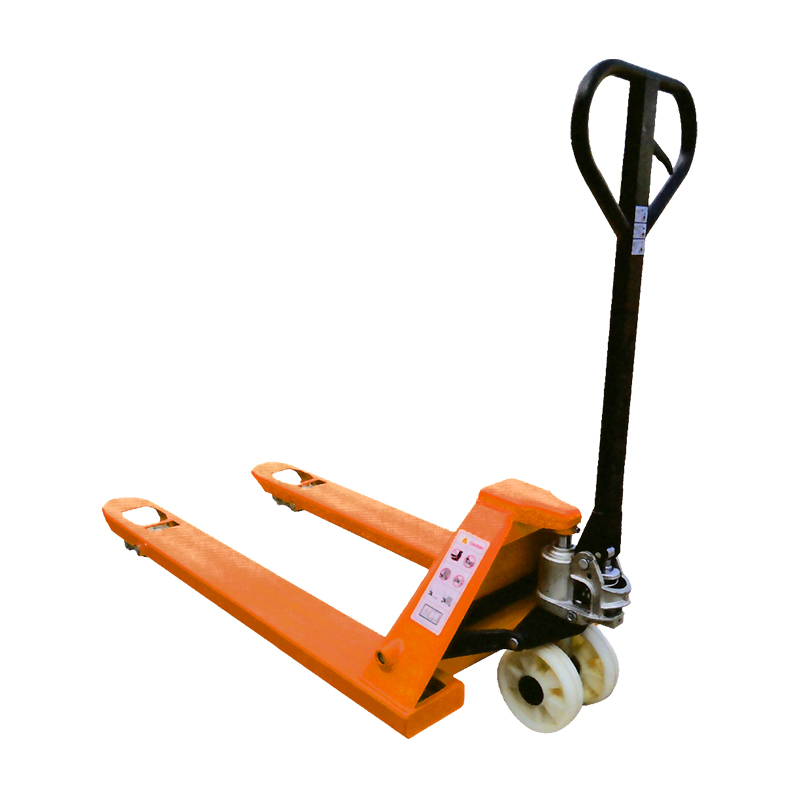

CBY-DB Hand Pallet Truck
· Forks are processed with whole press forming technology and are coated with powderpainting, torsion & fading-resistant
· Excellent whole casting hydraulic pump and welded pump for your choice, robust anddurable, with fine control of lowering speed and overload valve. Single-piece hydraulicvalve cartridge is easy for maintenance
· Option of different coating material for both steering wheel and fork rollersErgonomically designed handle with comfortable rubber grip allows the optimized safetyDesigned handle with comfortable rubber grip allows the optimized safety
| Model | Unit | CBY.DB | |
| Capacity | kg | 2000 | 2500 |
| Max.fork height | mm | 185 | |
| Min.fork height | mm | 75/85 | |
| Steering wheel | mm | Φ180×50 Nylon/Polyurethane | |
| Load roller | mm | Φ80×70 Nylon/Polyurethane | |
| Each fork width | mm | 160 | |
| Fork width | mm | 550 | 685 |
| Fork length | mm | 1150 | 1220 |
| Net weight | kg | 68-72 | |
CBY-DB Hand Pallet Truck
· Forks are processed with whole press forming technology and are coated with powderpainting, torsion & fading-resistant
· Excellent whole casting hydraulic pump and welded pump for your choice, robust anddurable, with fine control of lowering speed and overload valve. Single-piece hydraulicvalve cartridge is easy for maintenance
· Option of different coating material for both steering wheel and fork rollersErgonomically designed handle with comfortable rubber grip allows the optimized safetyDesigned handle with comfortable rubber grip allows the optimized safety
| Model | Unit | CBY.DB | |
| Capacity | kg | 2000 | 2500 |
| Max.fork height | mm | 185 | |
| Min.fork height | mm | 75/85 | |
| Steering wheel | mm | Φ180×50 Nylon/Polyurethane | |
| Load roller | mm | Φ80×70 Nylon/Polyurethane | |
| Each fork width | mm | 160 | |
| Fork width | mm | 550 | 685 |
| Fork length | mm | 1150 | 1220 |
| Net weight | kg | 68-72 | |
