Overview

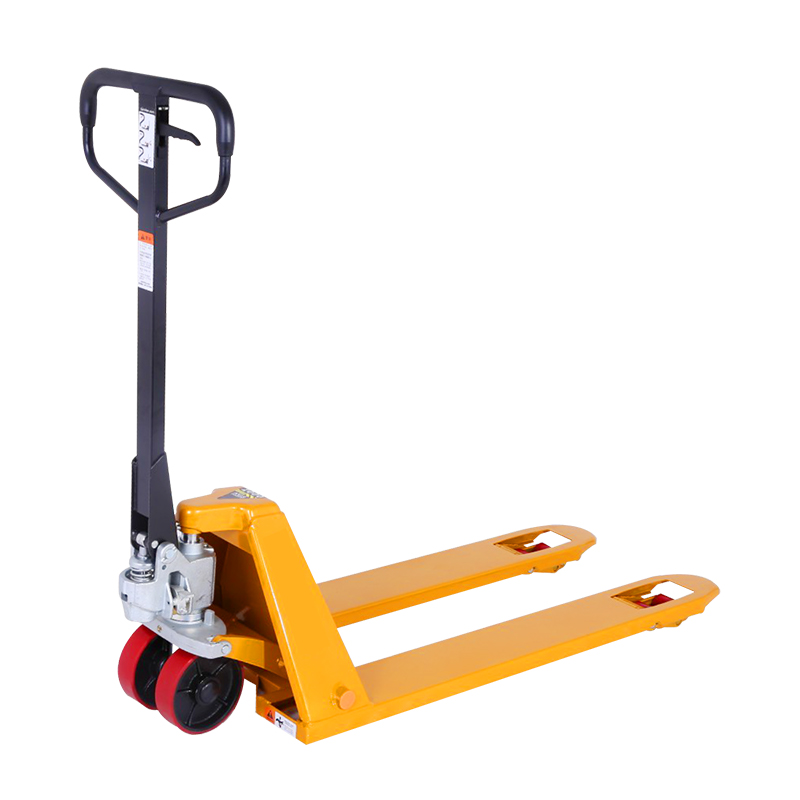

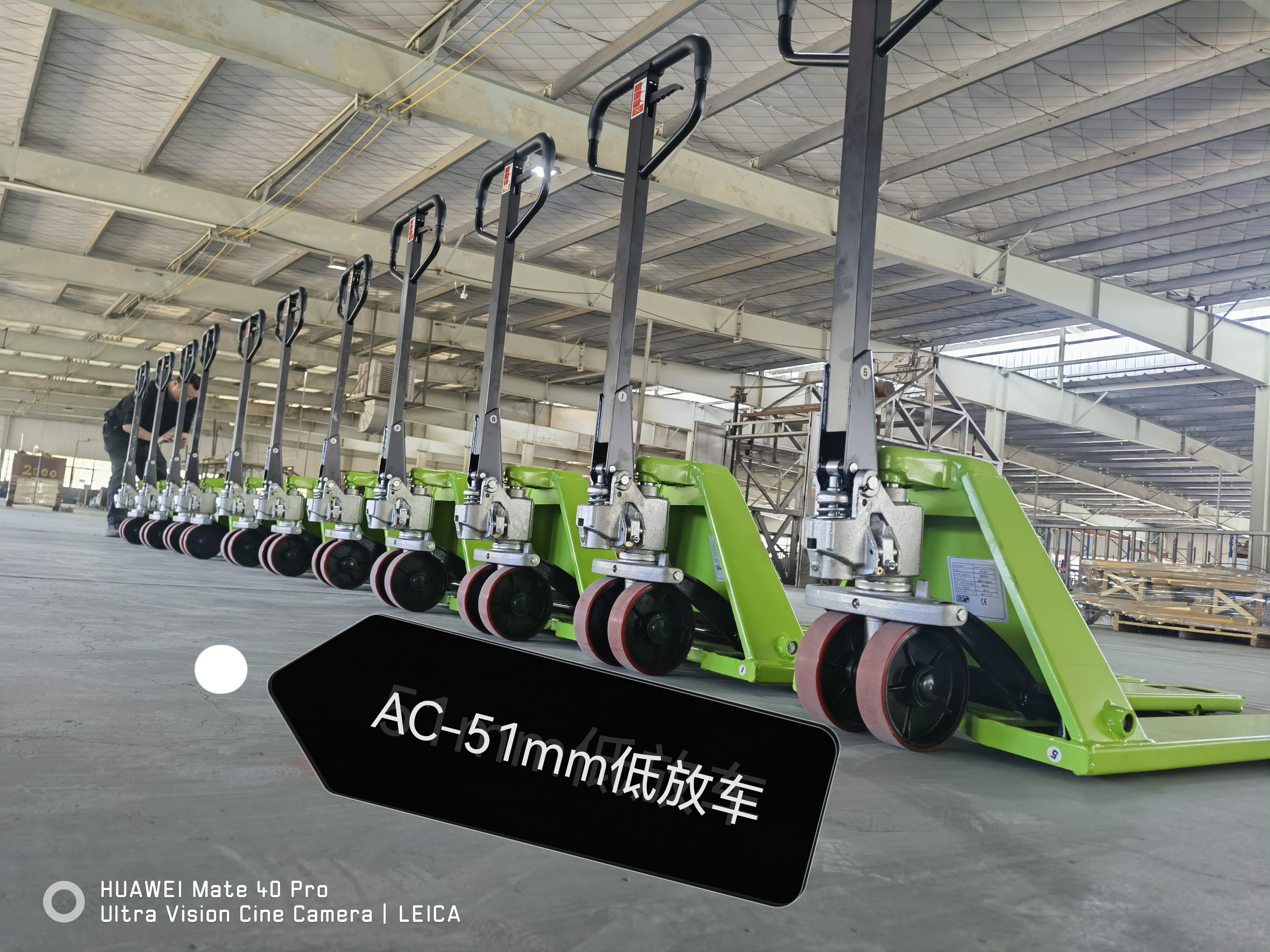

Featuring an ultra-low fork design, it easily accesses low-profile pallets, closed-bottom pallets and flat pallets that ordinary pallet trucks cannot enter. With a low center of gravity, it delivers high stability and anti-tipping performance. Compact structure and flexible steering make it suitable for narrow passages. Equipped with integral cast hydraulic cylinder, wear-resistant PU wheels and high-performance sealing rings, it is durable, overload-protected and maintenance-free.
Application Scenarios
-
Low Clearance Pallet Handling
Suitable for European low-profile pallets, disposable flat pallets and plastic closed-bottom pallets; widely used in food, beverage, pharmaceutical, electronics and daily chemical industries.
-
Warehouse & Narrow Aisle Operation
Ideal for low-level shelf areas, mezzanine warehouses and narrow passage warehouses. Perfect for cargo transfer in elevators and multi-floor storage scenarios.
-
Logistics Loading & Unloading
Flexible operation inside trucks and containers, applicable for short-distance cargo transit and LCL shipment handling.
-
Industry-Specific Usage
Widely adopted in cold chain & food industry, precision electronics manufacturing, automobile machinery workshops and supermarket back-room stock replenishment, ideal for handling fragile parts, precision instruments and regular palletized goods.
| Model | CBY-ACL51 |
| Capacity | 2500kg |

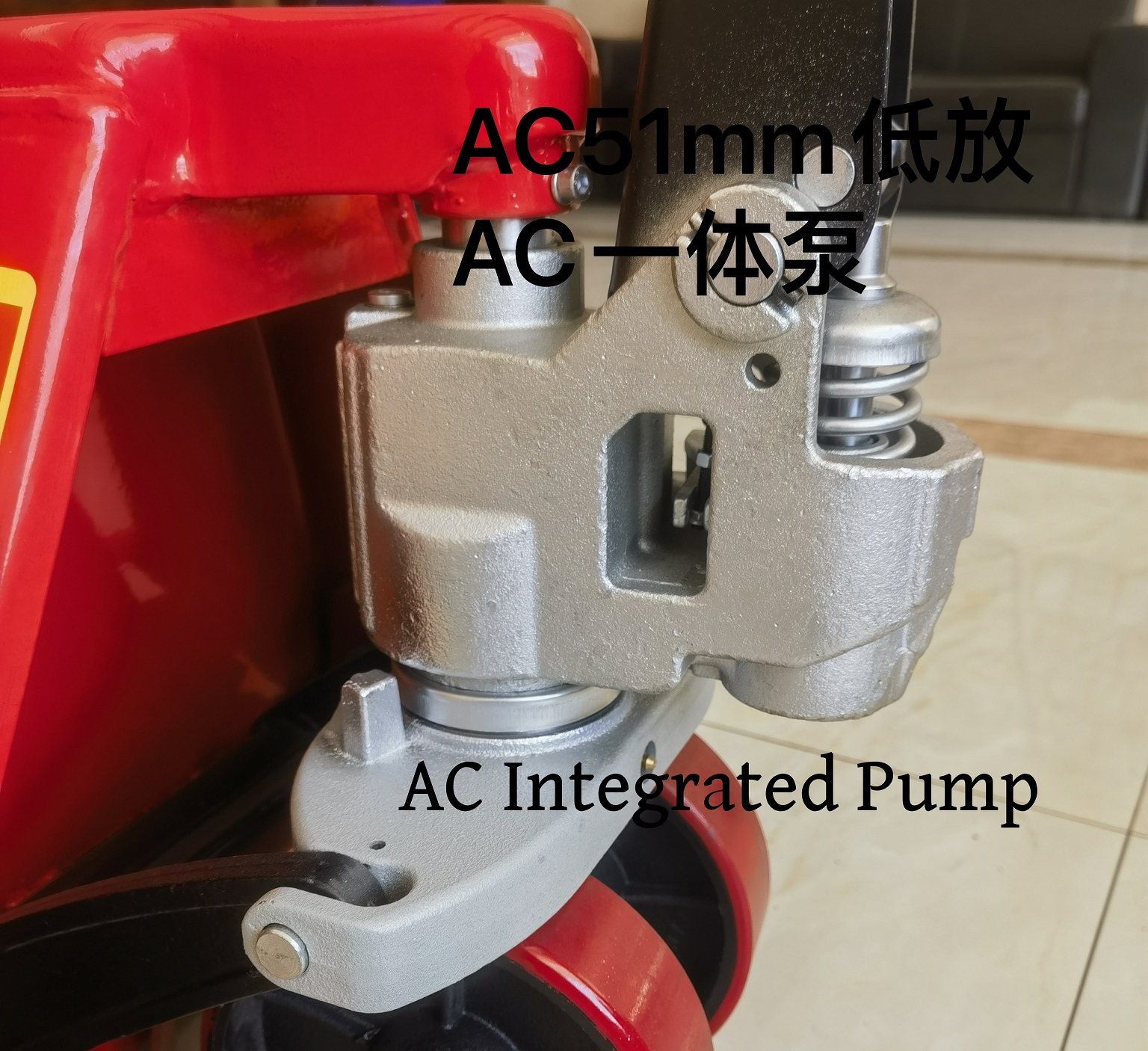

| Pump | AC Integrated pump |
| Wheel | PU/RU/Nylon |
| Steering wheel size | 200/180×50 Nylon/PU/Rubber |
| Single loading wheel size | Nylon/PU wheel 80×93-74×93 |

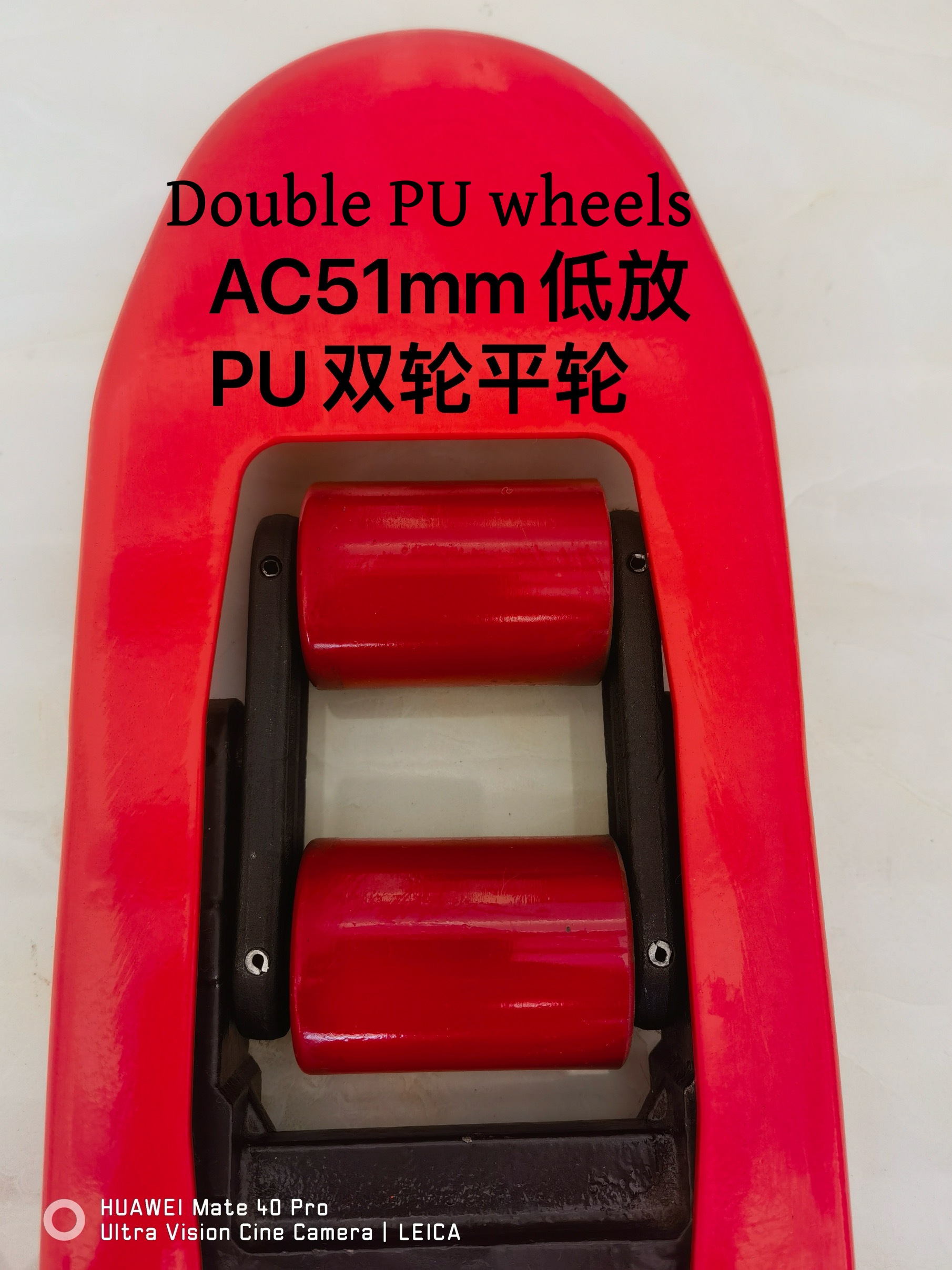

| Double loading wheel size | Nylon/PU wheel80×70-74×70 |
| Lift | 110-115mm |
| Max.lifting height | 195-200mm |

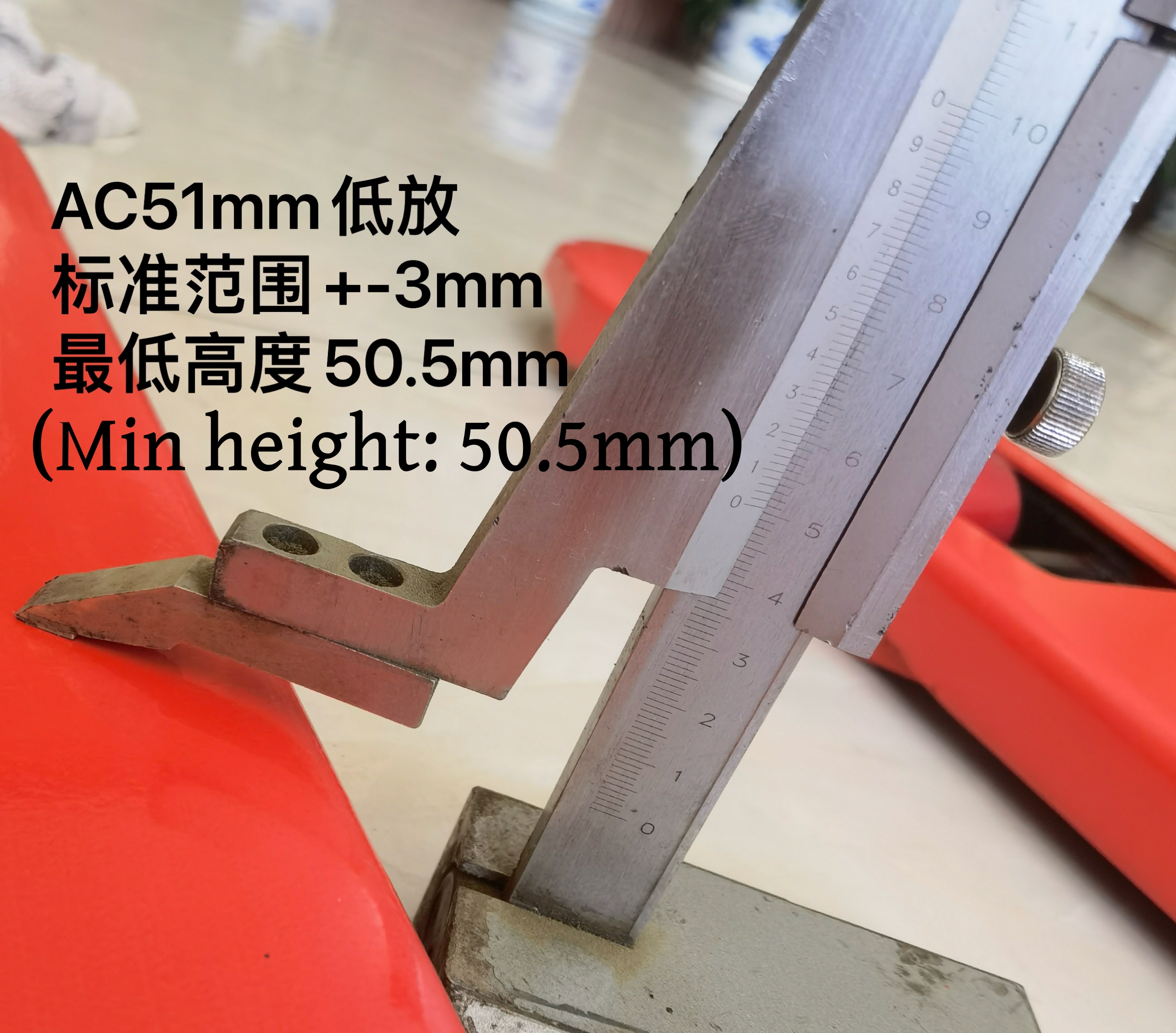

| Min.lifting height | 85/75mm |
| Width of outer fork | 450/520/550/685 |
| Length of fork | 1150/1220mm |

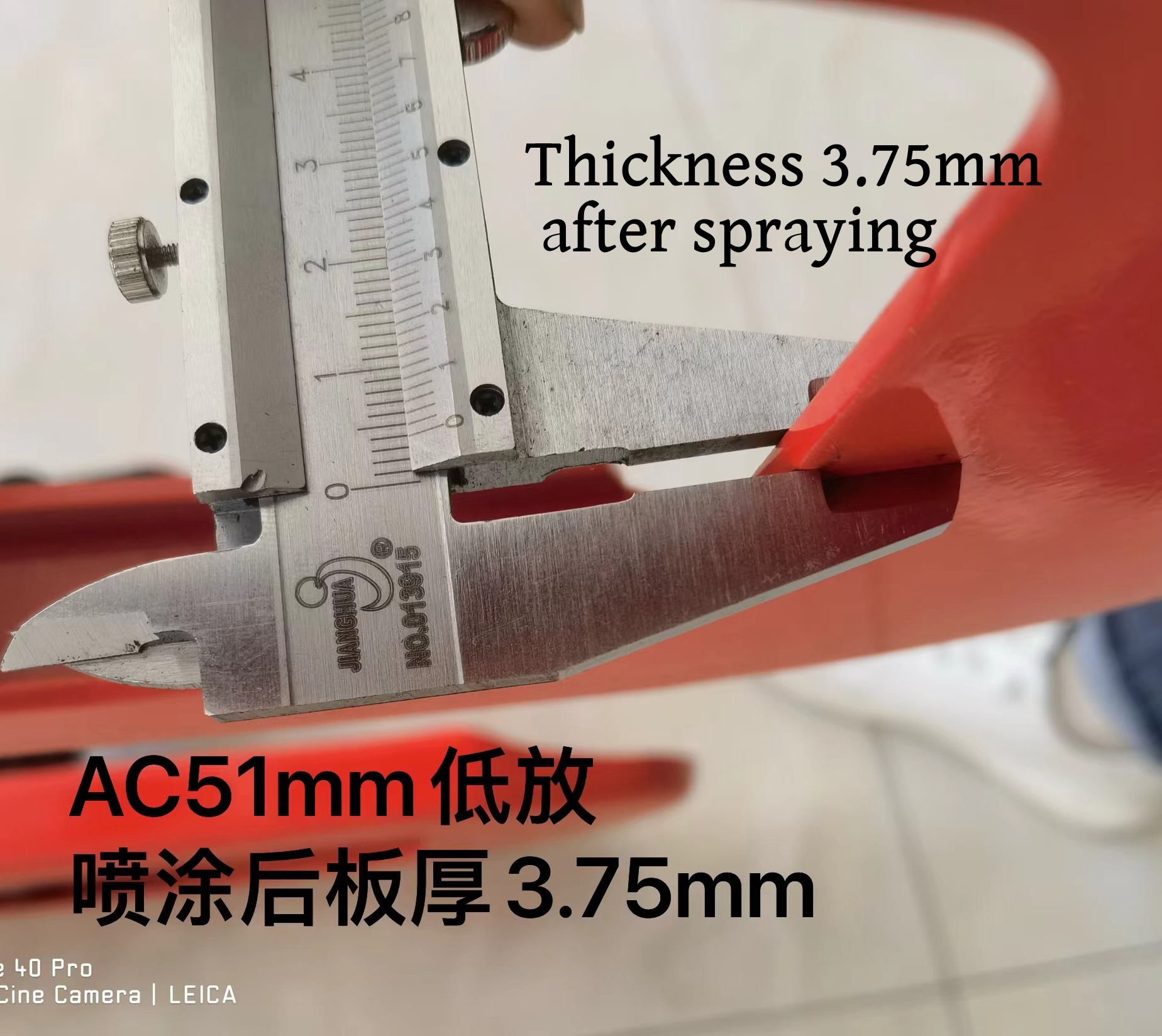

| Steel thickness after painting | 3mm |

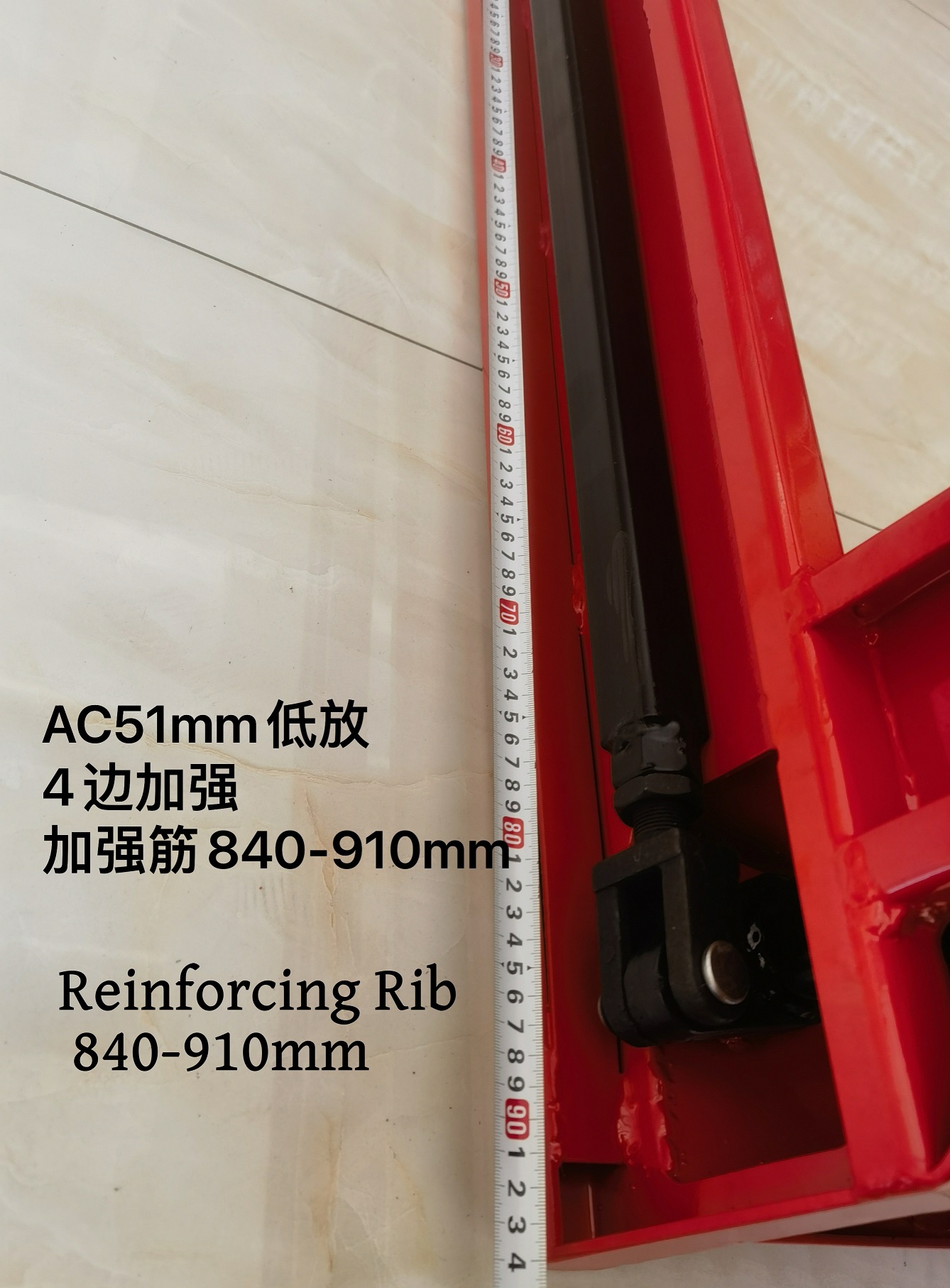

| Ribbing | No tendons |
| Handle | Rubber packaged handle/hiquetrous ron handle |
| Entry roller | Standard |
