Standard configuration:
· Imported driving force, strong power
· 48V maintenance free brushless motor system
· An integrated battery side pull mechanism that has obtained national patents
· Adopting a multifunctional intelligent controller and control system,practical and simple

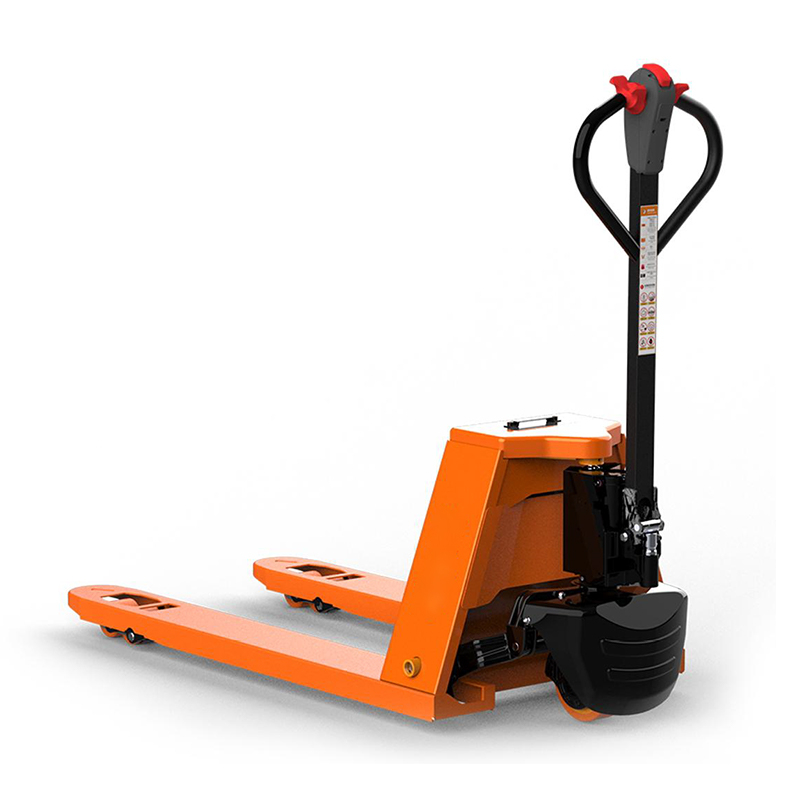

Model | Unit | EPT15/20 | ||
Operation type | Walking style | |||
Rated capacity | kg | 1500 | 2000 | |
Load center distance | mm | 600 | ||
Front overhang | X | 946 | ||
Wheel base | y | 2000 | ||
Weight | kg | 120 | 130 | |
Load peraxle(driving/bearing)standard | Laden | kg | 500 | 1100 |
Unladen | kg | 120 | 130 | |
Material | PU | |||
Number of wheels | 1/4 | |||
Drive wheel slze | mm | φ160x55 | ||
Load size | mm | φ80×70 | ||
Load wheel center dlstance | b2(mm) | |||
LIft helght | h3(mm) | 115 | ||
Fork helght when lowering | h13(mm) | |||
Overall length | 11(mm) | 1590 | ||
Body length(No forks) | 12(mm) | 440 | ||
Fork outer width | b1(mm) | 560 685 | ||
Fork size | s/e/l(mm) | 50/160/1150 | ||
Fork outer width | b3(mm) | 560 685 | ||
Min.ground clearance | mm | 28 | ||
Right angle stacking channel width,pallet 800x1200 placlng along the fork | Ast(mm) | 2155 | ||
Turning radlus | mm | 1380 | ||
Drlving speed laden/unladen | km/h | 4.0/5.0 | ||
Lncrease speed laden/unladen | mm/s | 20/25 | ||
Descent speed laden/unladen | mm/s | 50/40 | ||
Cycling work time | h | ≥4 | ||
Servlce brake | Electromagnetic brake | |||
Drive motor power | kw | 0.8 | ||
Pump motor power | kw | 0.75 | ||
System Voltage | V | 48 | ||
Control type | Electrically controlled | |||
Noise level | dB | ≤70 |
