| Rated Loading Capacity: | |
|---|---|
| Fork Size: | |
| Battery Voltage /Capacity: | |
| Quantity: | |

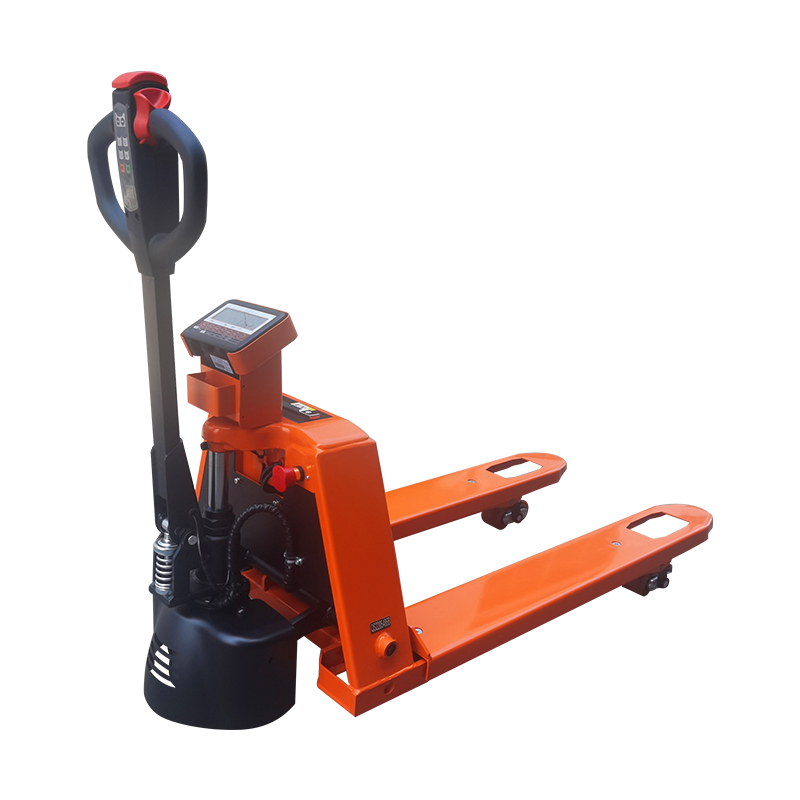

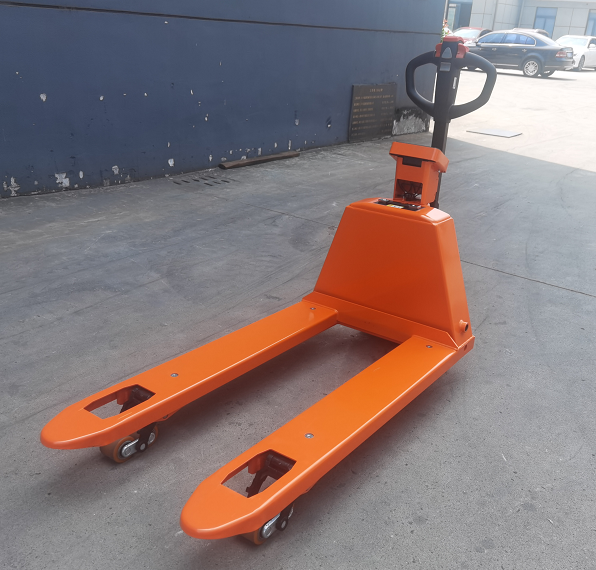

| Model | Unit | EPT.CW |
| Capacity | Q(kg) | 2000 |
| Tire size,drive | Φxw(mm) | PuΦ190×70 |
| Tire size,rear | Φxw(mm) | PuΦ80x93(Single load roller) PUΦ80×70(Tandem load roller) |
| Lift | h3(mm) | 110 |
| Lowered height | h13(mm) | 88 |
| Overal length | 11(mm) | 1540/1610 |
| Overall width | b1(mm) | 570/690 |
| Fork dimensions | s/e/l(mm) | 50/180/1150,50/180/1220 |
| Width across forks | b5(mm) | 570/690 |
| Ground clearance, centren of wheelbase | m2(mm) | 30 |
| Alsle width for pallets 800×1200 | Ast(mm) | 1740 |
| Turning radius | Wa(mm) | 1350 |
| Battery voltage | V/Ah | 48V/15Ah |
| Battery weight | kg | 6.3 |
| Charger | V/A | 48/6 |
| Charging time | H | 2.5 |
| Working time | H | 3 |

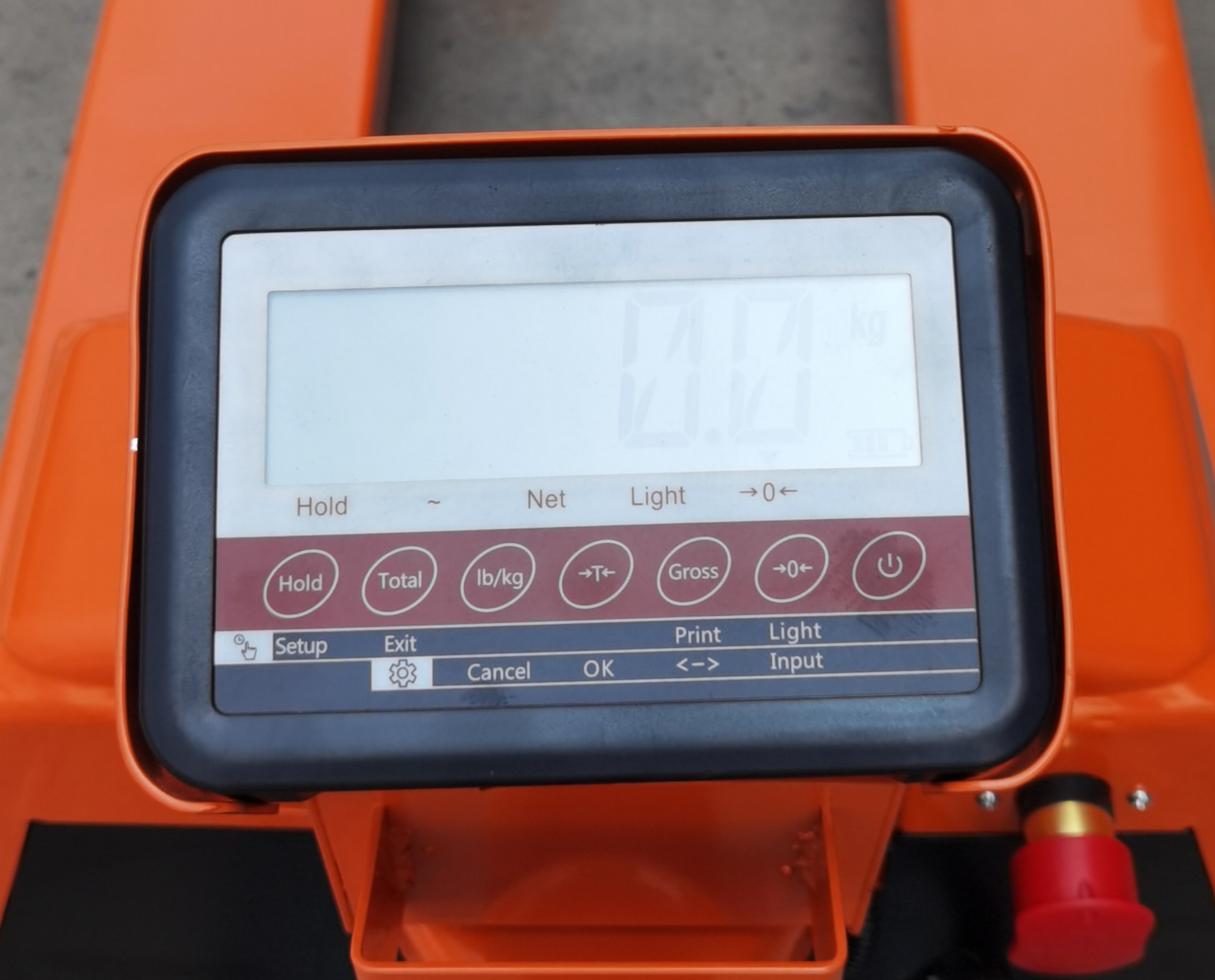

| Scale battery voltage | V/Ah | 6/4.5 |
| Scale charger | V | 100-240 |
| Paper for printer | Thermal paper rollin size 57x50mm | |
| Service weight | kg | 168 |
| Model | Unit | EPT.CW |
| Capacity | Q(kg) | 2000 |
| Tire size,drive | Φxw(mm) | PuΦ190×70 |
| Tire size,rear | Φxw(mm) | PuΦ80x93(Single load roller) PUΦ80×70(Tandem load roller) |
| Lift | h3(mm) | 110 |
| Lowered height | h13(mm) | 88 |
| Overal length | 11(mm) | 1540/1610 |
| Overall width | b1(mm) | 570/690 |
| Fork dimensions | s/e/l(mm) | 50/180/1150,50/180/1220 |
| Width across forks | b5(mm) | 570/690 |
| Ground clearance, centren of wheelbase | m2(mm) | 30 |
| Alsle width for pallets 800×1200 | Ast(mm) | 1740 |
| Turning radius | Wa(mm) | 1350 |
| Battery voltage | V/Ah | 48V/15Ah |
| Battery weight | kg | 6.3 |
| Charger | V/A | 48/6 |
| Charging time | H | 2.5 |
| Working time | H | 3 |
| Scale battery voltage | V/Ah | 6/4.5 |
| Scale charger | V | 100-240 |
| Paper for printer | Thermal paper rollin size 57x50mm | |
| Service weight | kg | 168 |
