Overview

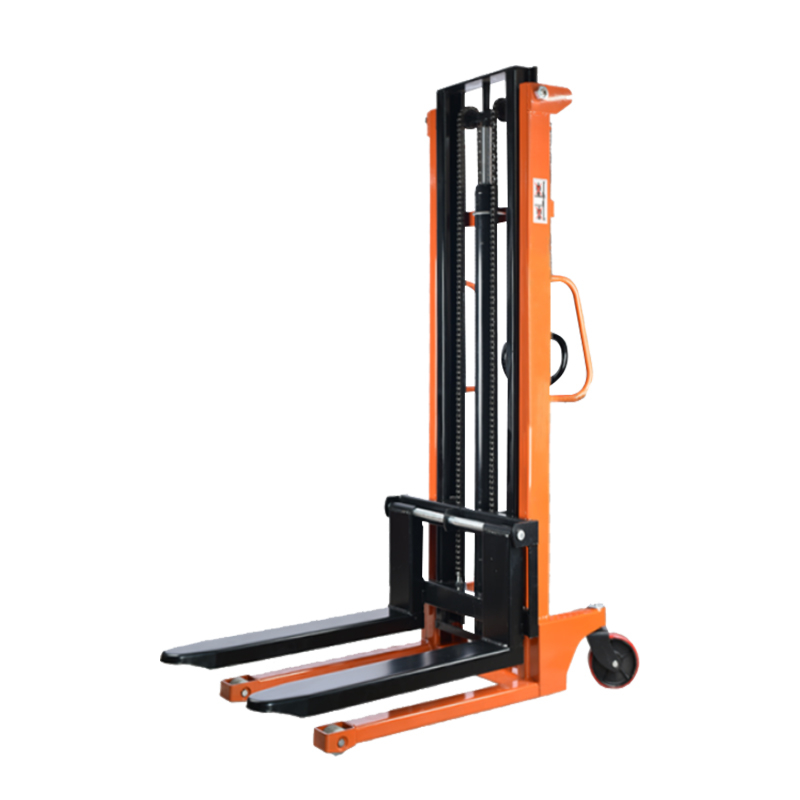

CTY-EH series manual hydraulic stacker adopts dual mast structure, featuring strong load capacity, stable lifting and high safety performance. It supports 1000kg/2000kg load with max lifting height up to 2500mm/3000mm. Equipped with adjustable fork width, labor-saving hand/foot lifting design, no electric power needed. Compact body, flexible turning, ideal for warehouse stacking, factory material handling and goods loading & unloading.
Application Scenarios
Application ScenariosIndustrial factory workshop raw material and finished goods handling
Warehouse high level pallet stacking and shelf storage
Logistics transit station container and truck loading unloading
Supermarket, wholesale market cargo replenishment and stacking
Packaging, printing, light industry workshop heavy goods lifting
Small factory and storage room daily heavy cargo handling
| Model | Unit | CTY-EH 1.0T | CYE-EH 2.0T |
| Rated lifting capacity | kg | 1000 | 2000 |
| Max.lifting height | mm | 2000/2500/3000 | 2000/2500/3000 |
| Lowered height of forks | mm | 90 | 90 |
| Fork length | mm | 900 | 900 |
| Adjustable width of fork | mm | 320-750 | 320-750 |
| Lifting speed | mm/stroke | 20 | 14 |
| Lowering speed | mm/stroke | Controllable | Controllable |
| Outer width of front legs | mm | 690 | 690 |
| Operation power of crank | kg | 24 | 32 |
| Front wheel size | mm | Φ74×52 | Φ74×70 |
| Rear wheel size | mm | Φ180×50 | Φ180×50 |
| Overall size | mm | 1410×780×1540/1410x780×1790/1410×780×2040 | |
