Rated Loading Capacity:
Lifting Height:
Availability:
Quantity:

 Overview

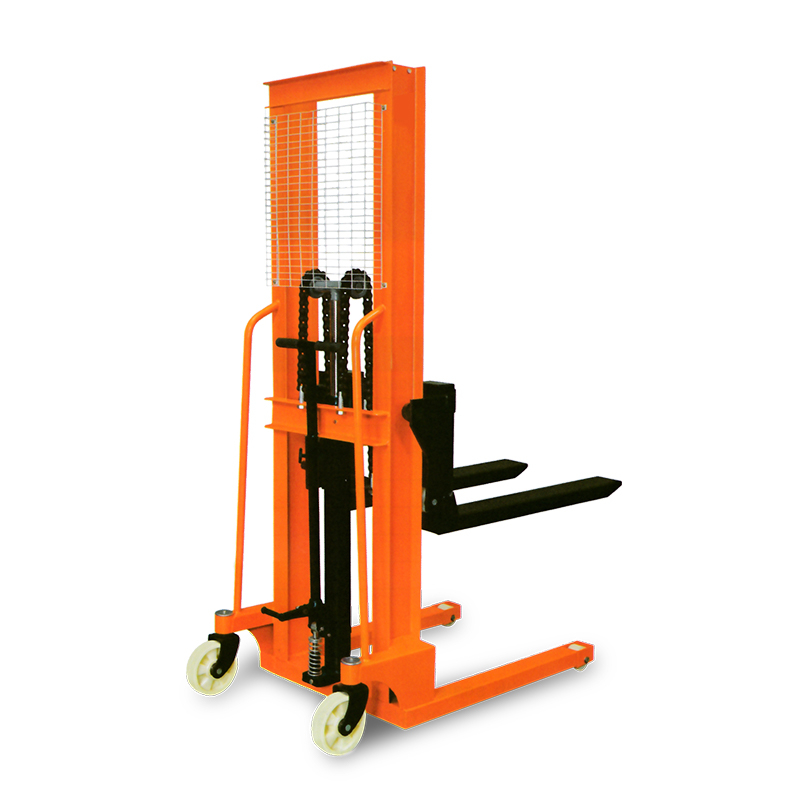

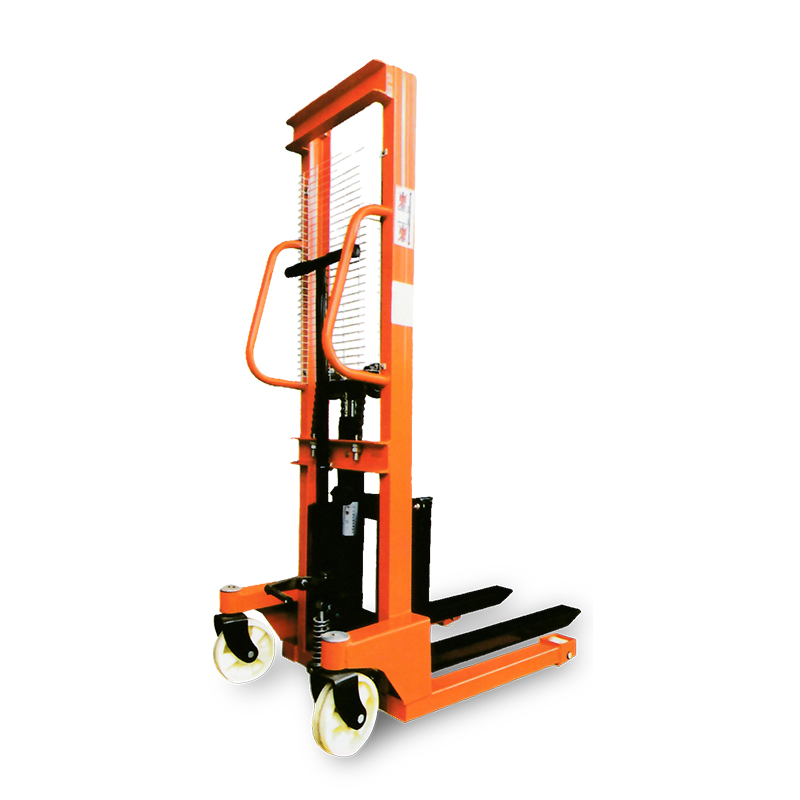

CTY-A Hand Stacker is an economic and cost-effective manual hydraulic stacker. It features a lightweight single mast design, compact structure and flexible operation. This manual stacker requires no electric power, relying purely on manual hydraulic lifting for simple and reliable daily material handling. With adjustable fork width, solid steel frame and stable lifting performance, it is easy to operate and almost maintenance-free. Designed for light and medium-duty workloads, CTY-A is the most budget-friendly choice for basic warehouse stacking and goods lifting tasks.

Application Scenarios

CTY-A economic hand stacker is widely used for general light stacking and short-distance handling work.
It is ideal for small warehouses, retail storage, factory workshops, supermarkets and small logistics stations. Suitable for pallet goods stacking, shelf loading and unloading, daily stock replenishment, production line material moving and general light cargo lifting. Perfect for customers who need basic stacking function with low investment and simple operation.



Model Unit CTY-A0.5 CTY-A1.0 CTY-A2.0 CTY-A3.0
Rated lifting capacity kg 500  1000  2000  3000
Min.lifting height mm 1200  1600  1600  1600
Lowered height of forks mm 85  85  85  110
Fork length mm 750  900  900  1000
Adjustable width of fork mm 180-396 210-560 250-580 290-580
Lifting speed mm/stroke 20  20  14  10
Lowering speed mm/stroke Controllable Controllable Controllable Controllable
Outer width of front legs mm 580  750  760  760
Operation power of crank kg 15  24  32  40
Min.refuel volume for fuel tank L 1.2  1.6  2.0  3.0
Front wheel size mm Φ85×50 Φ85×50 Φ85×50 Φ100×50
Rear wheel size mm Φ180×50 Φ180×50 Φ180×50 Φ180×50
Overall size mm 1170x590x1655 1360x755x2040 1440x760x2050 1580x800x2070
Self weight kg 80  150  210  320
