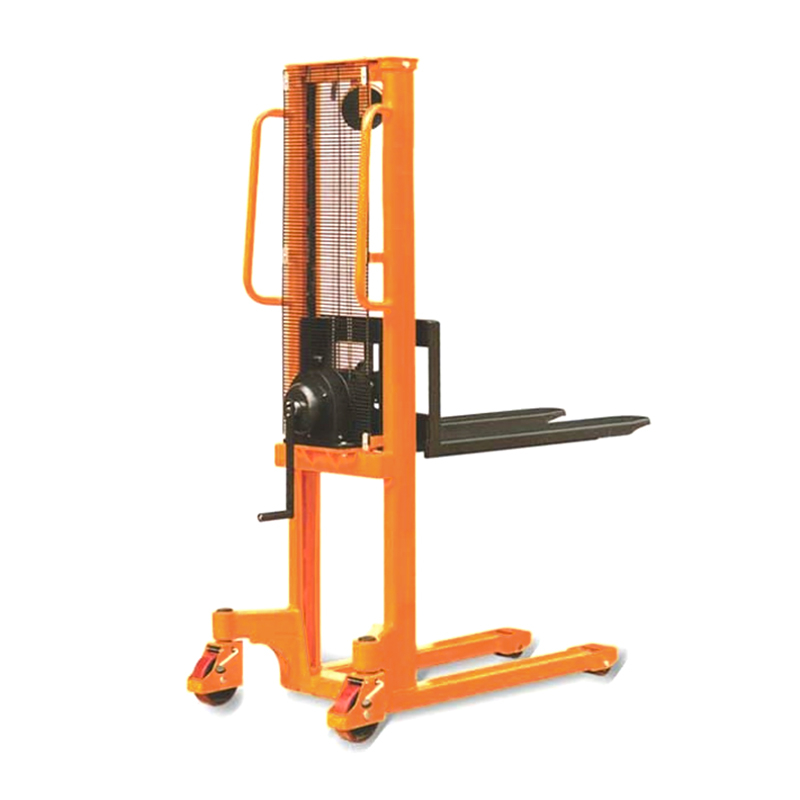

LS Winch Lift Vehicle

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Model Unit LS250 LS500 LS1000
Load capacity kg 250 500 1000
Load center mm 400 500 575
Max.height of forklift mm 1560 1560 1500
Min.height of forklift mm 90 90 80
Adjustable width of forklift mm 150-690 160-690 540
Fork size mm 800×60 1000×70 1150×160
Rated load force N 100 120 100
Number of working times
40 22 9.5
Ground clearance mm 18 18 24
Min.turning radius mm 1075 1075 1250
Front wheel diameter mm 80×47 80×47 80×47
Rear wheel diameter mm 150×40 150×40 150×50
Overall dimensions (L*W*H) mm 1325×725×2030 1325×725×2030 1600×725×1930
Net weight kg 140 146 182
