Overview

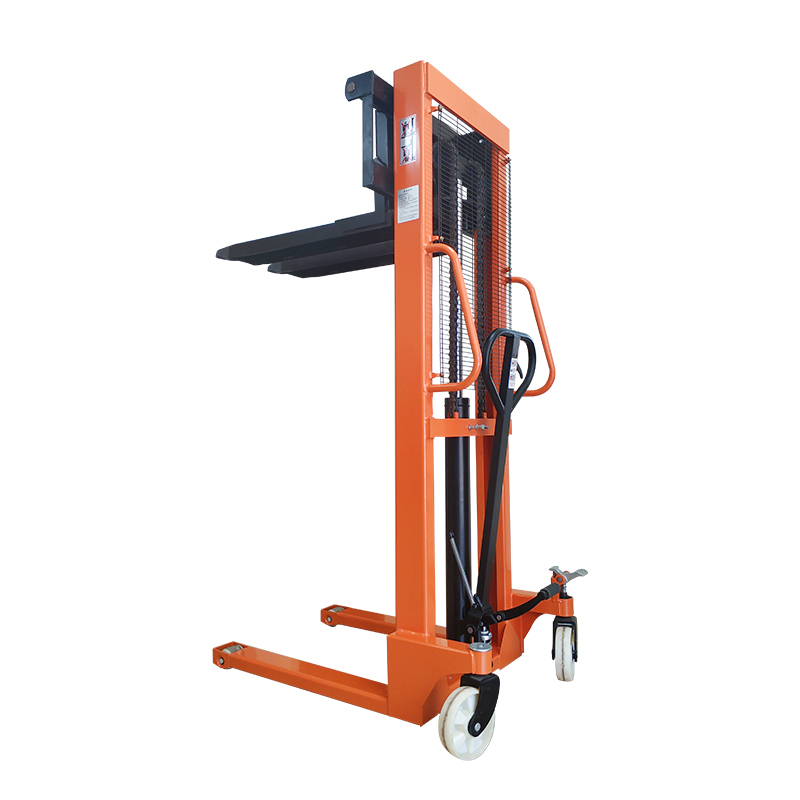

CTY-E Hand Stacker adopts heavy-duty C-section steel mast design. Integral thickened welded structure ensures high rigidity, strong load capacity and anti-deformation performance.
It is manual hydraulic lifting, no power needed, labor-saving and easy operation. Adjustable fork width fits different standard pallets. Compact body, small turning radius, stable lifting and durable service life. Ideal medium & heavy duty manual stacker for industrial and warehouse use.
Application Scenarios
Industrial factory workshop material handling and stacking
Warehouse high level pallet stacking and shelf loading
Logistics truck loading, unloading and pallet transfer
Supermarket, wholesale market stock replenishment
Hardware, packaging, light industry cargo lifting
Small factory storage daily medium-duty goods handling
| Model | Unit | CTY-E1.0 | CTY-E2.0 |
| Rated lifting capacity | kg | 1000 | 2000 |
| Max.lifting height | mm | 1600 | 1600 |
| Lowered height of forks | mm | 90 | 90 |
| Fork length | mm | 900 | 900 |
| Adjustable width of fork | mm | 320-750 | 340-750 |
| Lifting speed | mm/stroke | 20 | 14 |
| Lowering speed | mm/stroke | Controllable | Controllable |
| Outer width of front legs | mm | 690 | 690 |
| Operation power of crank | kg | 24 | 32 |
| Min.refuel volume for fuel tank | L | 1.6 | 2.0 |
| Front wheel size | mm | Φ74×52 | Φ74×70 |
| Rear wheel size | mm | Φ180×50 | Φ180×50 |
| Overall size | mm | 1390×780×2040 | 1390×780×2040 |
| Self weight | kg | 200 | 240 |
