Overview

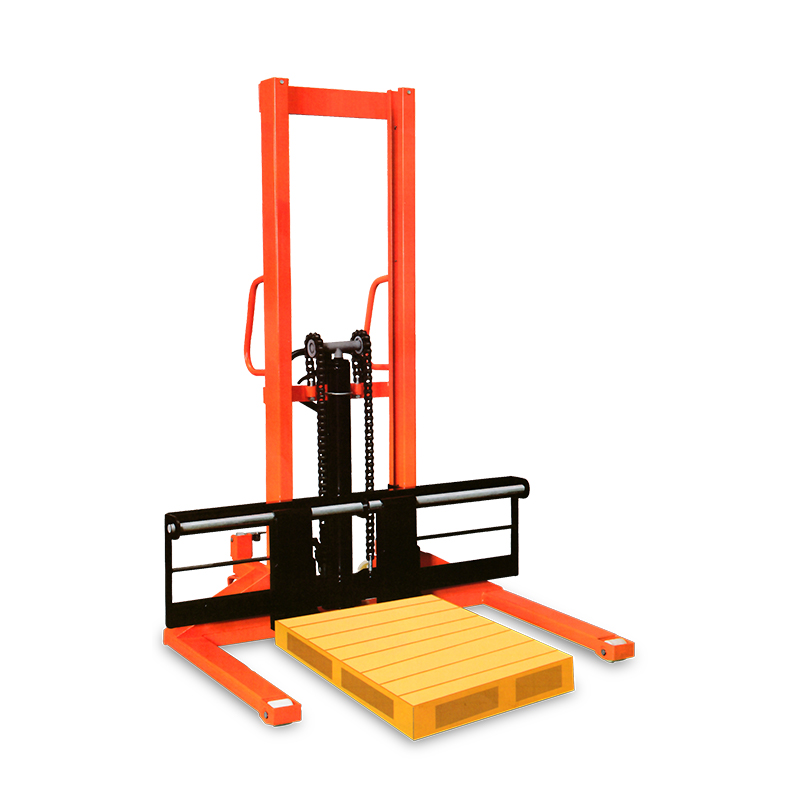

CTY-EW Hand Stacker is a manual hydraulic stacker with wide base legs design.
The widened support legs greatly improve overall stability, prevent tipping during lifting and stacking, especially suitable for wide pallets and oversize goods. It adopts strong C-section steel mast, solid welded frame, stable hydraulic lifting system, no power required, easy hand pump operation. Fork width is adjustable to fit various pallet sizes. Compact structure, flexible steering, safe and durable, perfect for unstable cargo and wide pallet handling scenarios.
Application Scenarios
Warehouse stacking for wide pallets and oversize cargo
Factory workshop handling irregular and large-size goods
Logistics loading/unloading of non-standard wide pallets
Supermarket, wholesale storage bulky goods stacking
Light industry, packaging, furniture industry goods handling
Narrow aisle working place requiring higher stability
| Model | Unit | CTY-EW 1.0T(1400) | CYE-EW 1.5T(1400) |
| Rated lifting capacity | kg | 1000 | 2000 |
| Max.lifting height | mm | 1600 | 1600 |
| Lowered height of forks | mm | 90 | 90 |
| Fork length | mm | 900 | 900 |
| Adjustable width of fork | mm | 340-1480 | 340-1480 |
| Lifting speed | mm/stroke | 20 | 20 |
| Lowering speed | mm/stroke | Adjustable | Adjustable |
| Outer width of front legs | mm | 1400 | 1400 |
| Operation power of crank | kg | 24 | 24 |
| Front wheel size | mm | Φ74×52 | Φ74×70 |
| Rear wheel size | mm | Φ180×50 | Φ180×50 |
| Overallsize | mm | 1390×1480×2040 | 1390×1480×2040 |
| Self weight | kg | 210 | 250 |
