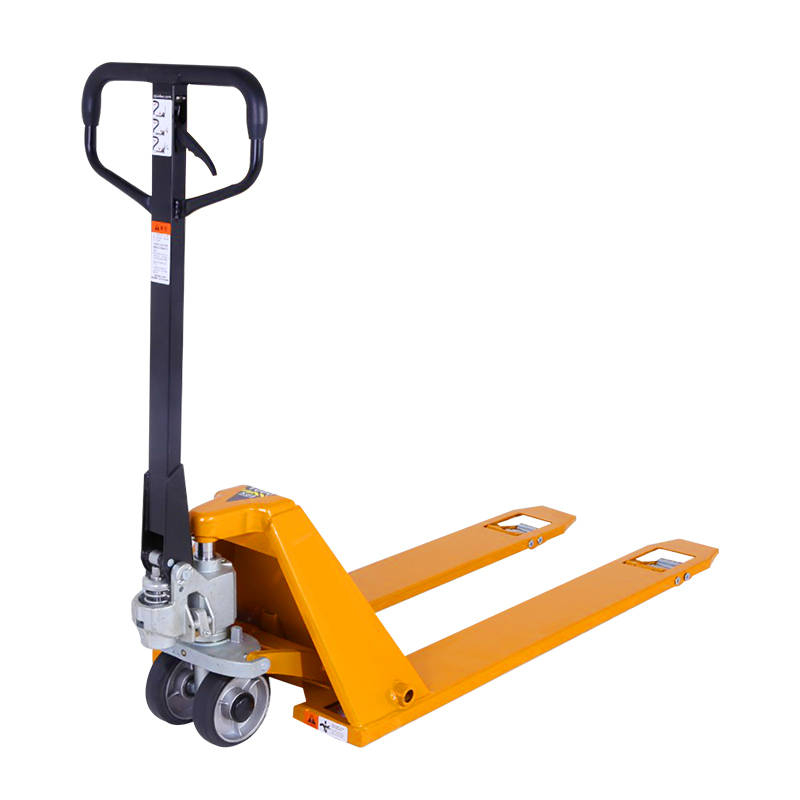

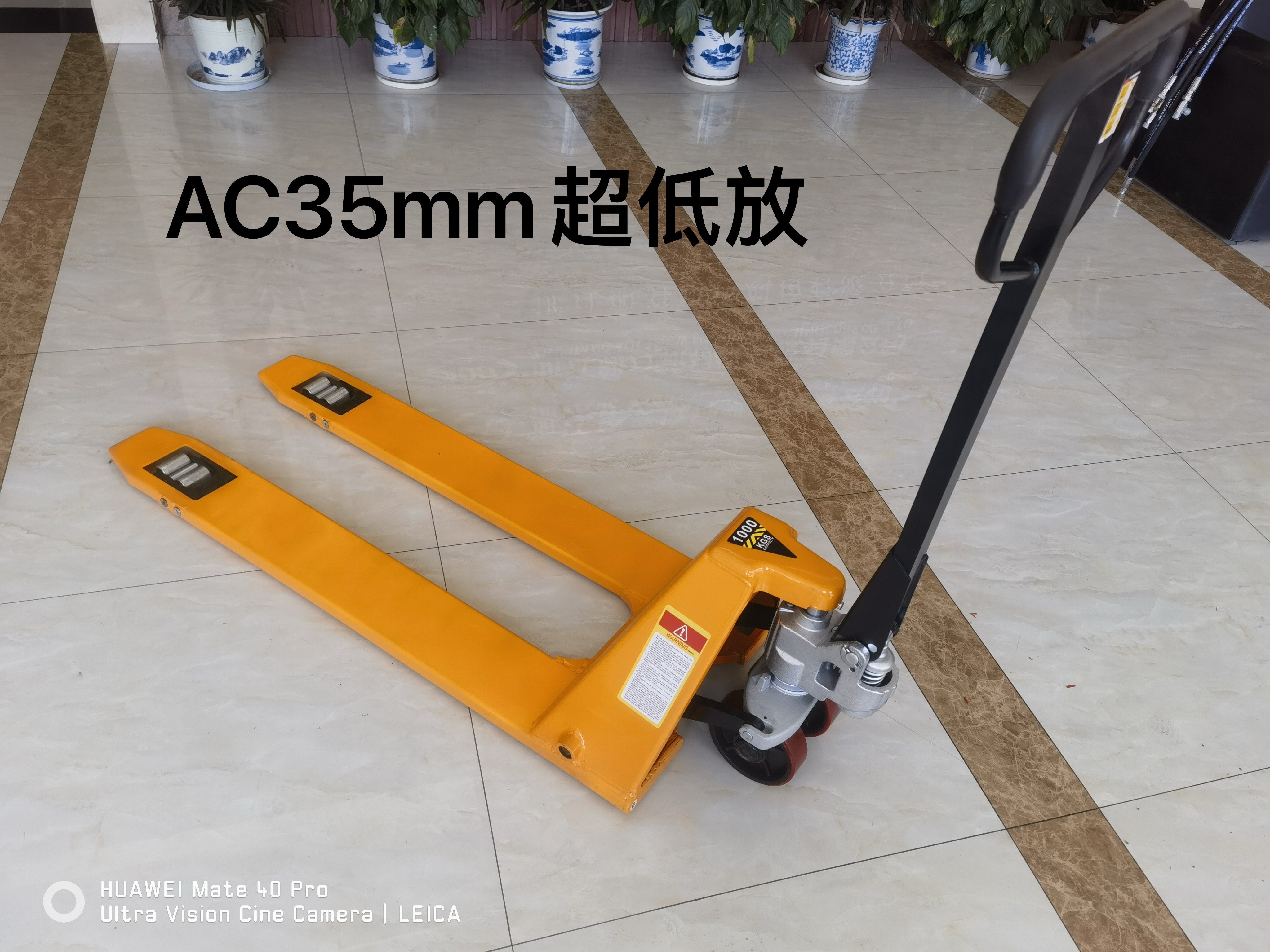

CBY-ACL35mm ultra low profile Hand Pallet Jack China supply

Quantity:
Rated Loading Capacity:	1000kg
Min. fork height:	35mm
Fork Length:	1220mm

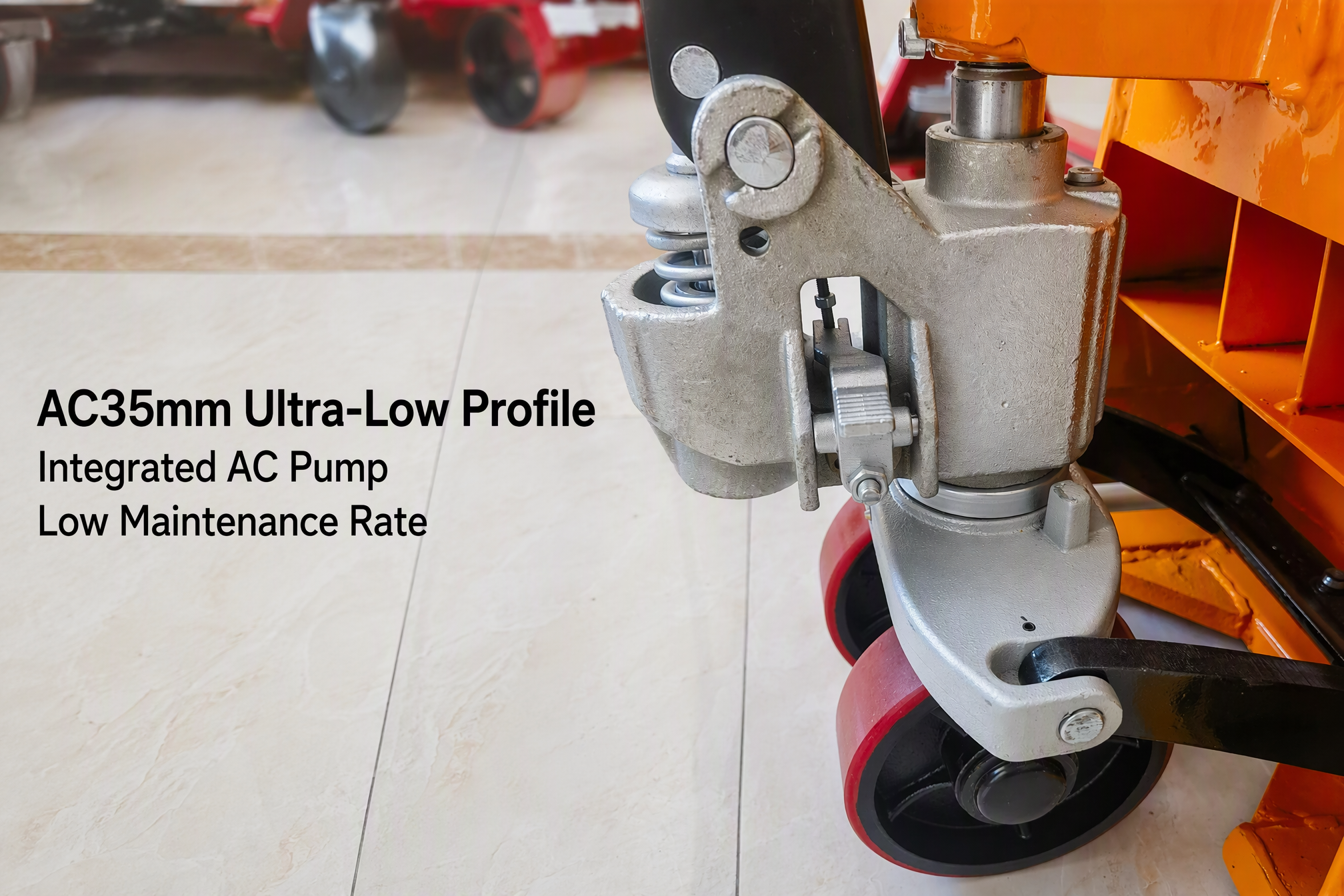

Pump:	AC Integrated Pump
Availability:





Inquire Add to Basket

Product Description

Overview

Featuring an ultra-low fork design, it easily accesses low-profile pallets, closed-bottom pallets and flat pallets that ordinary pallet trucks cannot enter. With a low center of gravity, it delivers high stability and anti-tipping performance. Compact structure and flexible steering make it suitable for narrow passages. Equipped with integral cast hydraulic cylinder, wear-resistant PU wheels and high-performance sealing rings, it is durable, overload-protected and maintenance-free.

Application Scenarios

Low Clearance Pallet Handling
Suitable for European low-profile pallets, disposable flat pallets and plastic closed-bottom pallets; widely used in food, beverage, pharmaceutical, electronics and daily chemical industries.
Warehouse & Narrow Aisle Operation
Ideal for low-level shelf areas, mezzanine warehouses and narrow passage warehouses. Perfect for cargo transfer in elevators and multi-floor storage scenarios.
Logistics Loading & Unloading
Flexible operation inside trucks and containers, applicable for short-distance cargo transit and LCL shipment handling.
Industry-Specific Usage

Widely adopted in cold chain & food industry, precision electronics manufacturing, automobile machinery workshops and supermarket back-room stock replenishment, ideal for handling fragile parts, precision instruments and regular palletized goods.

Model	CBY.ACL35
Capacity	1000kg
Pump	AC Integrated pump
Wheel	PU/Nylon

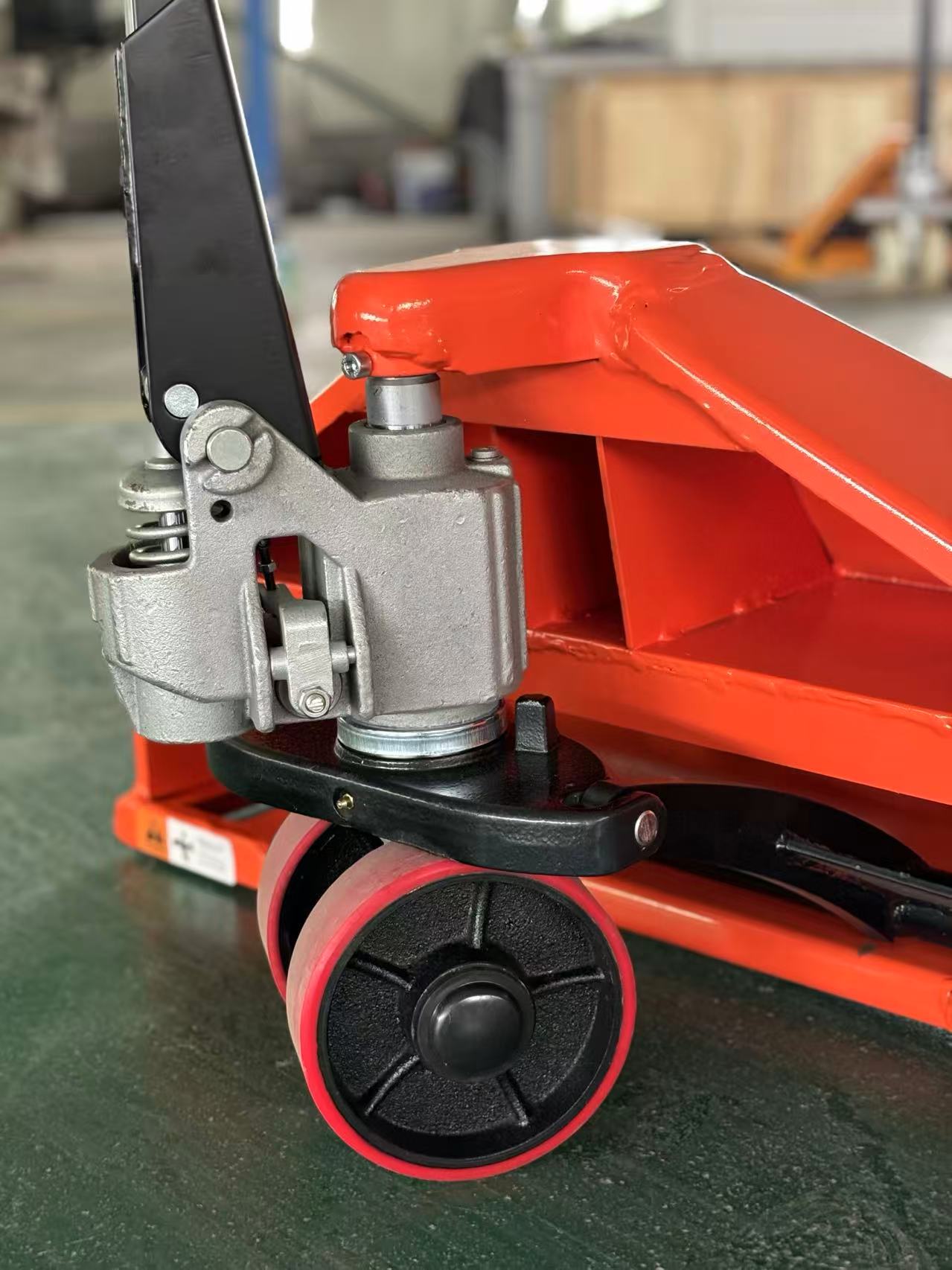

Steering wheel size	160×50 Nylon/PU
Single loading wheel size	/

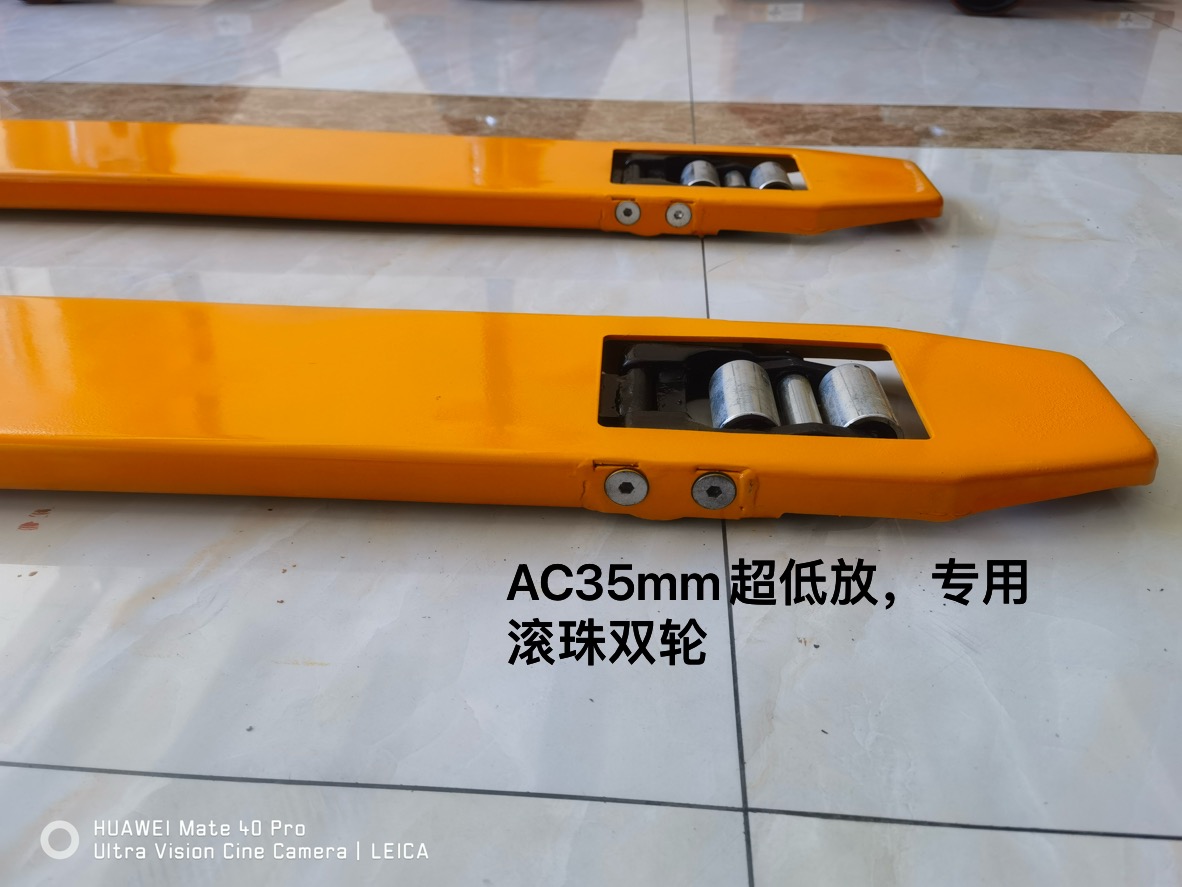

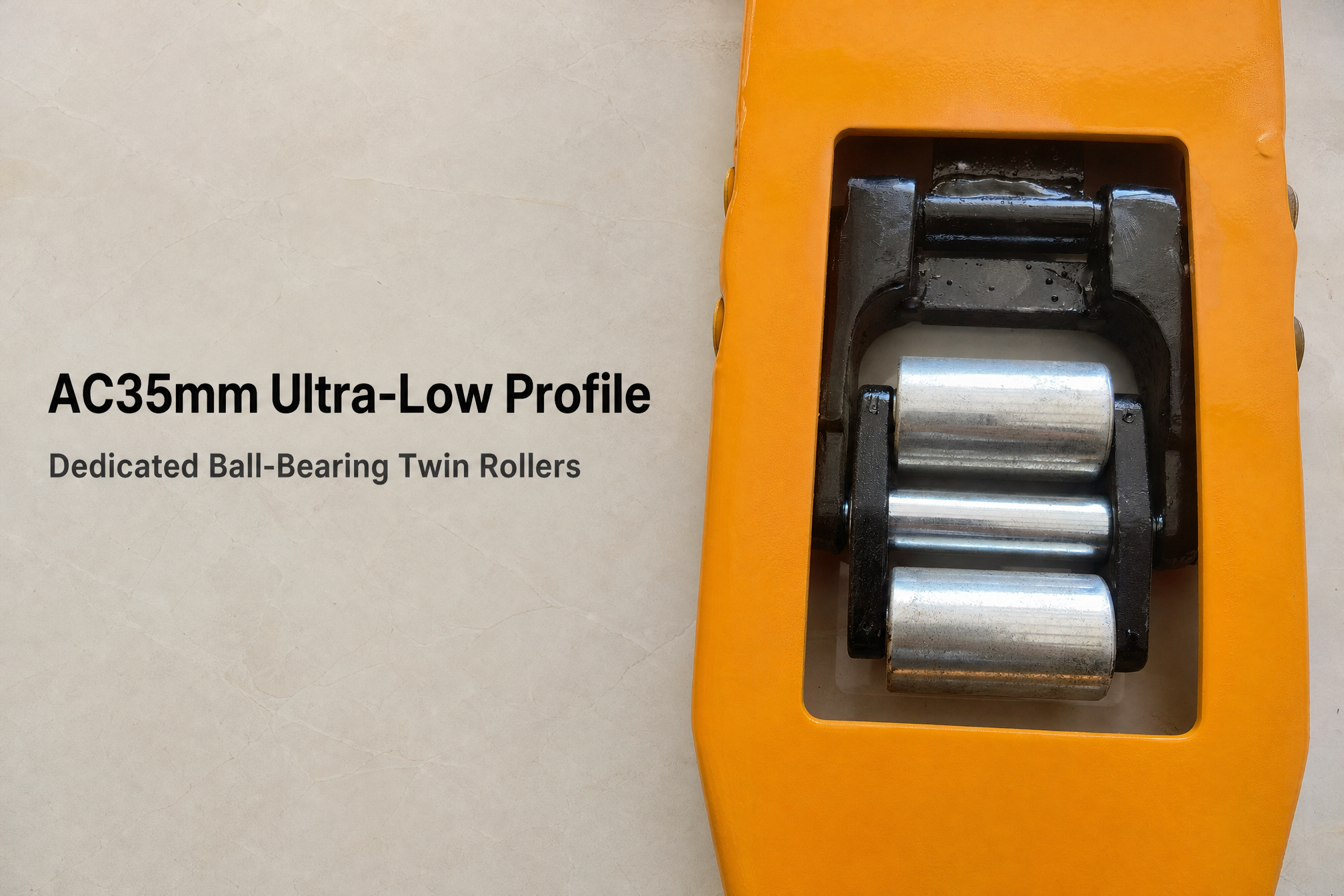

Double loading wheel size	iron wheel 24×38
Lift	50mm
Max.Iifting height	85mm

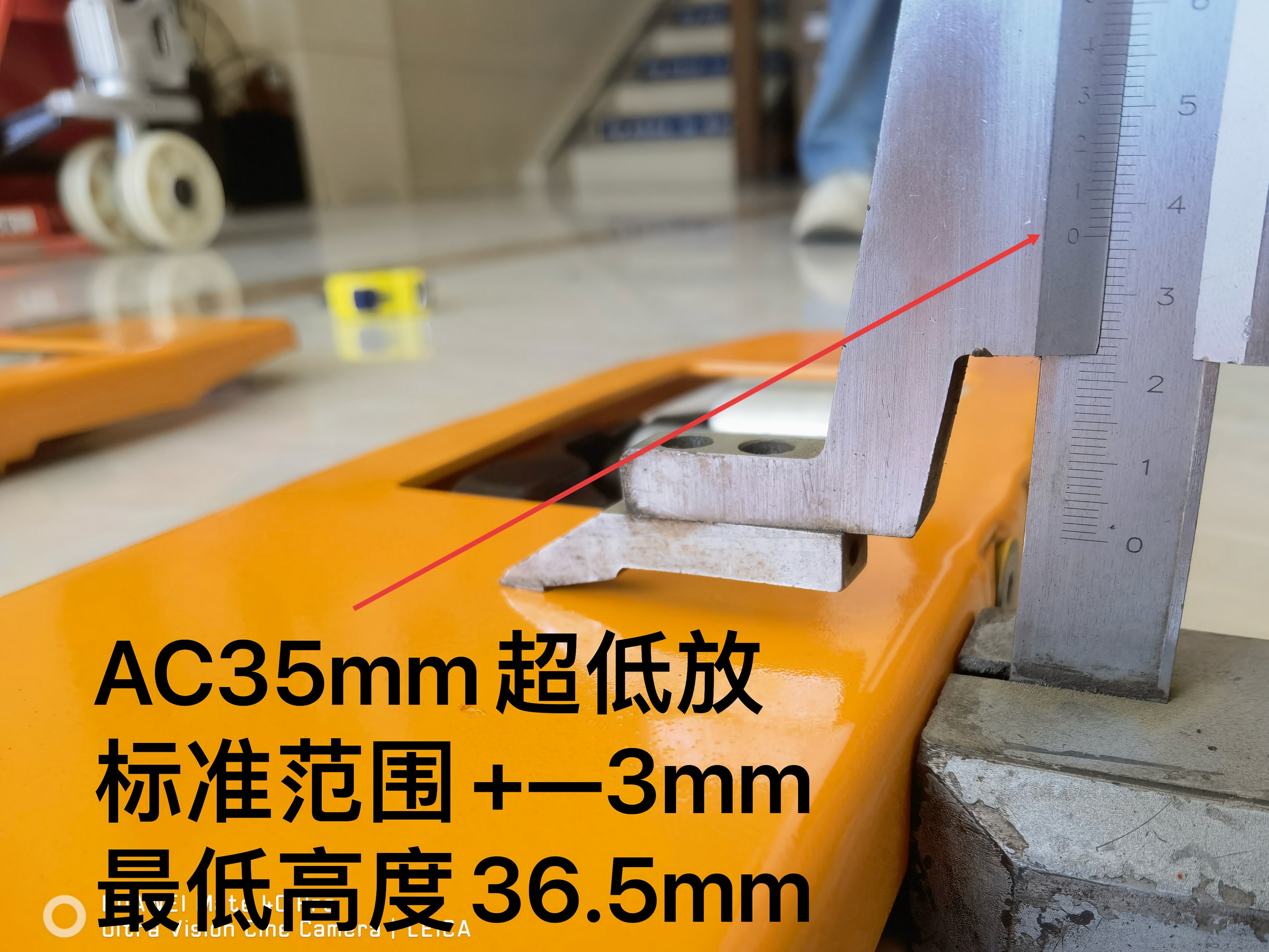

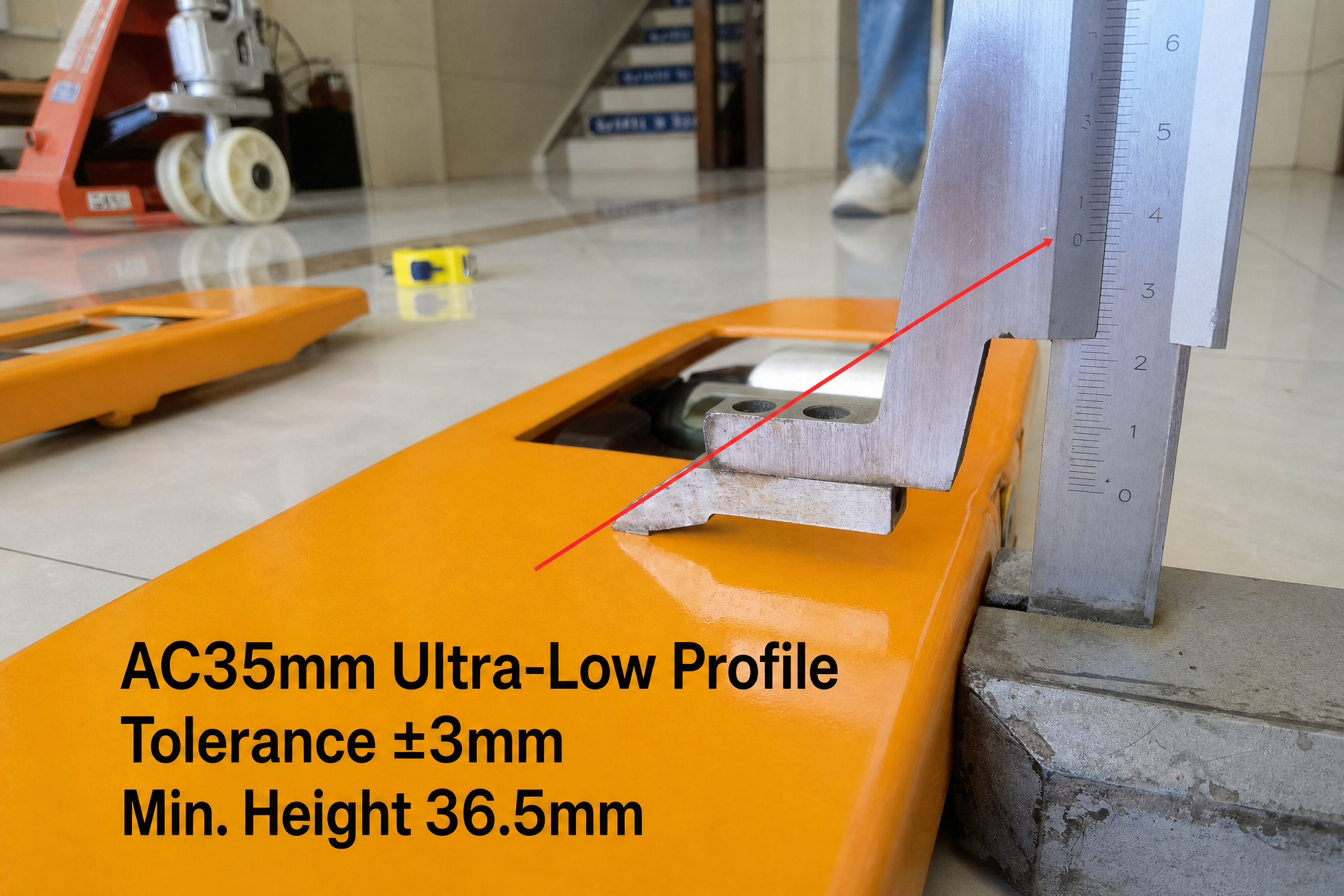

Min.lifting height	35mm
Width of outer fork	530/680
Length of fork	1220mm
Steel thickness after painting	3.5mm
Ribbing	No tendons
Handle	Rubberpackoged handle/tiquetrous ron handle
Entry roller	-
