You are here: Home » Electric Pallet Truck » Electric Pallet Truck » CBD-20 Electric Pallet Truck (with Scale)
Electric Pallet Truck (with Scale)
Electric Pallet Truck (with Scale) Electric Pallet Truck (with Scale)

loading

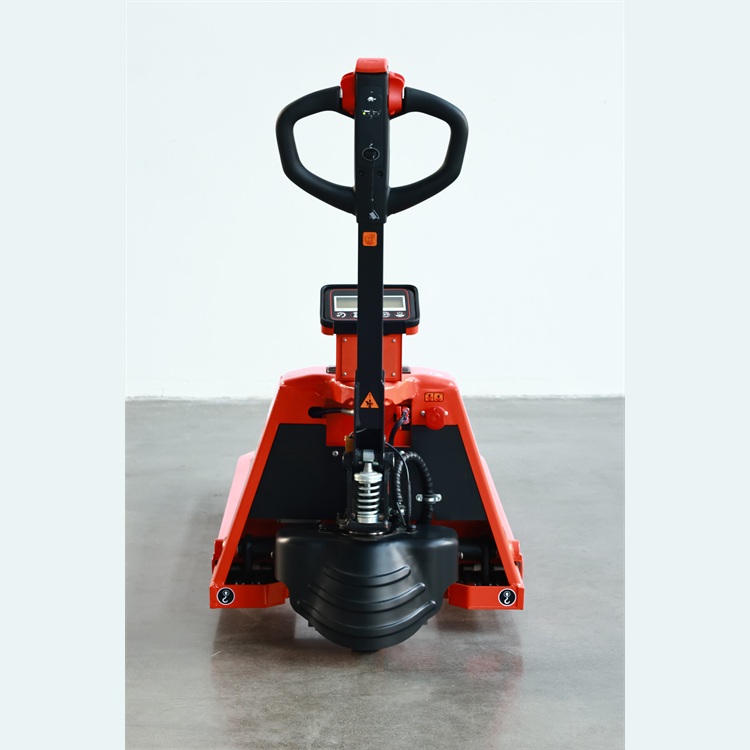

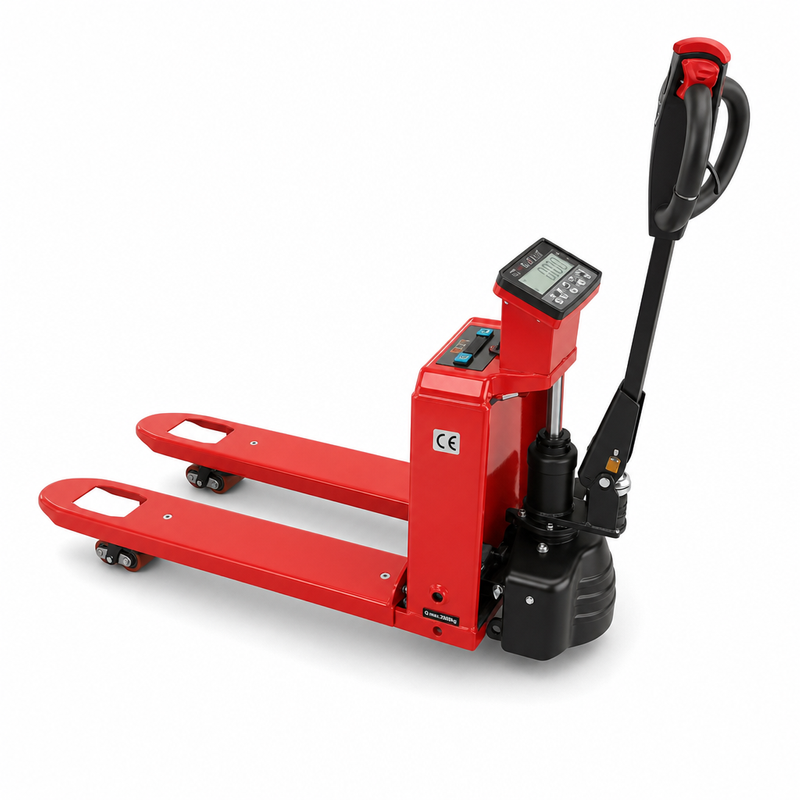

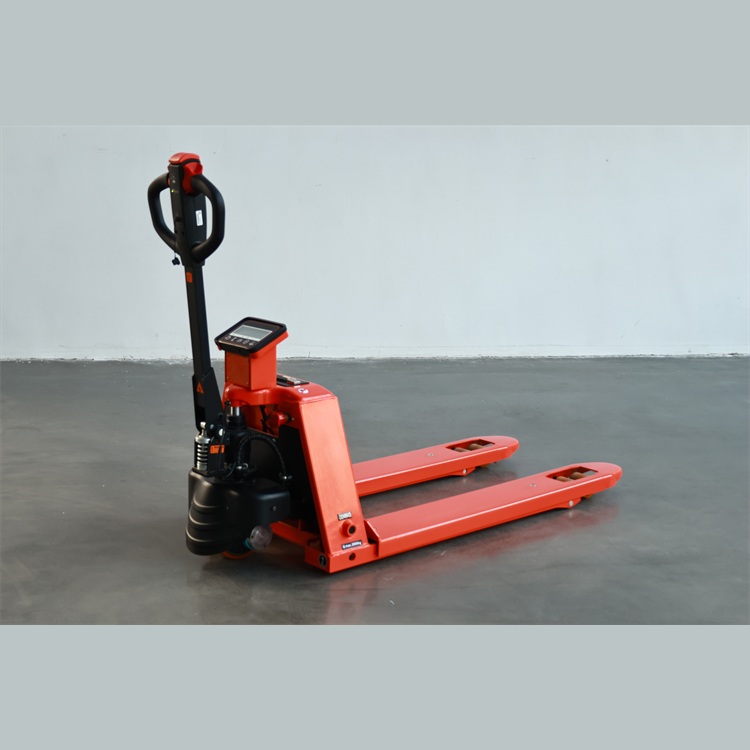

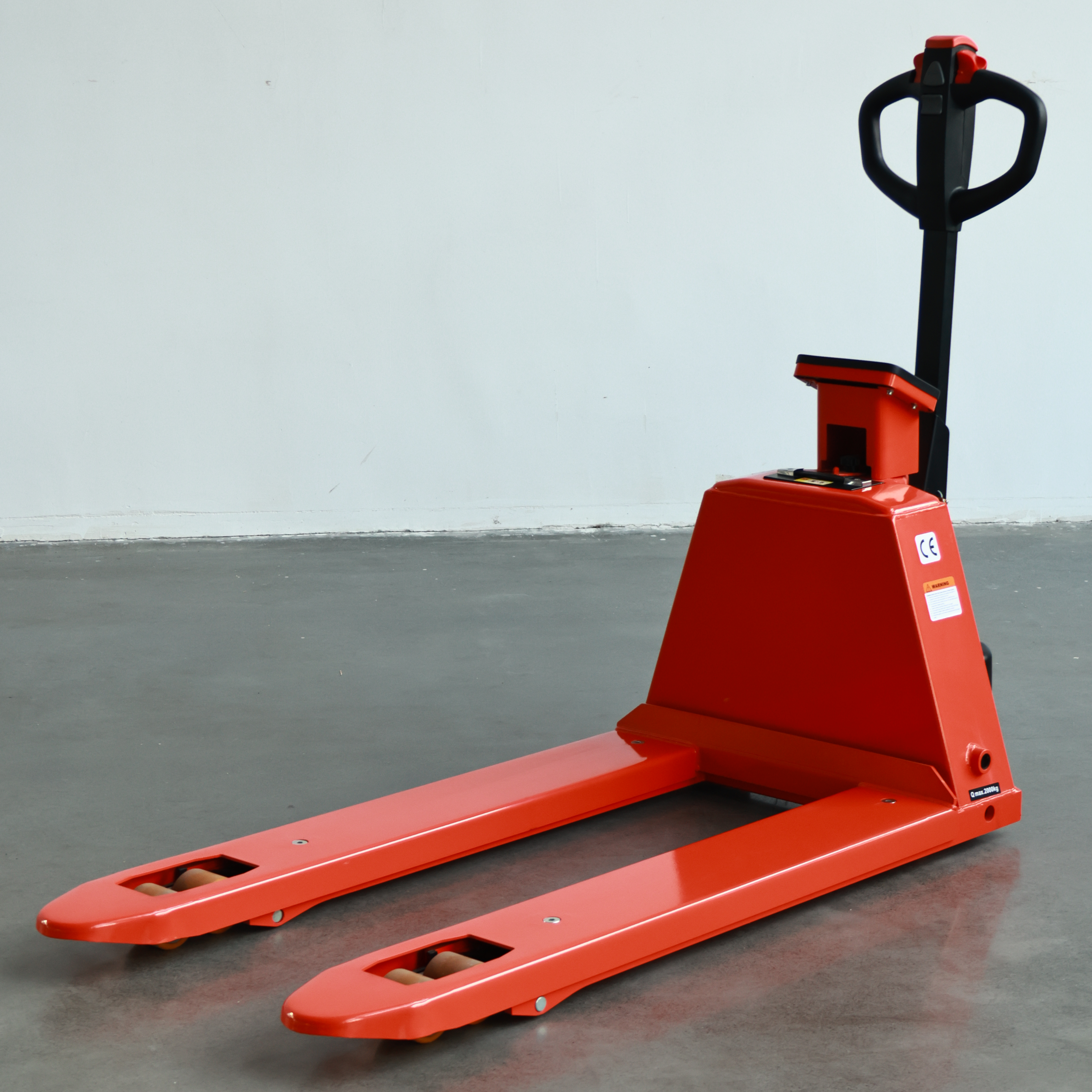

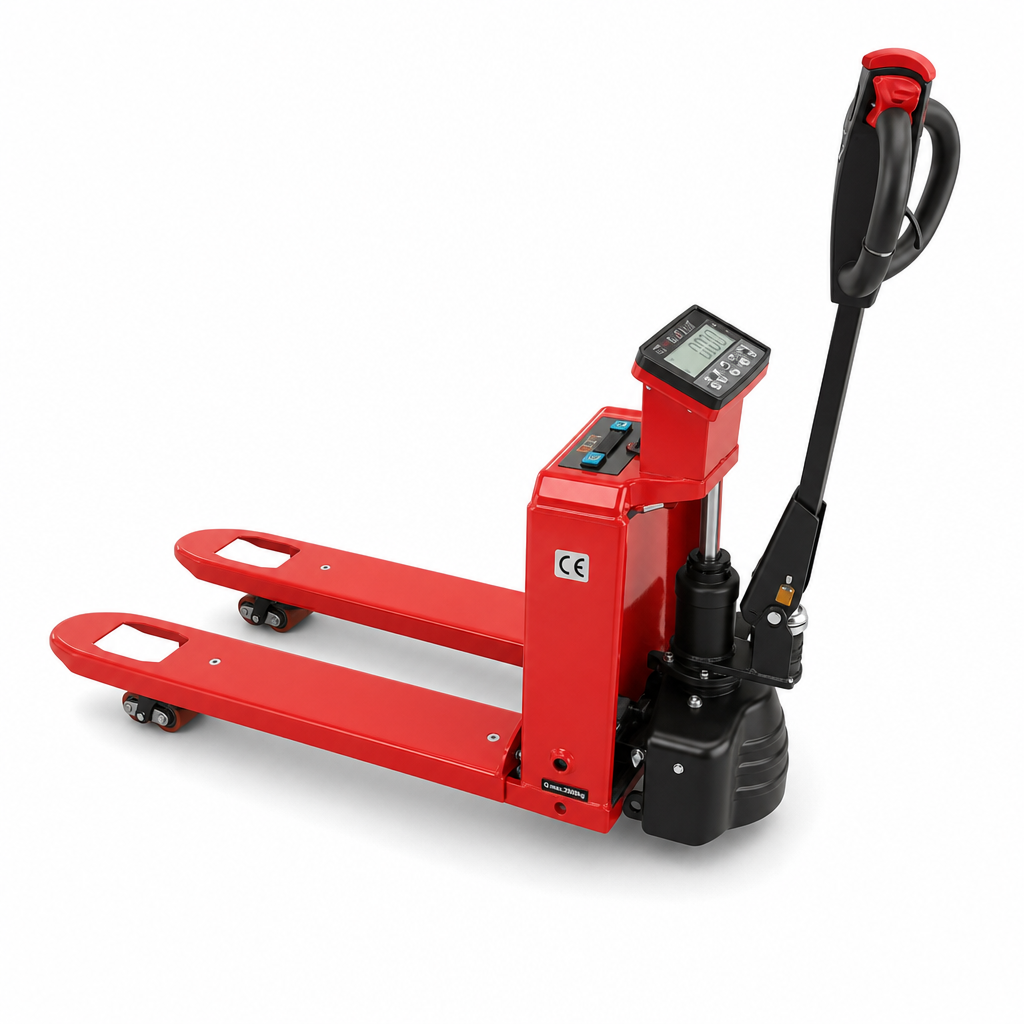

CBD-20 Electric Pallet Truck (with Scale)

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Rated Loading Capacity:
2000kg
Fork Size:
1150*160*50mm
1150*170*50mm
Availability:
Quantity:
Inquire Add to Basket


Model Unit CBD-20 CBD-20C
Rated load T 2.0
Motive power
Electric
Operation type
Walking style
Load center mm 500
Wheelbase mm 1284  1324
Balance wheel mm
Φ80×30
Load wheel size mm Φ74×70 Φ80×70
Overall length mm 1660  1720
Wheel material
PU
Upper height mm 100
Max.height of handle mm 1215
Min.height of handle mm 1330
Max.climb capability
Loading/unloading:7/16
Weight
(excluding battery)		 kg 540  680  550  680
134  139  175  180
Fork outer width mm 540  680  550  690
Fork size mm 50×160×1150/50×170×1150
Bridge load at full load,drive
side/Load bearing side		 kg 483/1132
Bridge load when unloaded
drive side/Load bearing slde		 kg 100/30
Turning radius mm 1480  1530
Drive motor power kw 0.75  1.0
Battery voltage V/Ah 24/48V 15/20/32/65/75/85Ah
Battery weight kg Lithium:3/3.5/4/4.5/5/6 Lead-acid:12/18/24/31/38/52
Vehicle length mm 540
Mini.height of fork mm 85±2
