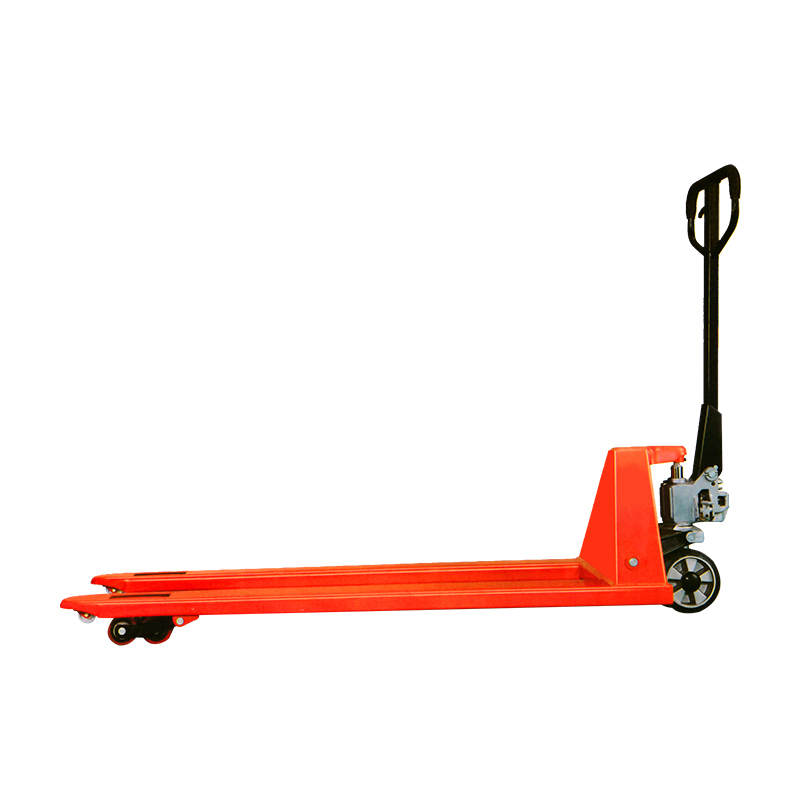

CBY-LC Hydraulic Pallet Trucks with Long Forks Customizable From 1400 to 2500 mm

Quantity:
Rated Loading Capacity:	2000kg 2500kg 3000kg
Fork Length:	1400-2500 mm
Availability:





Inquire Add to Basket

Product Description

Overview

The CBY-LC is an extended-length manual hydraulic pallet truck, designed for handling oversized, long, or extra-wide pallets/loads that standard pallet trucks cannot accommodate. It features a reinforced heavy-duty steel frame, extended fork lengths (1400–2500 mm), and a robust hydraulic system with overload protection (internal relief valve). Built with integrated cast wheel brackets, double front wheels, and self-lubricating bearings for high stability, durability, and long service life.

Application Scenarios

Warehousing & Logistics
Ideal for long/extra-wide pallets, bulky goods (e.g., pipes, lumber, furniture), and oversized cargo in warehouses, distribution centers, and freight terminals.
Manufacturing & Factories
Suitable for production lines, workshops, and storage areas handling long materials (steel bars, aluminum profiles, plastic sheets) and large components.
Furniture & Building Materials
Perfect for moving furniture, doors, windows, boards, and construction materials with large dimensions in showrooms, stockyards, and construction sites.
Retail & Wholesale
Used in supermarkets, shopping malls, and wholesale markets for transporting large-volume goods, long cartons, and oversized displays.
Other Industrial Uses
Applicable in textile, paper, chemical, and food industries for handling long rolls, large containers, and irregular heavy loads.

Model	CBY-LC
Capacity	2000/2500/3000 kg
Total lift height	195mm
Lowered fork height	85mm
Fork length	1400-2500mm
Width overallfork	550/685mm
Steering wheel	Φ180×50mm
Fork wheel	Φ80x×70mm
Truck weight	102-175kg
