Standard configuration:
· Lithium cell se lead acid battery can be interchanged
· System battery: 48V
· Electric moving se lifting

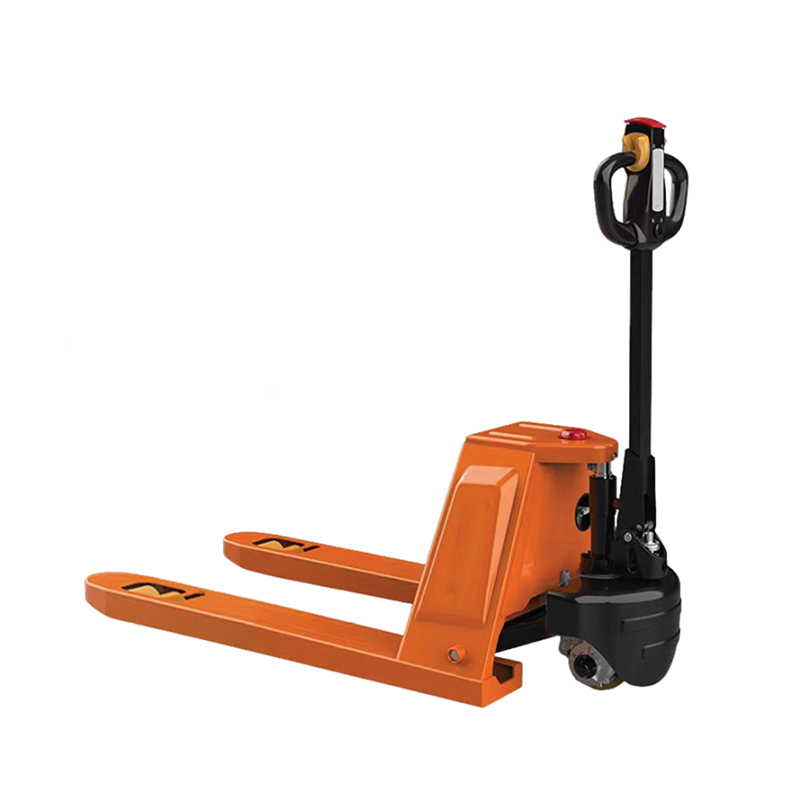

Model | Unlt | PT20 | ||
Characteristic | Power | Electric | ||
Operatlon type | Walking style | |||
Maximum load | Q(kg) | 2000 | ||
Load center distance | C(mm) | 500 | ||
Front overhang | x | 950 | ||
Wheel base | y | 1290 | ||
Weight | kg | 160 | 180 | |
Wheel& chassis | Number of wheels (drivlng wheels/load-bearing wheels) | 1/4 | ||

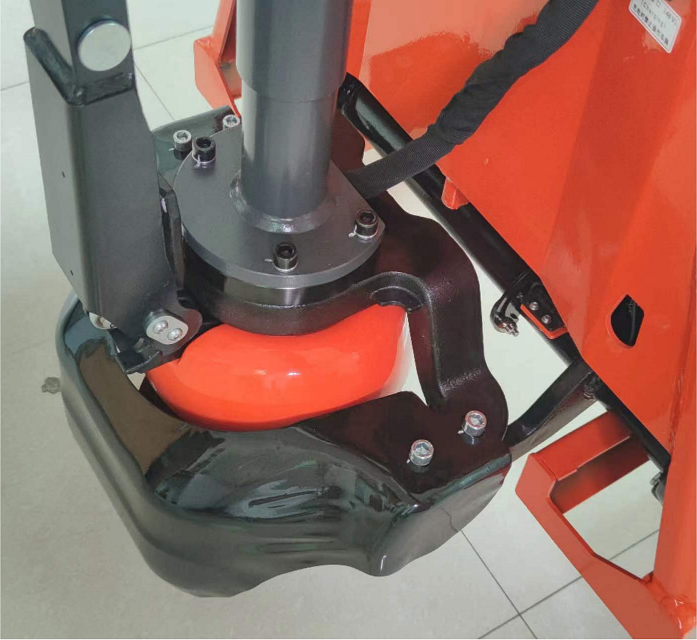

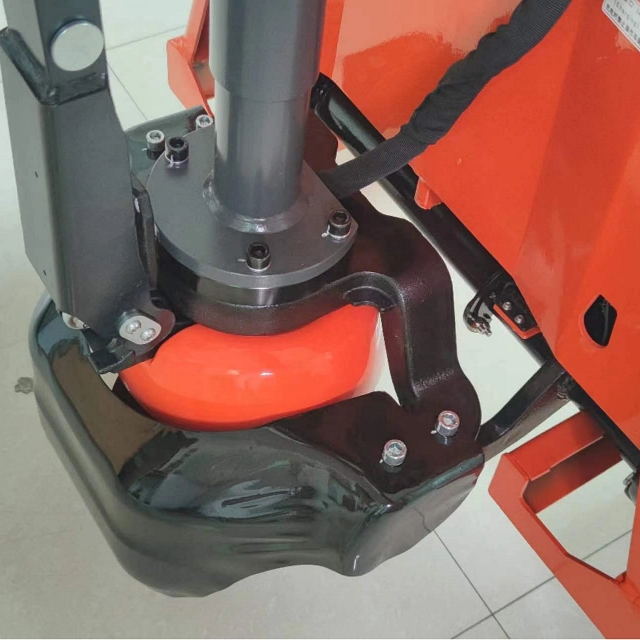

Driving wheel size | Φxw(mm) | Φ210×70 | ||
Bearing wheel size | Φxw(mm) | Φ80×70 | ||
Wheels materlal | PU | |||
Load-bearing wheel track | b21mm) | 400 | 525 | |
Base size | Lifting height | h3(mm) | 100 | |

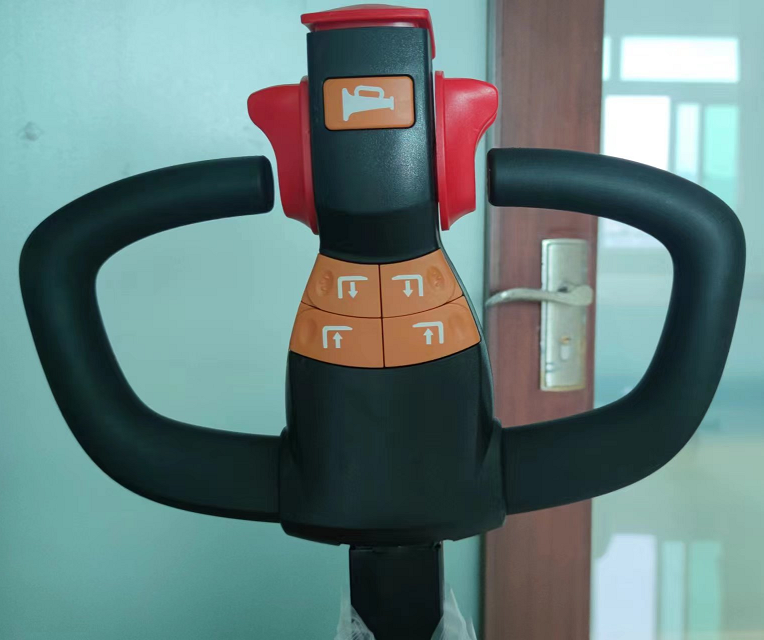

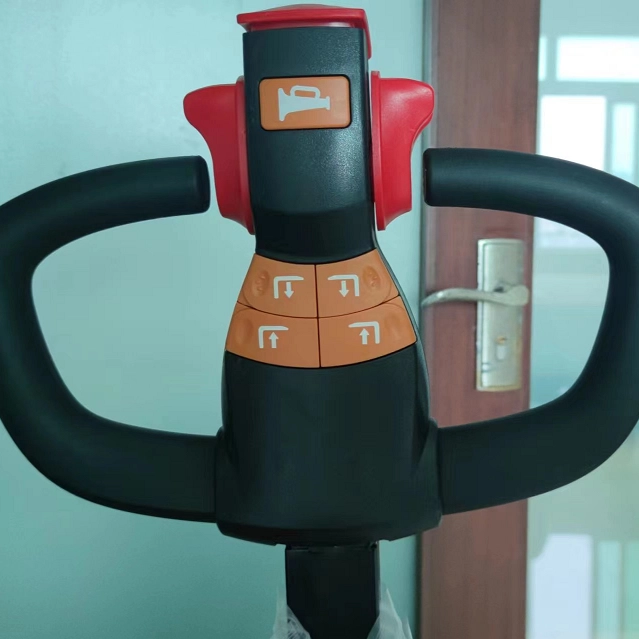

Handle height during operation Max/Min | h14(mm) | 1180/800 | ||
Fork height when lowered | h13(mm) | ≤83 | ||
Overallength | 1(mm) | 1620 | ||
Overall width | b1(mm) | 560 | 685 | |
Fork size | s/e/l(mm) | 54/160/1160 | ||
Fork outer width | b3(mm) | 560 | 685 | |
Ground clearance | m(mm) | 23 | ||
Channel width for pallet 800x1200 | Ast(mm) | 2070 | 2100 | |
Turning radius | Wa(mm) | 1490 | 1500 | |
Performance | Driving speed fully loaded/unloaded | km/h | 4/4.5 | |
Increase speed full load/no load | m/s | 0.021/0.025 | ||
Descending speed full load/no load | m/s | 0.05/0.04 | ||
Maximum gradeabillty fully loaded/unloaded | % | 6/25 | ||
Cycle working time | H | ≥4 | ||
Braking method | Electromagnetic brake | |||
Power | Driving motor power | kw | 48V/1kw | |
Increase motor power | kw | 0.8 | ||
Battery specification | Ah | Lead-acid battery | 25Ah | |
Lithlum battery | 20Ah | |||
System voltage | V | 48 | ||
Battery weight(standard configuration) | kg | 7kg×4 | ||
Other | Control type | Electrlc control | ||
Noise level | dB | ≤70 |
