Standard configuration:
· Lithium battery se lead acid can be interchanged
· System battery: 48V
· Electric moving se lifting

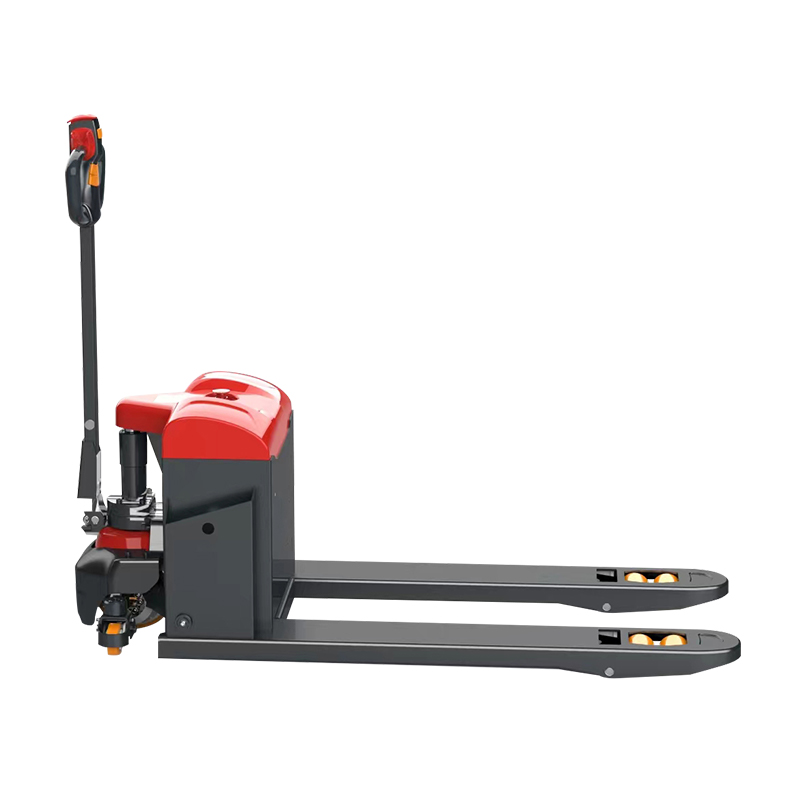

Model | Unit | PT30 | ||
Characteristic | Power | Electric | ||
Operatlon type | Walking style | |||
Maximum load | Q(kg) | 3000 | ||
Load center distance | C(mm) | 500 | ||
Front overhang | x | 920 | 990 | |
Wheel base | y | 1280 | 1350 | |
Weight | kg | 179 | 188 | |
Wheel& chassis | Number of wheels(driving wheels/load-bearing wheels) | 1/4 | ||
Driving wheel size | Φxw(mm) | Φ210x70 | ||
Bearing wheel slze | Φxw(mm) | Φ80×80 | ||
Wheels material | PU | |||
Load-bearing wheel track | b2(mm) | 390 | 515 | |
Base size | Lifting height | h3(mm) | 100 | |
Handle height during operation Max/Min | h14(mm) | 1180/800 | ||
Fork height when lowered | h13(mm) | ≤83 | ||
Overall length | 11(mm) | 1626 | 1696 | |
Overall width | b1(mm) | 560 | 685 | |
Fork size | s/e/l(mm) | 60/170/1150 | 60/170/1200 | |
Fork outer width | b3(mm) | 560 | 685 | |
Ground clearance | m(mm) | 23 | ||
Channel width for pallet 800×1200 | Ast(mm) | 2090 | 2120 | |
Turning radius | Wa(mm) | 1480 | 1560 | |
Performance | Driving speed fully loaded/unloaded | km/h | 4/4.5 | |
Increase speed full load/no load | m/s | 0.021/0.025 | ||
Descending speed full load/no load | m/s | 0.05/0.04 | ||
Maximum gradeabilty fully loaded/unloaded | % | 6/25 | ||
Cycle working time | H | ≥3 | ||
Braking method | Electromagnetic brake | |||
Power | Driving motor power | kw | 48V/1.2kw | |
Increase motor power | kw | 0.8 | ||
Battery specification | Ah | Lead-acid battery | 40Ah | |
LIthium battery | 20Ah | |||
System voltage | V | 48 | ||
Battery weight | kg | 12 | ||
Other | Control type | Electric control | ||
Noise level | dB | ≤70 |
