| Rated Loading Capacity: | |
|---|---|
| Fork Size: | |
| Battery Voltage /Capacity: | |
| Quantity: | |
Standard configuration:
· Foldable pedal, comfortable and convenient to operate
· High performance traction batteries with longservice life
· Imported drive wheels with strong power andlong service life
· Adopting a multifunctional intelligent handlecontrol, the48V maintenance freebrushless motor system is practicaland simple

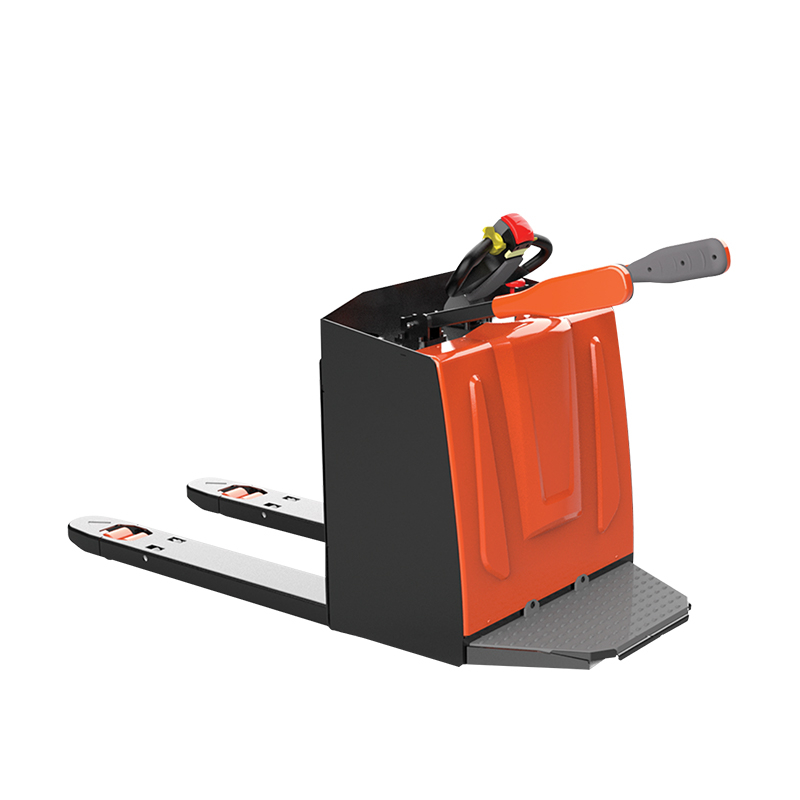

| Model | Unit | PTP20 | |
| Characteristic | Power | Electric | |
| Operatlon type | Stand-up | ||
| Load capacity | Q(kg) | 2000 | |
| Load center distance | C(mm) | 500 | |
| Front overhang | x | 960 1030 | |
| Wheel base | y | 1280 | |
| Wheel& chassis | Wheel material | PU | |
| Number of wheels(driving wheels/ load-bearing wheels/auxlllary wheels) | 01/4/2 | ||
| Drive wheel size | Φxw(mm) | Φ210×70 | |
| Bearing wheel size | Φxw(mm) | Φ80×80 | |
| Load-bearing wheel track | b2(mm) | 390 515 | |
| Base slze | Lifting height | h3(mm) | 100 |
| Fork height when lowered | h13(mm) | ≤83 | |
| Overallength | 11(mm) | 1920 | |
| Overall width | b1(mm) | 560 685 | |
| Fork slze | s/e/l(mm) | 60/170/1150 | |
| Fork outer width | b3(mm) | 560 685 | |
| Ground clearance | m(mm) | 16 | |
| Aisle width for pallets 1000×1200 | Ast(mm) | 2200 | |
| Turning radius | Wa(mm) | 1800 | |
| Performance | Driving speed fully loaded/unloaded | km/h | 5/6 |
| Increase speed full load/no load | m/s | 0.021/0.025 | |
| Descending speed full load/no load | m/s | 0.05/0.04 | |
| Maximum gradeabilty fully loaded/unloaded | % | 6/16 | |
| Service brake | Electromagnetic brake | ||
| Power | Drive motor power | kw | 48V/1.2Kw |
| Lifting motor power | kw | 0.8 | |
| Battery capacity | Ah | 60 | |
| Battery type | Lead-acid batterles | ||
| System voltage | V | 48 | |
| Battery weight | kg | 17kgx4 | |
| Other | Control type | Electric control | |
| Noise level | dB | ≤70 | |
Standard configuration:
· Foldable pedal, comfortable and convenient to operate
· High performance traction batteries with longservice life
· Imported drive wheels with strong power andlong service life
· Adopting a multifunctional intelligent handlecontrol, the48V maintenance freebrushless motor system is practicaland simple
| Model | Unit | PTP20 | |
| Characteristic | Power | Electric | |
| Operatlon type | Stand-up | ||
| Load capacity | Q(kg) | 2000 | |
| Load center distance | C(mm) | 500 | |
| Front overhang | x | 960 1030 | |
| Wheel base | y | 1280 | |
| Wheel& chassis | Wheel material | PU | |
| Number of wheels(driving wheels/ load-bearing wheels/auxlllary wheels) | 01/4/2 | ||
| Drive wheel size | Φxw(mm) | Φ210×70 | |
| Bearing wheel size | Φxw(mm) | Φ80×80 | |
| Load-bearing wheel track | b2(mm) | 390 515 | |
| Base slze | Lifting height | h3(mm) | 100 |
| Fork height when lowered | h13(mm) | ≤83 | |
| Overallength | 11(mm) | 1920 | |
| Overall width | b1(mm) | 560 685 | |
| Fork slze | s/e/l(mm) | 60/170/1150 | |
| Fork outer width | b3(mm) | 560 685 | |
| Ground clearance | m(mm) | 16 | |
| Aisle width for pallets 1000×1200 | Ast(mm) | 2200 | |
| Turning radius | Wa(mm) | 1800 | |
| Performance | Driving speed fully loaded/unloaded | km/h | 5/6 |
| Increase speed full load/no load | m/s | 0.021/0.025 | |
| Descending speed full load/no load | m/s | 0.05/0.04 | |
| Maximum gradeabilty fully loaded/unloaded | % | 6/16 | |
| Service brake | Electromagnetic brake | ||
| Power | Drive motor power | kw | 48V/1.2Kw |
| Lifting motor power | kw | 0.8 | |
| Battery capacity | Ah | 60 | |
| Battery type | Lead-acid batterles | ||
| System voltage | V | 48 | |
| Battery weight | kg | 17kgx4 | |
| Other | Control type | Electric control | |
| Noise level | dB | ≤70 | |
