Product Overview

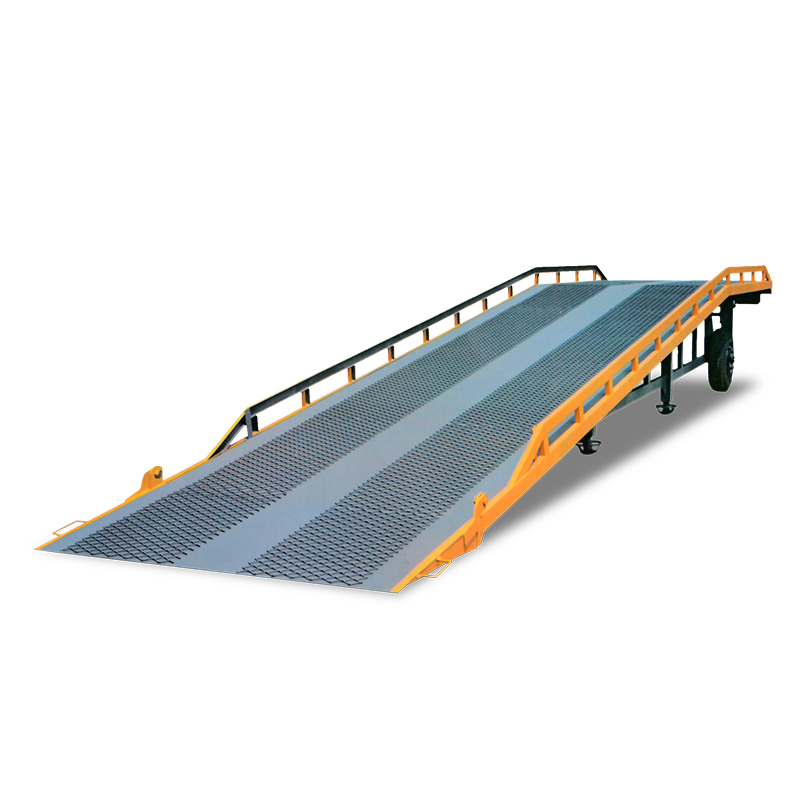

The DCQY Movable Dock Ramp is a flexible loading and unloading solution designed to bridge the gap between ground level and truck beds or containers. It allows forklifts to directly access vehicles, significantly improving loading efficiency without requiring a fixed dock structure.

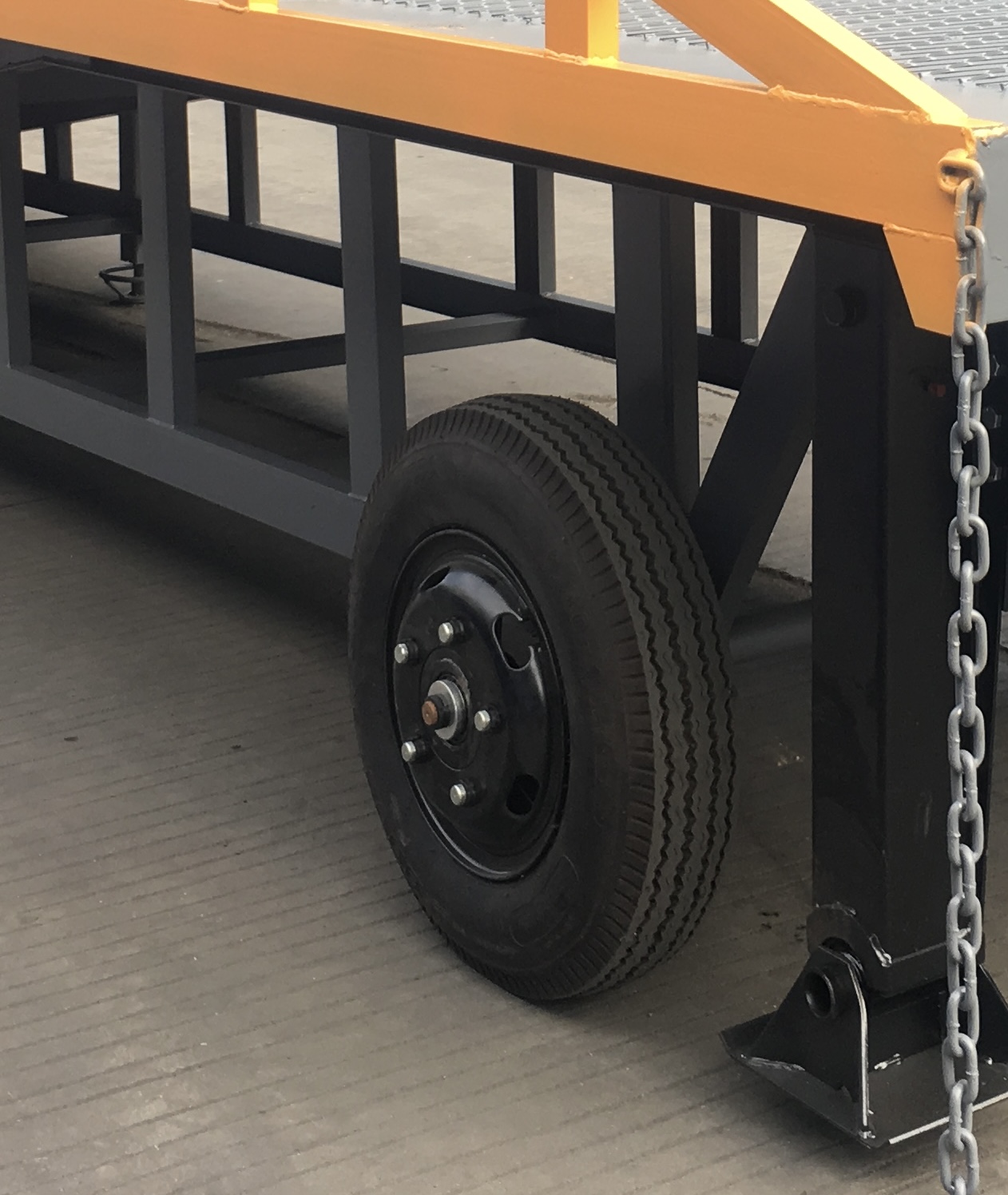

Equipped with a robust steel frame, anti-slip surface, and towing function, the DCQY ramp can be easily repositioned to different loading points. Its hydraulic or mechanical adjustment system ensures smooth height matching with various vehicle types, making it ideal for dynamic logistics operations.
Key Features:
Fully movable design with towing capability
Hydraulic or mechanical height adjustment system
Heavy-duty steel structure for high load capacity
Anti-slip platform for safe forklift operation
Quick setup and flexible positioning
Suitable for outdoor and multi-location use
Application Scenarios
The DCQY Movable Dock Ramp is widely used in flexible and high-turnover logistics environments, including:
Warehouses & Distribution Centers – Temporary or multi-door loading operations
3PL Logistics Companies – Multi-site cargo handling flexibility
Manufacturing Facilities – Adjustable loading points for production needs
Ports & Freight Yards – Outdoor container loading/unloading
Rental Warehousing Services – Shared loading dock solutions
Seasonal Storage & Peak Season Logistics – Temporary high-volume operations
| Model | Capaclity (kg) | Platfom size(mm) |
A
| B | C | D | E | F | G | H | I | J |
| DCQY6-0.4 | 6000
| 6000 | 3000 | 1000 | 300 | 10300 | 1800 | 2100 | 1200 | 400
| 1600 |
| DCQY8-0.4 | 8000 | 6000 | 3000 | 1000 | 300 | 10300 | 1800 | 2100 | 1200 | 400 | 1600 |
| DCQY10-0.4 | 10000 | 7000 | 3000 | 1000 | 300 | 10300 | 1800 | 2100 | 1200 | 400 | 1600 |
