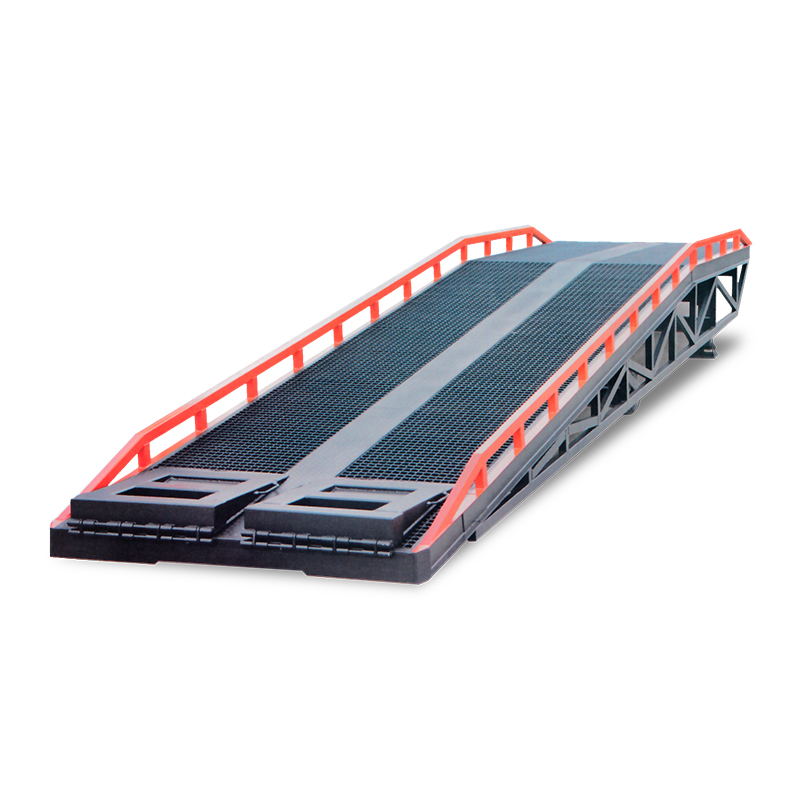

The DCQH Hydraulic Dock Ramp is a high-performance loading bridge designed to connect warehouse platforms with truck beds or containers, enabling smooth and efficient forklift loading and unloading operations.
It uses a hydraulic lifting system to adjust height flexibly, ensuring stable alignment with different vehicle heights. The structure is built from high-strength steel with a reinforced anti-slip surface, providing excellent durability, safety, and load-bearing capacity for intensive logistics operations.
Hydraulic lifting system for precise height adjustment
Heavy-duty steel construction for long service life
Anti-slip steel deck for safe forklift operation
High load capacity suitable for frequent industrial use
Safety chains and support legs for stable positioning
Smooth transition between dock and truck/container
The DCQH Hydraulic Dock Ramp is widely used in various material handling environments, including:
Warehouses & Distribution Centers – Fast and efficient truck loading/unloading
Logistics & 3PL Facilities – High-frequency cargo transfer operations
Manufacturing Plants – Raw material supply and finished goods dispatch
Ports & Freight Terminals – Container and bulk cargo handling
Cold Storage Facilities – Time-sensitive loading operations
Industrial Parks & Outdoor Yards – Flexible loading without fixed docks
| Model | Capacity (kg) | Platform size(mm) | |||||||||
| A | B | C | D | E | F | G | H | I | J | ||
| DCQH6-0.4 | 6000 | 6000 | 3000 | 1000 | 300 | 10300 | 1800 | 2100 | 1100 | 500 | 1600 |
| DCQH8-0.4 | 8000 | 6000 | 3000 | 1000 | 300 | 10300 | 1800 | 2100 | 1100 | 500 | 1600 |
| DCQH10-0.4 | 10000 | 7000 | 3000 | 1000 | 300 | 11300 | 1800 | 2100 | 1100 | 500 | 1600 |
1. What capacity should I choose for a hydraulic dock ramp?
The required capacity depends on the total load of the forklift, pallet, and cargo. For example, a 6-ton dock ramp may be suitable for medium-duty loading applications, while 10-ton, 12-ton, or higher-capacity models are typically selected for heavy-duty container loading and unloading. Always select a ramp with a rated capacity higher than the maximum actual operating load.
2. How do I choose the right size and height for a hydraulic dock ramp?
The key dimensions are platform height, ramp length, usable width, approach angle, and dock/truck height difference. Before ordering, measure the truck or container floor height, ground clearance, available loading space, and forklift dimensions. For a customized hydraulic dock ramp, providing the required lifting range and pit or ground dimensions allows the manufacturer to recommend the correct configuration.
3. Are hydraulic dock ramps safe for forklift loading and unloading?
Yes, when properly designed, installed, and operated. A hydraulic dock ramp should include appropriate safety features such as anti-slip deck plates, safety curbs, mechanical safety supports, hydraulic overload protection, locking mechanisms, and adequate edge protection. The ramp capacity, slope, and forklift operating conditions should always be checked before use.
