Product Description

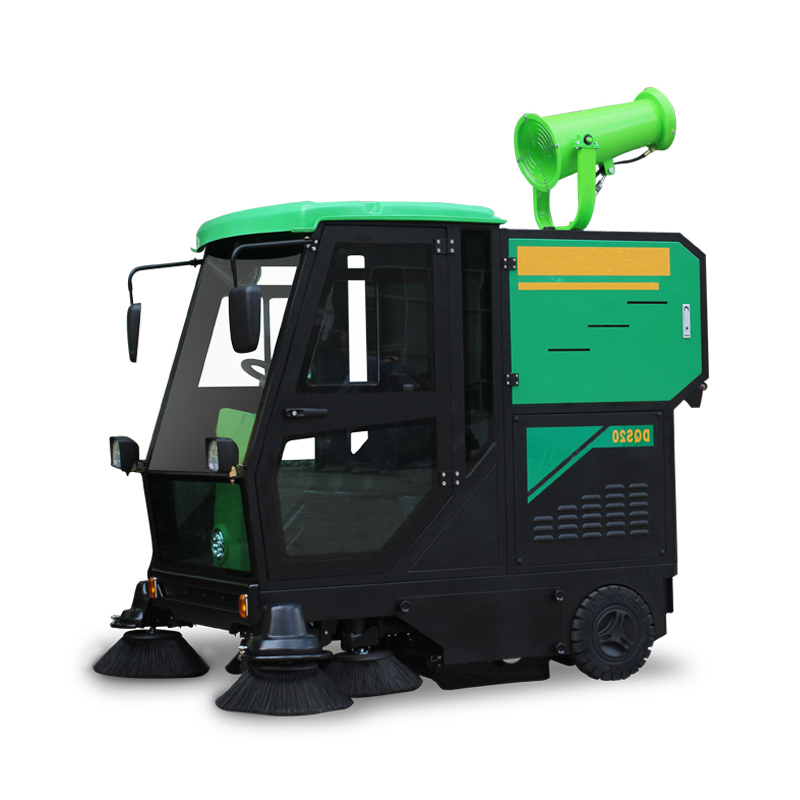

The DQS20 is a ride-on electric sweeper with an integrated fog cannon, designed for heavy-duty cleaning in industrial, municipal, and commercial environments. It combines sweeping, vacuuming spraying, and dust suppression into one multifunctional unit .
Data Sheet
Model
| DQS20 | Unit |
| Dimension(withfogcannon machine) | 2500x2000x2530mm | mm |
| Total weigh (with battery) | 1100 | kg |
| Voltage | 48 | V |
| Total power | 6000 | W |
| Wheelbase | 1295 | mm |
| Track rear | 1080 | mm |
| Minimum turning radius | <=2 | m |
| Sweeping width | 1950 | mm |
| Main brush width | 800 | mm |
| Side brush diameter | 550x2+500x2 | mm |
| Cleaningefficiency | 15000 | m2/h |
| Main brush motor power | 600 | w |
| Driving motor power | 3000 | w |
| Charging time | 8-10H | h |
| Workingtime | ≈4H | h |
| Dustbin capacity | 180 | L |
| Maximum climbing capacity | 15 | % |
| Maximum speed | 9.5/7.5 | km/h |
| Water tank capacity | 180 | L |
| Centrifugal blower power | 500 | W |
| Fog cannon device | Yes | / |
| Watercannon | Yes | / |
| Frontshockabsorber | Yes | / |
| Filtering area | 5*2 | m2 |
| Lead-acid battery(Standard) | 48V180AH | Ah |
| Lithium Battery(0ptional) | 48V200AH(optional) | Ah |

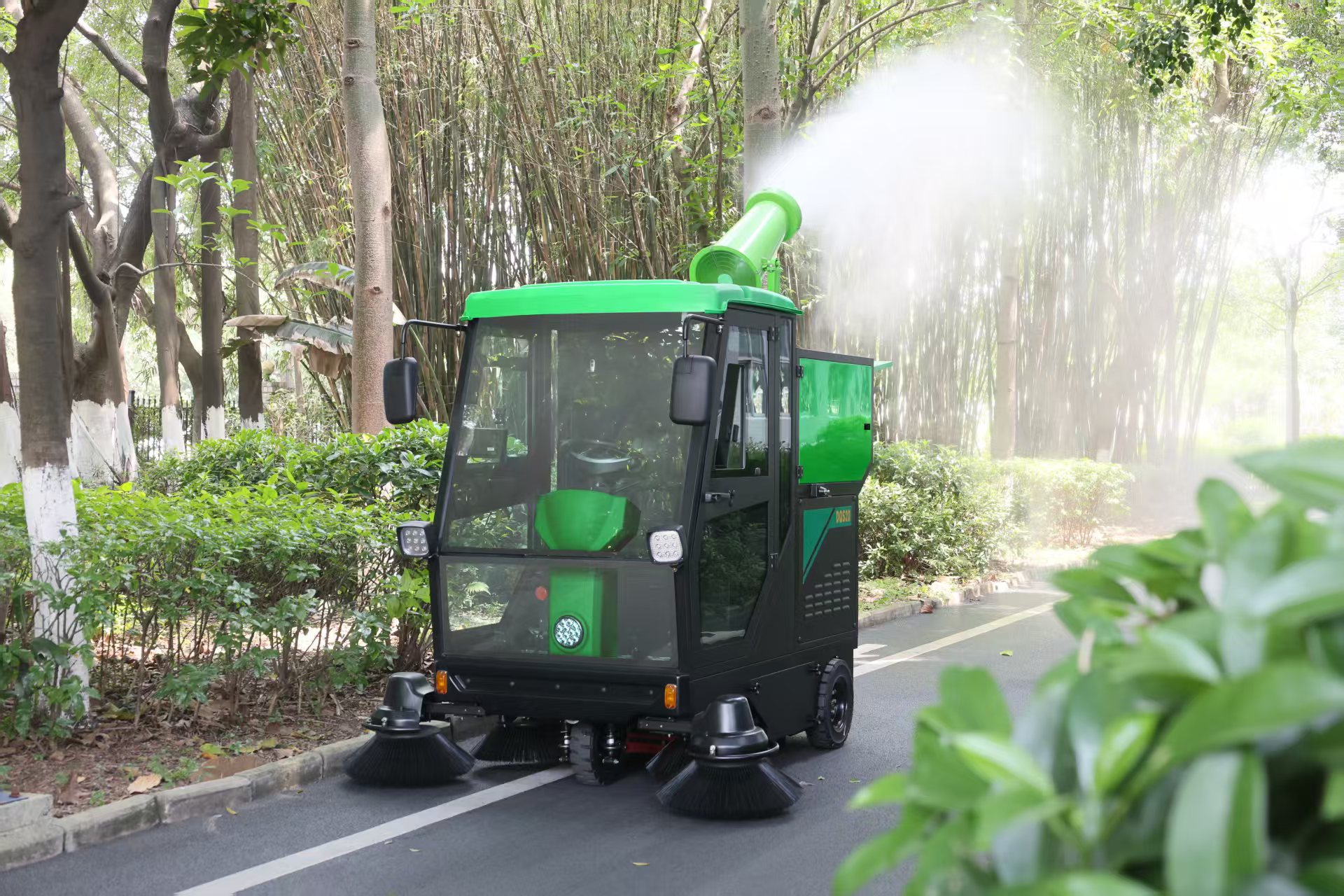

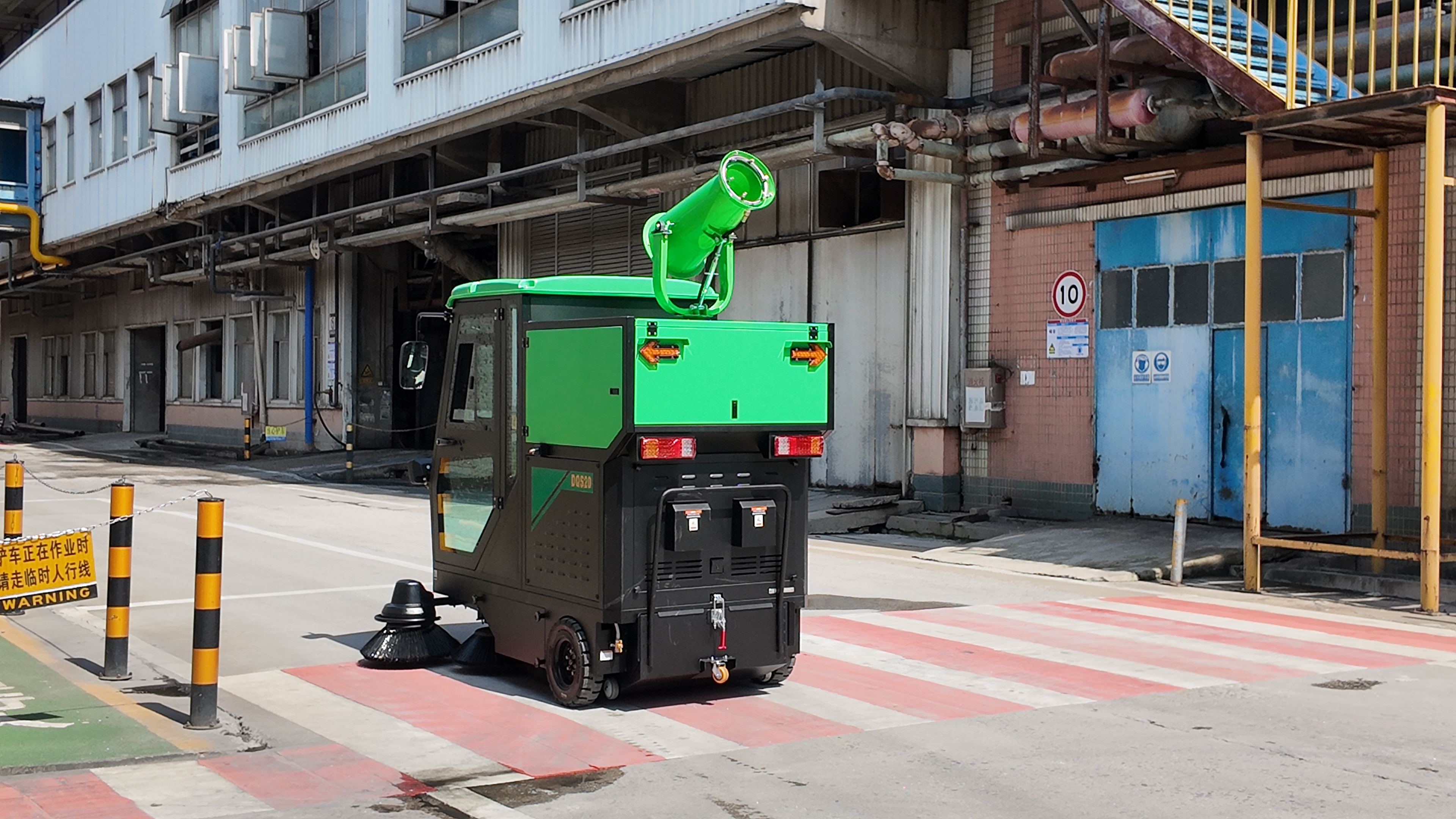

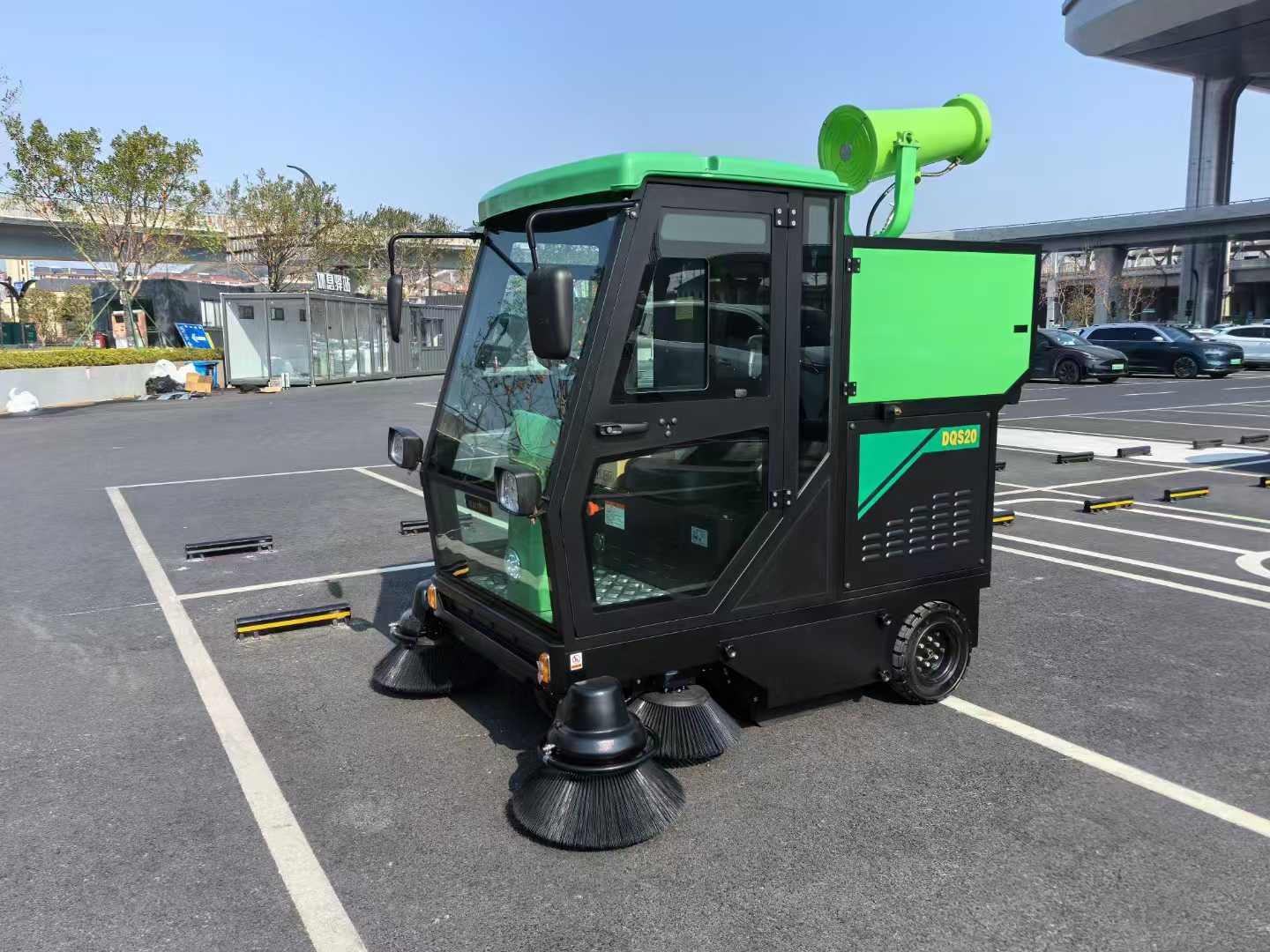

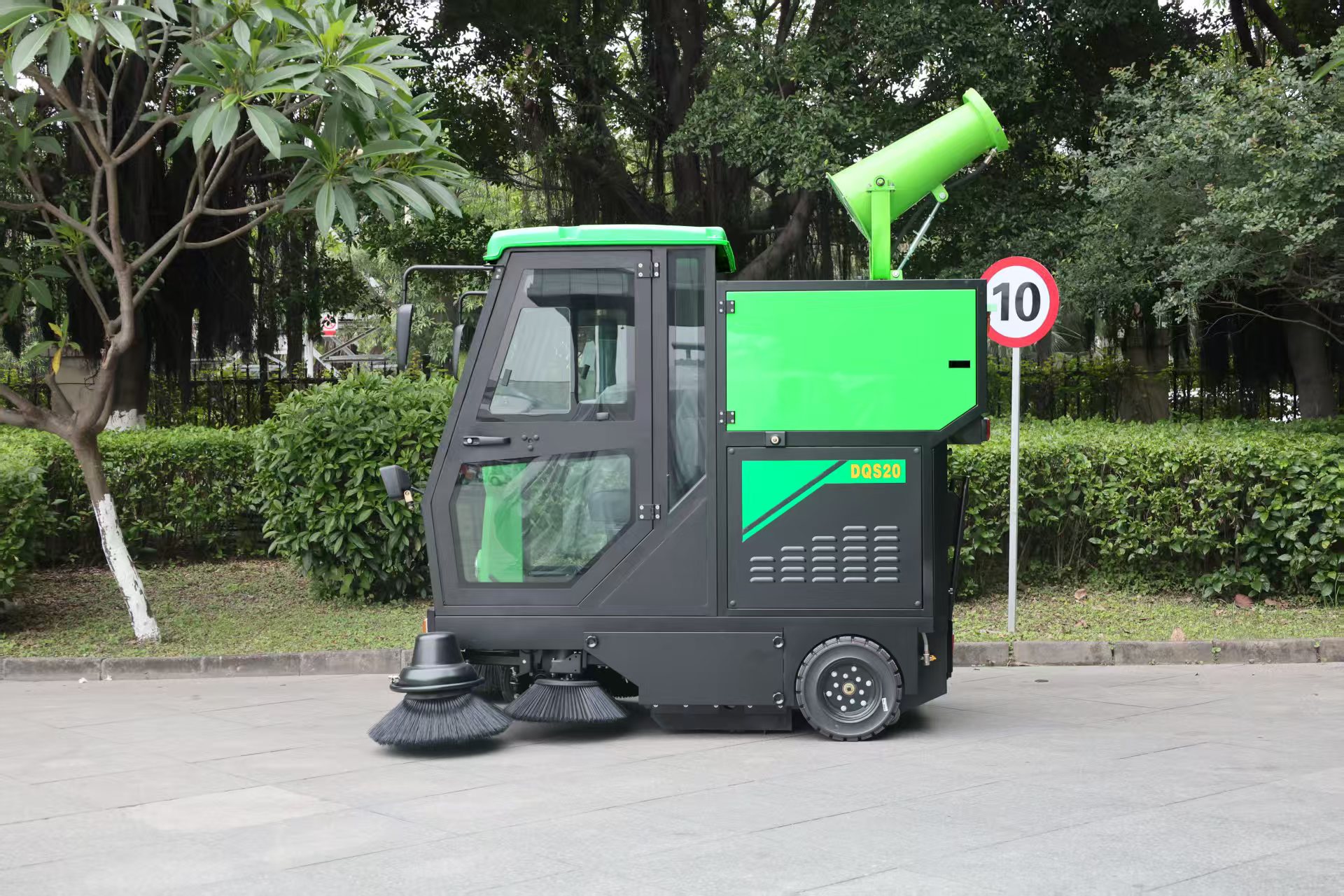

Product Display
Comment & FAQ
1.What size facility is this floor sweeper suitable for?
A: The DQS20 is designed for medium to large indoor and outdoor cleaning applications, including:，Warehouses , Manufacturing plants,Parking lots, Logistics centers,Shopping malls ,Schools and campuses and Industrial workshops
2.What kind of debris can the DQS20 collect?
A: The DQS20 can effectively collect a wide range of debris, including:Dust and sand✔ Leaves and paper scraps✔ Wood chips✔ Metal shavings✔ Packaging waste✔ Small stones and gravel.
3.How much area can the DQS20 clean per hour?
A:The DQS20 offers high cleaning productivity and can clean up to 15000m² per hour depending on operating conditions and floor layout.
4.How long can the DQS20 operate on a full charge?
A:With a fully charged battery, the DQS20 can typically operate continuously for 3–5 hours, providing sufficient runtime for most daily cleaning tasks.Lithium battery options may be available for longer operating time and faster charging.
5.Is the DQS20 easy to maintain?
A:Yes. The DQS20 is designed for simple daily maintenance.Routine maintenance includes:
Emptying the debris hopper
Cleaning or replacing filters
Checking brushes for wear
Inspecting battery condition
|

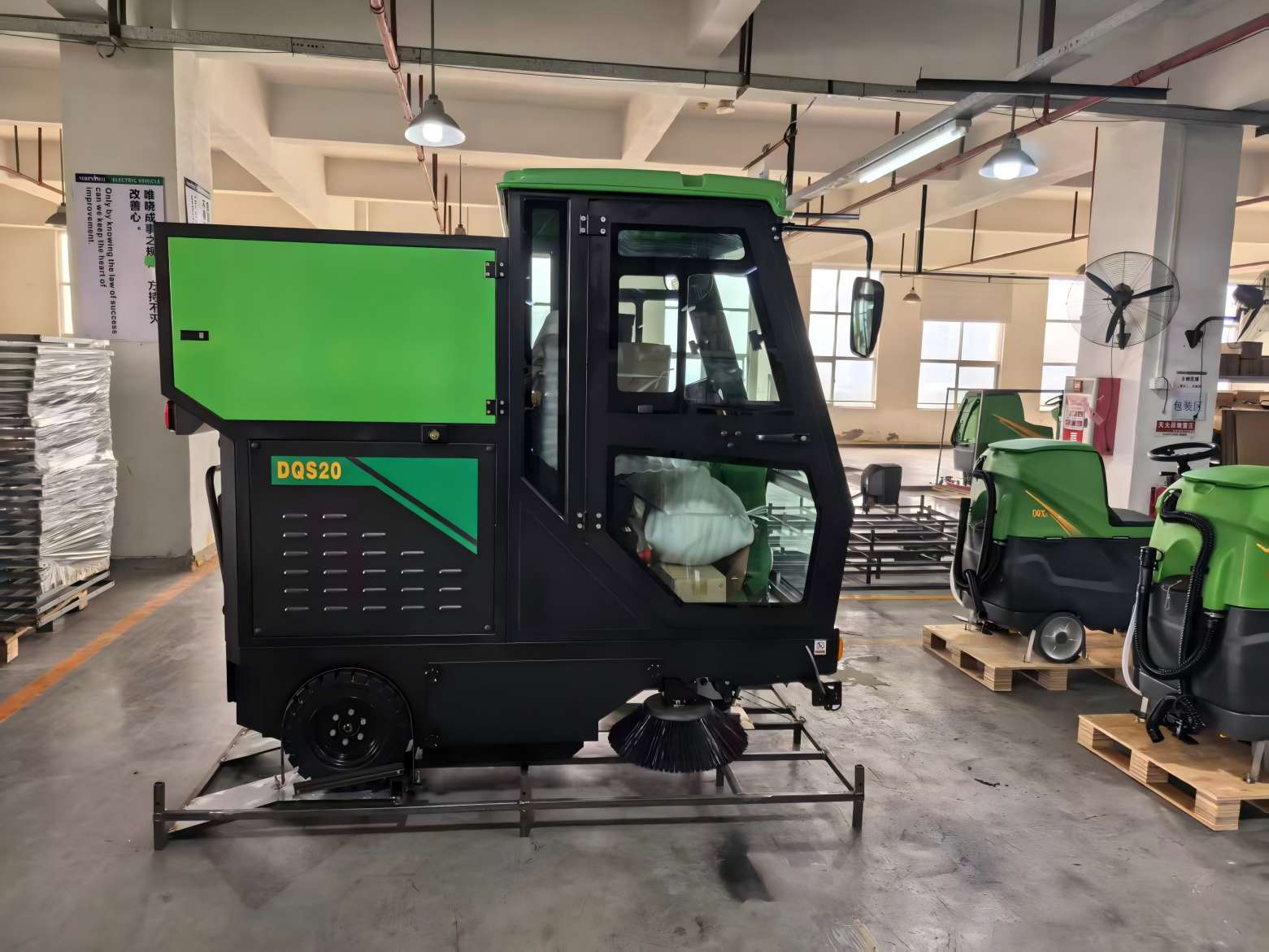

Production Process
