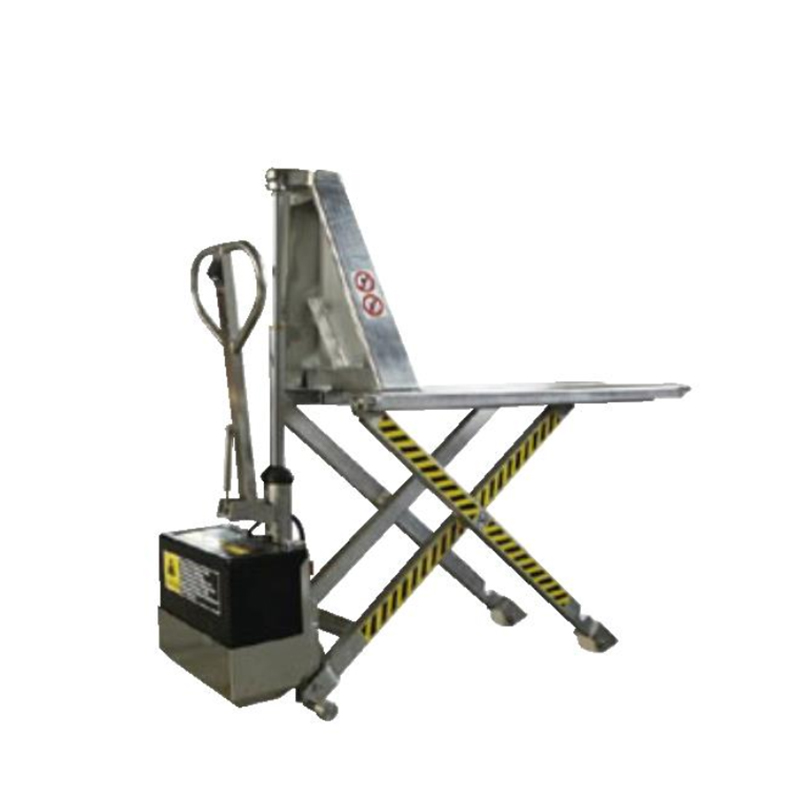

The CBY-EHLS Stainless Electric High Lift Scissor Truck is a battery-powered, manually propelled scissor lift pallet truck designed for hygienic and corrosive environments. With a 1000–1500 kg load capacity and 800 mm lift height, this unit combines electric lifting with manual travel, offering ergonomic load positioning without the footprint of a forklift.
1. Food Processing — High-Pressure Washdown Areas
Scenario: Daily cleaning of production floors with aggressive detergents and high-pressure hoses
Benefit: AISI 304 stainless steel construction resists corrosion and pitting. Sealed bearings and waterproof components ensure longevity
2. Dairy Canning Lines
Scenario: Lifting stacks of filled cans or crates from pallets to conveyor height (800mm)
Benefit: Electric lift eliminates manual effort for repetitive lifting tasks. Nylon wheels provide quiet, residue-free operation
3. Pharmaceutical Cleanrooms
Scenario: Moving raw material drums to dispensing booths or tablet press hoppers
Benefit: Sealed hydraulic system with food-grade oil prevents contamination. Stainless steel surfaces are non-porous and easy to sterilize
4. Frozen Food Warehouses
Scenario: Lifting pallets of frozen goods in cold storage (-20°C to +5°C)
Benefit: Wide operating temperature range; stainless steel does not become brittle in cold environments
5. Chemical Drum Handling
Scenario: Transporting 210L drums containing acids, solvents, or caustic solutions
Benefit: The 1500 kg capacity handles multiple drums. Corrosion-resistant construction ensures safe handling of aggressive chemicals
6. Seafood Processing
Scenario: Lifting bins of fresh or frozen seafood on wet, slippery floors
Benefit: Saltwater-resistant design prevents rust; polyurethane wheels provide grip on wet surfaces
7. Cosmetics Manufacturing
Scenario: Moving drums of lotions, creams, or raw ingredients to filling lines
Benefit: Stainless steel construction prevents contamination of sensitive cosmetic formulations
| Model | CBY-EHLS | |||
| Rated Iifting capacity(kg) | 1000 | 1000 | 1500 | 1500 |
| Min./Max.fork height(mm) | 85/800 | 85/800 | 85/800 | 85/800 |
| Fork width(mm) | 540 | 680 | 540 | 680 |
| Fork length(mm) | 1150 | 1150 | 1150 | 1150 |
| Battery voltage(V) | 12 | 12 | 12 | |
| Electricity volume(Ah) | 75 | 75 | 75 | 75 |
Input/output voltage of charger(V) | 220-240/12 | 220-240/12 | 220-240/12 | 220-240/12 |
| Net weight(kg) | 158 | 163 | 183 | 188 |
