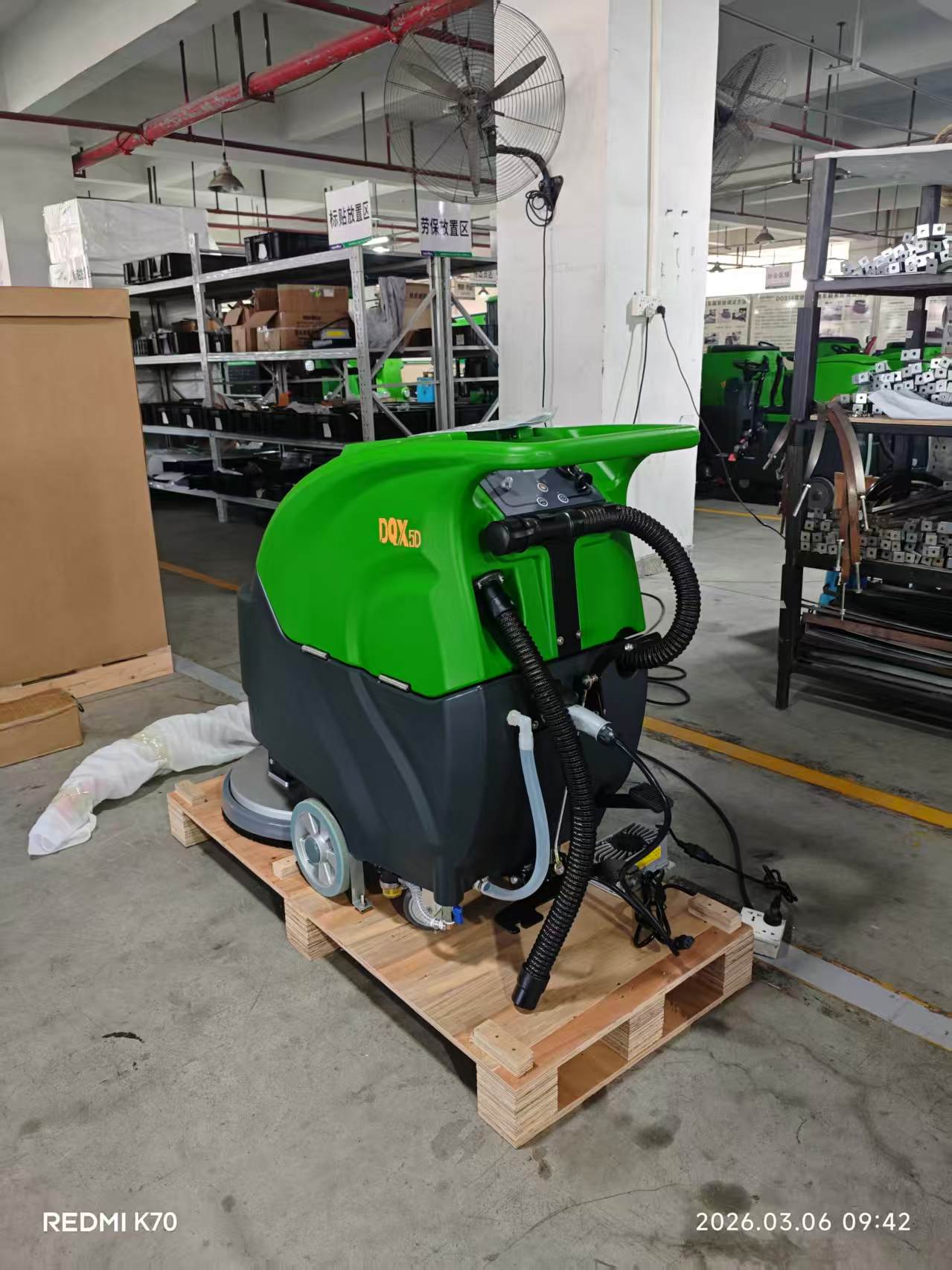

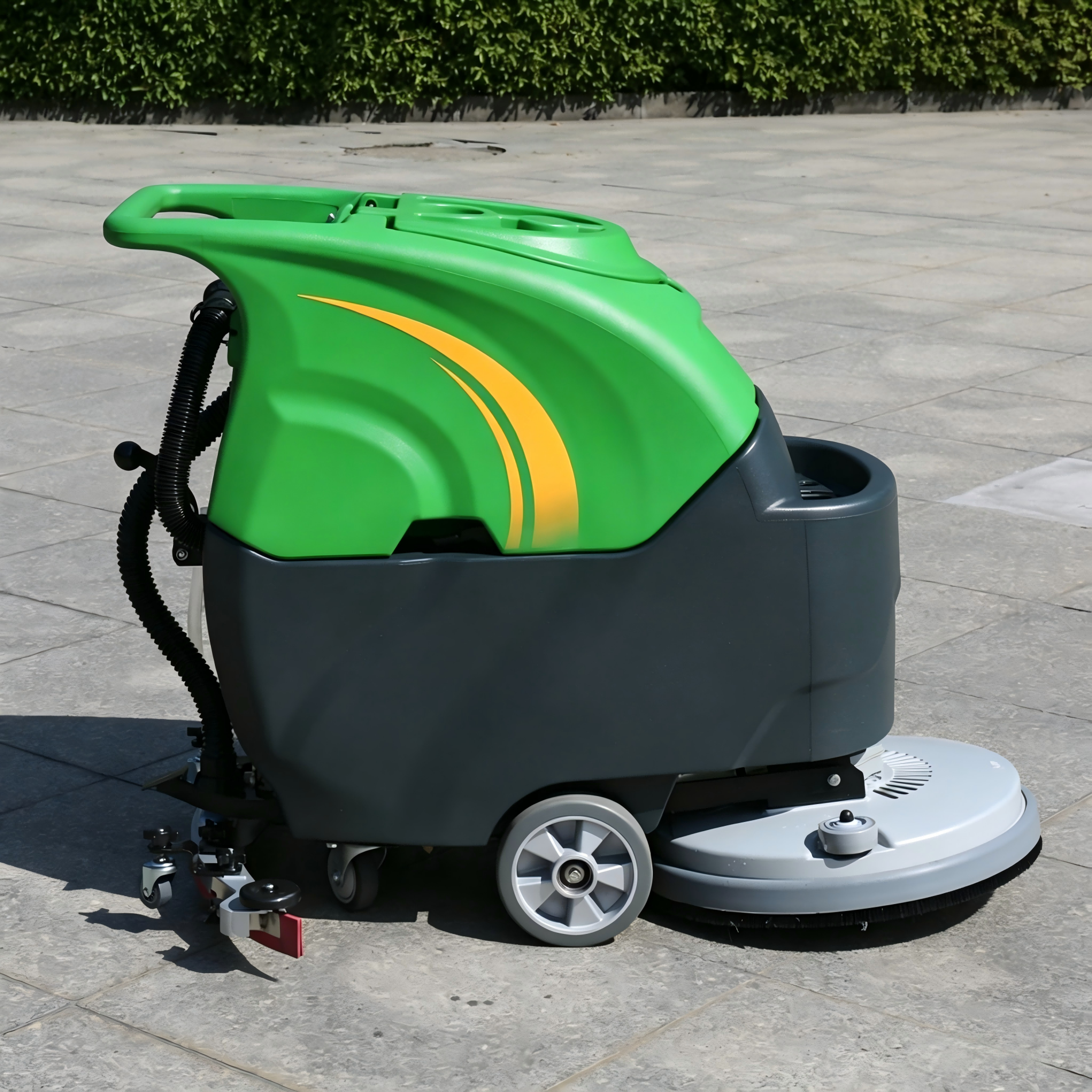

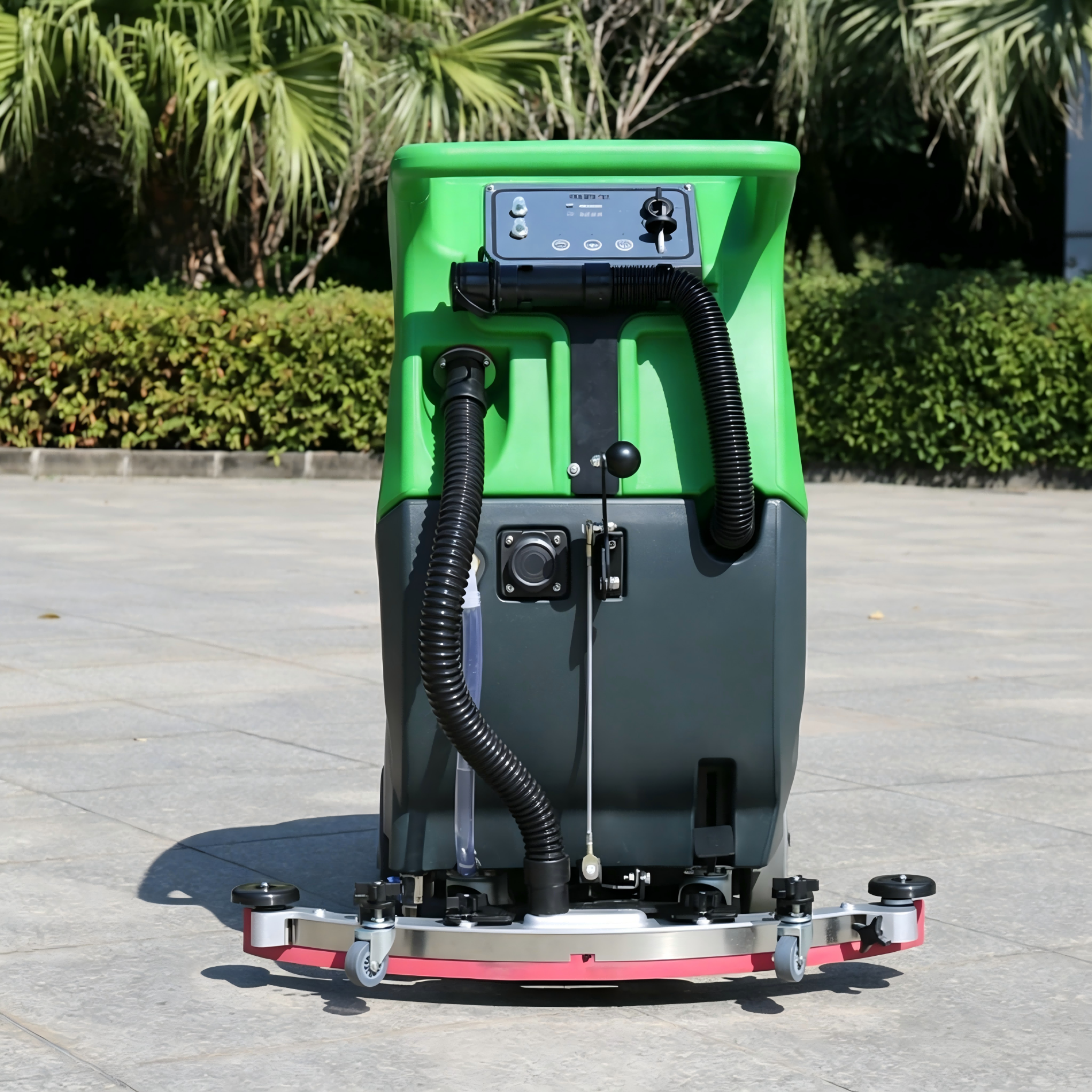

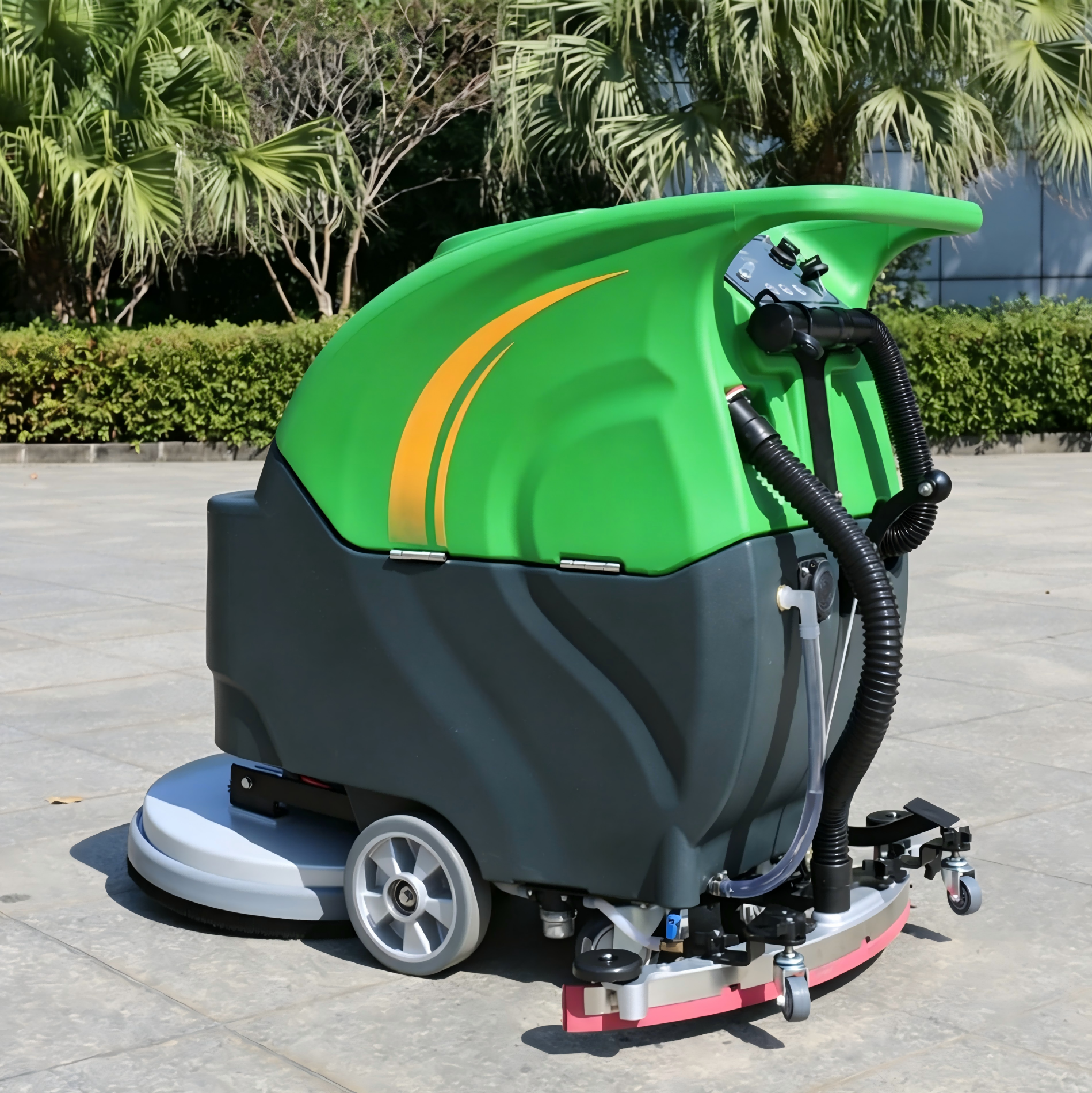

The DQX5D Auto Scrubber is a compact and highly efficient walk-behind floor scrubber dryer designed for commercial and industrial floor cleaning. Combining scrubbing, washing, water recovery, and drying in a single operation, it delivers professional cleaning results while reducing labor costs and improving productivity.
| Model | Unit | DQX5A | DQX5B | DQX5D |
| Dimension(LxHxW) | mm | 1310×550×1080 | 1310×550×1080 | 1200×560×945 |
| Packaging dimension(LxHxW) | mm | 1350×650×1250 | 1350×650×1250 | 1350×650×1250 |
| Cleaning width | mm | 510 | 510 | 510 |
| Cleaning efficiency | m²/h | 2200 | 2000 | 2000 |
| Weight(with battery) | kg | 170 | 150 | 140 |
| Power | W | 1300 | 1300 | 1300 |
| Driving motor power | W | 300 | - | - |
| Brush motor power | W | 550 | 550 | 550 |
| Suction motor power | W | 450 | 450 | 450 |
| Working voltage | V | 24 | 24 | 24 |
| Running speed | km/h | 5 | - | - |
| Astern speed | km/h | 2.9 | - | - |
| Clean water tank capacity | L | 55 | 55 | 50 |
| Sewage tank capacity | L | 65 | 65 | 55 |
| Suction scraper width | mm | 820 | 820 | 820 |
| Noise | dB | 68 | 68 | 68 |
| Brush pressure | kg | 21 | 21 | 25 |
| Working time | H | ≈4 | ≈4 | ≈4 |
| Climbing ability(no load) | % | ≤10 | ≤10 | ≤10 |
| Minimum turning radius | mm | 800 | 800 | 700 |
| Lead-acid battery(standard) | 24V/120Ah | 24V/120Ah | 24V/120Ah | |
| Charging time | H | 8-10 | 8-10 | 8-10 |
| Lithium battery(optional) | 25.6V/100Ah | 25.6V/100Ah | 25.6V/100Ah |

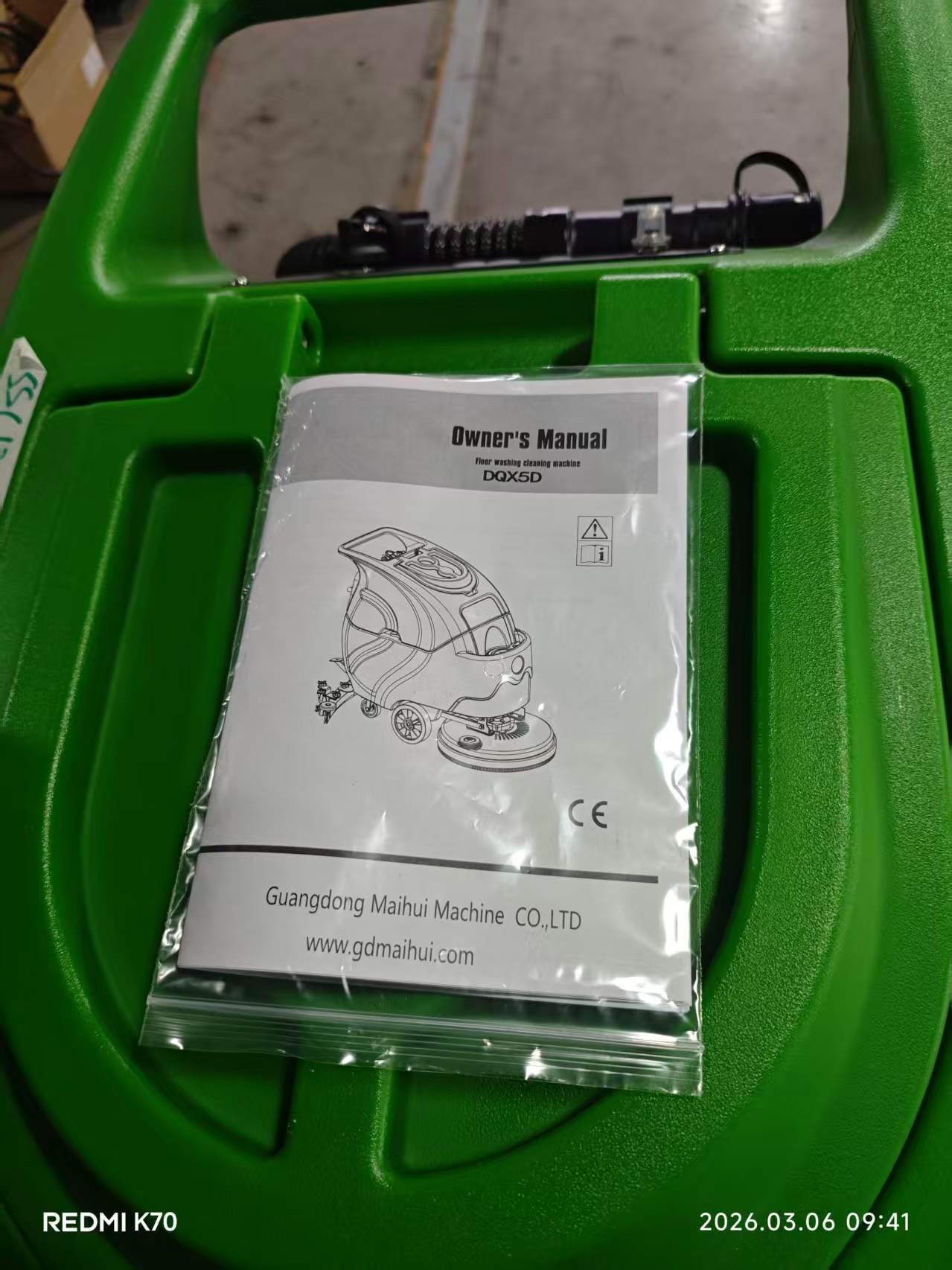

manunal

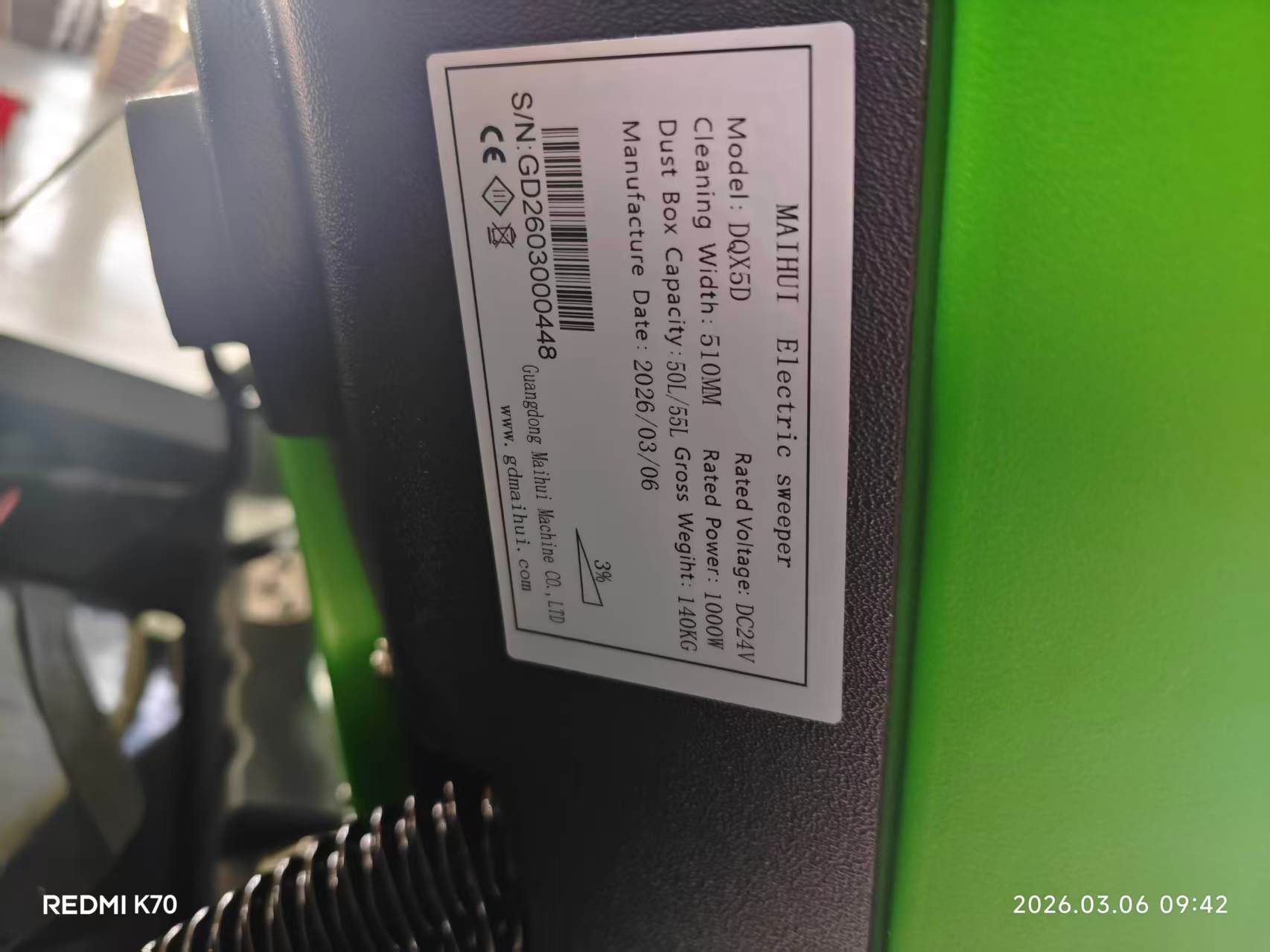

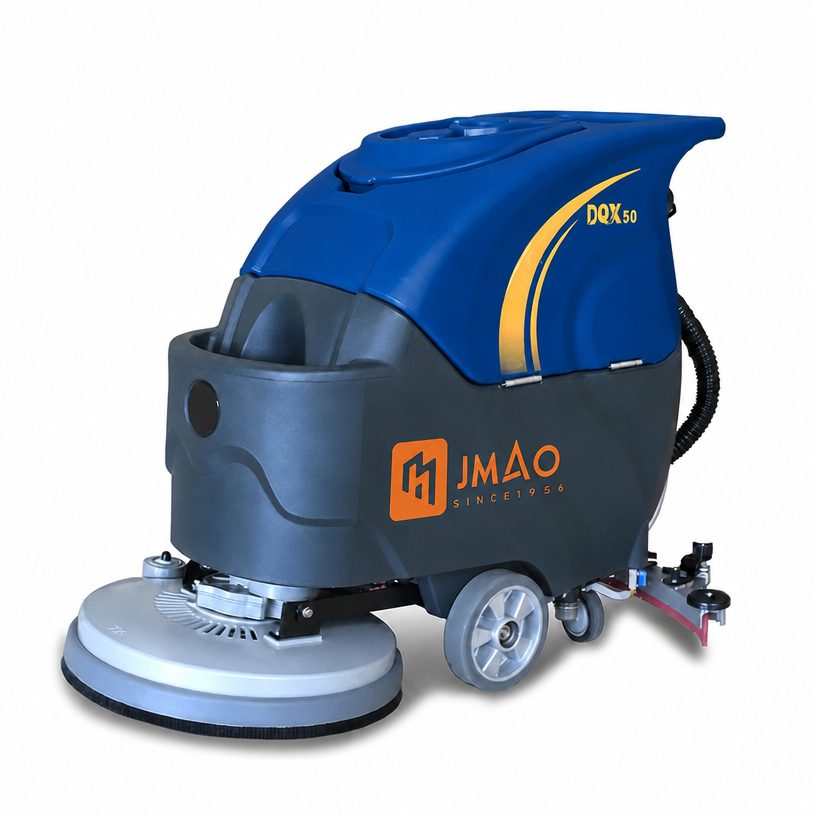

Customizable nameplate
Customizable Plugs

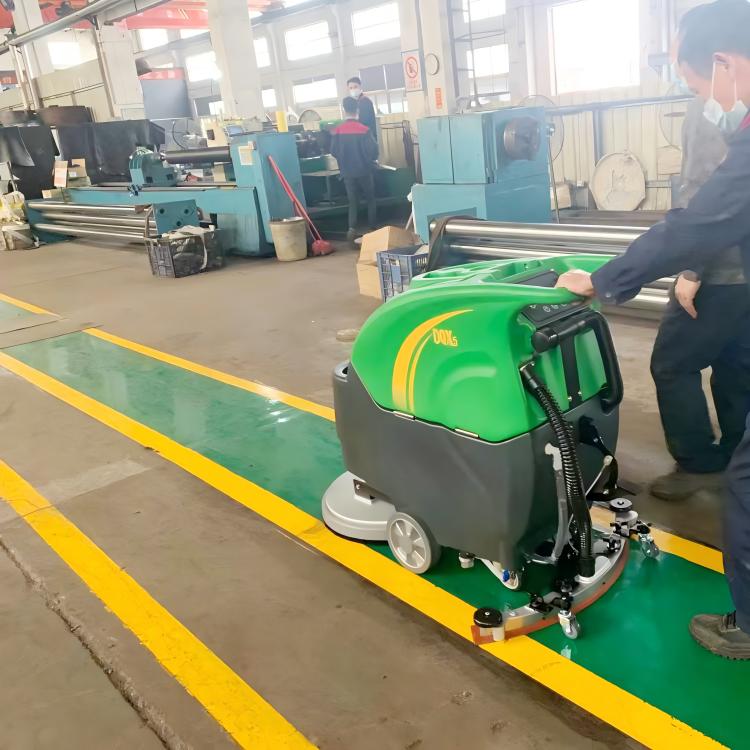

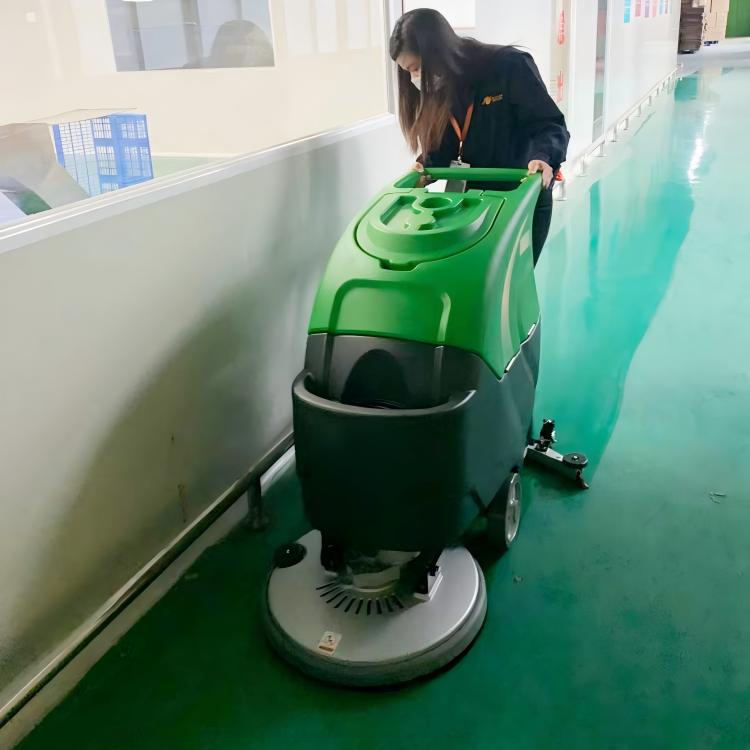

A:The DQX5D Auto Scrubber is suitable for a wide range of hard floor surfaces, including epoxy floors, polished concrete, terrazzo, ceramic tiles, marble, granite, PVC, vinyl, and sealed industrial floors. It is widely used in warehouses, factories, shopping malls, hospitals, schools, and commercial facilities.
A:Yes. The DQX5D combines scrubbing, washing, dirty water recovery, and drying in a single pass. Its powerful vacuum system leaves floors clean and dry immediately after cleaning, reducing slip hazards and minimizing downtime.
Q:Can the DQX5D clean oil stains and industrial dust?
