Product Description

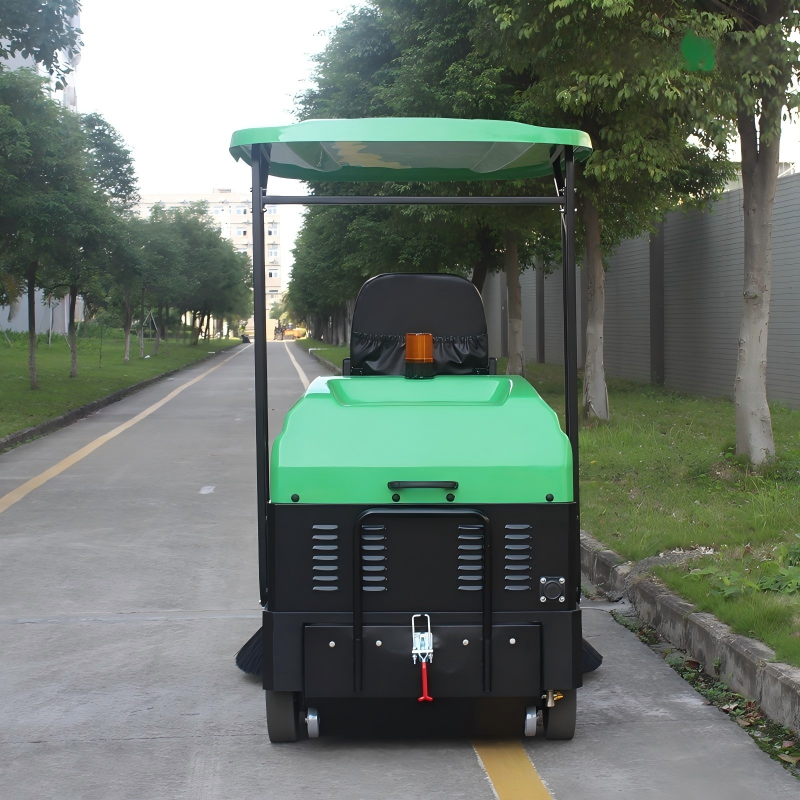

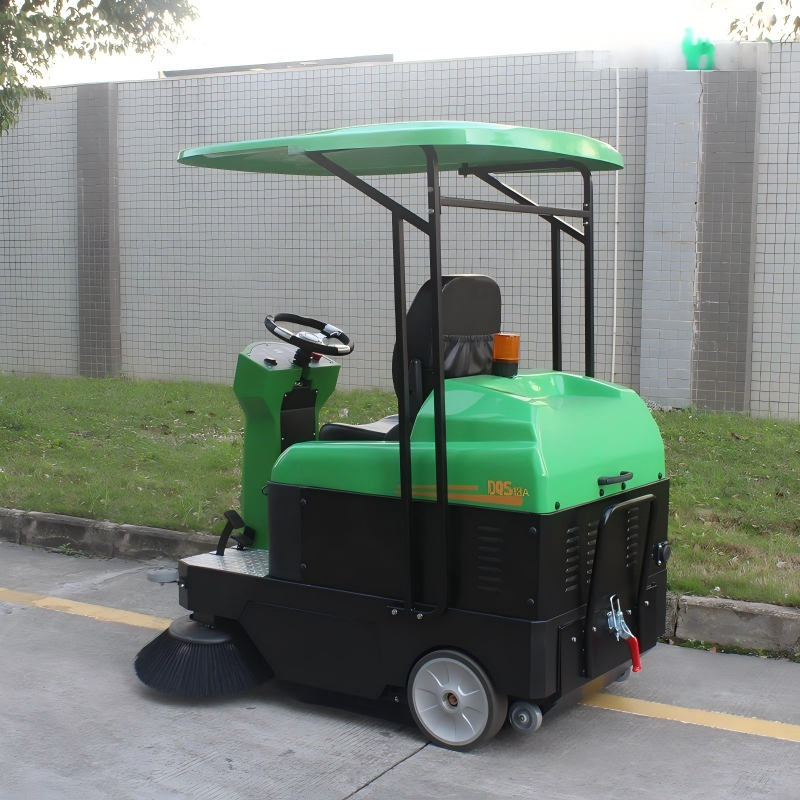

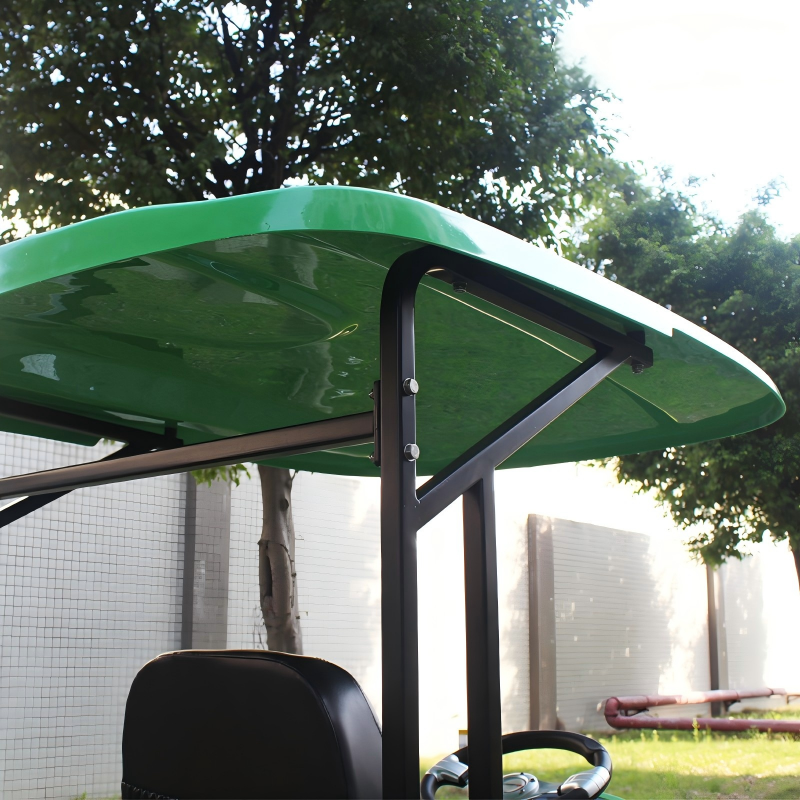

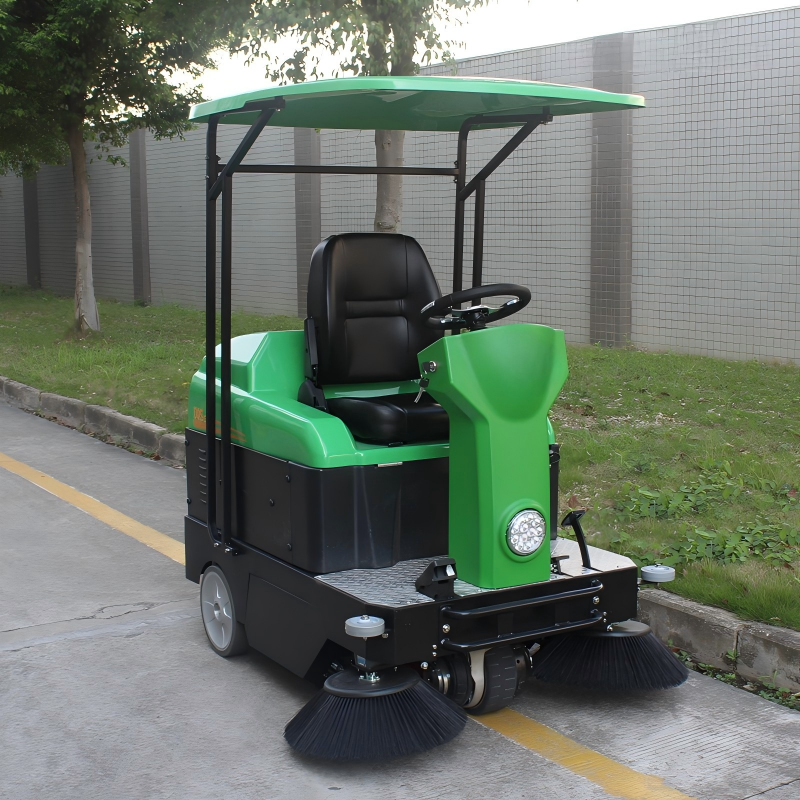

The DQS13A is a CE-certified, battery-powered ride-on sweeper designed for efficient cleaning of large outdoor and semi-outdoor areas. Manufactured by Marshell, this model is distinguished from the standard DQS13 by its integrated canopy, providing operator shade and rain protection for enhanced comfort during extended outdoor operation. It is widely used in
industrial parks, logistics yards, parking lots, urban squares, school campuses, and commercial plazas.
|
Data Sheet
| Model | Unit | DQS13 | DQS13A(Ceiling Model) |
| Boundary dimension(L×H×W) | mm | 1550×1060×1340 | 1550×1060×1870 |
| Packaging dimension(L×H×W) | mm | 1620×1080×1410 | 1620×1080×1650 |
| Cleaning width | mm | 1300 | 1300 |
| Maximum efficiency | m²/h | 8800 | 8800 |
| Cleaning efficiency | % | 98 | 98 |
| Front drive power | W | 650 | 650 |
| Power | W | 1800 | 1800 |
| Running speed | km/h | 6.8 | 6.8 |
| Backward speed | km/h | 2.6 | 2.6 |
| Filtering area | m² | 6 | 6 |
| Turning radius | mm | 1200 | 1200 |

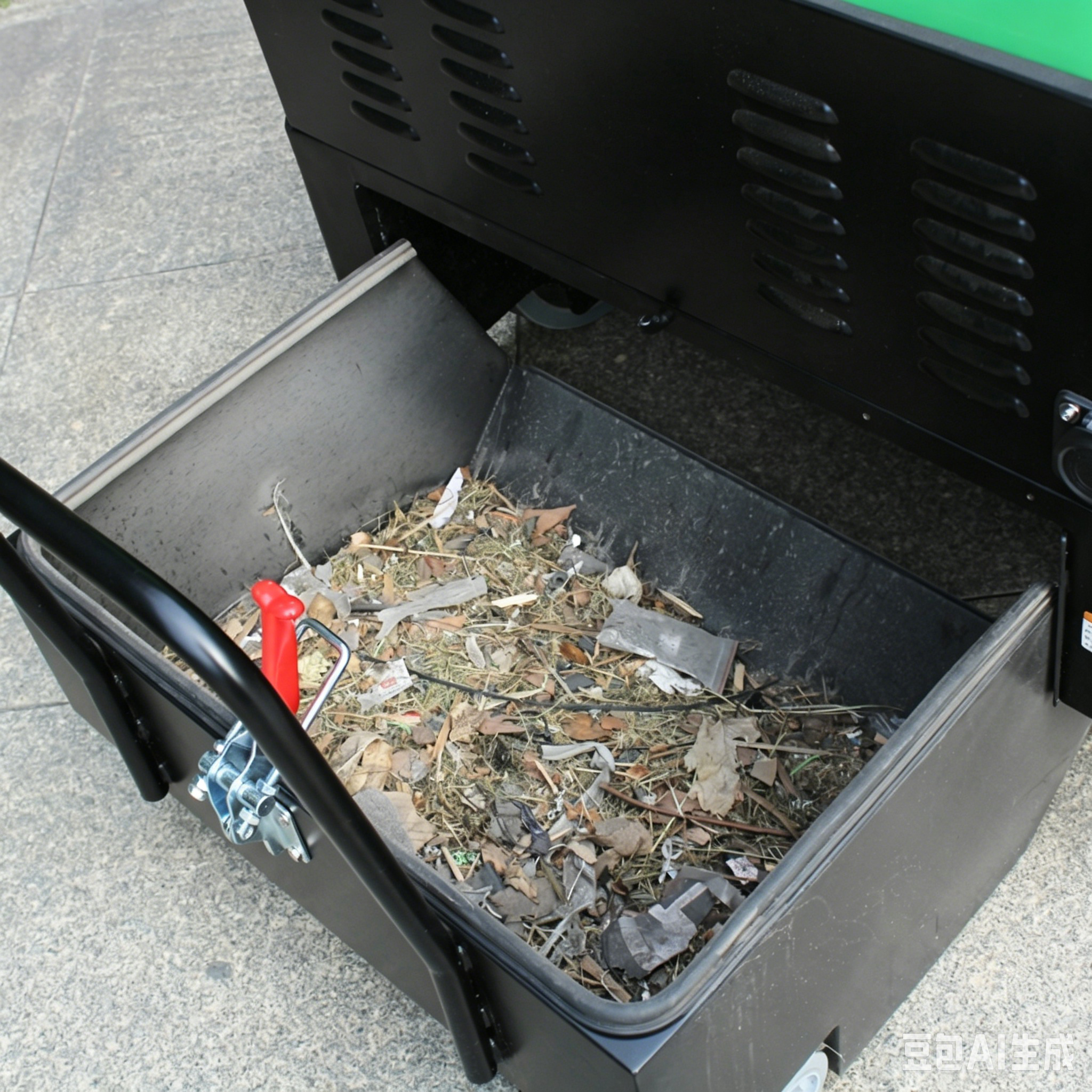

| Bin capacity | L | 100 | 100 |
| Main brush width | mm | 650 | 650 |

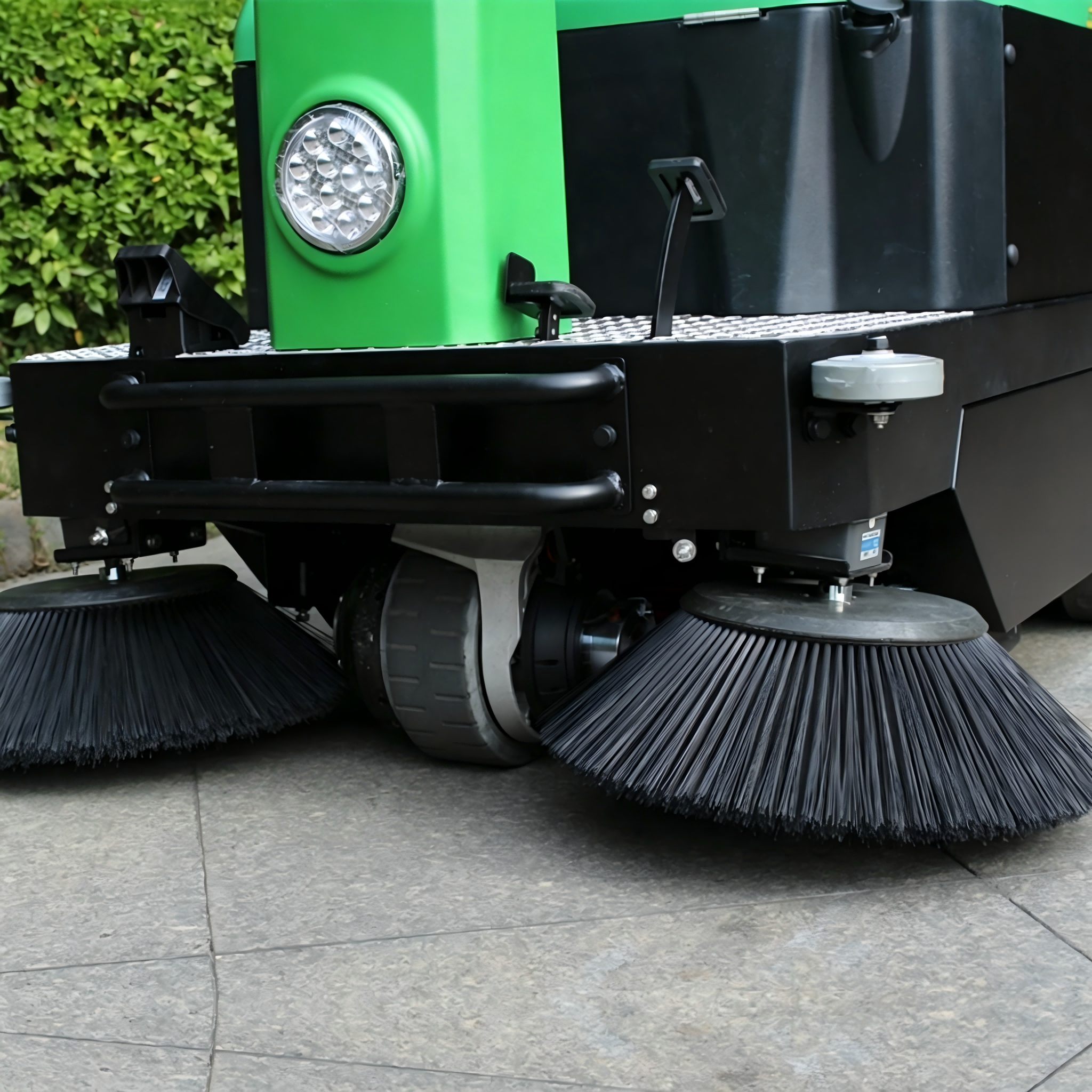

| Side brush diameter | mm | 500x2 | 500×2 |
| Tank capacity | L | 40 | 40 |
| Maximum cleaning particle | mm | 50 | 50 |
| Continuous working hours | H | 5 | 5 |
| Total weight (including battery) | kg | 362 | 392 |
| Climbing abilty | % | ≤15 | ≤15 |
| Lead-acid battery(standard) |
| 24V/150Ah | 24V/150Ah |
| Lithium battery(optional) |
| 25.6V150Ah/25.6V200Ah | 25.6V150Ah/25.6V200Ah |
|
Product Details

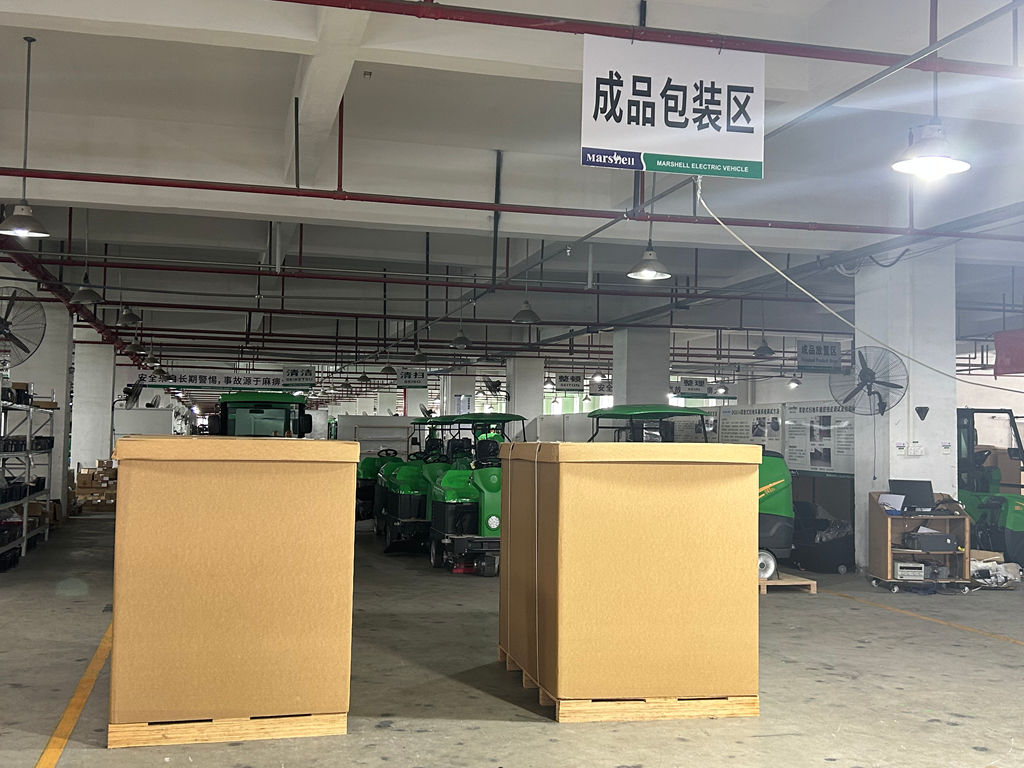

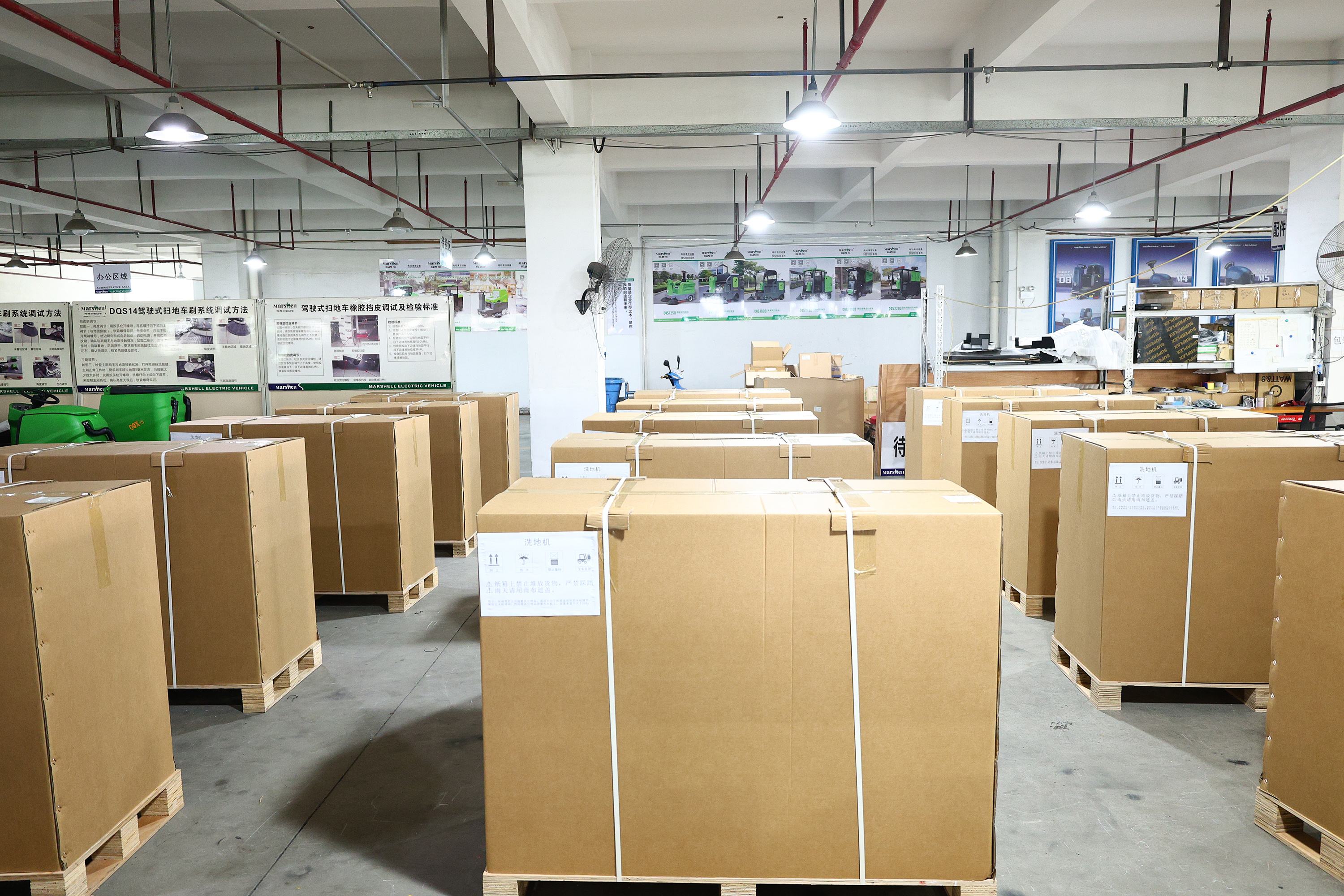

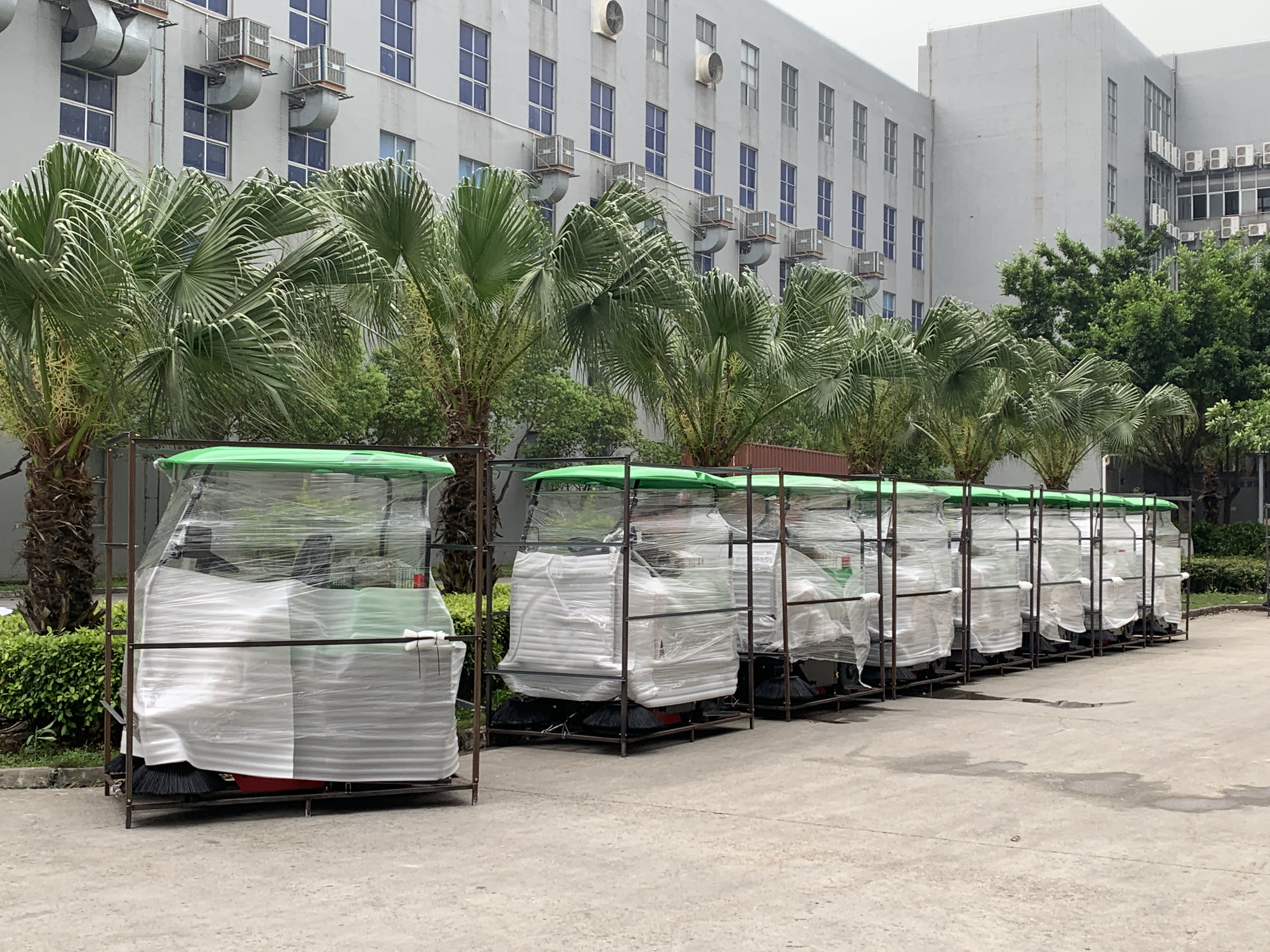

|Packing
|
Comment & FAQ
1. What is the cleaning efficiency of this sweeper, and how large an area can it cover per hour?
A: This is the most critical performance metric customers evaluate before purchase. The DQS13A features a wide 1,300 mm cleaning path and a forward speed of 6.8 km/h, delivering a maximum work efficiency of up to 8,800 m²/h .
2. How long does the battery last on a single charge? Is there an option for longer runtime?
A: Customers are keen to understand the machine's continuous working capability to ensure it can cover their cleaning demands without frequent interrupt.ions. The DQS13A is equipped with a 24V150AH lead-acid battery (standard) or an optional 25.6V150AH lithium battery.
3. How does the machine control dust and prevent secondary pollution during outdoor sweeping?
A:Dust control is a major concern for outdoor applications, particularly in open environments. The DQS13A addresses this through an integrated dust management system that combines two key features :
Filtration System: Equipped with a 6 m² high-efficiency filter that effectively captures fine dust particles during sweeping, preventing them from being released back into the air .
Dust Suppression System: Features a 40 L water tank with high-pressure spray function. During operation, the spray system releases a fine mist that suppresses dust, effectively preventing secondary pollution and ensuring a cleaner environment for both the operator and surrounding areas .
