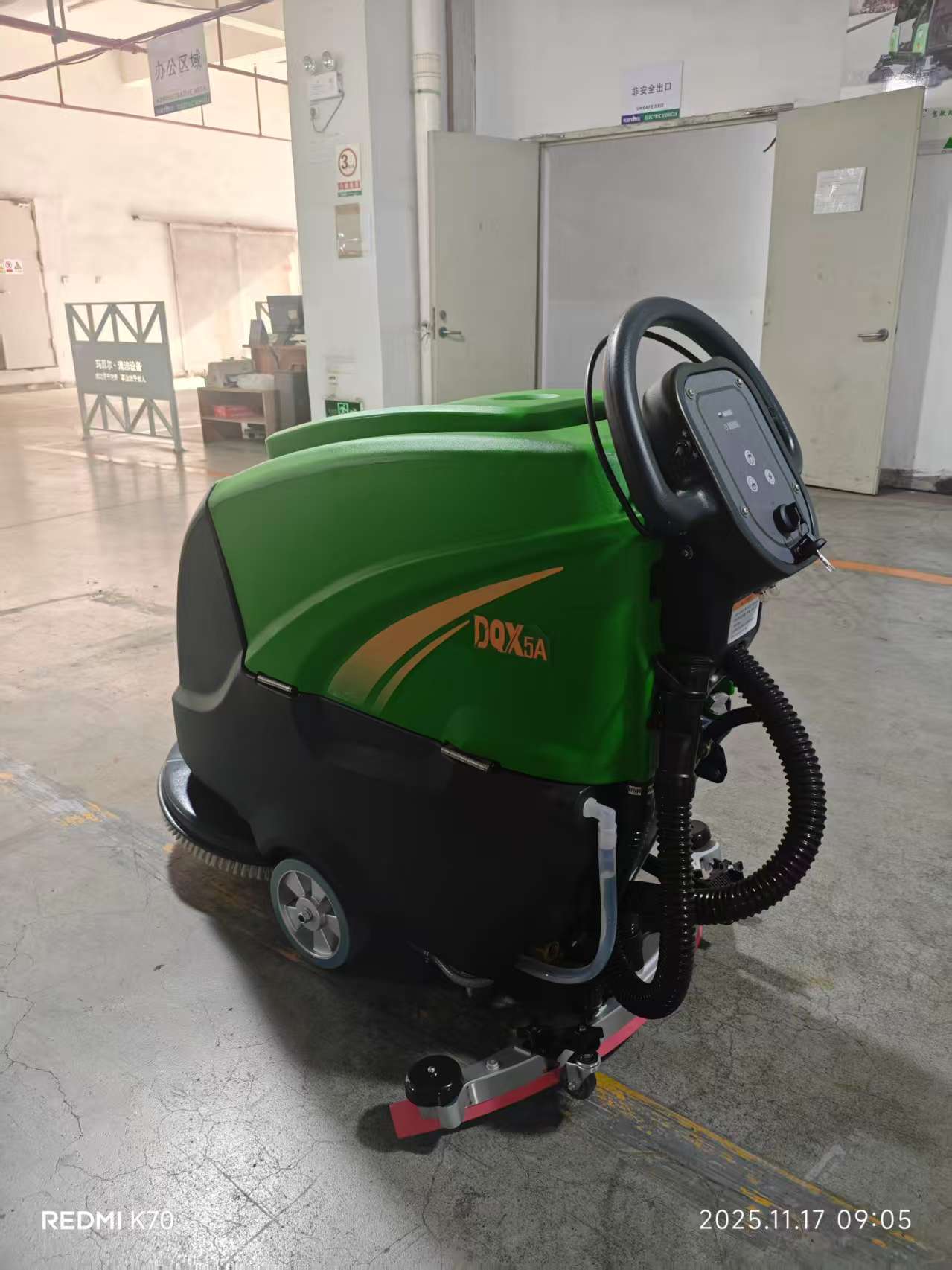

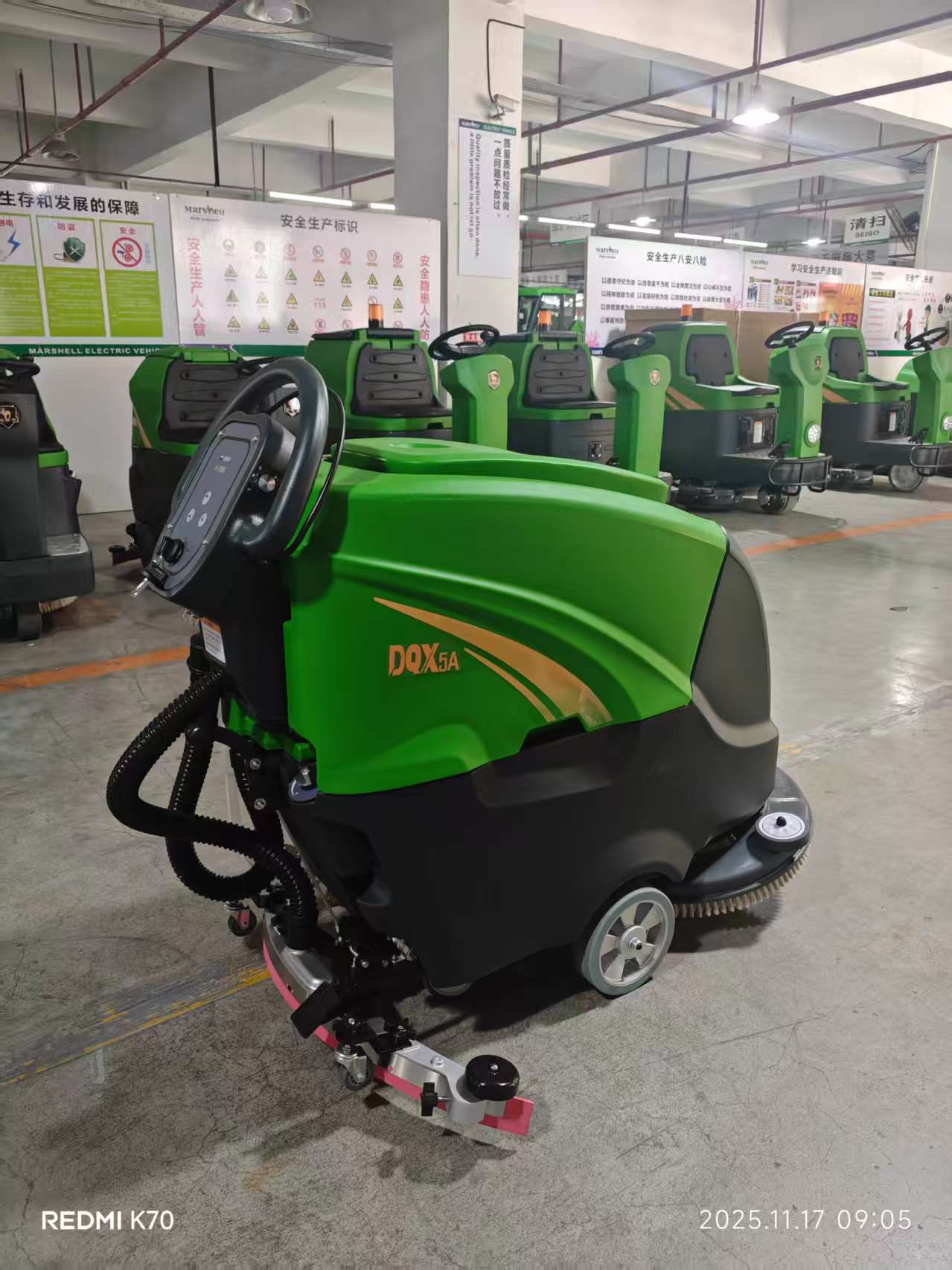

The DQX5A Walk-Behind Floor Scrubber is a high-performance cleaning solution engineered for the professional maintenance of diverse hard floor surfaces. Combining a built-in driver system with an intuitive design, this machine delivers exceptional efficiency and ease of use. It is specifically optimized for high-traffic commercial and industrial environments, including:

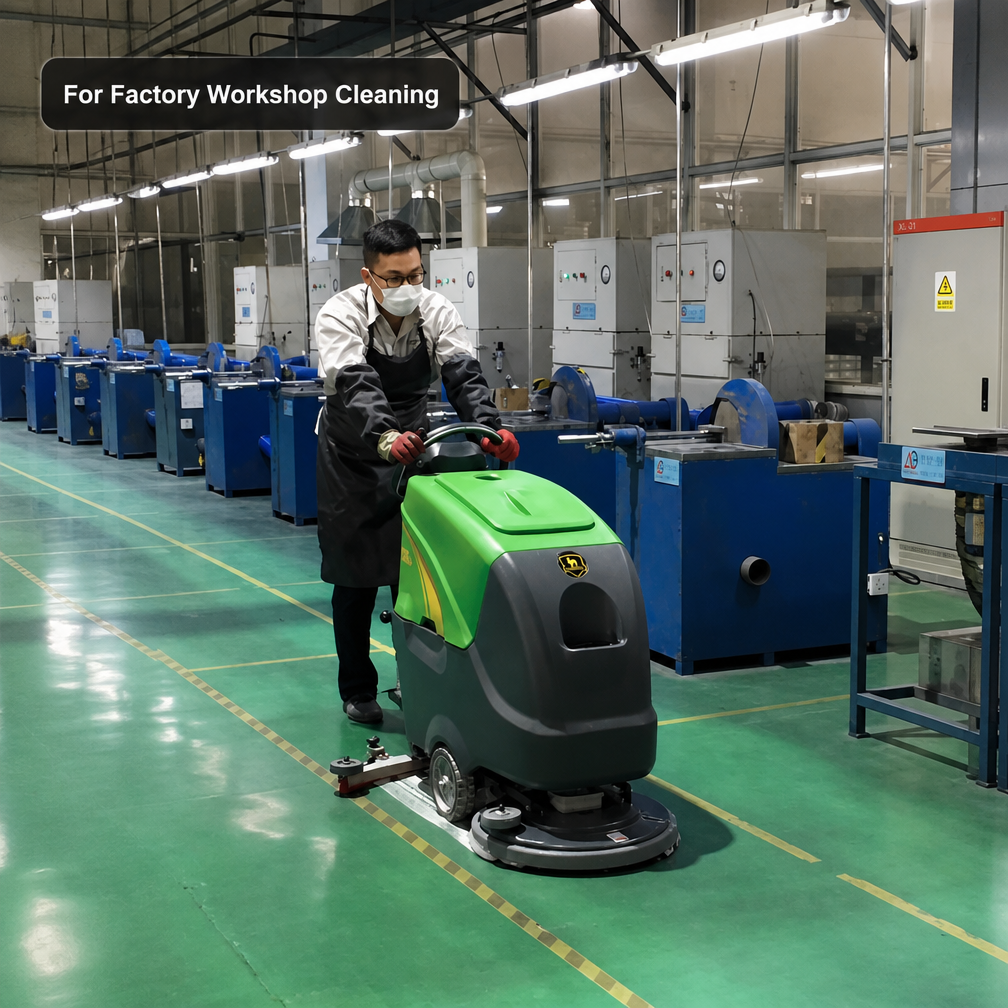

Key Applications: Restaurants, supermarkets, hotels, railway stations, and high-speed transit hubs.
Compatible Floor Types: Epoxy, marble, polished tiles, concrete, terrazzo, and even challenging muddy surfaces.
| Model | Unit | DQX5A | DQX5B | DQX5D |
| Dimension(LxHxW) | mm | 1310×550×1080 | 1310×550×1080 | 1200×560×945 |
| Packaging dimension(LxHxW) | mm | 1350×650×1250 | 1350×650×1250 | 1350×650×1250 |
| Cleaning width | mm | 510 | 510 | 510 |
| Cleaning efficiency | m²/h | 2200 | 2000 | 2000 |
| Weight(with battery) | kg | 170 | 150 | 140 |
| Power | W | 1300 | 1300 | 1300 |
| Driving motor power | W | 300 | - | - |
| Brush motor power | W | 550 | 550 | 550 |
| Suction motor power | W | 450 | 450 | 450 |
| Working voltage | V | 24 | 24 | 24 |
| Running speed | km/h | 5 | - | - |
| Astern speed | km/h | 2.9 | - | - |
| Clean water tan capacity | L | 55 | 55 | 50 |
| Sewage tank capacity | L | 65 | 65 | 55 |
| Suction scraper width | mm | 820 | 820 | 820 |
| Noise | dB | 68 | 68 | 68 |
| Brush pressure | kg | 21 | 21 | 25 |
| Working time | H | ≈4 | ≈4 | ≈4 |
| Climbing ability(no load) | % | ≤10 | ≤10 | ≤10 |
| Minimum turning radius | mm | 800 | 800 | 700 |
| Lead-acid battery(standard) | 24V/120Ah | 24V/120Ah | 24V/120Ah | |
| Charging time | H | 8-10 | 8-10 | 8-10 |
| Lithium battery(optional) | 25.6V/100Ah | 25.6V/100Ah | 25.6V/100Ah |

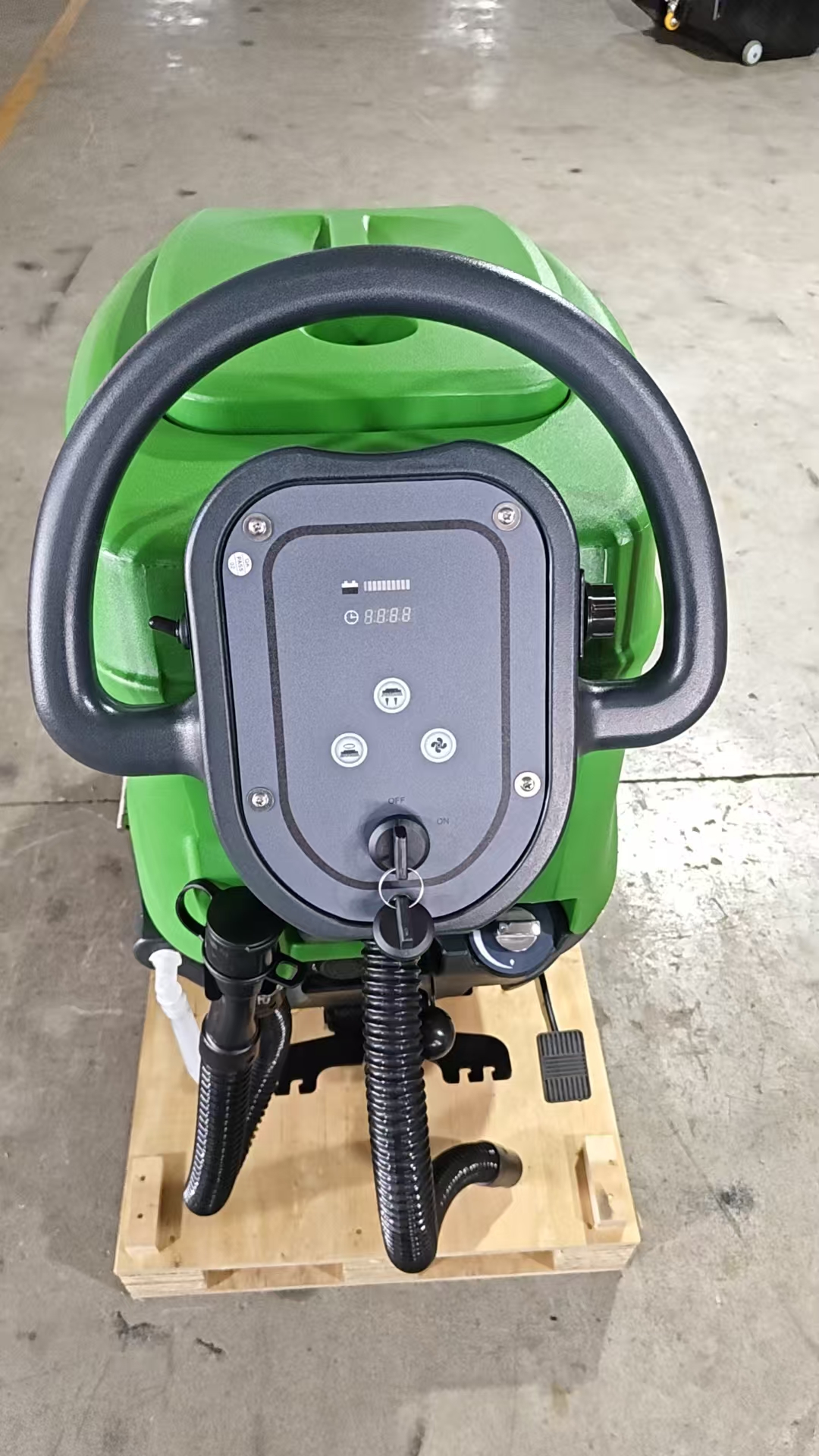

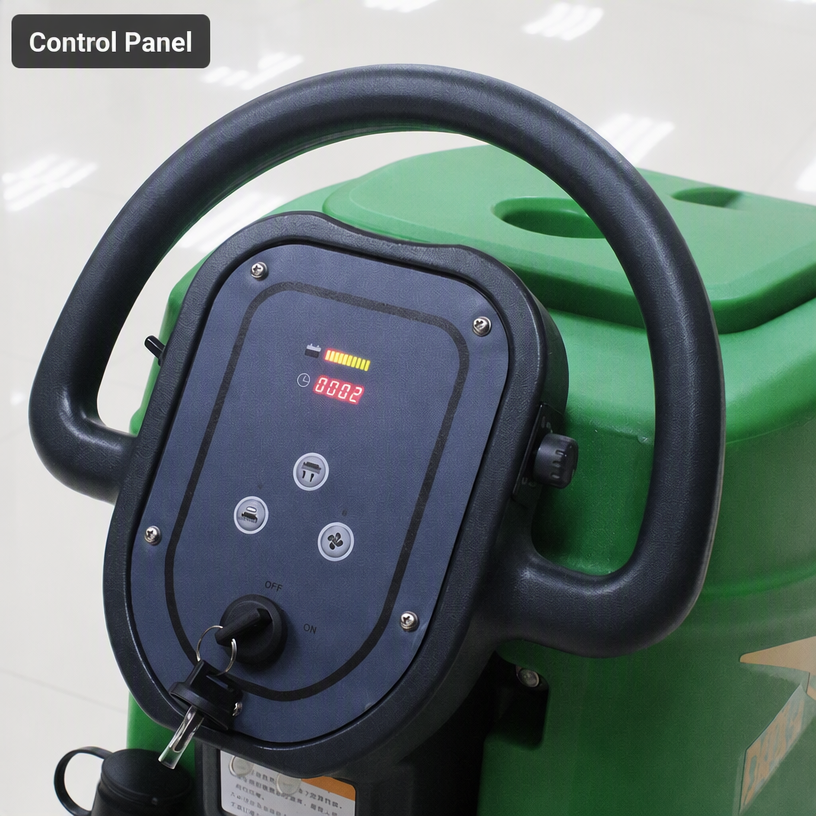

Control Panel

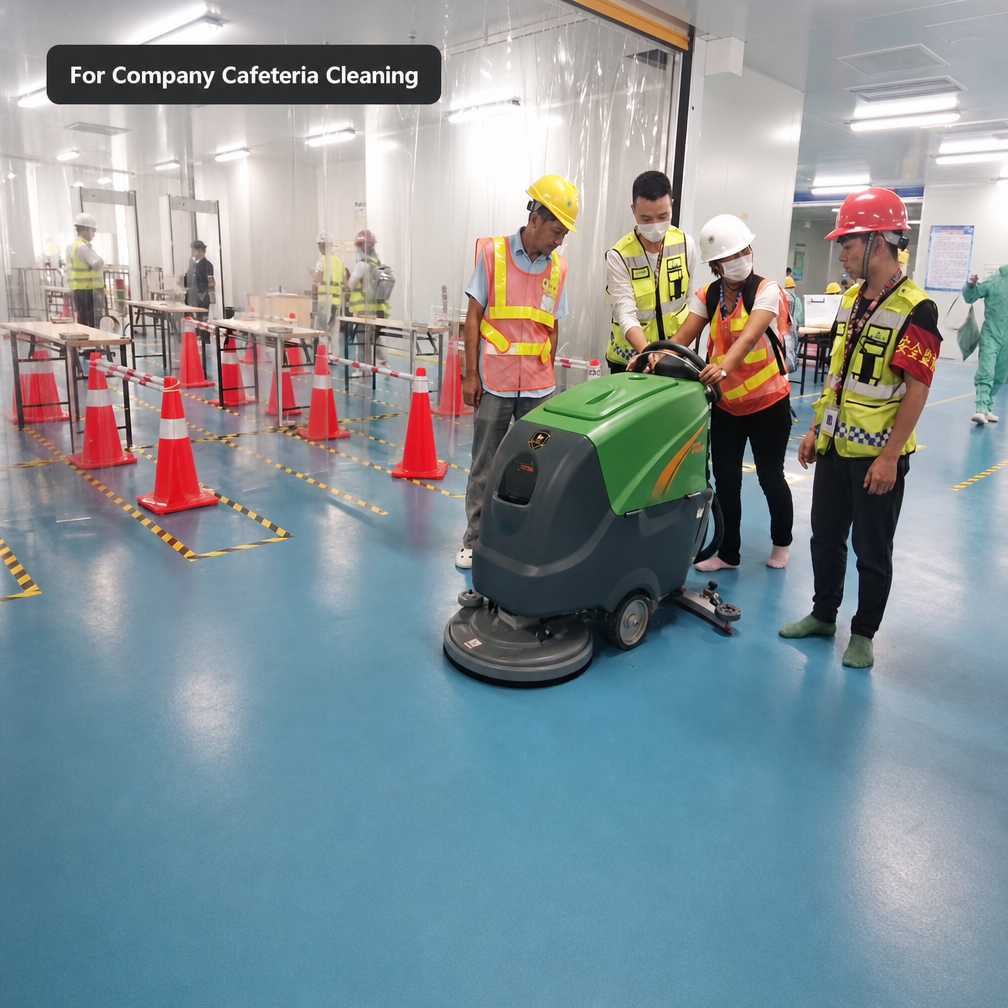

Company Canteen
