Product Description
Data Sheet
| Model | Unit | DQS19B | DQS19C |
| Boundary dimension(L×H×W) | mm | 2340×1790×2030 | 2240×1790×2060 |
| Packaging dimension(L×H×W) | mm | 2315×1470×2190 | 2315×1470×2190 |
| Cleaning width | mm | 1950 | 1950 |
| Maximum efficiency | m²/h | 14000 | 14000 |
| Cleaning efficiency | % | 97 | 97 |
| Front drive power | W | 3000 | 3000 |
| Power | W | 4800 | 4800 |
| Running speed | km/h | 9.5/7.5 | 9.5/7.5 |
| Backward speed | km/h | 5 | 5 |
| Filtering area | m² | 6 | 6 |
| Minimum turning radius | mm | 2300 | 2300 |
| Bin capacity | L | 200 | 200 |
| Main brush width | mm | 800 | 800 |
| Side brush diameter | mm | 550×2+500×2 | 550×2+500×2 |
| Tank capacity | L | 50 | 50 |

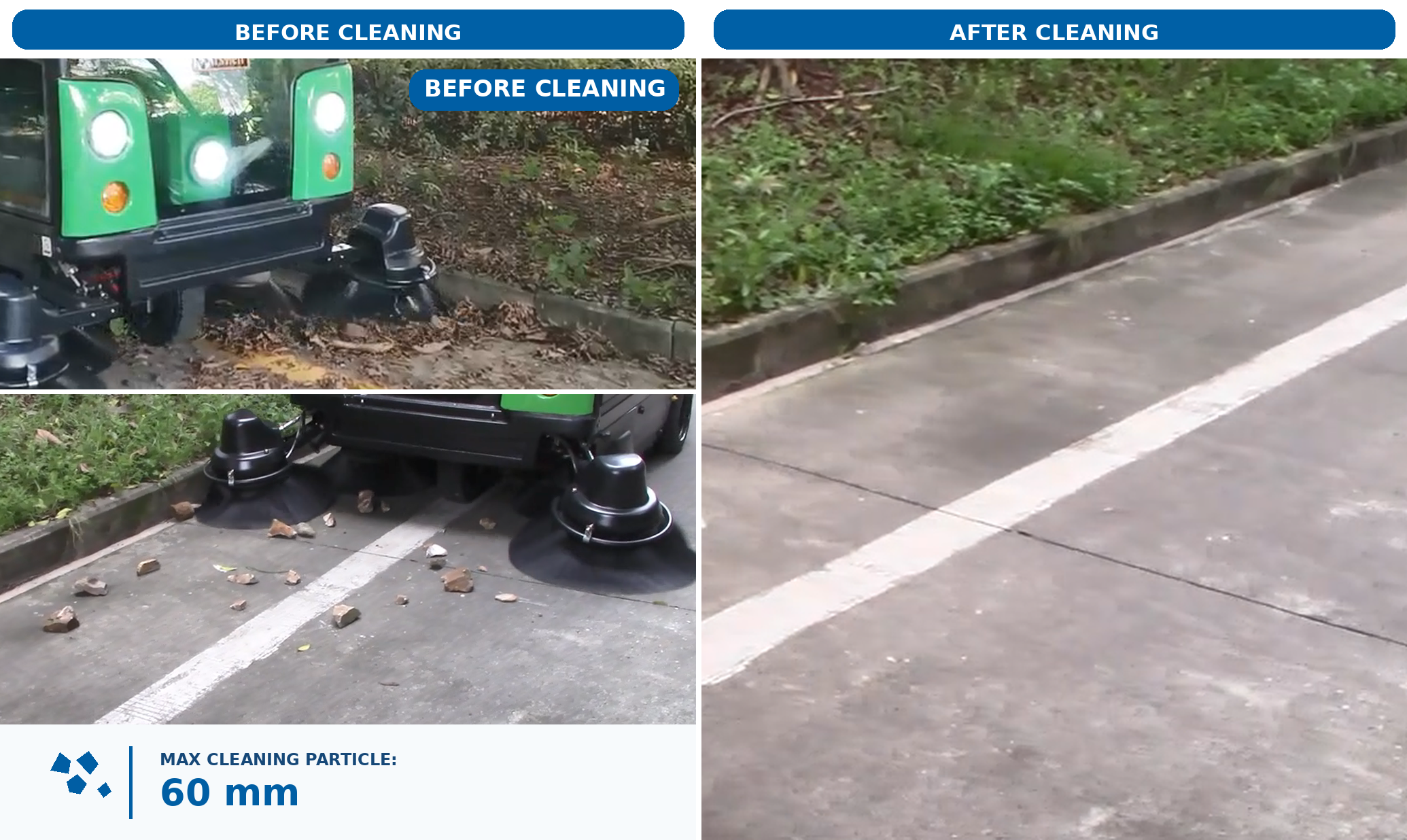

| Maximum cleaning particle | mm | 60 | 60 |
| Continuous working hours | H | 4.5-6 | 4.5-6 |
| Total weight (including battery) | kg | 800 | 850 |
| Climbing ability | % | ≤30 | ≤30 |
| Lead-acid battery (standard) | 48V/180Ah | 48V/180Ah | |
| Lithium battery(optional) | 48V/200Ah | 48V/200Ah |
Product Display

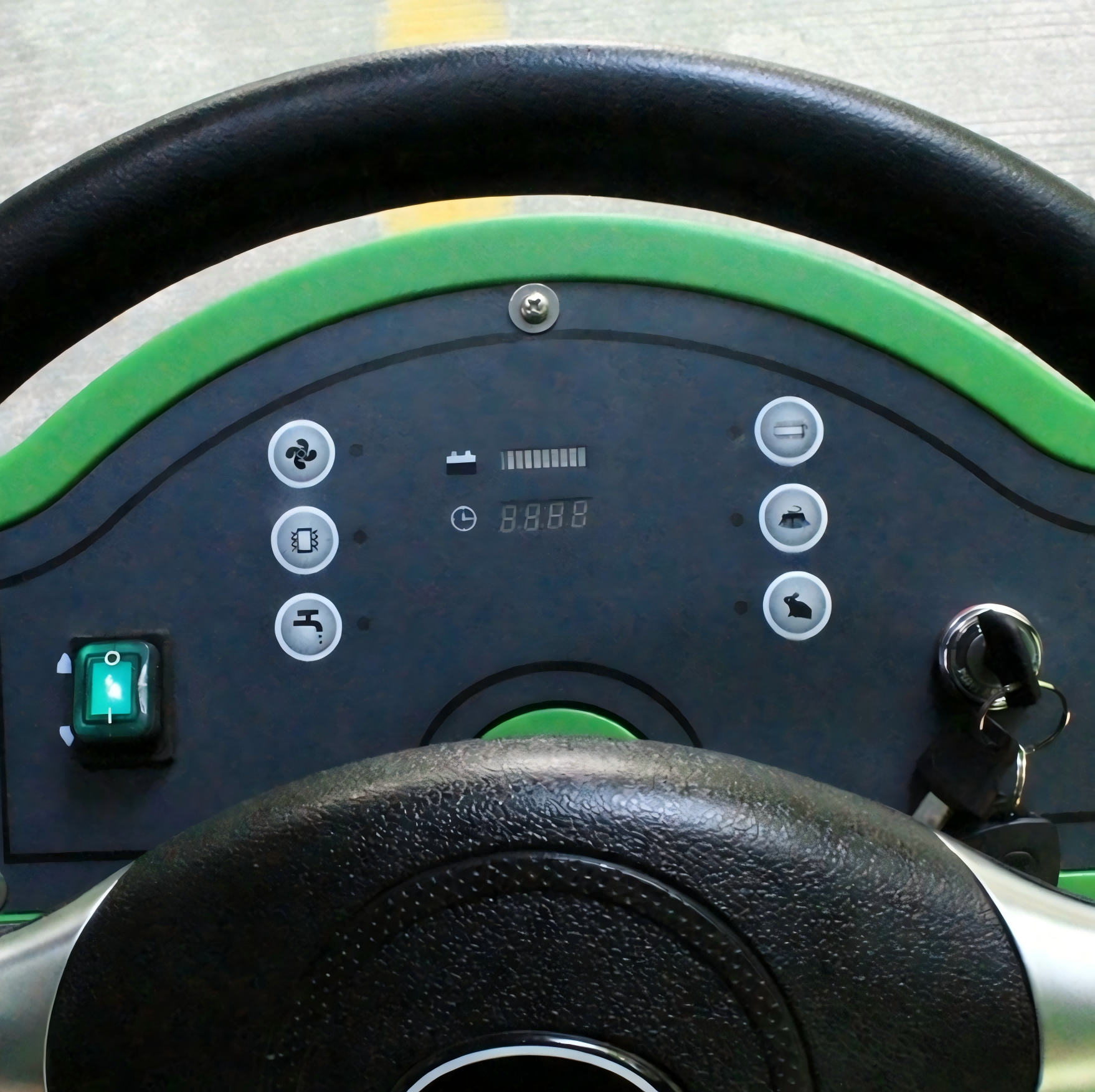

Dashboard

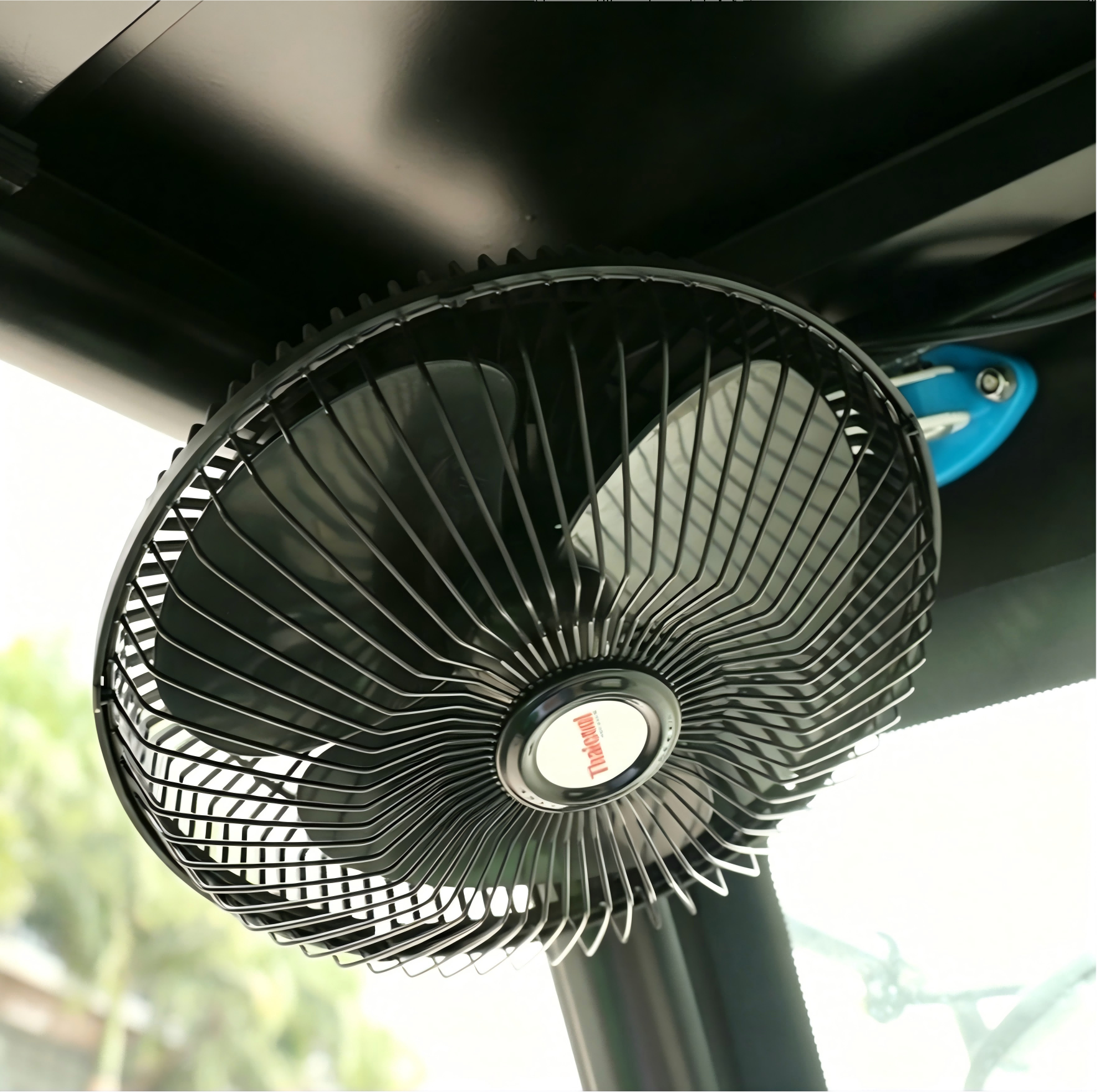

Fan
LED Work Light
Brush
Comment & FAQ
1. What size facility is this floor sweeper suitable for?
A:The DQS19 is ideal for medium to large facilities such as warehouses,workshops, factories, parking lots, schools, shopping centers, and logistics centers. Its compact design allows it to clean both open areas and narrow aisles efficiently.
2. What kind of debris can the DQS19 collect?
A：The DQS19 is designed to collect a wide range of dry debris, including:Dust and dirt,Sand and gravel ,Paper scraps ,Leaves ,Plastic packaging waste ,Metal shavings (small particles)Industrial debris commonly found in workshops and warehouses.
3.How much area can the DQS19 clean per hour?
A:The DQS19 can clean up to 14000 m² per hour under normal operating conditions, depending on the floor condition, debris level, and operator driving speed.
4. How long can the DQS19 operate on a full charge?
A:With a fully charged battery, the DQS19 can typically operate continuously for 3–5 hours, providing sufficient runtime for most daily cleaning tasks.Lithium battery options may be available for longer operating time and faster charging.
5. Is the DQS19 easy to maintain?
A:Yes. The DQS19 is designed for simple and cost-effective maintenance. Key maintenance features include:Easy-access dust hopper for quick emptying ;Convenient replacement of side brushes and main brush;Maintenance-free or low-maintenance battery options ;Simple control system for easy troubleshooting ;Durable components designed for long service life.
Showcase

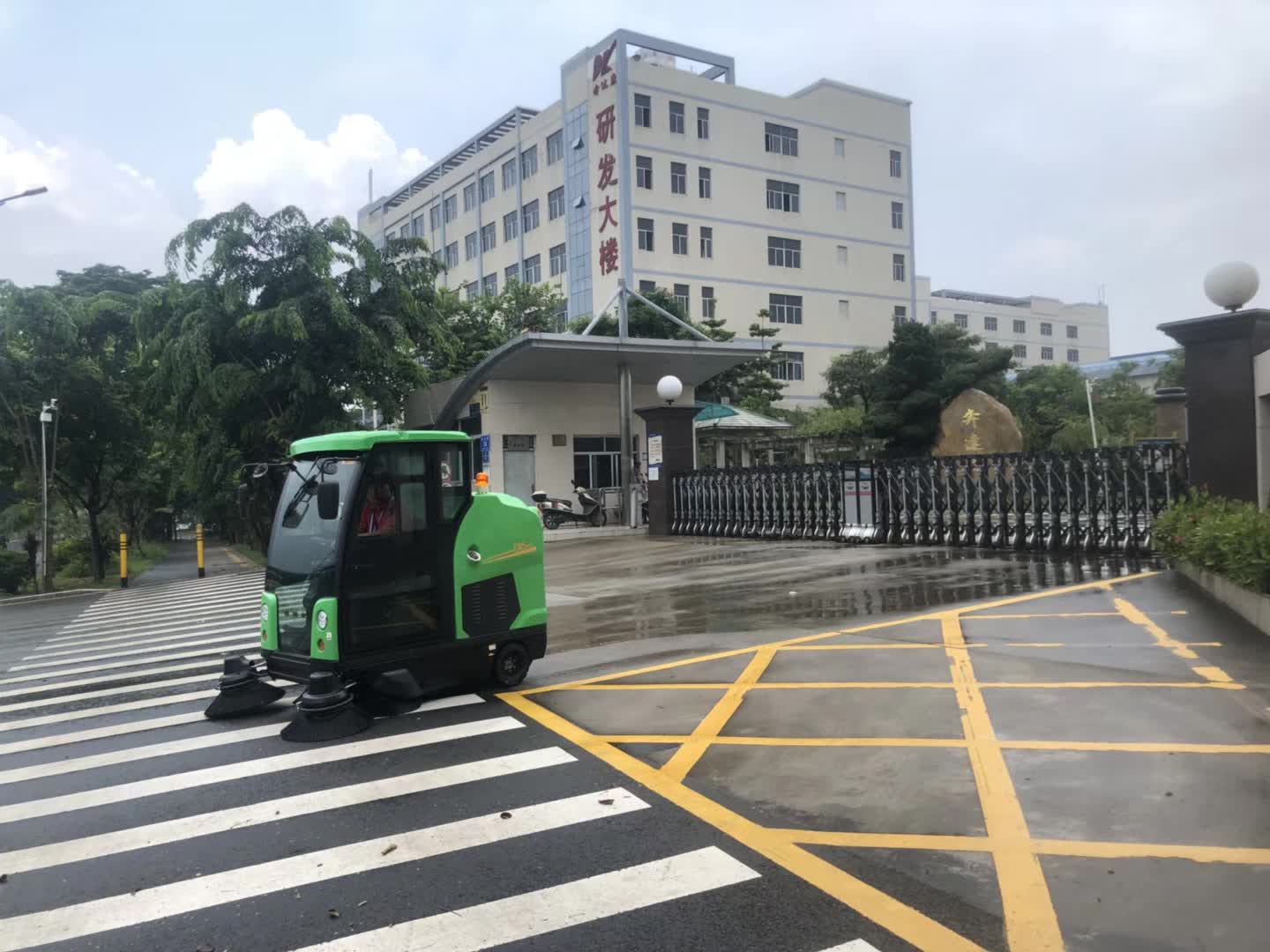

Working in the street

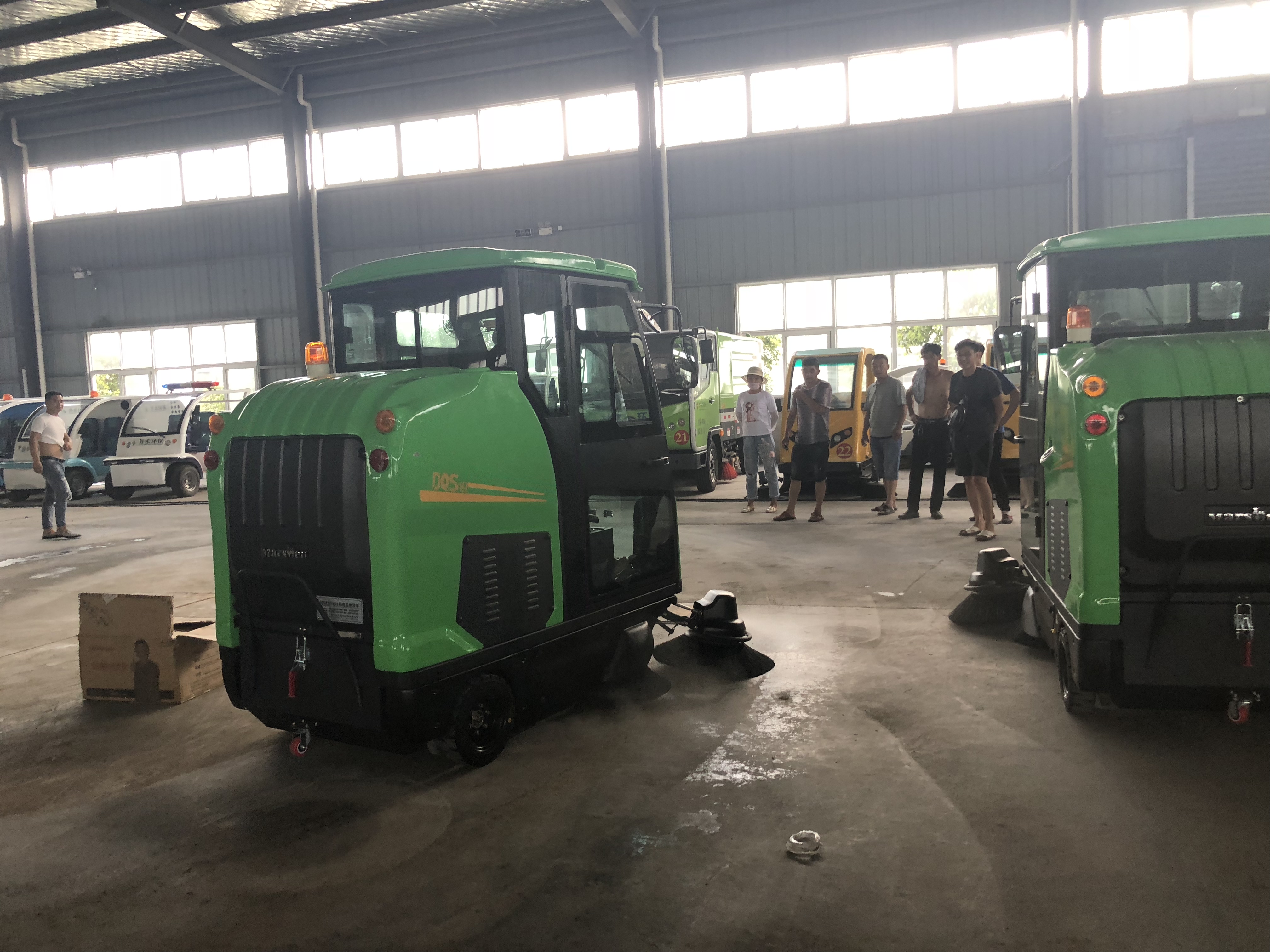

working in the workshop

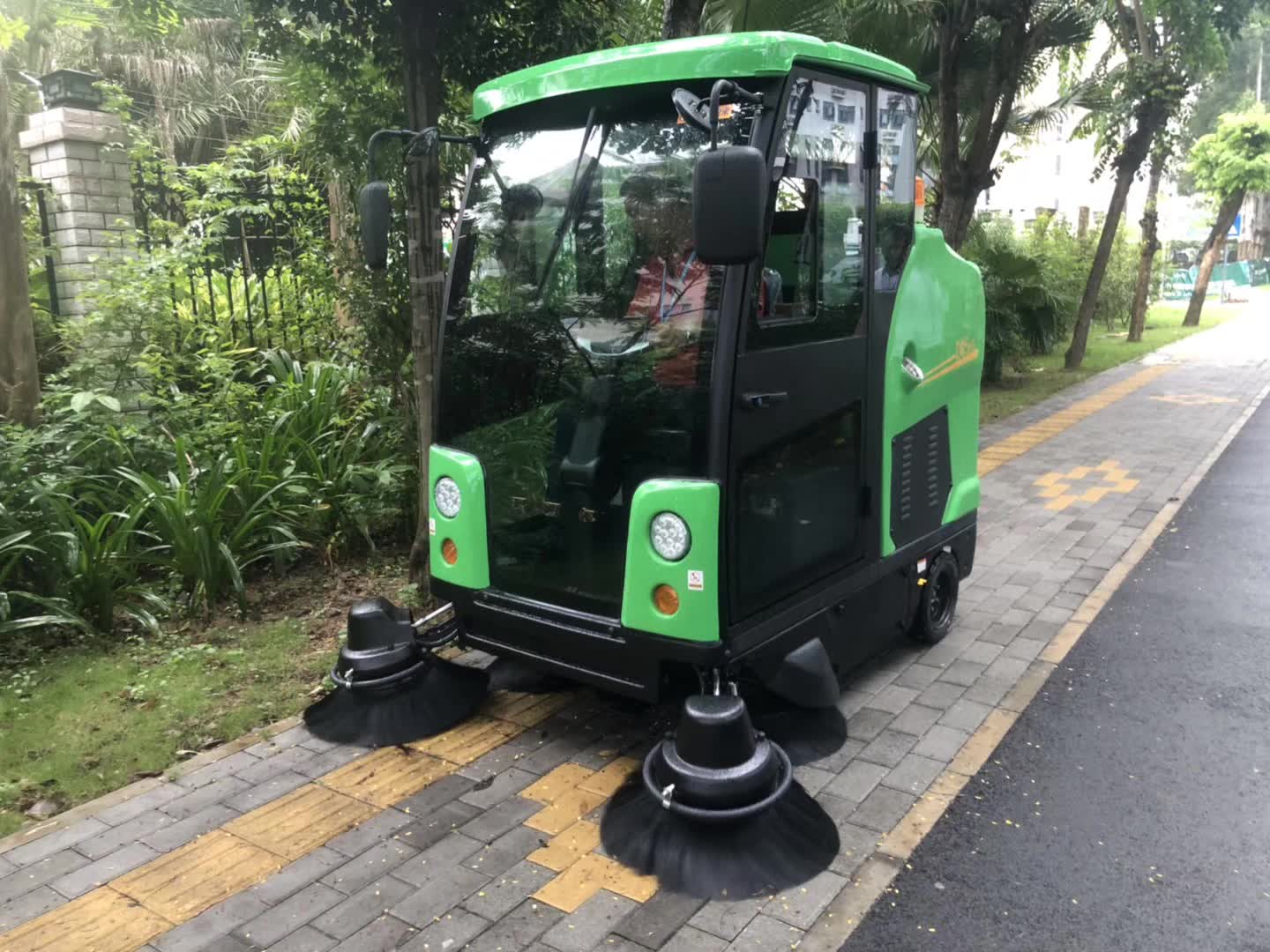

Working in the park
