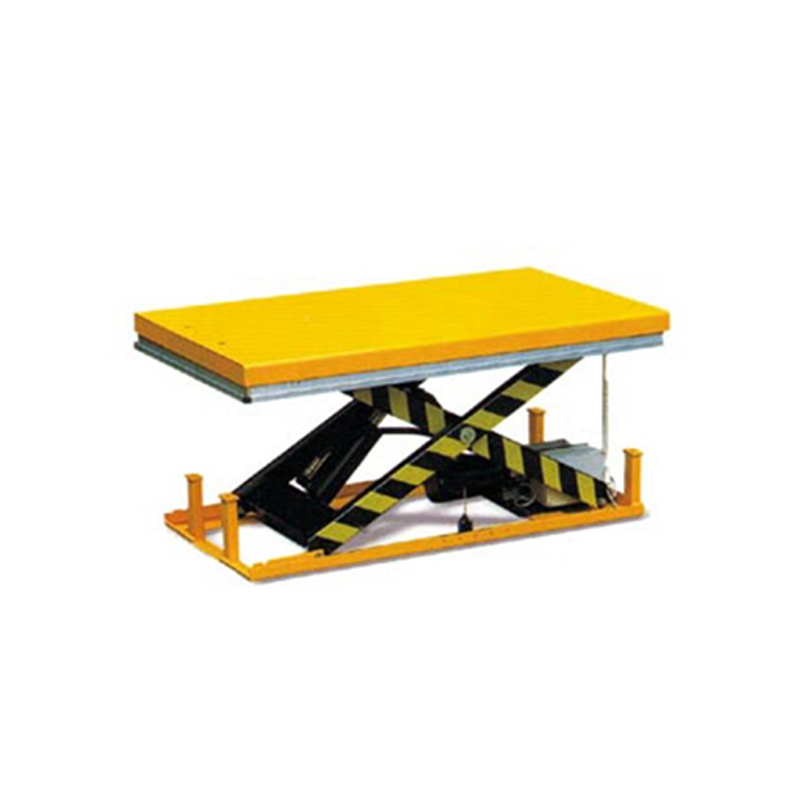

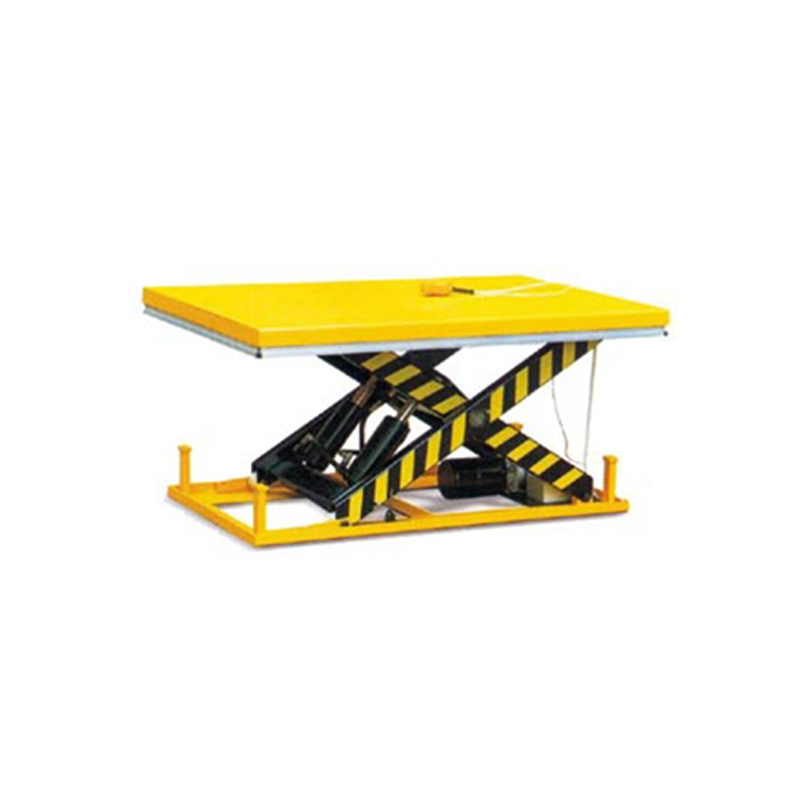

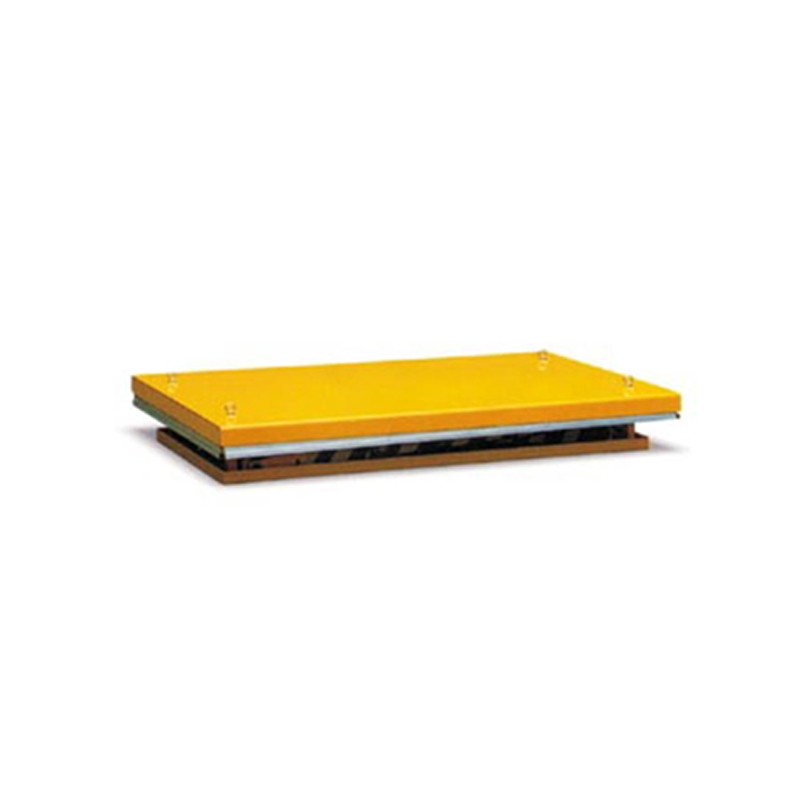

HW TYPE ELECTRIC LIFT TABLE

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button


Model Rated lifting capaclty Min./Max.fork height(mm) Platform size(mm) Base size(mm) Elevating time(s) Power parameters N.W.(kg)
HW1001  1000 205/990   1300x820    1240x640  20-25  380V/50Hz 160
HW1002   1000 205/990   1600x1000  1240x640  20-25   380V/50Hz 186
HW1003   1000  240/1300   1700x850  1580x640  30-35 380V/50Hz 200
HW1004   1000  240/1300  1700x1000  1580x640  30-35 380V/50Hz 210
HW1005   1000  240/1300  2000x850  1580x640  30-35 380V/50Hz 212
HW1006   1000  240/1300   2000x1000    1580x640  30-35 380V/50Hz 223
HW1007   1000  240/1300   1700x1500 1580x1320 30-40 380V/50Hz 365
HW1008   1000  240/1300  2000x1700 1580x1320 30-40 380V/50Hz 430
HW2001 2000 230/1000  1300x850 1220x785  20-25 380V/50Hz 235
HW2002 2000 230/1000   1600x1000  1220x785  20-25 380V/50Hz 268
HW2003 2000 250/1300 1700x850 1600x785 25-35  380V/50Hz 289
HW2004 2000 250/1300  1700x1000 1600x785 25-35  380V/50Hz 300
HW2005 2000 250/1300 2000x850 1600x785 25-35  380V/50Hz 300
HW2006 2000 250/1300 2000x1000 1600x785 25-35  380V/50Hz 315
HW2007 2000  250/1400 1700x1500  1600x1435 25-35  380V/50Hz 415
HW2008 2000  250/1400  2000x1800  1600x1435 25-35  380V/50Hz 500
HW4001  4000 240/1050  1700x1200  1600x900  30-40  380V/50Hz 375
HW4002  4000 240/1050 2000x1200  1600x900  30-40  380V/50Hz 405
HW4003  4000  300/1400  2000x1000 1980x900 30-40  380V/50Hz 470
HW4004  4000  300/1400 2000x1200 1980x900  35-40  380V/50Hz 490
HW4005  4000  300/1400  2200x1000 1980x900  35-40  380V/50Hz 480
HW4006  4000  300/1400  2200x1200 1980x900  35-40  380V/50Hz 505
HW4007  4000  350/1300  1700x1500 1620x1400  35-45   380V/50Hz 570
HW4008  4000  350/1300   2200x1800 1620x1400  35-45   380V/50Hz 655


scissor lifts

hydraulic lift

lift tables
