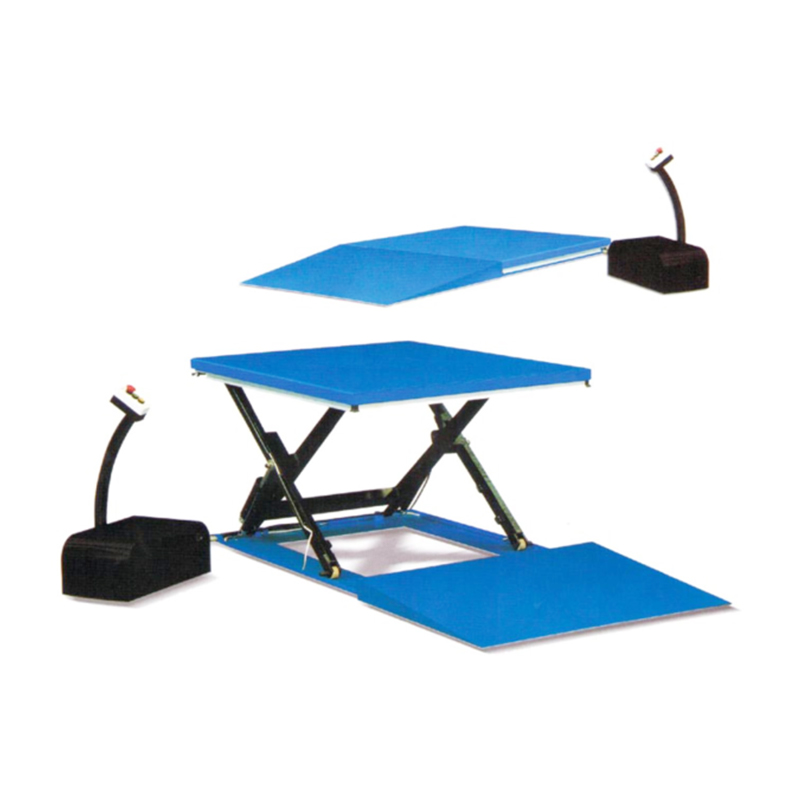

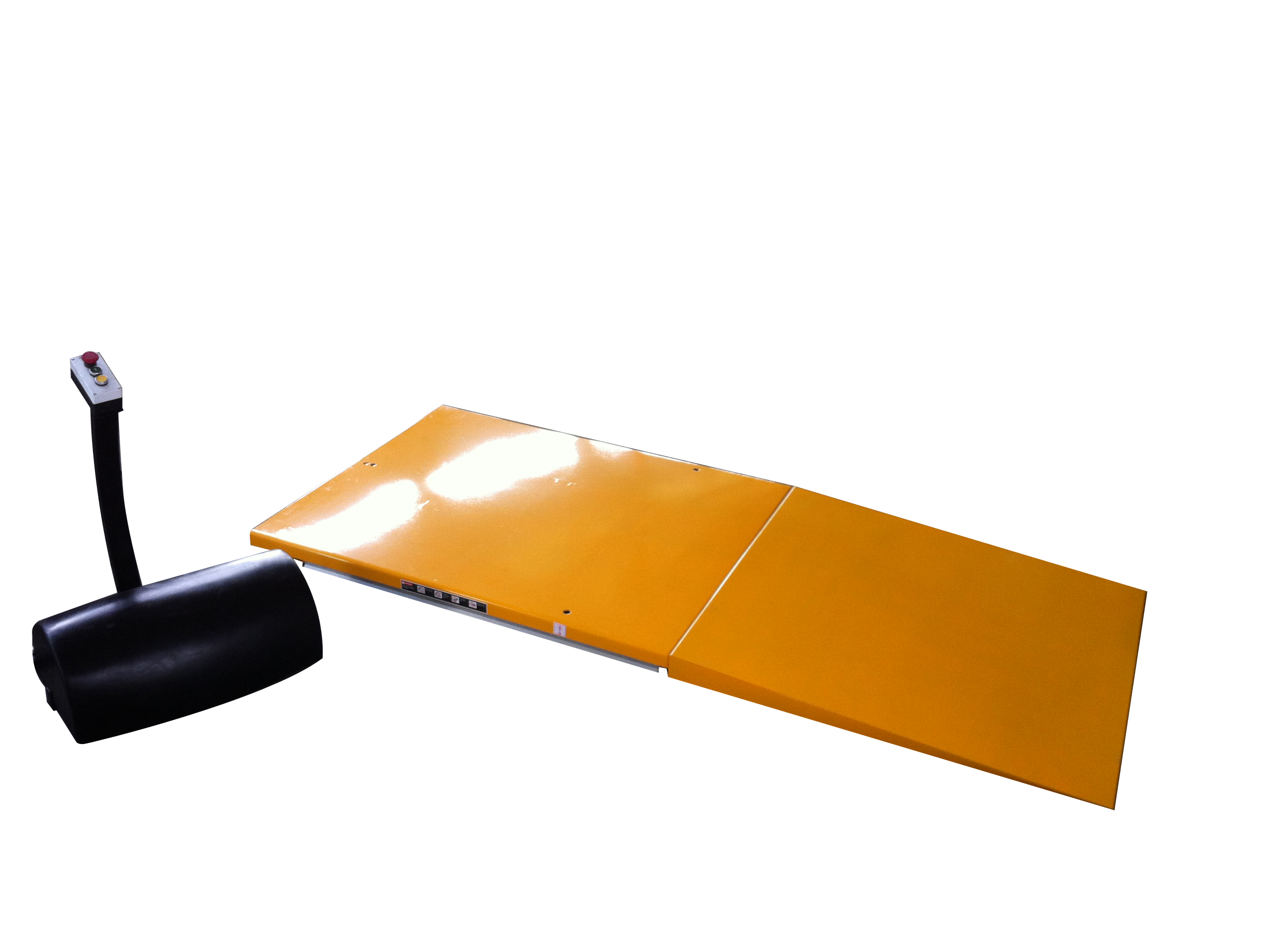

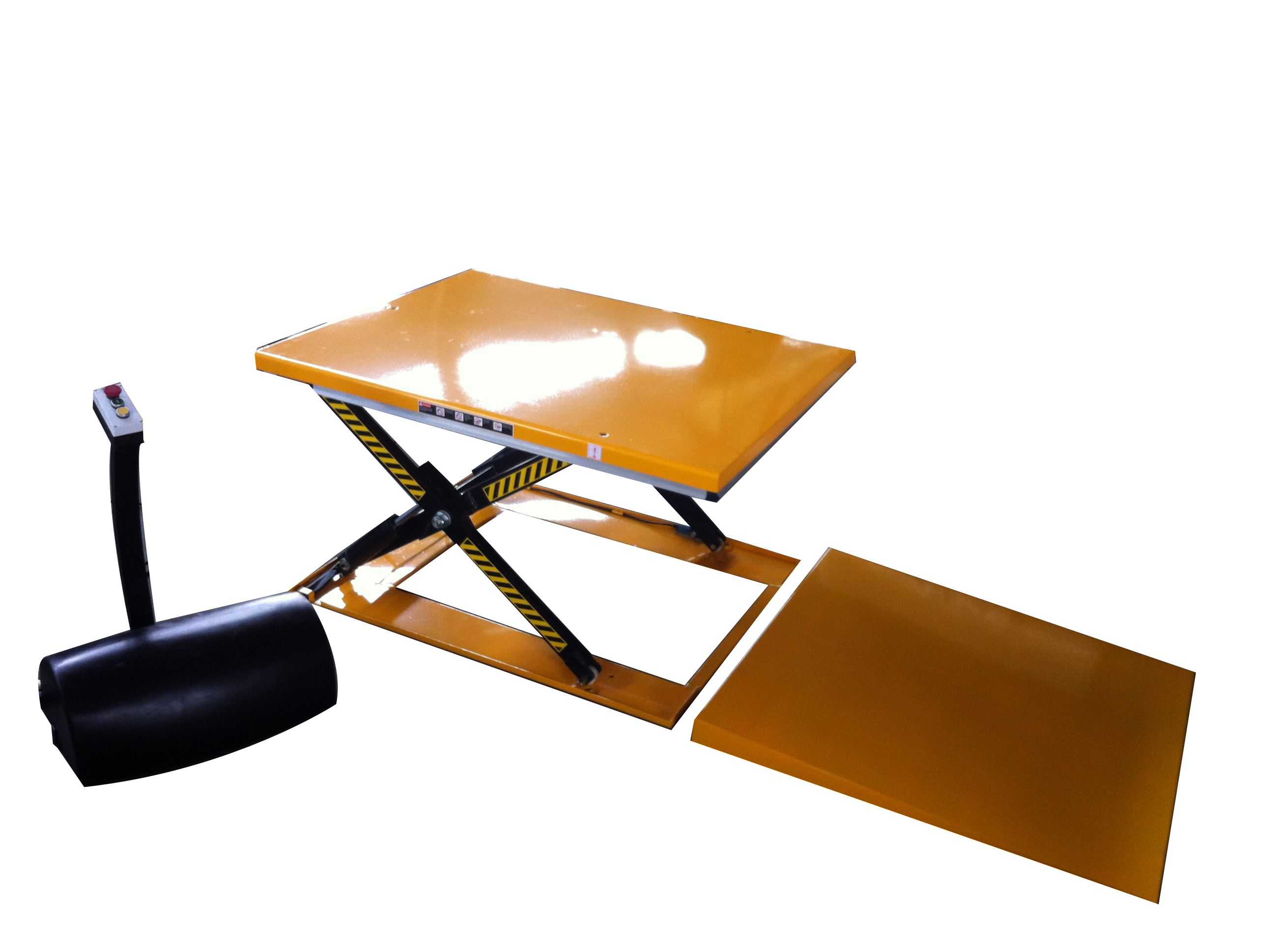

HY-Series Electric Hydraulic Low Profile Lift Table Truck

Rated Loading Capacity:	1000kg 1500kg 2000kg
Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Highlight

1. It is suitable for warehousing, logistics, manufacturing and other goods transport workshop.

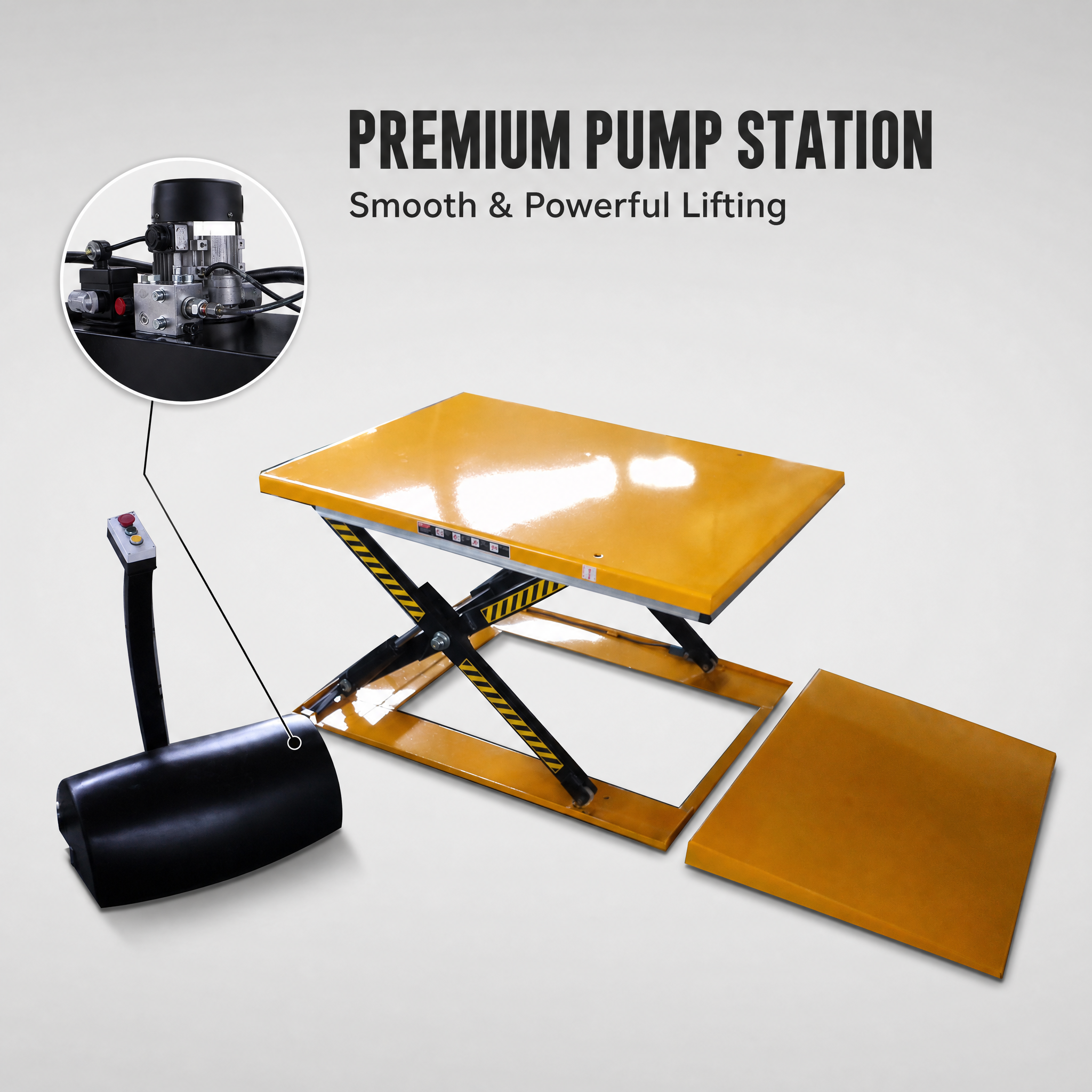

2. It is equipped with imported high quality pump station, so that the cargo can be lifted more smoothly and powerfully.

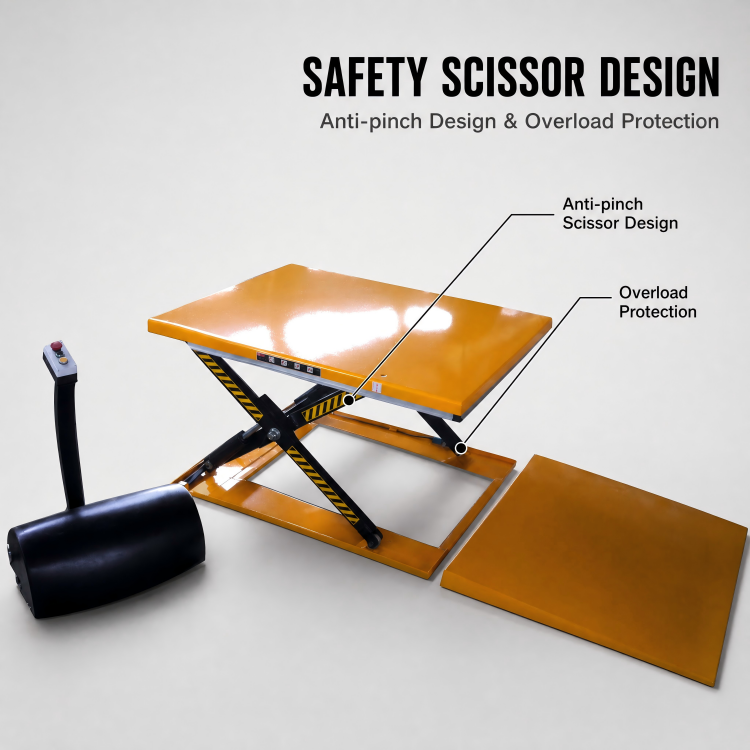

3. It uses anti - clamping fork design to prevent clamping injury. It also has overload protection

function which is safer.

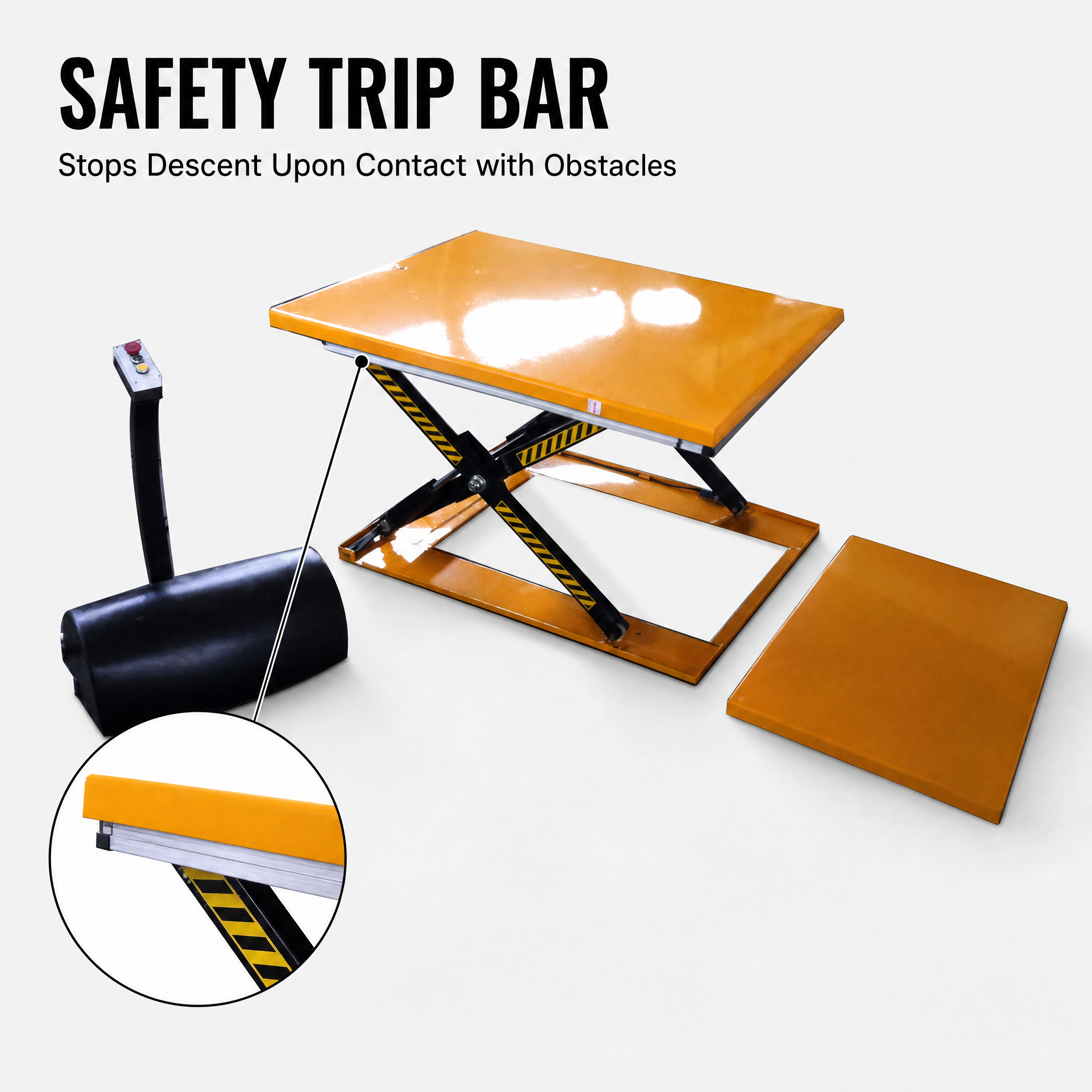

4. It is equipped with aluminum safety barrier strip under the table. When the table falls and meets obstacles, it will automatically stop falling to ensure safety.

5. It is equipped with safety wedges for easy maintenance.

6. This product conforms to EN1757-2 and ANSI/ASME.

Specifications

Model	Rated lifting capacity(kg)	Min./Max.fork height(mm)	Platform size(mm)	N.W.(kg)
HY1001	1000	85/890	1450×1140	357
HY1002	1000	85/890	1600x1140	364
HY1003	1000	85/890	1450×800	326
HY1004	1000	85/890	1600×800	332
HY1005	1000	85/890	1600x1000	352
HY1501	1500	105/870	1600×800	302
HY1502	1500	105/870	1600×1000	401
HY1503	1500	105/870	1600x1200	415
HY2001	2000	105/870	1600×1200	419
HY2002	2000	105/870	1600×1000	405

Product Image

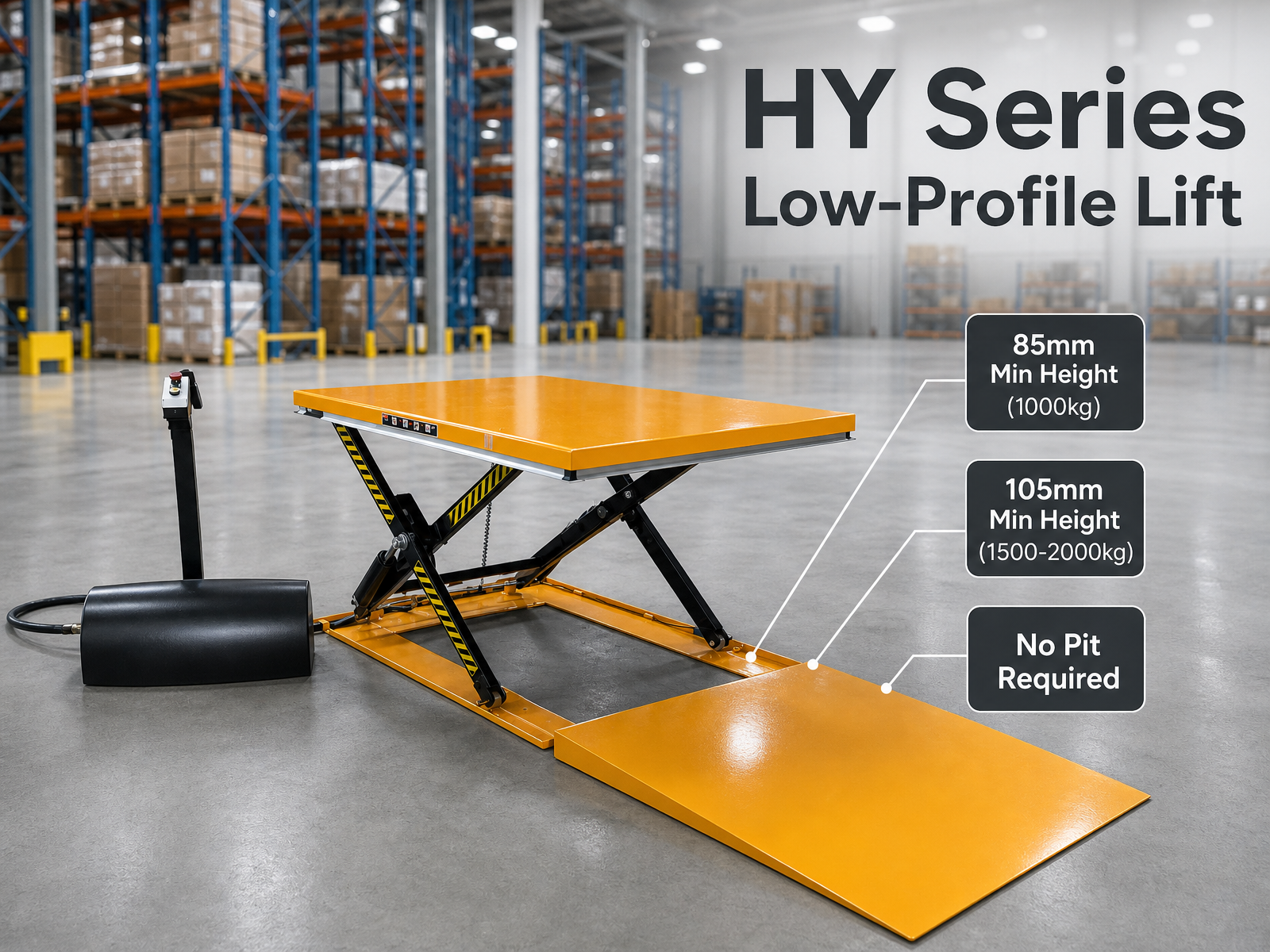

img-mucc3d6m-c4e2b48b

Detail shot

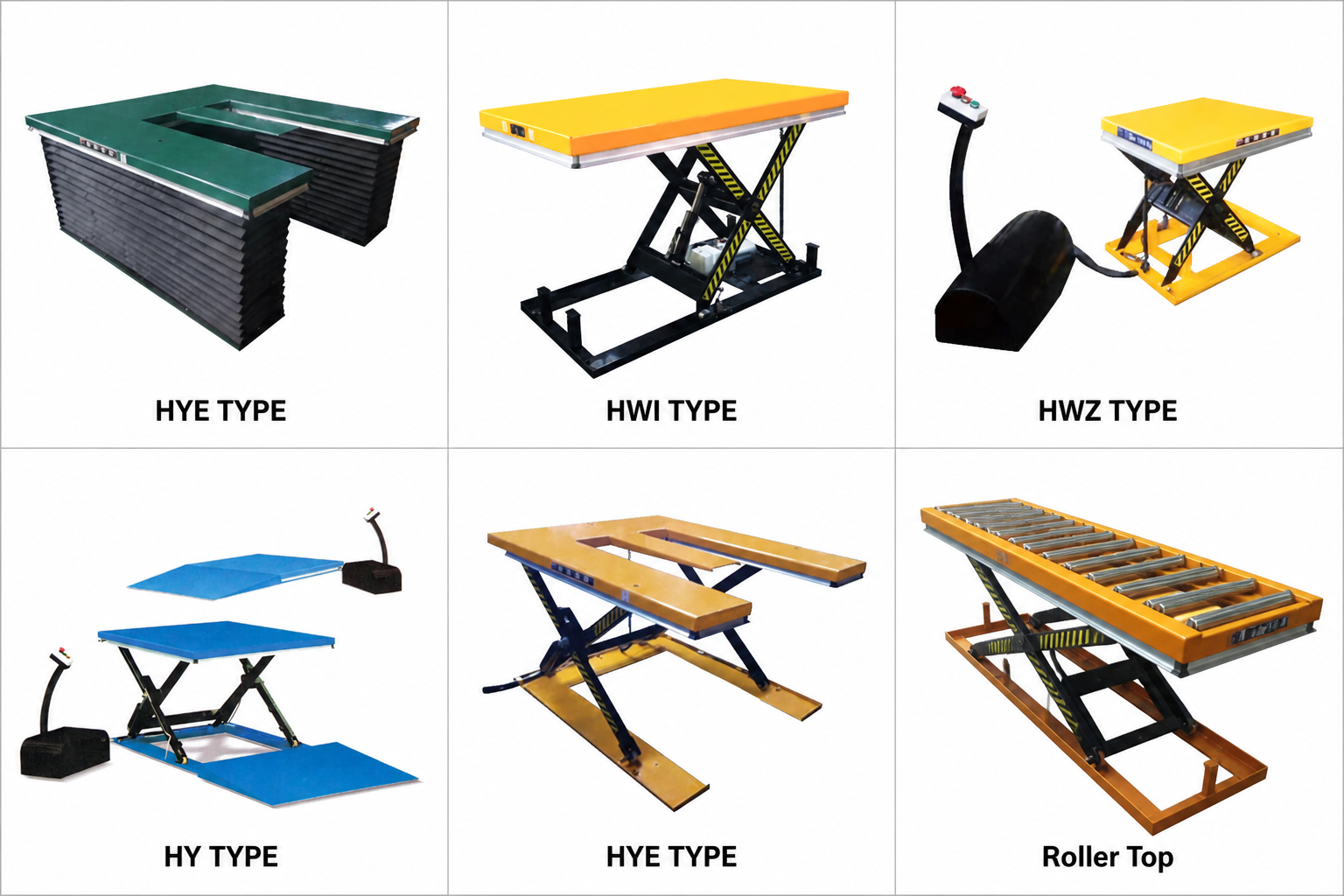

Other Products

img-muccyjv2-01cda534

FQA

1.Do I need to dig a pit for installation?

No pit is required. The platform sits directly on the floor and usually comes with an integrated ramp to allow access.

2.Is it compatible with my standard hand pallet jacks?

Yes, the ultra-low height and the included approach ramp are designed specifically so that standard hand pallet trucks can drive directly onto the platform to load or unload goods without needing a forklift.

3.What safety mechanisms are included (Safety Bar / CE Compliance)?

The HY series is typically equipped with a safety aluminum trip bar (anti-crush sensor) underneath the platform. If it touches an obstruction while descending, the table stops immediately. Most units also feature an emergency stop button and a safety valve to prevent the platform from falling in case of a hose burst.
