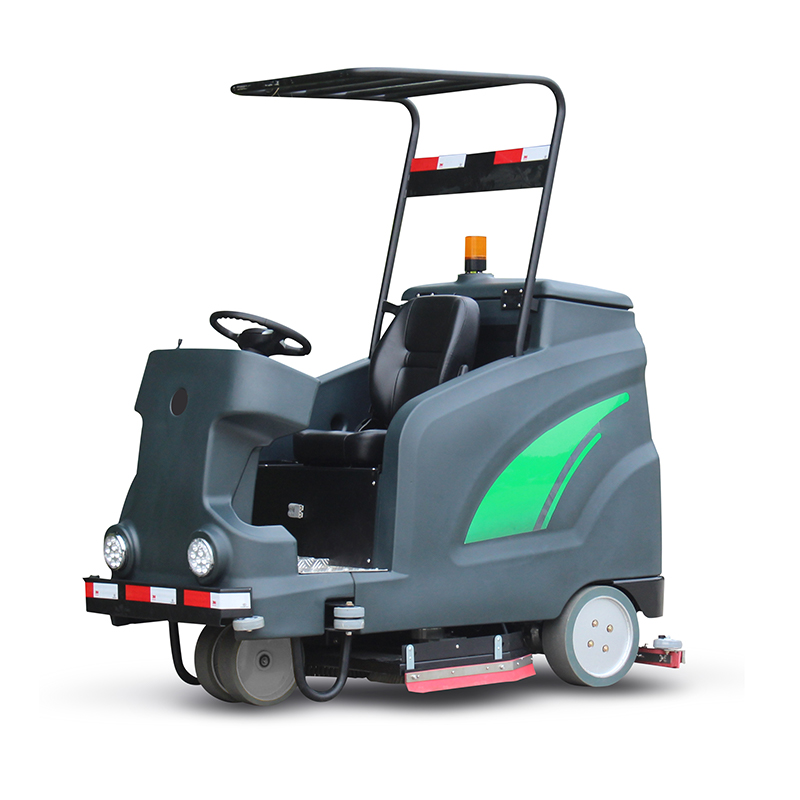

Model | Unit | DQX10 |
Boundary dimension(L×HxW) | mm | 2000×1090×1590 |
Cleaning path | mm | 1000 |
Cleaning efficiency | m²/h | 8500 |
Weight (excluding battery) | kg | 480 |
Total power | W | 4100 |
Driving motor | W | 1500 |
Brush motor | W | 2×550 |
Suction motor | W | 2×650 |
Working voltage | V | 36 |
Driving velocity | km/h | 8.5 |
Solution tank capacity | L | 250 |
Recovery tank capacity | L | 280 |
Brush pressure | kg | 80 |
Continuous working time | H | Lead-acid3.5-5/Lithium6-8 |
Gradeability (empty) | % | ≤20 |
Battery weigh | kg | Lithium battery 110/Lead acid battery 222 |
Packaging dimension(L×HxW) | mm | 1730×1020×1420 |
Container quantity(20GP/40GP/40HQ) | PCS | 6/14/14 |
