Product Description
The DQS13 is a CE-certified, battery-powered ride-on sweeper engineered for efficient cleaning of large outdoor and semi-outdoor areas . Manufactured by Marshell, this front-drive machine is designed to handle visible solid waste such as paper scraps, stones, leaves, cigarette butts, and moderate dust on hard surfaces . It is widely used in industrial parks, logistics yards, parking lots, urban squares, school campuses, and commercial plazas .
|
Data Sheet
| Model | Unit | DQS13 | DQS13A(Ceiling Model) |
| Boundary dimension(LxHxW) | mm | 1550×1060×1340 | 1550×1060×1870 |
| Packaging dimension(LxHxW) | mm | 1620×1080×1410 | 1620×1080×1650 |
| Cleaning width | mm | 1300 | 1300 |
| Maximum efficiency | m²/h | 8800 | 8800 |
| Cleaning efficiency | % | 98 | 98 |
| Front drive power | W | 650 | 650 |
| Power | W | 1800 | 1800 |
| Running speed | km/h | 6.8 | 6.8 |
| Backward speed | km/h | 2.6 | 2.6 |
| Filtering area | m² | 6 | 6 |
| Turning radius | mm | 1200 | 1200 |
| Bin capacity | L | 100 | 100 |
| Main brush width | mm | 650 | 650 |
| Side brush diameter | mm | 500x2 | 500×2 |
| Tank capacity | L | 40 | 40 |
| Maximum cleaning particle | mm | 50 | 50 |
| Continuous working hours | H | 5 | 5 |
| Total weight (including battery) | kg | 362 | 392 |
| Climbing abilty | % | ≤15 | ≤15 |
| Lead-acid battery(standard) | 24V/150Ah | 24V/150Ah | |
| Lithium battery(optional) | 25.6V150Ah/25.6V200Ah | 25.6V150Ah/25.6V200Ah |
|
Application Video
|
Production Process
|Product Details

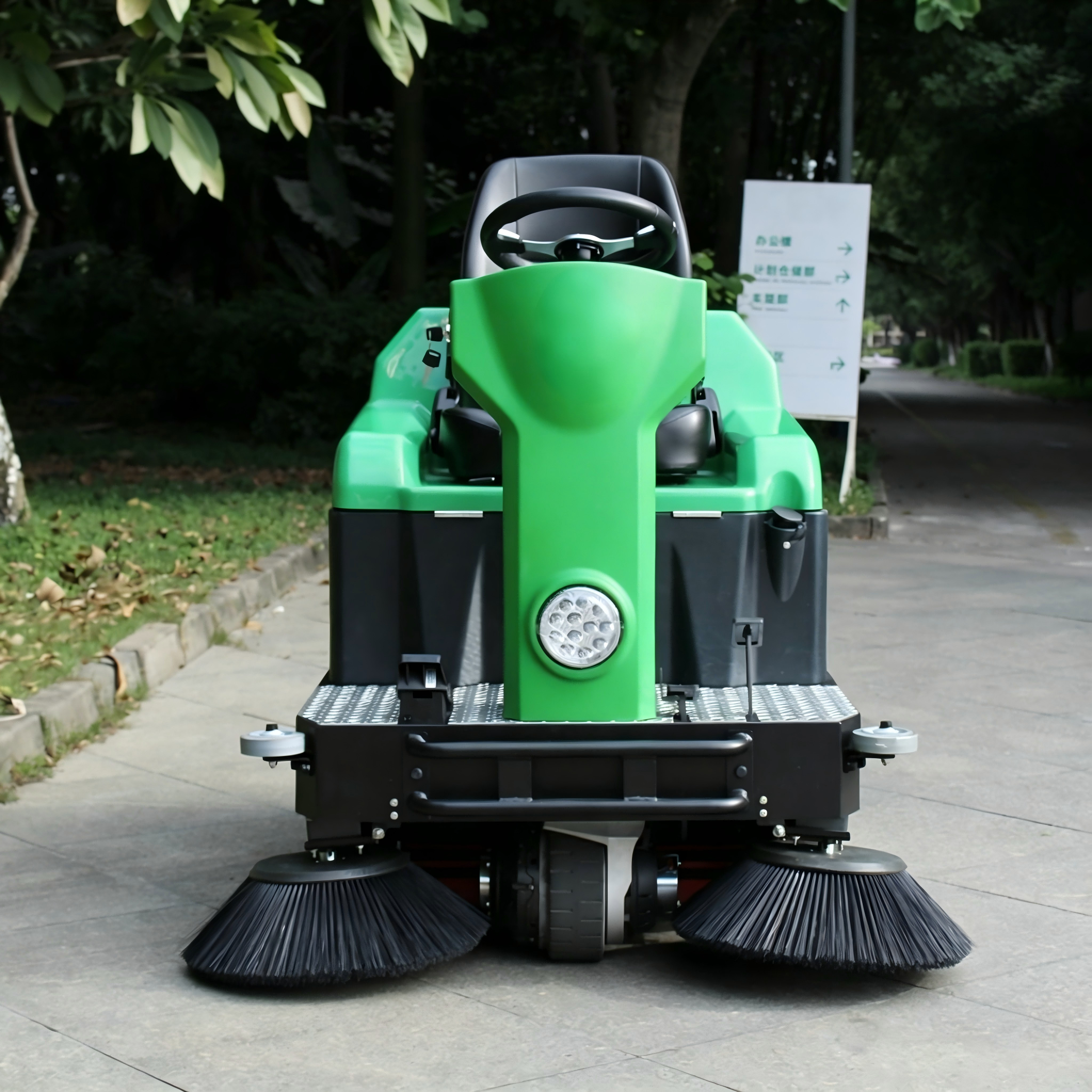

Dual side brushes

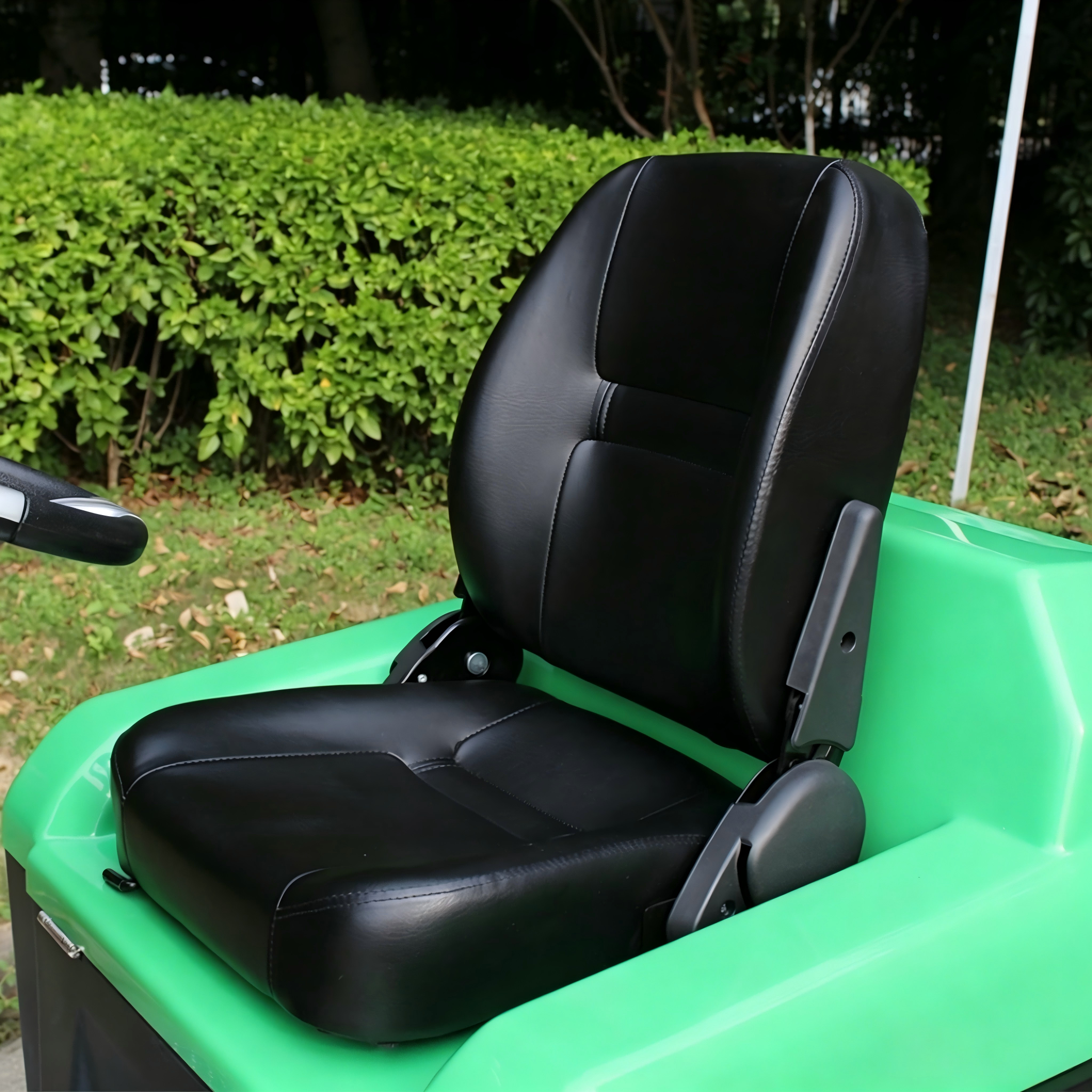

Soft padded seat for long cleaning work
Large-capacity dust bin for all debris
|Packing
|
Comment & FAQ1. What is the cleaning efficiency of this sweeper, and how large an area can it cover in one operation?
A: This is the core performance metric customers care about most. The DQS13 features an extra-wide 1,300 mm cleaning path and a forward speed of 6.8 km/h, delivering a maximum work efficiency of up to 8,800 m²/h.
2.How long is the continuous working time? Is the battery durable?
A: The DQS13 is equipped with a 24V/150AH maintenance-free battery pack, providing a continuous working time of approximately 5 hours on a single full charge.
3. How does the machine control dust and prevent secondary pollution during outdoor sweeping?
A:Dust control is a major concern for outdoor applications. The DQS13 addresses this through an integrated two-part system:
Filtration System: Equipped with a 6.0 m² high-efficiency filter that effectively captures fine dust particles generated during sweeping, preventing them from escaping into the air.
Dust Suppression System: Features a 40 – 60 L water tank with a high-pressure water spray function. During operation, the spray system releases a fine mist to suppress dust, effectively preventing secondary pollution and ensuring a cleaner, safer working environment for both the operator and surrounding areas.
