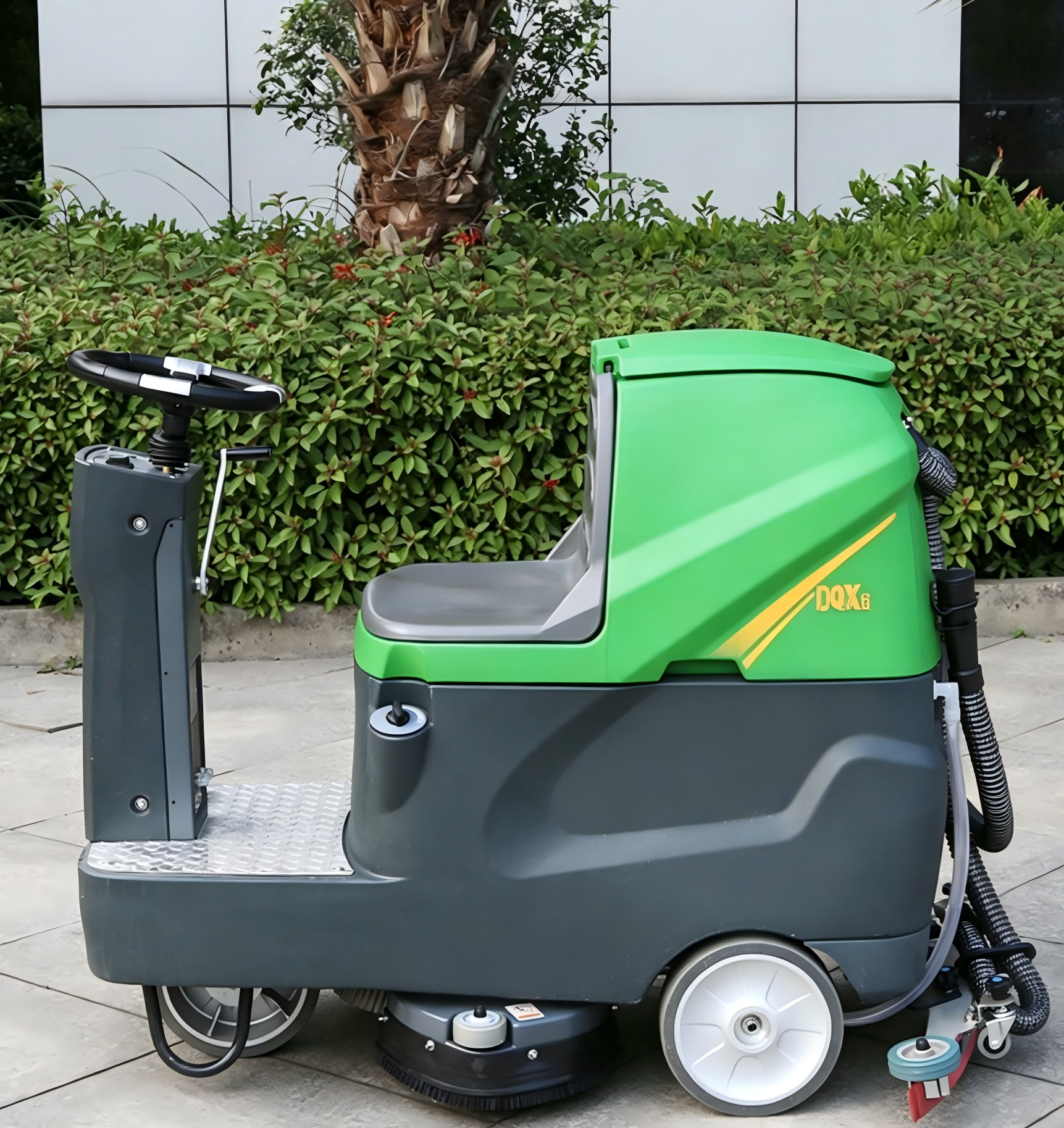

Overview
*Large area of the sewage tank cover, easy to clean and maintain, to avoid the breeding ofbacteria
*Ultra-quietd esign,say goodbye to harsh noises.
*Backward squeegee automatically rises, to prevent damage ofthe squeegee.
*Strong passability,suitable fornarrow aisles.
*Using imported controller,the product is stable and reliable
Specifications
| Model | Unit | DQX56(Single Brush Pad) | DQX6(SDual Brush Pads) |
| Dimension(LxHxW) | mm | 1280×650×1070 | 1280×700×1070 |
| Packaging dimension(LxHxW) | mm | 1420×780×1250 | 1420×780×1250 |
| Cleaning width | mm | 560 | 660 |
| Cleaning efficiency | m²/h | 3200 | 3800 |
| Weight(with battery) | kg | 223 | 246 |
| Power | W | 1500 | 1710 |
| Drive axle power | W | 500 | 500 |
| Brush disc motor power | W | 550 | 2×380 |
| Suction motor power | W | 450 | 450 |
| Working voltage | V | 24 | 24 |
| Running speed | km/h | 5.6 | 5.6 |
| Astern speed | km/h | 2.7 | 2.7 |
| Clean water tank capacity | L | 70 | 70 |
| Sewage tank capacity | L | 75 | 75 |
| Suction scraper width | mm | 820 | 820 |
| Noise | dB | 68 | 68 |
| Brush pressure | kg | 26 | 35 |
| Working time | H | ≈3.5 | ≈4 |
| Climbing ability (no load) | % | ≤15 | ≤15 |
| Minimum turning radius | mm | 1200 | 1200 |
| Charging time | H | 8-10 | 8-10 |
| Lead-acid battery (standard) |
| 24V/120Ah | 24V/150Ah |
| Lithium battery(optional) |
| 25.6V/150Ah | 25.6V/150Ah |
Comment & FAQ
1. How long can the DQX6 rider scrubber operate on a single charge?
The DQX6 rider scrubber provides approximately 4 hours of working time on a full charge, depending on operating conditions, brush pressure, floor conditions, and cleaning settings.
It is equipped with a 24V 150Ah lead-acid battery as standard. An optional 25.6V 150Ah lithium battery is also available.
Standard battery: 24V 150Ah lead-acid
Optional battery: 25.6V 150Ah lithium
Charging time: 8–10 hours
This makes the DQX6 suitable for scheduled cleaning operations in commercial and industrial facilities.
2. How much floor area can the DQX6 clean per hour?
The DQX6 features a 660 mm cleaning width and a rated cleaning efficiency of up to 3,800 m²/h.

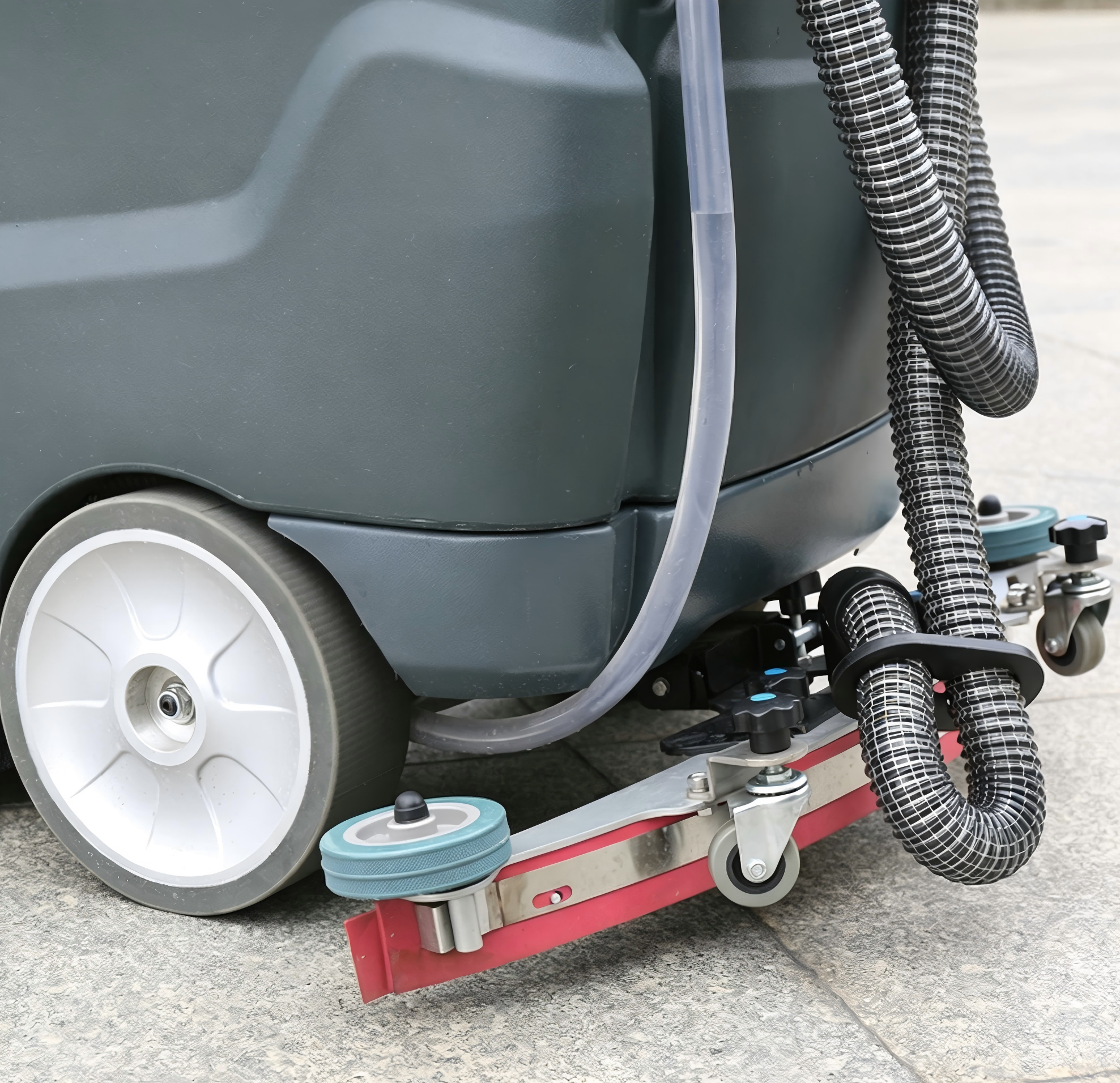

Its dual-disc brush system provides a cleaning width of 660 mm, while the 820 mm squeegee helps collect wastewater after scrubbing.
Key specifications:
Cleaning efficiency: 3,800 m²/h
Cleaning width: 660 mm

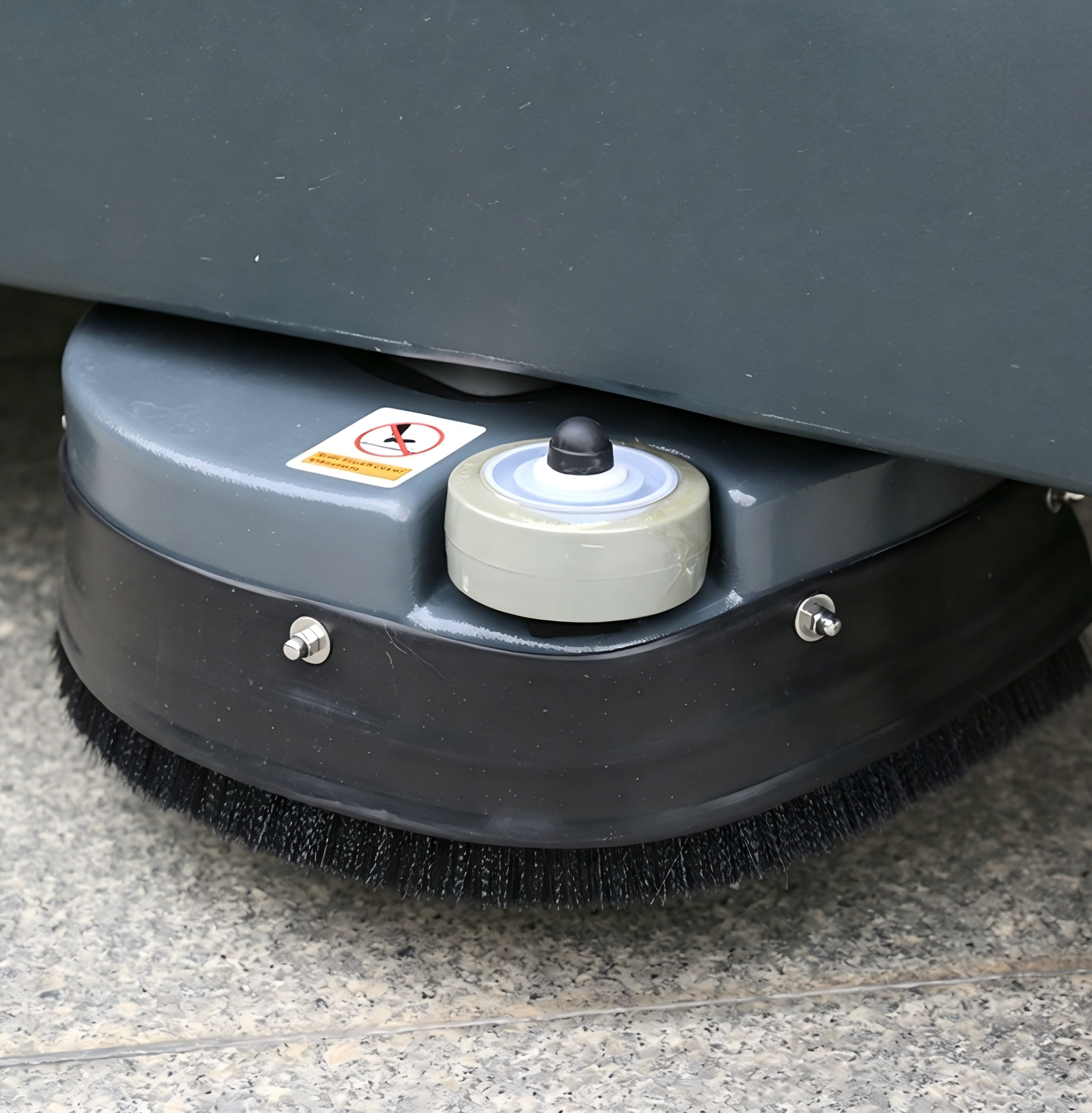

Brush configuration: Double disc brush
Brush pressure: 35 kg
Maximum forward speed: 5.6 km/h
Actual cleaning productivity may vary depending on floor conditions, obstacles, turning, and water management.
3. How much water can the DQX6 hold, and how often does it need refilling?
The DQX6 is equipped with a 70-liter clean water tank and a 75-liter recovery tank, helping reduce interruptions during cleaning operations.
Clean water tank: 70 L
Recovery tank: 75 L
Squeegee width: 820 mm
The large-capacity tanks are designed to support continuous cleaning in facilities such as warehouses, factories, supermarkets, shopping centers, and other large indoor areas.
