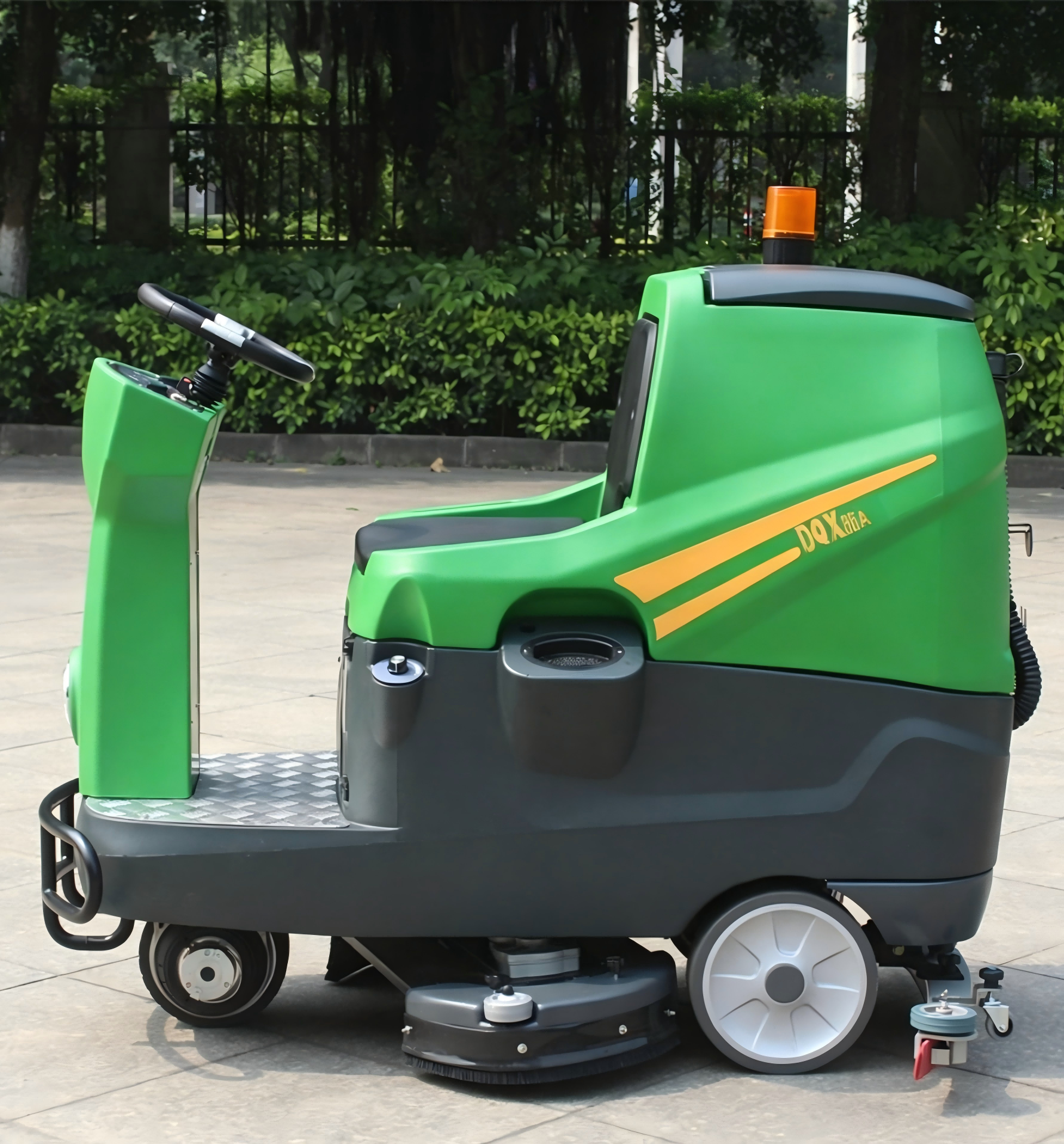

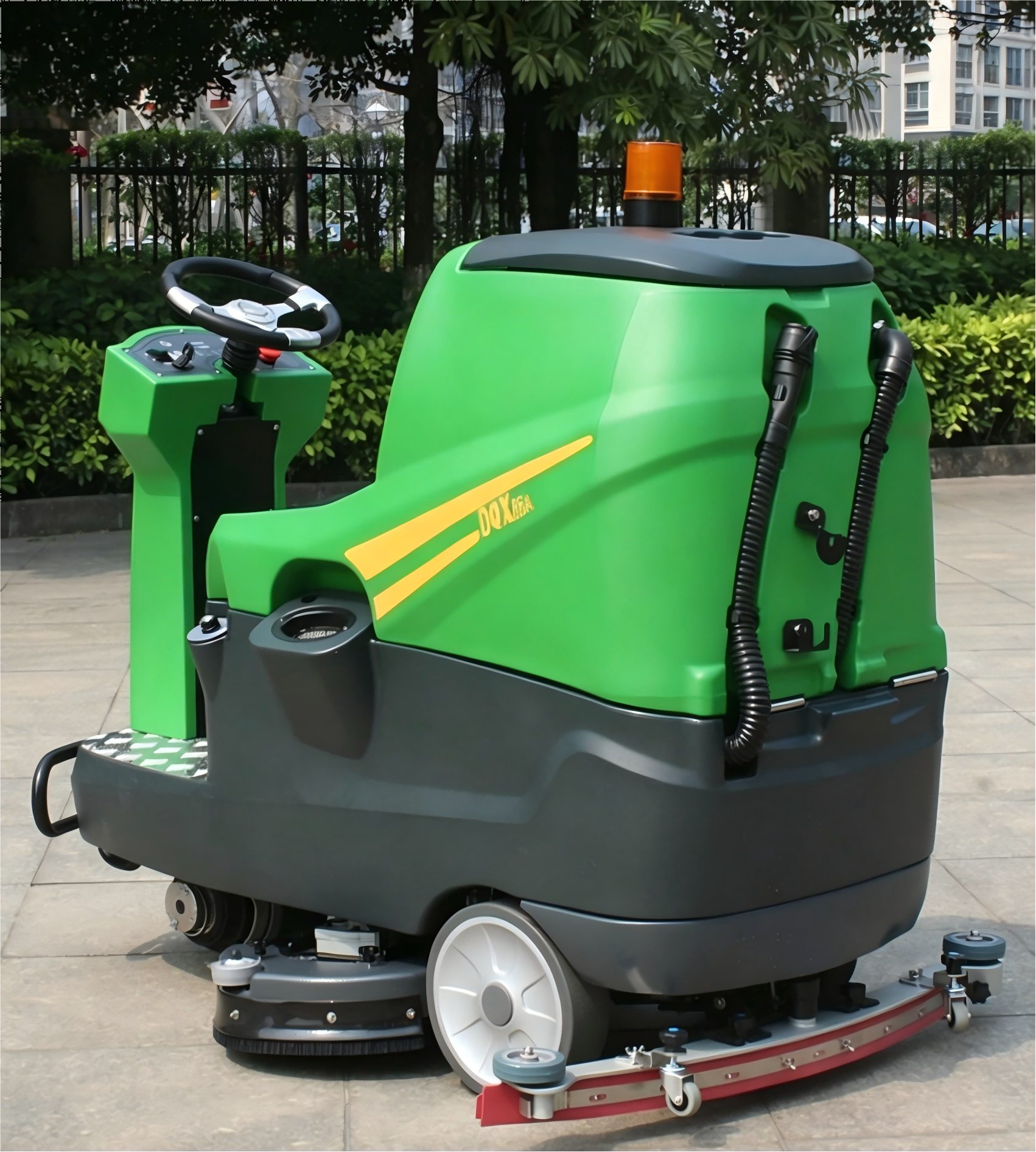

The DQX86A is a medium-sized front-wheel-drive electric ride-on floor scrubber independently developed by Marshell, engineered for integrated washing, scrubbing and sewage recovery for medium-to-large indoor hard floor areas. Powered by a 24V battery system, this all-in-one cleaning machine delivers stable, low-noise and high-efficiency daily floor maintenance for industrial, commercial and public facility scenarios.
| Model | Unit | DQX86A(Front Drlve) | DQX86B(Rear Dive) |
| Boundary dimension(LxHxW) | mm | 1600×950×1375 | 1600×950×1375 |
| Packaging dimension(LxHxW) | mm | 1730×1020×1420 | 1730×1020×1420 |
| Cleaning width | m²/h | 860 | 860 |
| Cleaning efficiency | mm | 5000 | 5000 |
| Weight (with battery) | kg | 370 | 370 |
| Power | W | 2600 | 2600 |
| Drive axle power | W | 900 | 900 |
| Brush disc motor power | W | 2×550 | 2×550 |
| Suction motor power | W | 550 | 550 |
| Working voltage | V | 24 | 24 |
| Running speed | km/h | 5.6 | 5.6 |
| Backward speed | km/h | 3.5 | 3.5 |
| Clean water tank capacity | L | 130 | 130 |
| Sewage tank capacity | L | 150 | 150 |
| Suction scraper width | mm | 1120 | 1120 |
| Noise | dB | 65 | 65 |
| Brush pressure | kg | 44 | 44 |
| Working time | H | ≈5 | ≈5 |
| Climbing ability(no load) | % | ≤17 | ≤20 |
| Minimum turning radius | mm | 850 | 1400 |
| Lead-acid battery | 24V/225Ah | 24V/225Ah | |
| Charging time | H | 8-10 | 8-10 |
| Lithium battery(optional) | 25.6V/200Ah | 25.6V/200Ah |
A:5-hour single-charge runtime, 5,000 ㎡/h efficiency; 130L clean /150L sewage dual large tanks for all-day continuous cleaning.

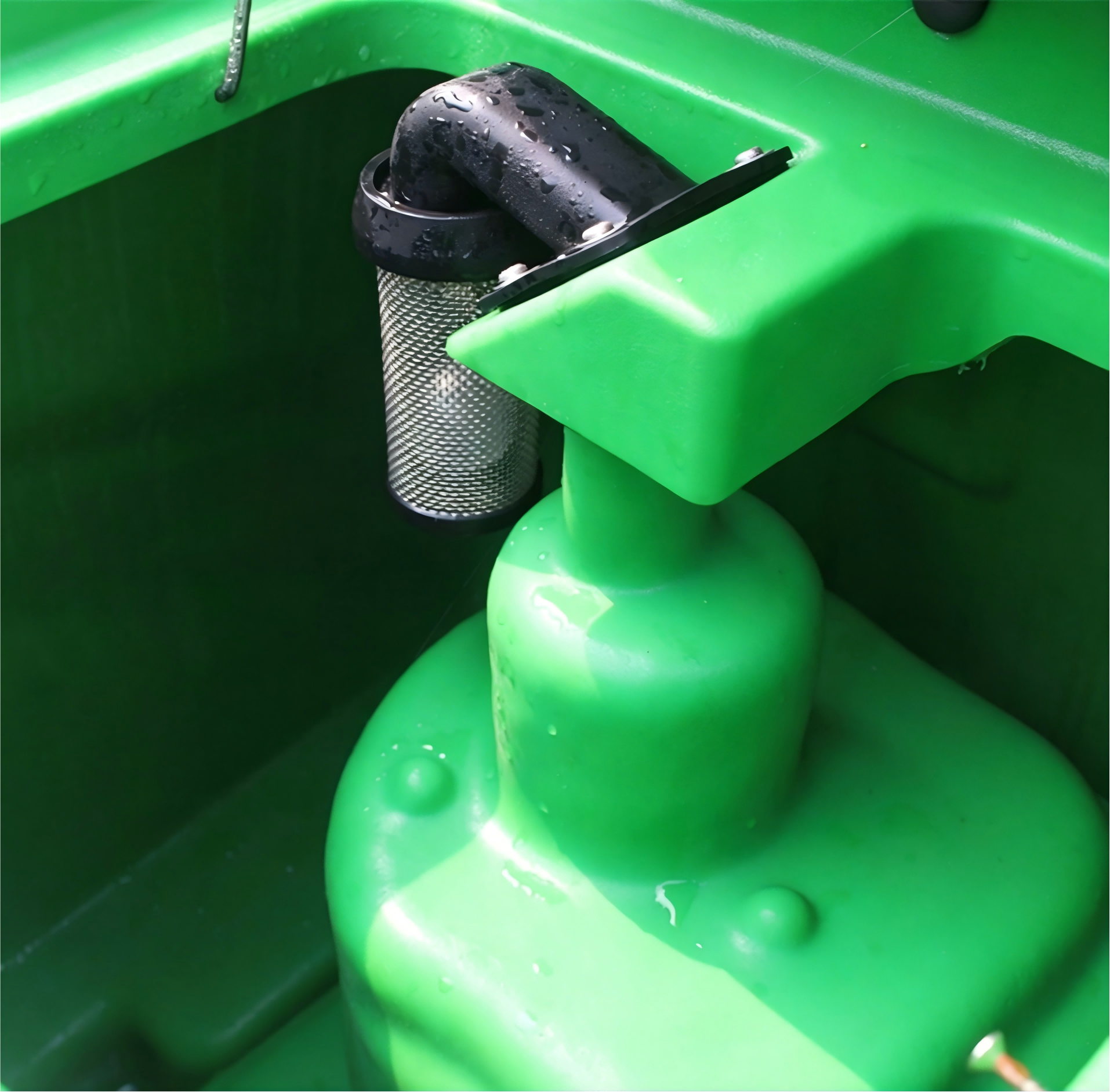

A:Works on epoxy, cement, marble, PVC & tile floors; one-button simple operation, quick tank & filter rinsing for daily upkeep.

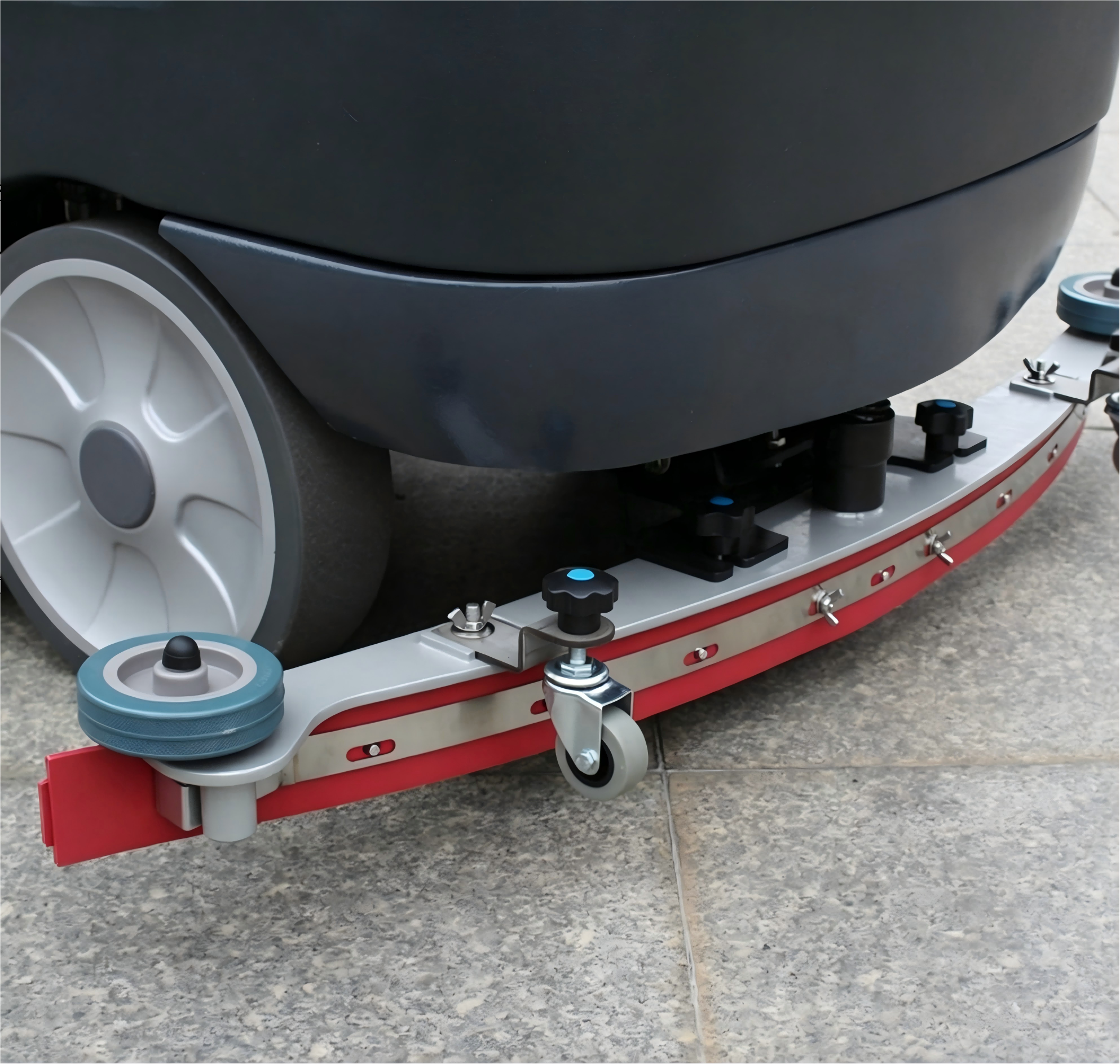

A:850mm tight turning radius + 17% climbing capacity; auto squeegee/brush lift avoids abrasion, low noise for public facilities.
