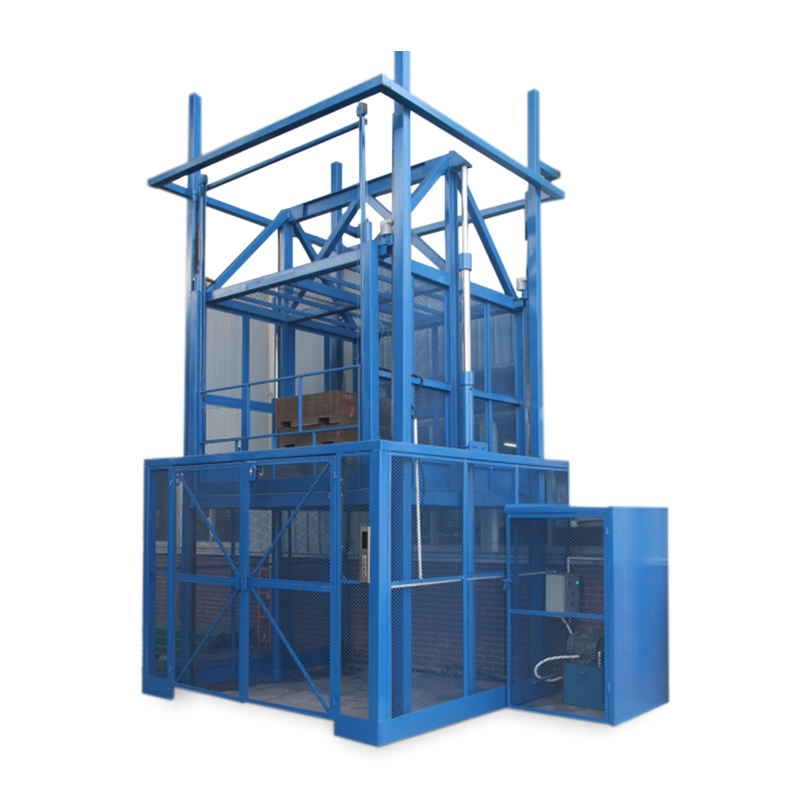

SJD STRAIGHT TOP-HEAVY LIFTINGWORK PLATFORM

Rated Loading Capacity:
2000kg
5000kg
Lifting Height:
3000mm
3500mm
5000mm
6000mm
8000mm
9000mm
10000mm
11000mm
12000mm
14000mm
16000mm
Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Model Rated
Load(kg)		 Lifting Height
(mm)		 Cylinder
Type		 Platform
Size(mm)		 Carriage
Height(mm)		 Lifting Speed
(m/min)		 Motor
Power(kw)
SJD2-3 2000  3000  One Stage 2000×2000 2000  6  3.7
SJD2-3.5 2000  3500  One Stage 2000×2000 2000  6.5  3.7
SJD2-3.5 2000  3500  Two Stage 2000×2000 2000  6.5  3.7
SJD2-5 2000  5000  Two Stage 2000×2000 2000  6.5  5.5
SJD2-6 2000  6000  Two Stage 2000×2000 2000  6.5  5.5
SJD5-5 5000  5000  Two Stage 2000×2000 2000  6  7.5
SJD5-6 5000  6000  Two Stage 2000×2000 2000  6  7.5
SJD2-8 2000  8000  Two Stage 2000×2000 2000  6.5  5.5
SJD5-8 5000  8000  Two Stage 2000×2000 2000  6  7.5
SJD2-9 2000  9000  Two Stage 2000×2000 2000  6.5  5.5
SJD5-9 5000  9000  Two Stage 2000×2000 2000  6  7.5
SJD2-10 2000  10000  Two Stage 2000×2000 2000  6.5  5.5
SJD2-11 2000  11000  Three Stage 2000×2000 2000  7  5.5
SJD2-12 2000  12000  Three Stage 2000×2000 2000  7  5.5
SJD2-14 2000  14000  Three Stage 2000×2000 2000  7  7.5
SJD2-16 2000  16000  Four Stage 2000×2000 2000  7.5  11
